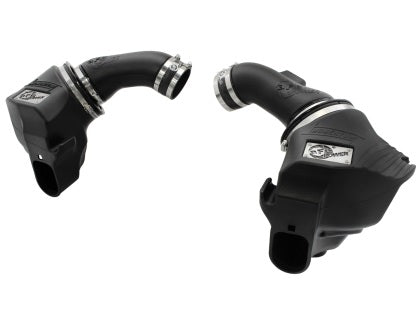

aFe Momentum Pro Dry S Stage 2 Intake 51-76301 – BMW M5 (F10)

OVERVIEW

aFe Power's Momentum Stage 2 Si sealed intake system is built for the S63 twin-turbo 4.4L V8 in the F10 M5 and its M6 siblings. On aFe's dyno the system produced up to 28 horsepower and 31 lbs. x ft. of torque, and it outflows the factory intake by 29%.

The kit uses twin black roto-molded sealed airboxes that keep warm engine air out of the intake tract while cleaning up the look of the engine bay. Each housing uses aFe's patent-pending filter-to-housing interface, which allows the largest practical filter to be fitted while keeping installation simple. Air is drawn from the factory air inlet plus a secondary auxiliary air port.

This version is supplied with dual 6-1/2" tall conical Pro DRY S filters. The three-layer progressive synthetic media requires no oil and cleans with soap and water for maximum convenience. CAD-designed intake tubes are engineered to release all available horsepower while fitting precisely, and reinforced silicone couplings join the tubes for strength and durability. The kit comes complete with all necessary hardware.

SPECS

• Maximum gains: up to +28 HP and +31 lbs. x ft. torque
• Outflows the factory intake by 29%
• Filters: dual 6-1/2" tall conical Pro DRY S, oil-free
• Filter media: three-layer progressive synthetic, cleans with soap and water, reusable
• Housings: twin black roto-molded sealed airboxes
• Patent-pending filter-to-housing interface
• Intake tubes: CAD-designed, one per bank
• Reinforced silicone couplings
• Draws from the factory air inlet plus a secondary auxiliary air port
• Not legal for street use; not CARB exempt

PARTS INCLUDED

• Pro DRY S air filter (21-91073) — 2
• Housing, driver side (05-76301B3) — 1
• Housing, passenger side (05-76301B4) — 1
• Intake tube, driver side (05-76301B1) — 1
• Intake tube, passenger side (05-76301B2) — 1
• Coupling, 3-1/2" (05-01280) — 2
• Clamp, 056 (3-1/16"–4") (03-50009) — 4
• Clamp, 096 (4-1/2"–6-1/2") (03-50003) — 2
• Screw, cheese head M4 (03-50221) — 4

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this intake — the kit ships complete with all necessary hardware.
• Installer supplies basic hand tools: metric sockets and wrenches, Torx drivers, a flat screwdriver and a trim tool for the engine cover clips.
• Optional service item: aFe Pro DRY S filter cleaning kit (water-based, no oil) for periodic filter maintenance.

Installation

• aFe Power 51-76301 / 54-76301 / 52-76301 Momentum Stage 2 Si intake — installation instructions (PDF)

Notes

• Note: This system is not legal for street use and cannot be installed in a California registered vehicle, nor can this system be sold legally in California.
• Year ranges above follow aFe Power's official installation instructions, which cover a wider span than the 2012–2014 range shown in the product title. Confirm fitment with Speed Logic if your car is a borderline model year.

PART NUMBER

• 51-76301 — Momentum Stage 2 Si intake with Pro DRY S oil-free filters (this listing)
• 54-76301 — same kit supplied with Pro 5R oiled filters
• 52-76301 — sibling number listed on aFe's instruction sheet for this platform
