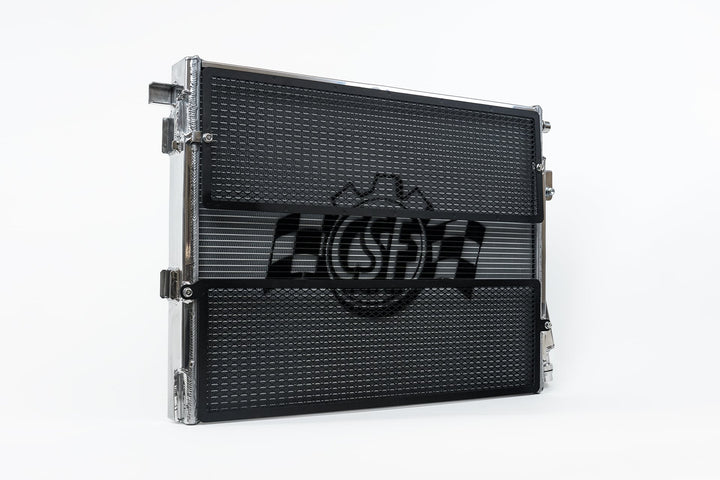

CSF High-Performance Front-Mount Heat Exchanger – BMW M3 / M4 (G8x) #8215

OVERVIEW

The CSF #8215 High-Performance Front Mount Heat Exchanger replaces the factory front-mount heat exchanger on the G8X M2, M3 and M4. It significantly reduces intake air temperatures (IATs) for maximum performance with much faster heat-soak recovery, and improves air flow to the rest of the cooling system for lower engine coolant and engine oil temperatures.

The core is a 2-row, 42mm ultra-high-performance design — the OEM part is single-row — built with CSF's exclusive B-Tube technology and an ultra-efficient multi-louvered fin. Construction is 100% all-aluminum TIG-welded with all-aluminum tanks in place of the factory plastic, and the unit uses CNC-machined mounting brackets and OEM-style "quick connect" inlet and outlet connections. A 1-hour hand-polished mirror finish completes the part.

Black rock guards are included, along with a transmission cooler mounting kit: manual transmission cars receive upper and lower rock guards, while ZF8 automatic cars receive the upper rock guard plus the transmission cooler mounting kit. Installation is true plug-and-play and requires absolutely no modifications. The design has been tested and proven by CSF's global network of R&D partners, including leading time attack teams, tuners and turbo kit manufacturers.

SPECS

• 2-row, 42mm ultra-high-performance core (OEM: 1-row)
• 5mm tall ultra-efficient multi-louvered "Track-Spec" fin (current CSF specification)
• Cooling tubes use CSF's exclusive B-Tube technology
• 100% all-aluminum TIG-welded construction with all-aluminum tanks (OEM: plastic)
• CNC-machined mounting brackets
• OEM-style "quick connect" inlet and outlet
• 1-hour "mirror finish" hand polish
• Includes black upper and lower rock guards and transmission cooler mounting kit
• True plug-and-play "drop-in fit" — requires absolutely no modifications
• OEM cross-reference: BMW 17-11-8-095-283
• 2-year limited warranty

PARTS INCLUDED

• CSF #8215 high-performance front mount heat exchanger
• Black rock guards — upper and lower for manual transmission cars
• Upper rock guard and transmission cooler mounting kit for ZF8 automatic cars
• CNC-machined mounting brackets and OEM-style quick-connect fittings

TECH RESOURCES

Additional Parts Required

• None. CSF specifies no additional hardware for this part — #8215 is a true plug-and-play replacement that mounts in the OEM location and reuses the factory quick-connect lines.
• Coolant for topping off the low-temperature circuit after installation (installer supplied).

Installation

• CSF does not publish a downloadable installation PDF for this part. Printed installation instructions and the rock guard/transmission cooler mounting hardware are supplied in the box.
• Installation requires absolutely no cutting, trimming or modification to the vehicle.

Notes

• Year ranges follow CSF's current published application table for #8215, which lists the G87 M2 from 2023 (the previous store copy said 2022+) and the G80/G81 M3 from 2021. Both 6MT and ZF8 automatic cars are covered. CSF's current specification lists a 5mm fin height; earlier CSF literature quoted 6.5mm. The G81 M3 Touring is not sold in North America. Confirm fitment for your specific chassis with Speed Logic before ordering.

PART NUMBER

• 8215 — CSF BMW G8X M3/M4 High-Performance Front Mount Heat Exchanger

VEHICLE APPLICATIONS
