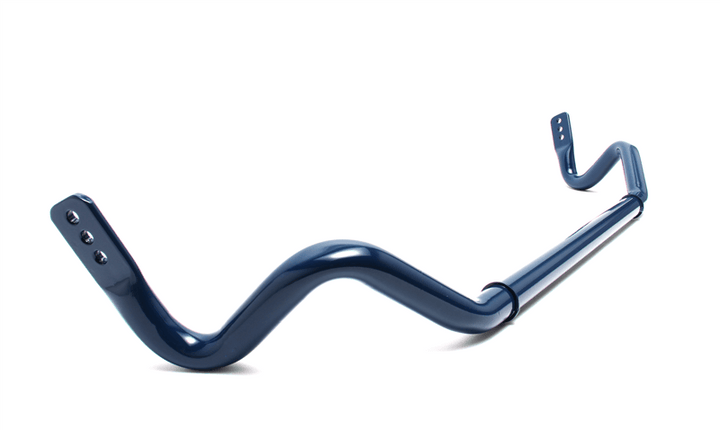

Dinan Lightweight Tubular Anti-Roll Bar – BMW 1M / M3 (E82/E90/E92/E93)

OVERVIEW

Almost all street cars leave the factory with anti-roll bars, but they are tuned soft for maximum comfort. An anti-roll bar reduces body roll, and every Dinan bar is built and tuned for a specific BMW chassis. Keeping the car flatter than stock — while still allowing just enough roll — improves mechanical grip and gives the driver a far more planted, confident feeling in every corner.

This Lightweight Tubular Adjustable Front Anti-Roll Bar reduces body roll and saves weight at the same time: it is 42% lighter than a solid bar of comparable stiffness and adjusts from 50% to 90% stiffer than the stock bar. The three-hole bar can be mounted in five different positions, and the supplied end links use left- and right-hand threads for easy length adjustment. It may be added to the Dinan Stage 1 Suspension System for owners building a high-performance suspension in phases.

SPECS

• 32mm tubular front anti-roll bar
• Adjustable from 50% to 90% stiffer than stock
• 3-hole bar with 5 possible mounting positions
• Supplied end links are left- and right-hand threaded for length adjustment
• Tubular (hollow) construction — 42% lighter than a solid bar of comparable stiffness
• Weight: 17.2 lbs
• May be added to the Dinan Stage 1 Suspension System
• Dinan warranty: if the vehicle is still covered by the BMW new-car limited warranty, the part is warranted for the remainder of that coverage, limited to 4 years / 50,000 miles; otherwise 2 years, unlimited mileage from the date of original purchase. Wear items, maintenance parts and fluids are excluded.

PARTS INCLUDED

• 1x Anti-roll bar (D122-0520)
• 1x Hardware kit (D133-0520A), containing:
• 2x Hex nut with flange (33 30 6 760 587)
• 1x Urethane packet (D131-0001)
• 2x 1-1/4" sway bar bushing (D131-0007)
• 2x Bushing bracket (D131-0008)
• 2x End link assembly (D131-0026)
• 2x M10 Nyloc nut

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part — bushings, brackets, end links and fasteners are all supplied.
• Customer-supplied tools and a vehicle lift or jack stands are required.

Installation

• Dinan D120-0520 Adjustable Anti-Roll Bar — installation instructions INS133-0520A (PDF)

Notes

• Applications taken from Dinan’s installation instructions, which list “2008-13 M3 (E90, E92, & E93)” and “2011 1-M Coupe (E82)”.

PART NUMBER

• D120-0520
