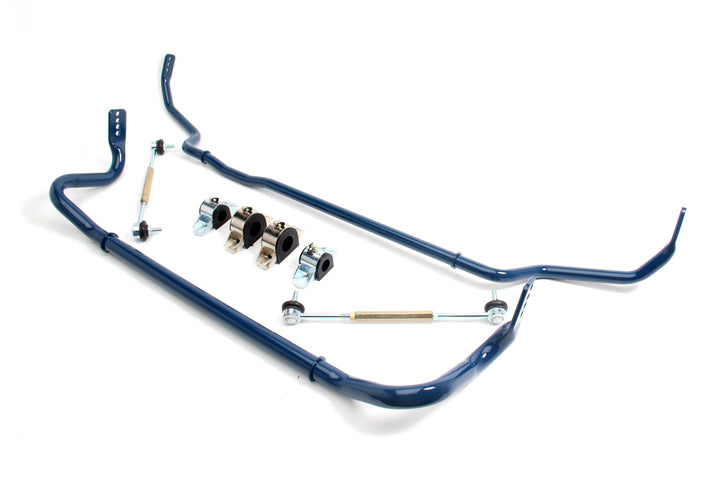

Dinan Lightweight Tubular Anti-Roll Bar Set – BMW M2 / M3 / M4 (F8x)

OVERVIEW

Nearly every modern street car leaves the factory with anti-roll bars, but they are tuned soft in the interest of ride comfort. Dinan builds and tunes each of its anti-roll bars specifically for the BMW chassis it is fitted to, cutting body roll so the car stays flatter through a corner while still allowing just enough roll to load the tires — for more mechanical grip and a more planted, confident feel at the limit.

The 32mm tubular front bar is adjustable from 57% to 103% stiffer than the stock 24.7mm bar across seven mounting positions, while the 24mm tubular rear bar is adjustable from 0% to 13% stiffer than the stock 22.9mm bar across three positions using the factory end links. Both bars use hollow tubular construction, delivering the larger diameter and higher rate without the weight penalty of a solid bar.

SPECS

• Front bar: 32mm tubular (stock bar is 24.7mm)
• Rear bar: 24mm tubular (stock bar is 22.9mm)
• Front adjustment range: 57% to 103% stiffer than stock
• Rear adjustment range: 0% to 13% stiffer than stock
• Front bar has 4 holes with 7 possible mounting positions using the supplied adjustable end links
• Rear bar has 3 holes with 3 possible mounting positions and uses the stock BMW end links
• Tubular (hollow) construction for reduced weight
• Emissions: legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
• Dinan limited warranty: if the vehicle is still covered by the BMW new-car warranty, the part carries the remainder of that warranty up to 4 years / 50,000 miles; otherwise 2 years, unlimited mileage. Wear items are excluded.

PARTS INCLUDED

• (1) Front adjustable anti-roll bar, 32mm — D122-0600
• (1) Front hardware kit with adjustable end links — D133-0600
• (1) Rear adjustable anti-roll bar, 24mm — D122-0610
• (1) Rear hardware kit — D133-0610

TECH RESOURCES

Additional Parts Required

• None. Dinan specifies no additional hardware for this part — the front bar ships with adjustable end links and the rear bar reuses the factory BMW end links.
• A four-wheel alignment check after installation is recommended good practice.

Installation

• Dinan D120-0605 Anti-Roll Bar Set — Front and Rear Installation Instructions (INS133-0600A / INS133-0610, Rev. 12/10/18) (PDF)

Notes

• Years shown follow Dinan's official application list in the installation instructions for this part number. Please confirm fitment with Speed Logic before ordering.

PART NUMBER

• D120-0605 — front and rear anti-roll bar set
• D120-0600 — front bar assembly (component of the set)
• D120-0610 — rear bar assembly (component of the set)
