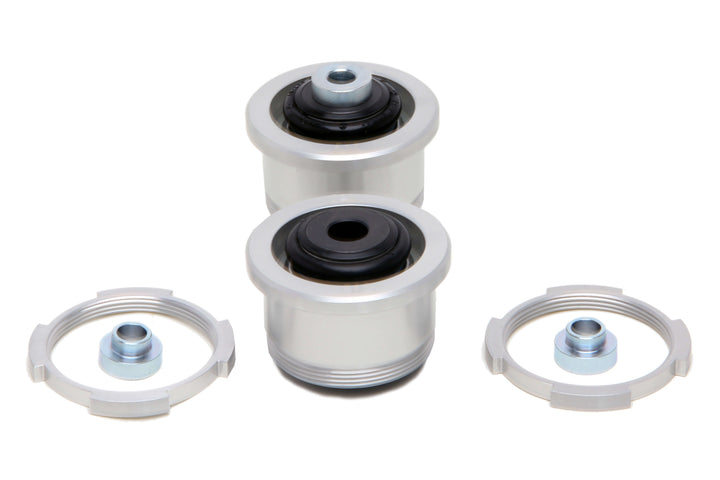

Dinan Tension Strut Ball Joint Kit – BMW M2 / M3 / M4 (F8x)

OVERVIEW

The Dinan Tension Strut Ball Joint Kit gives the F8x M3/M4 and F87 M2 responsiveness you can feel. It replaces the rubber bushings in the front thrust arms with precision ball joints carried in machined aluminum housings, eliminating the deflection built into the stock bushings and reducing brake shimmy at the same time.

Road feel usually comes at the cost of noise. These are among the quietest bearings on the market — virtually noise-free, so the car stays livable every day — and they are sealed with a rubber boot that keeps dirt and road grime out and stops them wearing out prematurely.

SPECS

• Replaces the front thrust arm (tension strut) rubber bushings with precision ball joints
• Machined aluminum ball joint housings
• Nylon-lined bearings for quiet operation
• Sealed with a rubber boot against dirt and road grime
• Improves steering responsiveness and reduces brake shimmy
• Shipping weight: 5 lbs
• Dinan published labor time: 2 hours
• Retaining cap torque: 110 ft-lbs, using the supplied Dinan cap tool; monoball bolts are angle-torqued per BMW specification
• Dinan warranty: on a vehicle still covered by the BMW new-car warranty, the remainder of that warranty (typically 4 years/50,000 miles); otherwise 2 years, unlimited mileage. Wear items, maintenance services and fluids are excluded.

PARTS INCLUDED

• 2 × D283-0027 ball joint / holder assembly (F80/F82)
• 2 × D282-0042 retaining cap
• 4 × D282-0045 spacer
• 1 × D282-0044 cap tool
• 1 × D281-0003 Loctite 609 retaining compound

TECH RESOURCES

Additional Parts Required

• None. Dinan supplies the ball joint assemblies, caps, spacers, the cap tool and the Loctite 609 needed to complete the job.
• Torque wrench capable of 110 ft-lbs, an angle gauge for the BMW angle-torque specification, and secure jack stands. Installer-supplied.
• Optional: have the front alignment checked once the thrust arms are back on the car.

Installation

• Dinan D280-0017 Tension Strut Ball Joint Kit installation instructions (PDF) — INS280-0017 Rev. 12/10/18: bill of materials, bushing removal, bore preparation, cap tool use and torque specifications.

Notes

• Years shown are the applications listed in Dinan's installation instructions for this kit; Dinan's catalog lists the part through the 2021 model year. Dinan publishes no emissions statement specific to this part number. Confirm fitment for your car with Speed Logic before ordering.

PART NUMBER

• D280-0017 — Dinan Tension Strut Ball Joint Kit, F8x M3/M4 and F87 M2
