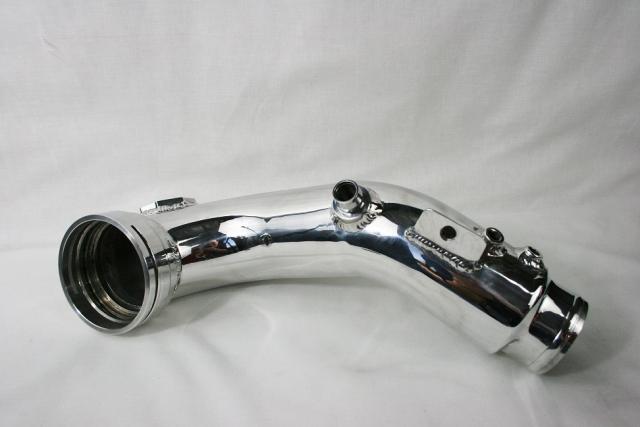

Evolution Racewerks Charge Pipe – BMW 535i (F10 / F12 / F13, N55)

OVERVIEW

The Evolution Racewerks Charge Pipe Kit replaces the factory soft plastic charge pipe on the 2011 and later 535i, 640i and F15/F16 X5 and X6 with the N55 single turbo engine. Turn the boost up with a tune and the stock plastic pipe is prone to breaking apart; this one is made entirely from high grade 6061 aluminum and is backed by a Limited Lifetime Warranty.

Charged intake airflow characteristics have a direct effect on throttle response, turbo lag and maximum power potential, and smooth bends with minimal obstructions are what matter. Evolution Racewerks uses mandrel bent 6061 tubing for smooth transitions, and the upper pipe steps up to 3" to match the factory throttle body where the factory pipe is only 2.5", ensuring maximum flow without obstruction.

Evolution Racewerks was the first manufacturer to duplicate the factory throttle body flange on an N54 charge pipe and brings the same design to the N55 pipe. The factory pipe connects to the throttle body with an o-ring inside the flange locked in place by a c-clip, which seals well and makes removal and installation quick. In testing this connection was pressure tested to 25 PSI with no sign of the flange failing — testing stopped there only because a turbo intake pipe blew off. BMW uses the same style of connection in the coolant radiator and clutch systems.

SPECS

• Lightweight high grade 6061 aluminum, mandrel bent piping
• Throttle body matched 3" piping, where the factory charge pipe is 2.5"
• Retains the factory style o-ring throttle body lock flange
• Precision CNC machined throttle body flange for a leak free connection and quick removal and installation
• Precision CNC machined MAP sensor flange for a leak free connection
• Beaded ends with T-bolt clamps so the intercooler piping cannot blow off under boost
• Two 1/8" NPT bungs for methanol or nitrous injectors
• Pressure tested to 25 PSI in Evolution Racewerks testing
• Compatible with the factory electronic diverter valve
• Finishes: brush, mirror polish, or Type III hard black anodizing for a stealth OEM look; hard anodizing also hardens the aluminum against denting
• Made in the USA, manufactured in house
• Warranty: Evolution Racewerks Limited Lifetime Warranty.

PARTS INCLUDED

• Charge pipe
• Silicone hump hose
• T-bolt clamps
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for this part.

Installation

• Evolution Racewerks does not publish a downloadable installation guide for this part. Contact Evolution Racewerks technical support or Speed Logic for fitting guidance.

Notes

• Finish options change the suffix on the base part number. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• BM-ICP009SA — Charge Pipe Kit for 2011–16 535i/640i and 2013–19 X5/X6 N55 engine
• Finish variants stocked by Speed Logic: BM-ICP009-B (brush), BM-ICP009-P (polish), BM-ICP009-ABLK (Type III hard black anodized)
