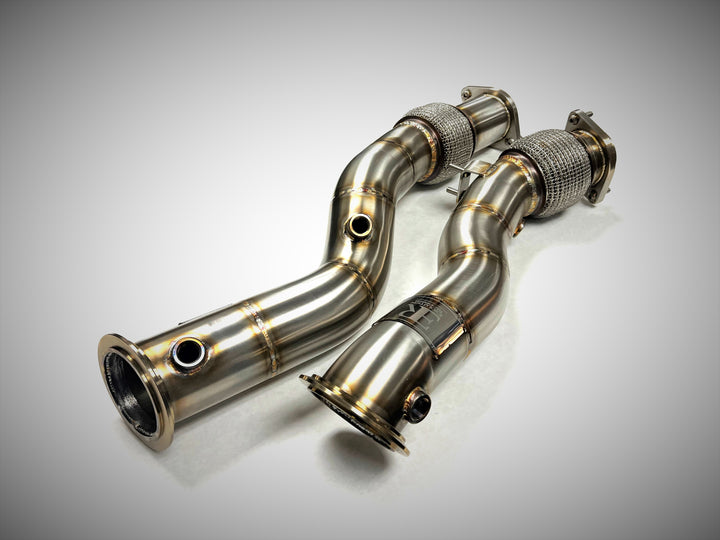

Evolution Racewerks Competition Catless Downpipes – BMW X3M / X4M (F97 / F98, S58)

OVERVIEW

Evolution Racewerks Competition Series Catless Downpipes are built for the BMW S58 twin-turbo engine and fit the 2020 and newer X3M and X4M. They are constructed from 100% 304 grade stainless steel with mandrel bent 3" piping, TIG welded in house and built in the USA. The factory turbine housing uses a 3.5" V-band flange, which Evolution Racewerks duplicated and CNC machined from billet 304 stainless steel, and the O2 sensor bungs and laser cut brackets are TIG welded with stainless rod. The O2 sensors stay in the factory locations and the factory donut flange design is retained, so the set is fully bolt on.

Exhaust restriction costs horsepower and torque on a turbocharged engine, and the factory catalytic converter is the biggest offender. Its honeycomb catalyst forces exhaust gas through a fine weave and creates turbulence downstream that slows flow further. Replacing the factory catalyzed downpipes with the Competition Series catless units raises the peak power curve, brings torque in earlier and holds it longer, and sharpens throttle response and turbo spool.

The downpipes are designed to fit the factory exhaust or an aftermarket system with no compatibility issues. They ship with a brushed finish by default.

SPECS

• Mandrel bent 3" piping for a smooth transition into the exhaust system
• 100% 304 grade stainless steel construction
• 100% TIG welded, built in the USA by in-house fabricators
• 3.5" turbocharger V-band flange, CNC machined from billet 304 stainless steel
• O2 sensors retained in the factory positions; factory donut flange design retained
• 100% bolt on, no modification of factory components required
• Finish: brushed as standard, mirror polish optional
• Optional black ceramic thermal coating rated to 2000°F, available in black only, for lower underhood temperatures, higher exhaust gas velocity and added corrosion resistance
• Compatible with the factory or aftermarket exhaust systems
• Ease of installation: 3 on Evolution Racewerks' 1 (easy) to 5 (hard) scale
• Track tested durability
• Limited Lifetime Warranty

PARTS INCLUDED

• Competition Series catless downpipes
• All hardware required for complete installation

TECH RESOURCES

Additional Parts Required

• None. Evolution Racewerks specifies no additional hardware for these downpipes; the set is 100% bolt on and all installation hardware is supplied.
• Optional companion part: Evolution Racewerks Competition Series Mid Pipes F97 / F98 X3M & X4M S58.
• Installer supplies normal hand tools, a vehicle lift or stands, and penetrating oil for the factory exhaust fasteners.

Installation

• Evolution Racewerks does not publish a downloadable installation guide or parts checklist for these downpipes. Installation is rated 3 out of 5 for difficulty and follows the factory downpipe removal procedure.
• Contact Speed Logic if you need installation support or a recommended installer.

PART NUMBER

• BM-EXH025 — Competition Series catless downpipes, brushed finish
• BM-EXH025-Pol — polished finish
• BM-EXH025-Blk — black ceramic thermal coating
