OVERVIEW

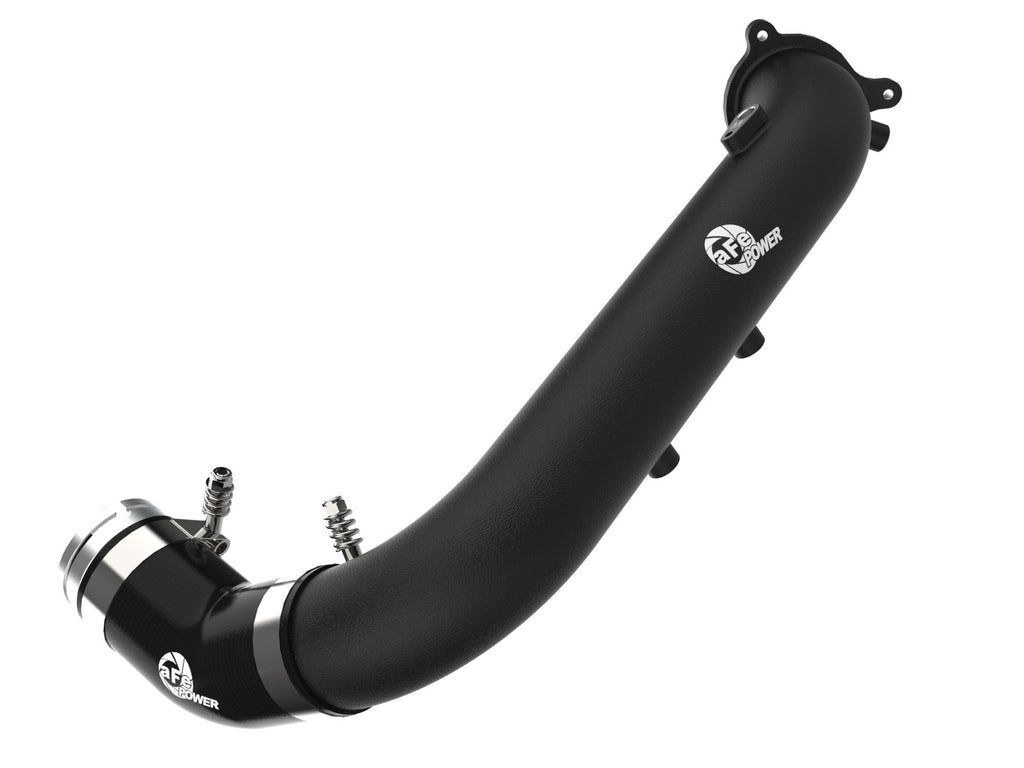

The aFe BladeRunner hot-side charge pipe for the four-cylinder A90 GR Supra 2.0 replaces the factory tube with 2-3/4 inch TIG-welded aluminum, outflowing the stock piece by about 11 percent. It retains a factory-style quick-connect adapter with an O-ring seal and adds 1/8 inch NPT sensor ports.
SPECS
- 2-3/4" TIG-welded aluminum
- Hot-side (turbo-to-intercooler) charge pipe
- ~11% more outflow than the factory charge pipe
- Factory-style quick-connect adapter with O-ring
- 1/8" NPT sensor ports
PARTS INCLUDED
- Aluminum hot-side charge pipe
- Quick-connect adapter
- 5-ply silicone couplings and stainless T-bolt clamps
TECH RESOURCES
Additional Parts Required
- None. aFe specifies no additional hardware for this charge pipe.
Installation
Notes
- Finish is selected at the variant level.
- Fits the 2.0L (B48) GR Supra only.
- Not CARB-exempt — not legal for sale or use on pollution-controlled vehicles in California.
PART NUMBER
- 46-20488-B — Black
- 46-20488-R — Red
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| Toyota | GR Supra 2.0 | A90 | B48 2.0L Turbo I4 | 2021–2022 |
