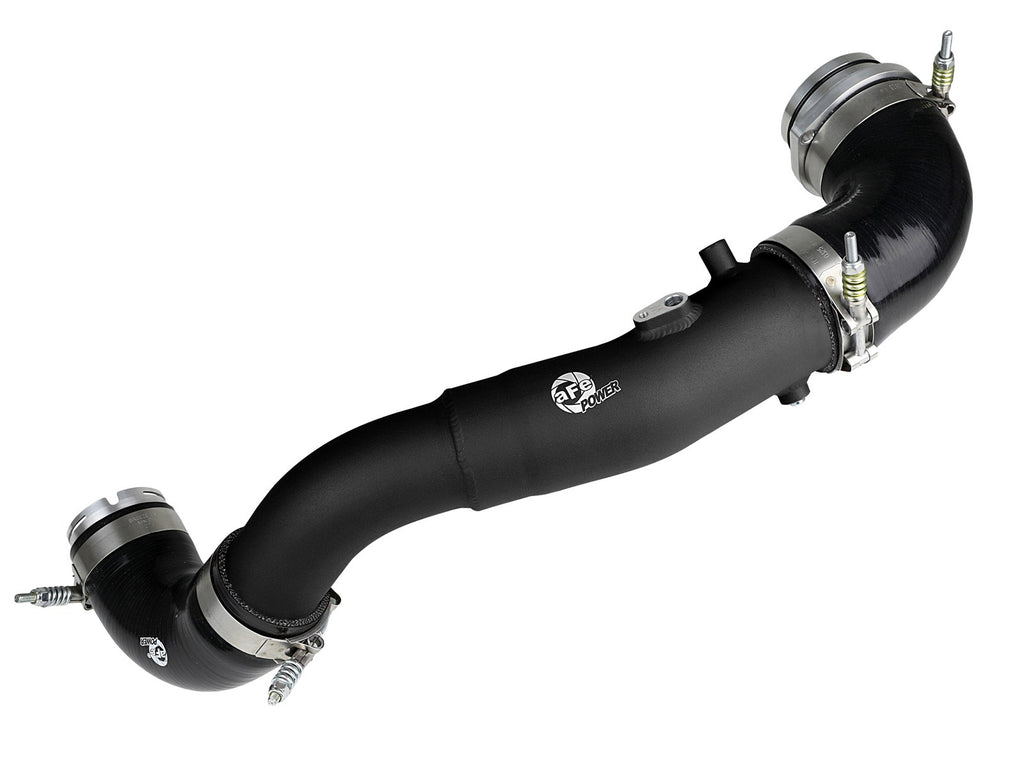

aFe BladeRunner Hot-Side Charge Pipe – Toyota GR Supra (A90, B58 3.0L)

OVERVIEW

The aFe BladeRunner hot-side charge pipe replaces the factory tube between the turbo and intercooler on the A90 GR Supra 3.0 with 2-1/2 inch to 3 inch TIG-welded aluminum, outflowing the stock piece by up to about 40 percent. It uses a factory-style quick-connect adapter with an O-ring seal and adds a 1/8 inch NPT port for a sensor or water/methanol nozzle.

SPECS

• 2-1/2" to 3" TIG-welded aluminum, wrinkle powder-coat finish
• Hot-side (turbo-to-intercooler) charge pipe
• Outflows the factory tube up to ~40%
• Factory-style quick-connect adapter with O-ring
• 1/8" NPT port for sensor or water/methanol

PARTS INCLUDED

• Aluminum hot-side charge pipe
• Quick-connect adapter
• 5-ply silicone couplings and stainless T-bolt clamps

TECH RESOURCES

Additional Parts Required

• None. aFe specifies no additional hardware for this charge pipe.

Installation

• aFe 46-20398 charge pipe installation instructions (PDF)

Notes

• Finish is selected at the variant level.
• Not CARB-exempt — not legal for sale or use on pollution-controlled vehicles in California.

PART NUMBER

• 46-20398-B — Black
• 46-20398-R — Red
