aFe Bladerunner Intercooler Upgrade (W/Charge Pipe) 46-20152-B, 2007-2010 BMW 335i (N54)

Note: This intercooler kit is not CARB exempt at this time and is not legal for sale in California or for use on vehicles registered with the California Department of Motor Vehicles.

OVERVIEW

The aFe POWER BladeRunner intercooler represents the next generation of intercoolers for the N54 335i. Designed specifically for the 2007-2010 BMW 335i (E9X) with the L6-3.0L twin-turbo N54 engine, it uses a 5" bar-and-plate core that outflows the factory tube-and-fin design while 3/16" TIG-welded end tanks provide superior strength and durability. In aFe's testing the kit produced gains of up to +13 horsepower and +11 lbs. x ft. of torque and dropped intake air temperature by up to 12 degrees without any tuning.

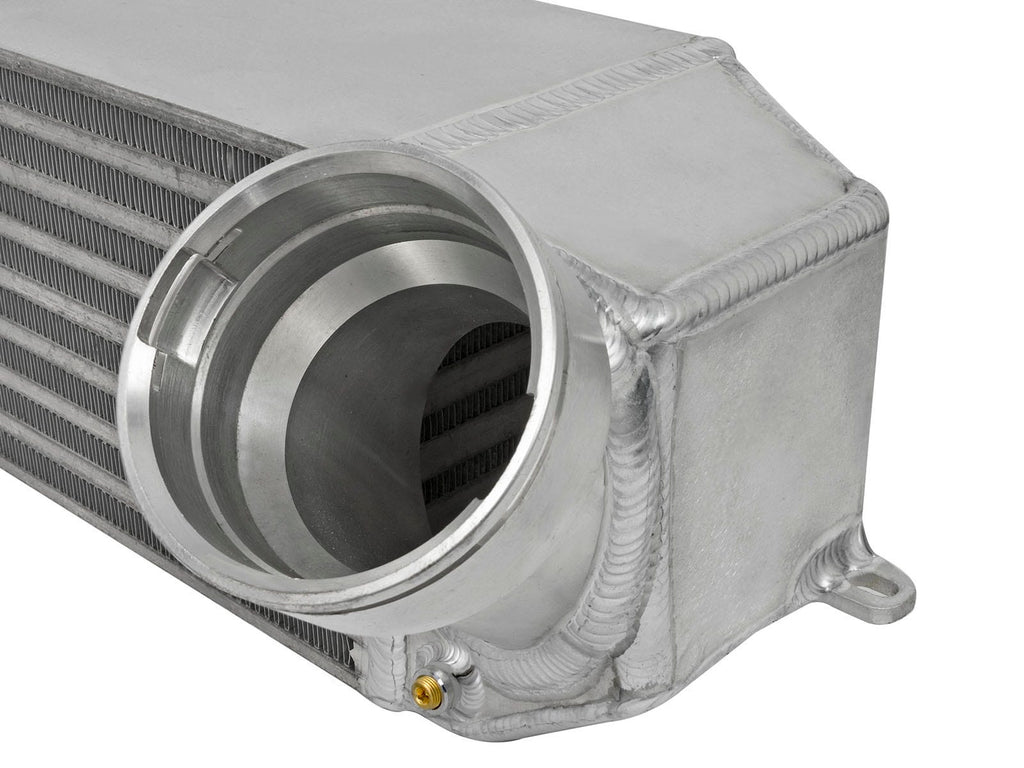

The bar-and-plate core is roughly 10% larger than stock and allows greater airflow and heat dissipation. Billet aluminum 2-1/2" inlet and outlet connections incorporate the factory-style quick connect adaptor for the hot-side intercooler tube, and each end tank carries two 1/8" NPT ports for pressure sensors or water-methanol injection. The complete unit is 100% TIG-welded inside and out by certified craftsmen for the strongest welds and reduced stress cracking, and is pressure tested to 200 psi.

The kit ships with a 5-ply polyester reinforced silicone lower hose with metal inserts to withstand extreme boost pressure, plus the cold-side aluminum tube assembly. It uses the factory mounting locations, and absolutely no cutting or modification is required for installation.

SPECS

• Maximum gains: up to +13 HP and +11 lbs. x ft. of torque
• Intake air temperature drop: up to 12 degrees, with no tuning required

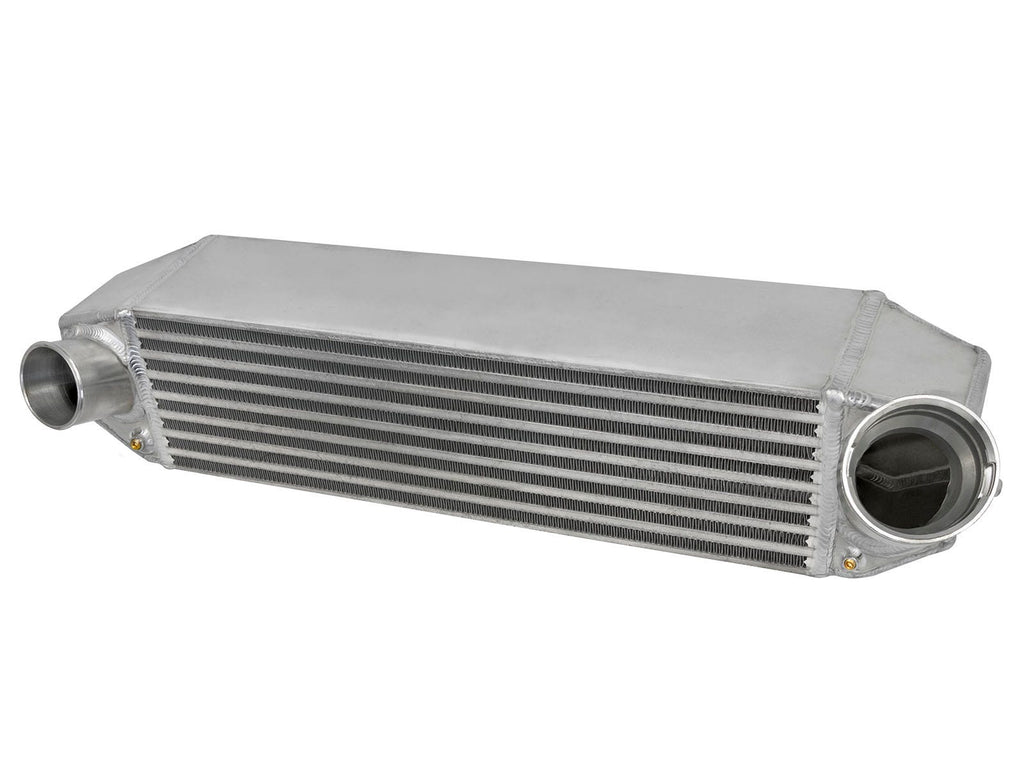

• Core: 5" bar-and-plate design, approximately 10% larger than stock

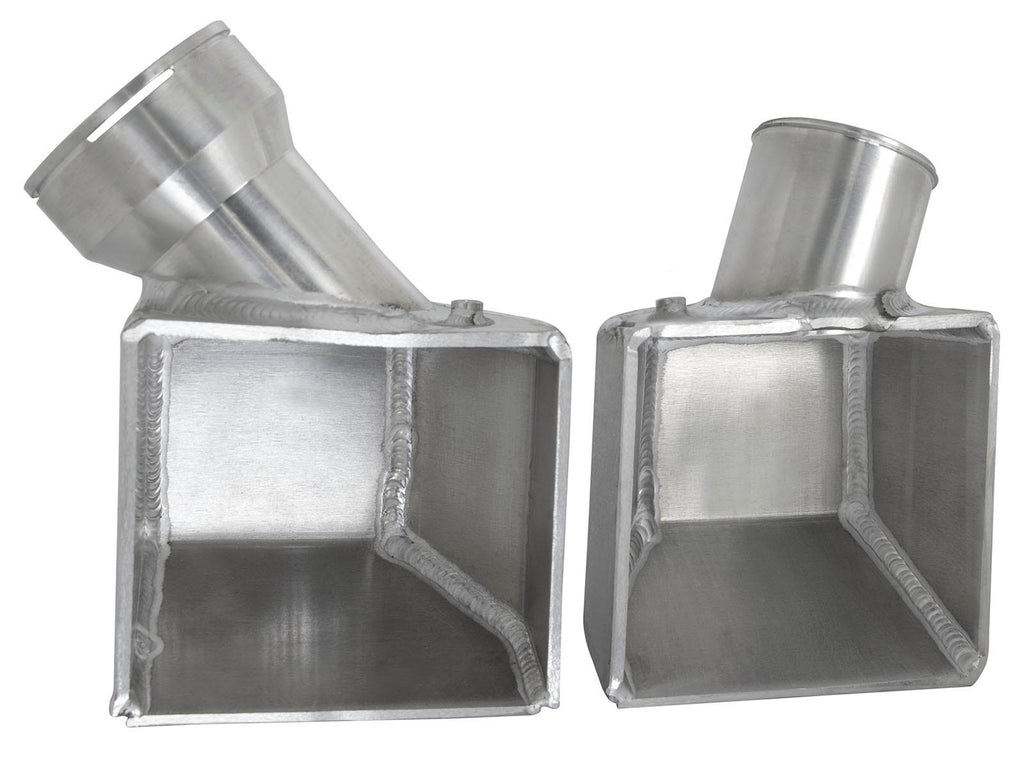

• End tanks: 3/16" thick TIG-welded aluminum plate

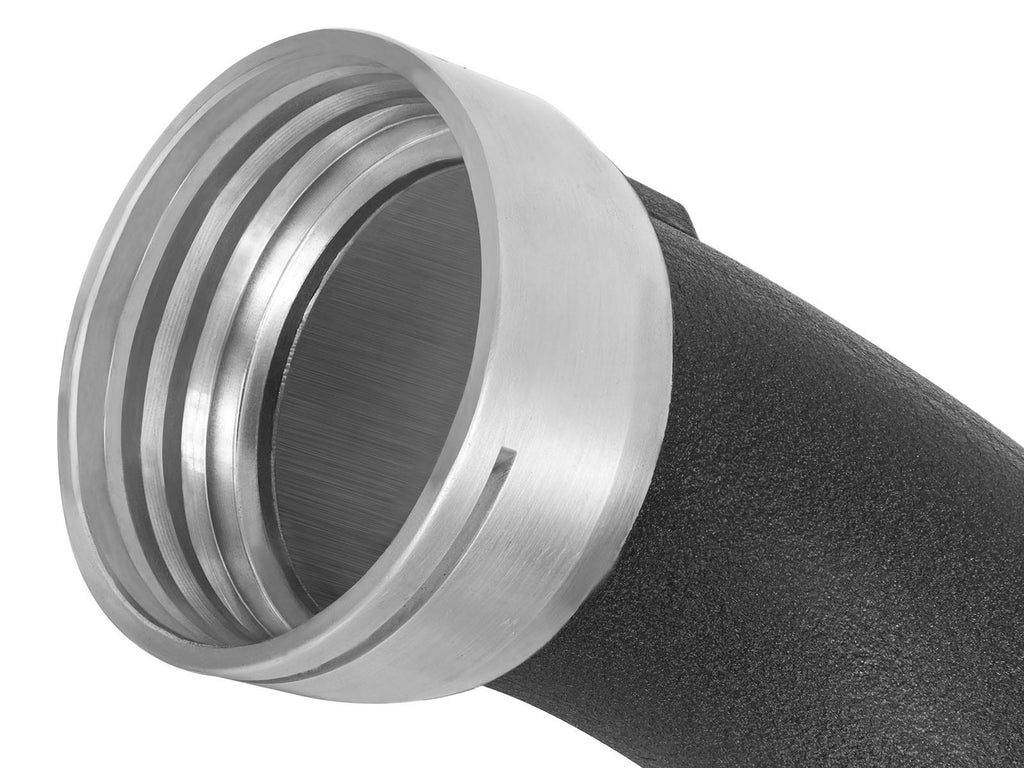

• Inlet / outlet: 2-1/2" billet aluminum, with factory-style quick connect adaptor for the hot-side intercooler tube
• Ports: two 1/8" NPT ports for pressure sensors or water-methanol injection
• Construction: 100% TIG-welded inside and out by certified craftsmen
• Pressure tested and rated to 200 psi

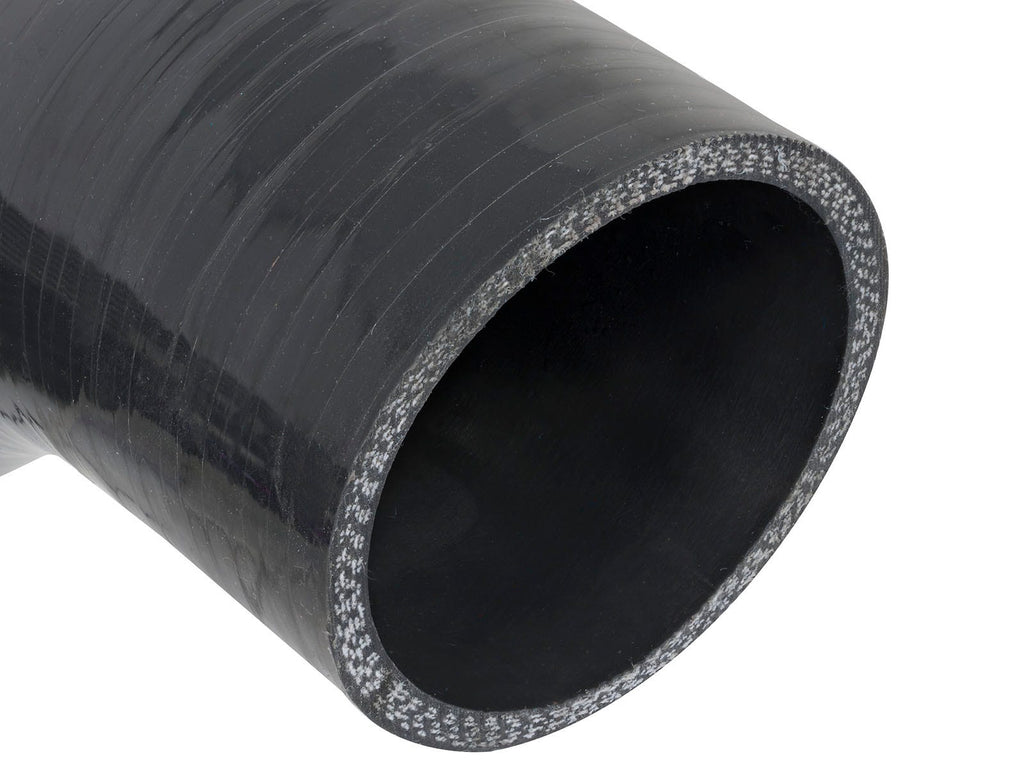

• Lower hose: 5-ply polyester reinforced silicone with metal inserts
• Mounting: uses factory mounting locations; no cutting or modification required
• Emissions: not CARB exempt; not legal for sale or use in California

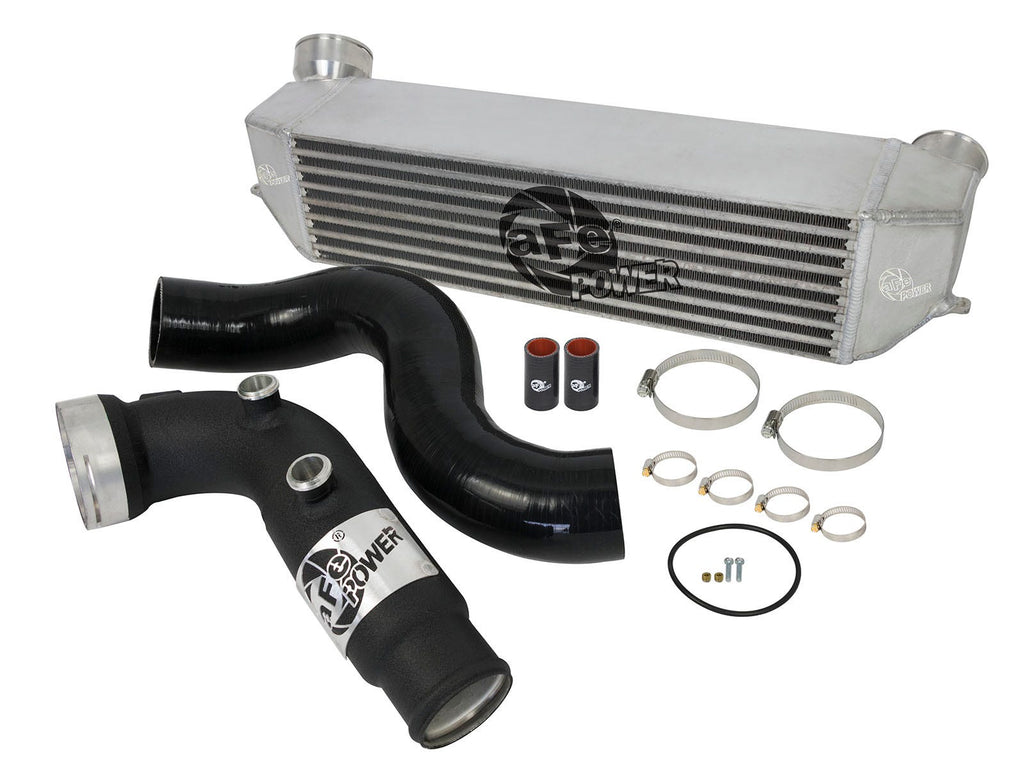

PARTS INCLUDED

• BladeRunner bar-and-plate intercooler (x1)

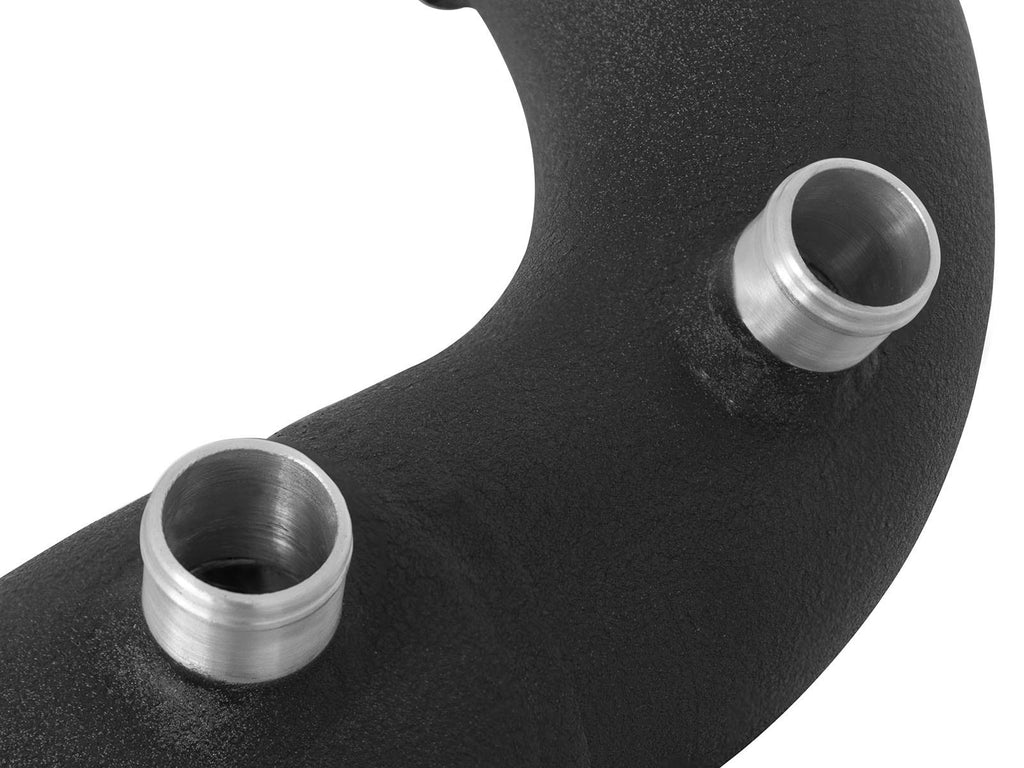

• Cold-side aluminum tube assembly (x1)
• 5-ply reinforced silicone hose (x1)
• Couplings (x2)
• Clamps (x6)
• O-ring seal (x1)
• Mounting screws (x2)
• Port plugs (x2)

TECH RESOURCES

Required Extras

• None. aFe Power supplies the cold-side intercooler tube, couplings, clamps and hardware in this kit; no additional parts are needed.
• Important compatibility note: this kit will not work with the factory cold-side intercooler tubing. It is designed to work with the aFe BladeRunner cold-side tube — see aFe N54 Charge Pipe 46-20159-B if you need a replacement or spare.
• Installer supplies: standard metric hand tools, coolant-safe rags, and a jack and jack stands or a lift.

Installation

• aFe Power 46-20152-B BladeRunner intercooler with cold-side tube installation instructions (PDF)

PART NUMBER

• 46-20152-B
