aFe Momentum GT Stage-2 Cold Air Intake 54-76306 – BMW 135i / 335i (N54)

OVERVIEW

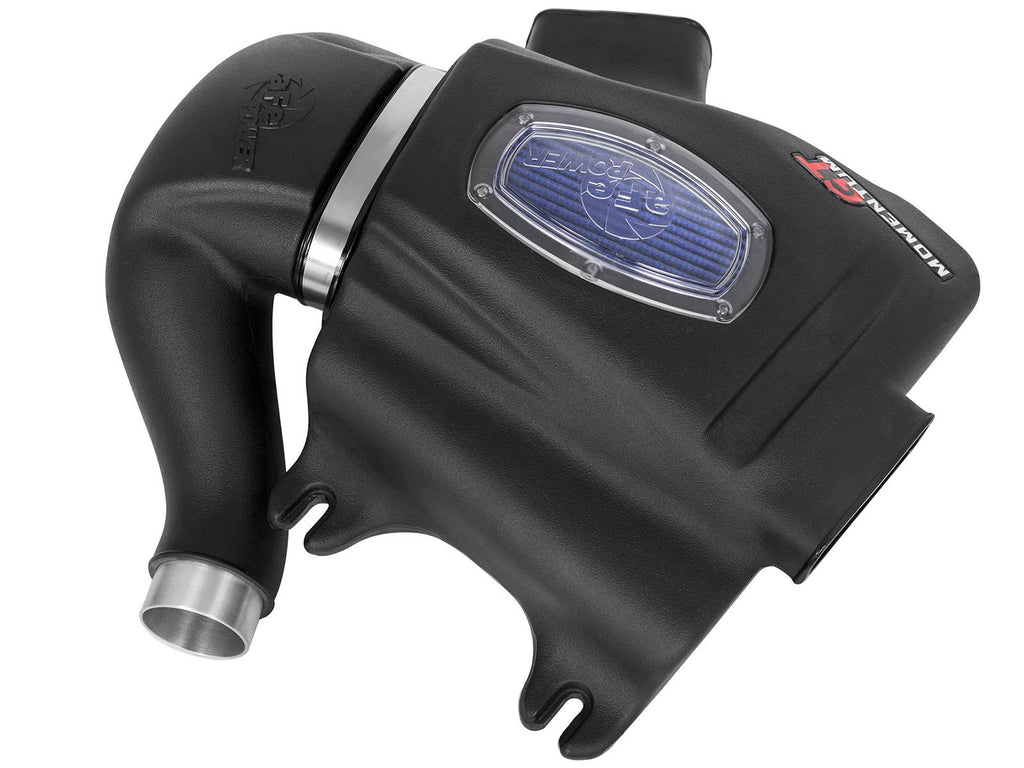

The aFe POWER Momentum GT Stage-2 intake system replaces the factory airbox on the N54 with a fully sealed, one-piece roto-molded housing and a CAD-designed roto-molded intake tube. aFe reports maximum gains of +16 horsepower and +30 lbs. x ft. of torque, with the system outflowing the factory intake by 18%.

The custom CAD-designed housing is made from heat-soak-resistant black cross-linked polyethylene and eliminates the need for multiple components, ensuring the coolest available intake charge. An auxiliary air scoop feeds the box, and a urethane plug is included to block the scoop in cold-weather applications. A large clear sight window lets you inspect the filter without removing the airbox.

The dyno-tuned roto-molded intake tube uses 6061-T6 aluminum ends that maximize the inside diameter through both outlets for the greatest possible flow, and the aluminum inserts add strength and durability. The system is built around the largest filter that will fit — an 8" tall cone with a massive oval flange — available with either Pro 5R oiled media or Pro DRY S oil-free media. A patent-pending filter-to-housing interface and a premium stainless steel T-bolt clamp keep the assembly secure, and no cutting or drilling of OEM parts is required.

SPECS

• Maximum gains: +16 HP and +30 lbs. x ft. of torque
• Outflows the factory intake by 18%
• Housing: one-piece roto-molded, sealed, heat-soak-resistant black cross-linked polyethylene with auxiliary air scoop
• Built-in clear sight window for filter inspection without disassembly
• Intake tube: CAD-designed, dyno-tuned roto-molded plastic with 6061-T6 aluminum ends
• Filter size: 8" tall conical element with oval flange
• Pro 5R media (54-76306): 5 layers of progressively finer mesh cotton gauze, pre-oiled, washable and reusable, 100% polyurethane frame

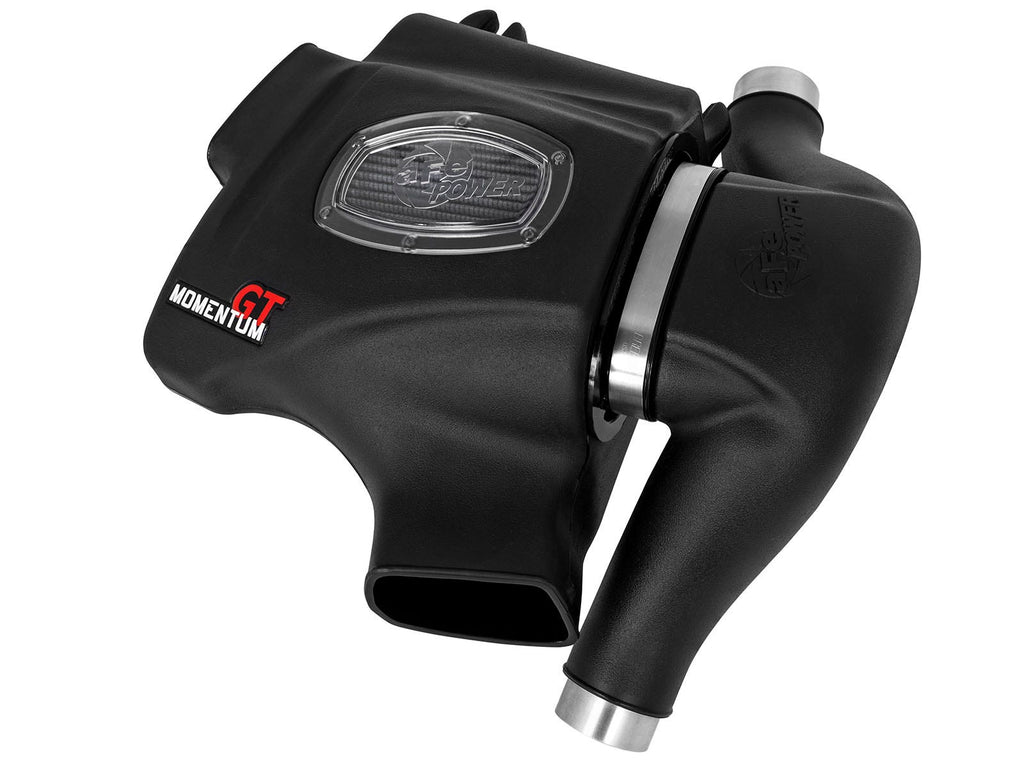

• Pro DRY S media (51-76306): 3 layers of progressively finer porosity synthetic media, oil-free, washable and reusable, 100% polyurethane frame
• Hardware: premium stainless steel T-bolt clamp
• Includes a urethane plug to block the auxiliary air scoop in cold weather
• Patent-pending filter-to-housing interface; no cutting or drilling of OEM parts
• Emissions: not CARB exempt; not legal for sale or use in California

PARTS INCLUDED

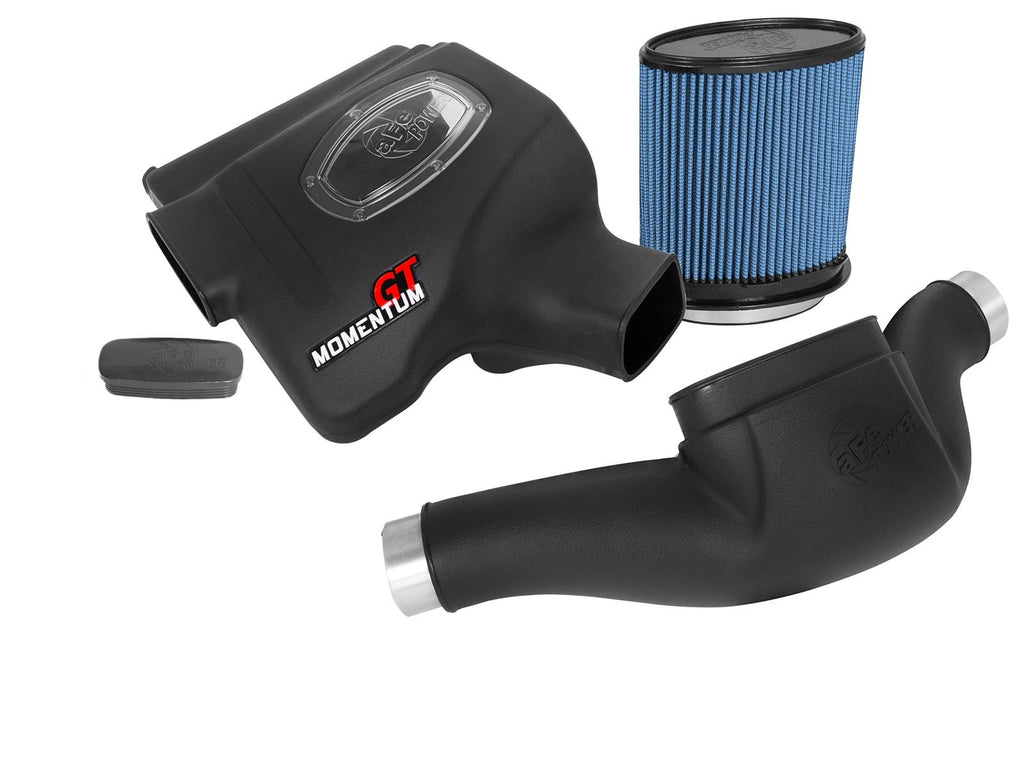

• Roto-molded sealed housing — 05-76306B2
• Roto-molded intake tube with 6061-T6 aluminum ends — 05-76306B1
• Pro 5R oiled air filter — 24-90089 (supplied with 54-76306)
• Pro DRY S oil-free air filter — 21-90089 (supplied with 51-76306)
• Urethane plug for the auxiliary air scoop — 05-01225
• Premium stainless steel T-bolt clamp and mounting hardware

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this part — no tune, no cutting and no drilling of OEM parts is required.
• Installer supplies: standard metric hand tools, flat-blade and Torx drivers, and a shop towel to protect the sensor bore.
• Optional service items: replacement Pro 5R filter 24-90089 or Pro DRY S filter 21-90089; aFe Pro 5R restore kit (cleaner and oil) for the oiled filter, or Pro DRY S cleaner for the dry filter.

Installation

• aFe Power 54-76306 / 51-76306 Momentum GT Stage-2 intake system installation instructions (PDF)

Notes

• Note: This intake system is not CARB exempt at this time and is not legal for sale in California or for use on vehicles registered with the California Department of Motor Vehicles.

PART NUMBER

• 54-76306 — Momentum GT Stage-2 with Pro 5R oiled filter
• 51-76306 — Momentum GT Stage-2 with Pro DRY S oil-free filter (otherwise the same kit)
