OVERVIEW

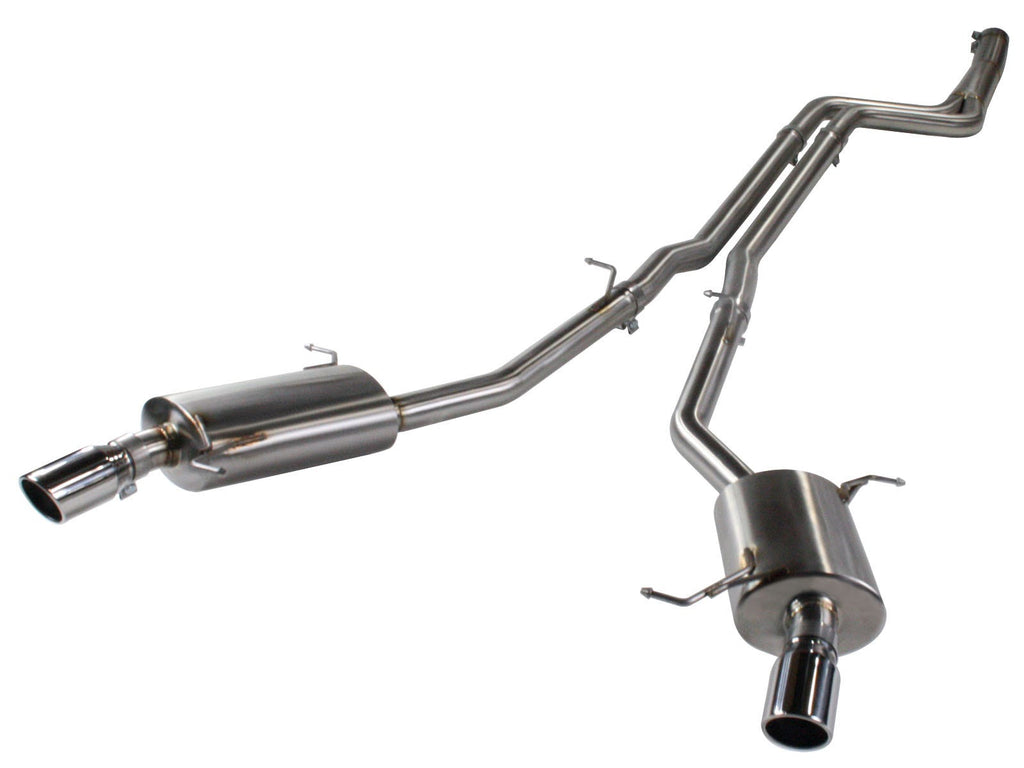

The aFe POWER MACH Force-Xp down-pipe-back exhaust system replaces everything behind the down-pipe on the F10 535i with a hand-built 304 stainless steel assembly. In aFe's testing the system produced +9 horsepower and +7 lbs. x ft. of torque on the N55 engine.

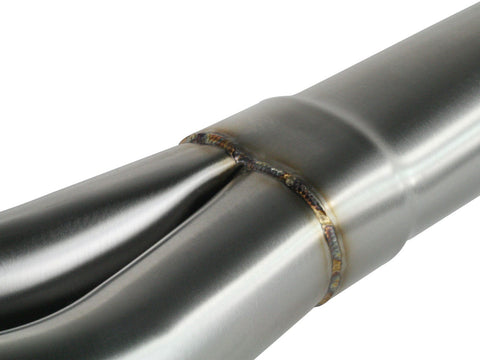

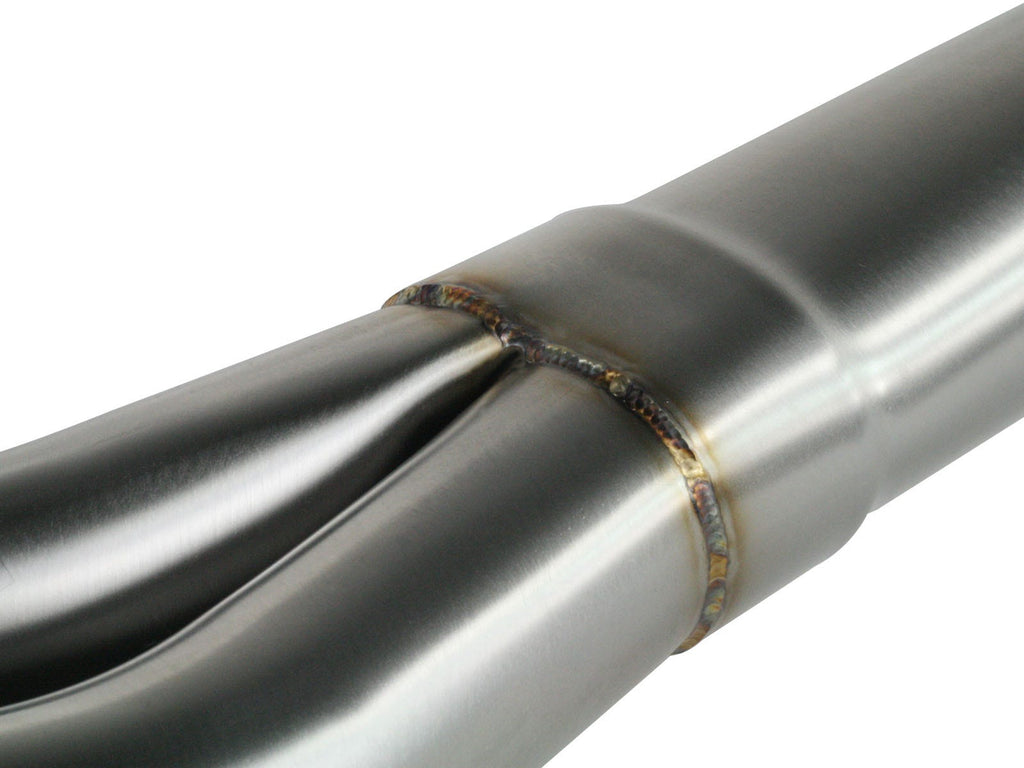

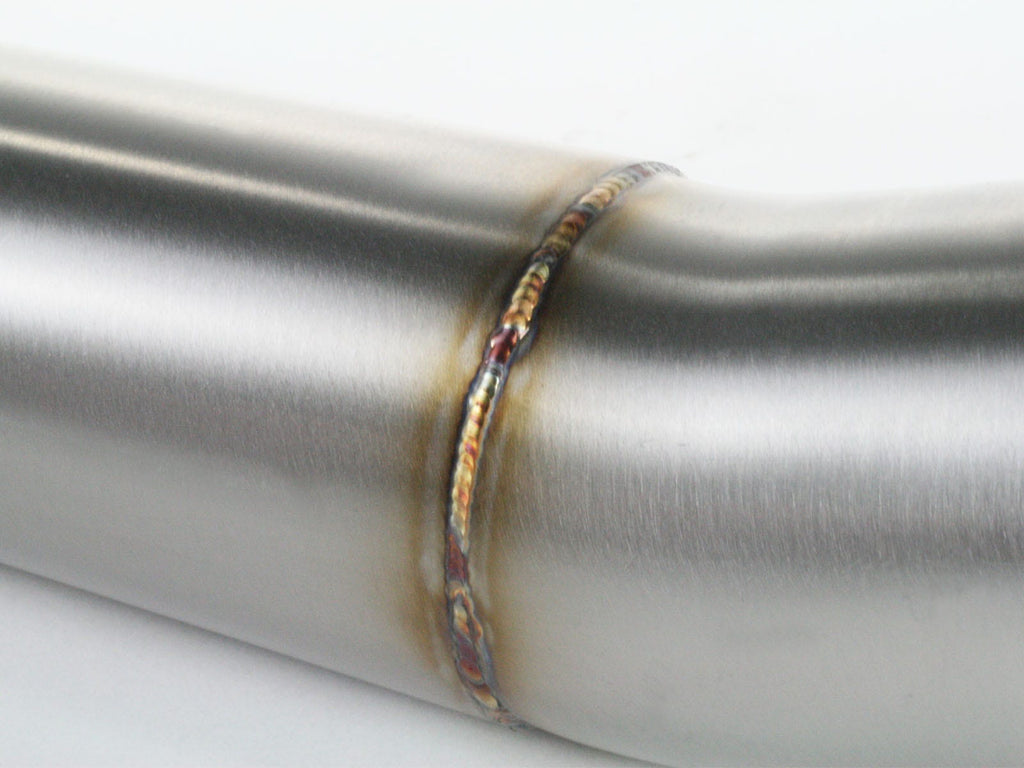

The system is constructed from 2.50" mandrel-bent 304 stainless steel, 100% hand TIG-welded with a brushed finish. It begins with a 3.50" inlet at the down-pipe and merges into dual 2.50" tubing, which improves performance across the power band while maintaining a strong tone. Countless hours of R&D went into achieving the right decibel level without compromising performance, and dual free-flowing mufflers keep the note aggressive without drone.

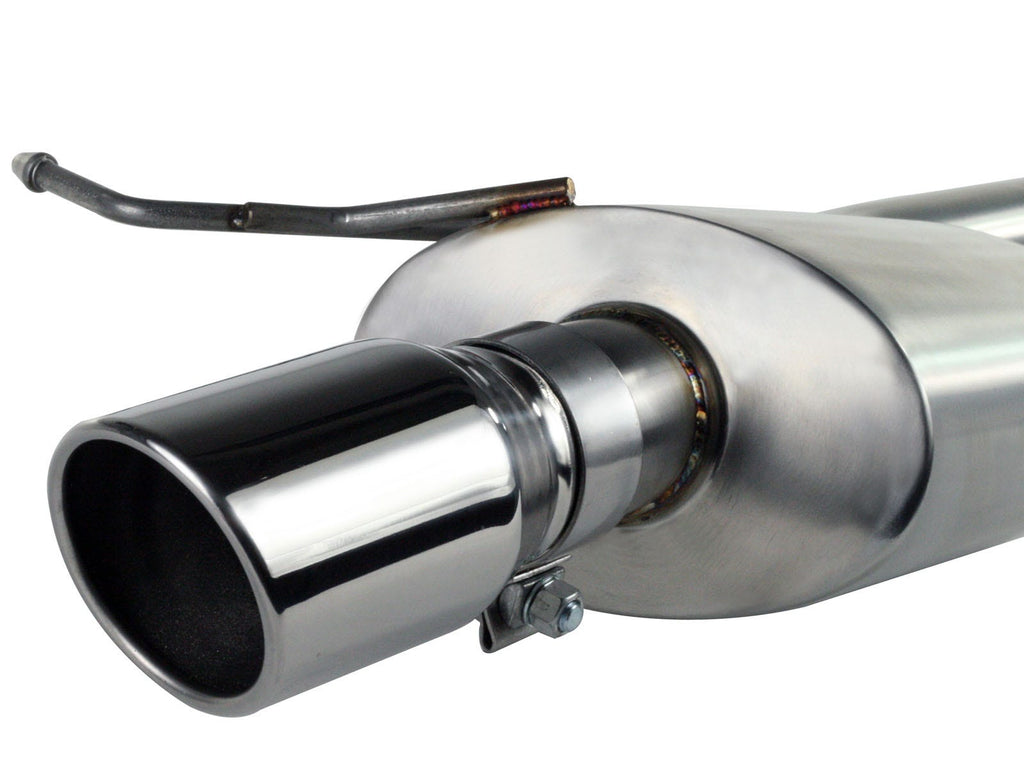

Finishing the system are two adjustable rolled, double-wall, angle-cut 3.5" OD 304 stainless steel tips that can be moved forward or rearward to suit your preference. The exhaust uses all factory hanger locations and requires no modifications. All aFe exhaust systems are engineered and manufactured at aFe's Corona, California facility.
SPECS
- Maximum gains: +9 HP and +7 lbs. x ft. of torque
- Tubing: 2.50" mandrel-bent 304 stainless steel

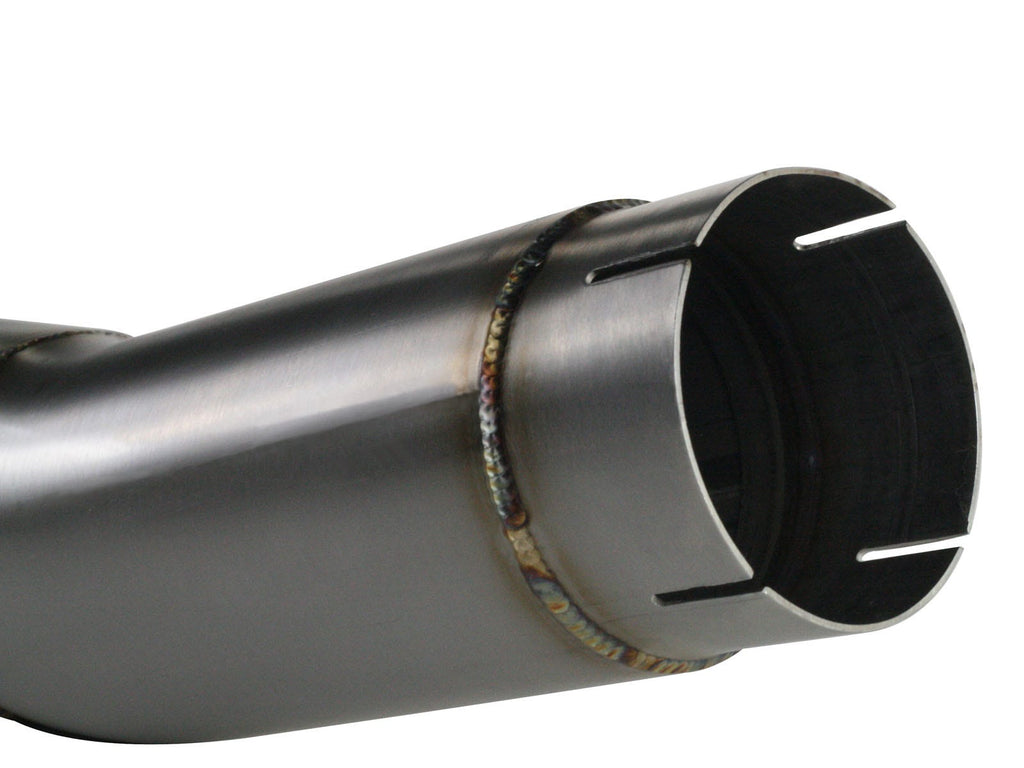

- Inlet: 3.50" at the down-pipe, merging into dual 2.50" tubing
- Construction: 100% hand TIG-welded 304 stainless steel with a hand-brushed finish

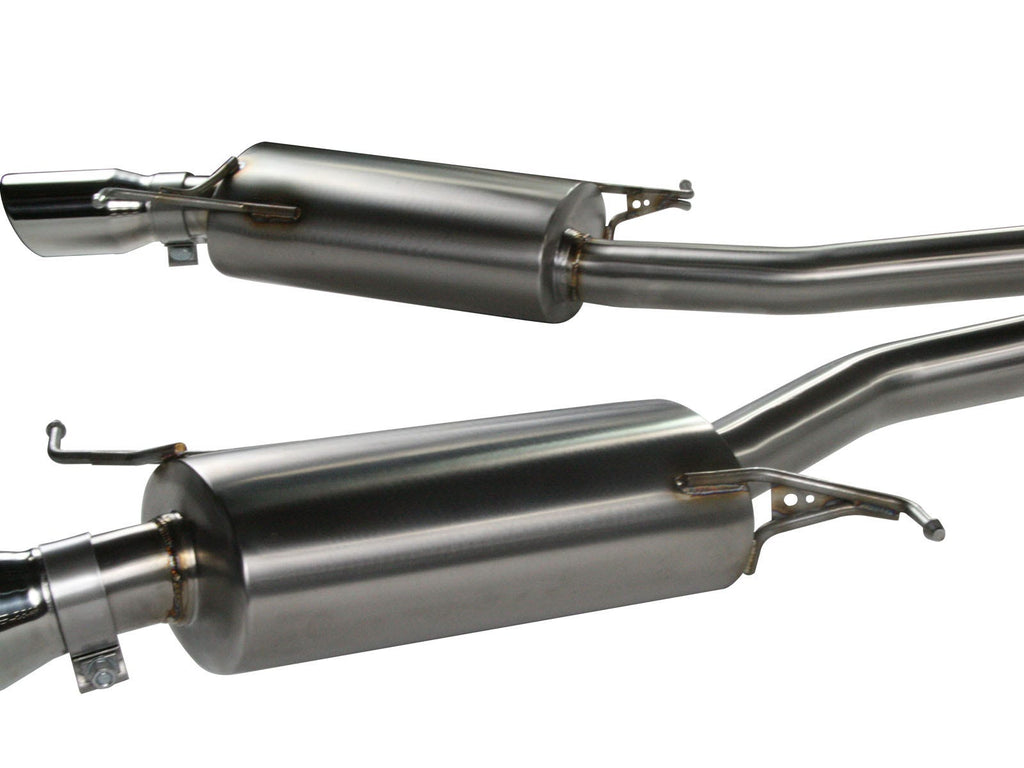

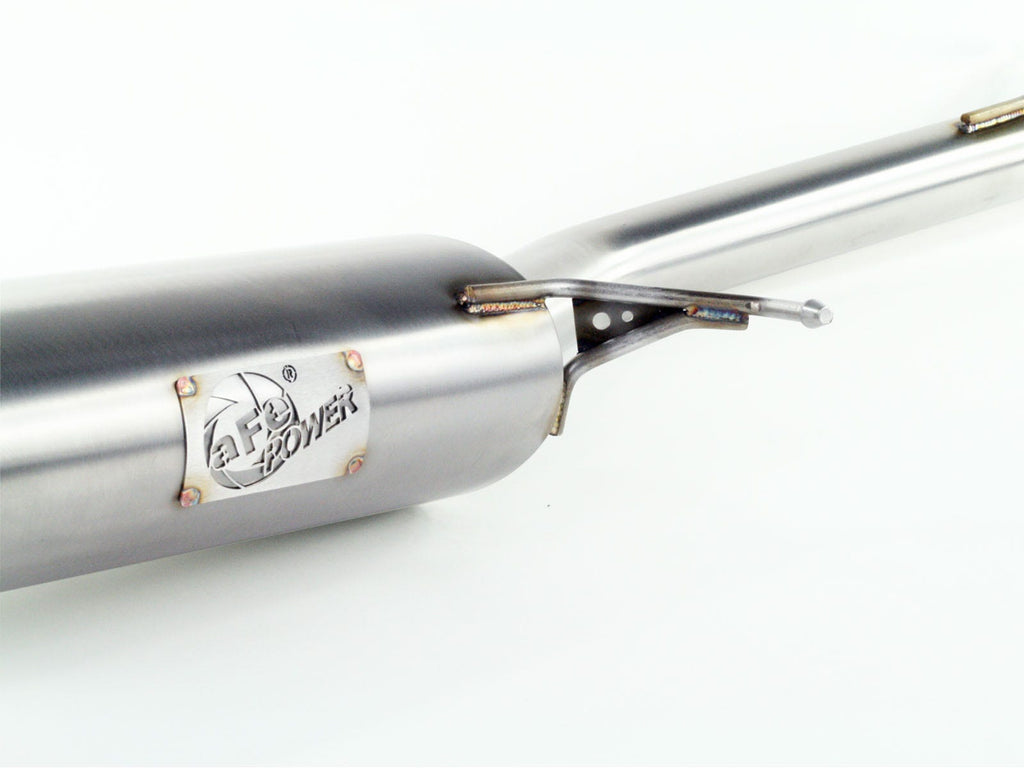

- Mufflers: dual free-flowing design
- Tips: two rolled, double-wall, angle-cut 3.5" OD 304 stainless steel tips, adjustable forward and rearward
- System weight: 65 lbs

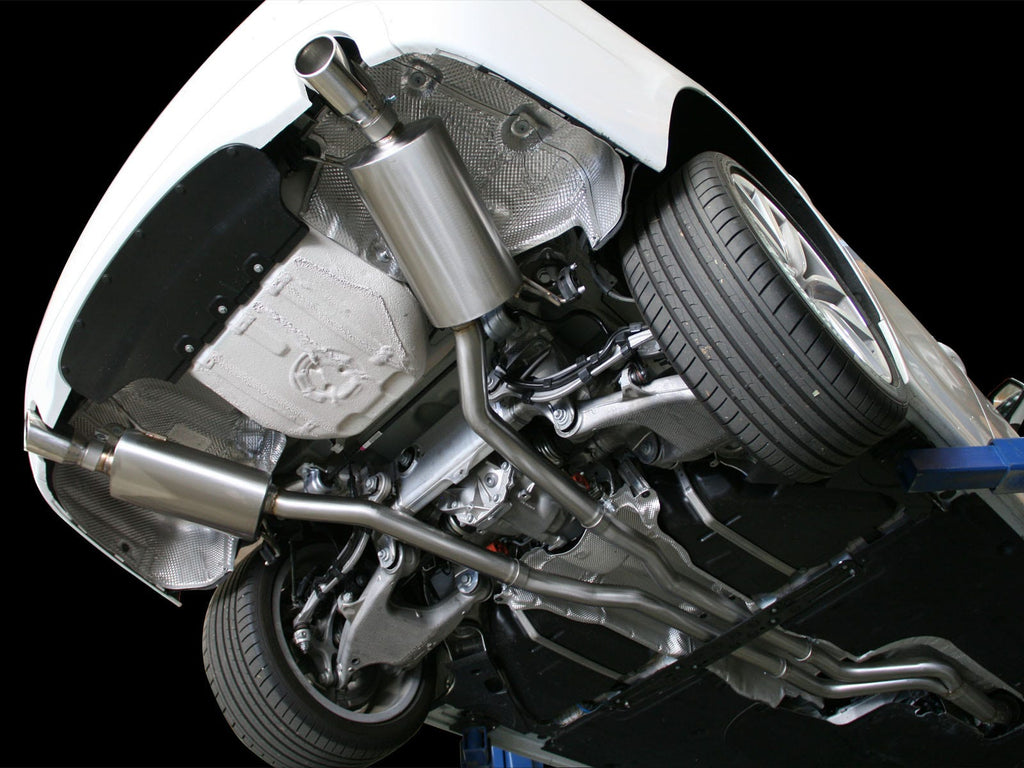

- Mounting: uses all factory hanger locations; no modifications necessary
- Emissions: this product does not require a CARB EO#
- Engineered and manufactured in Corona, California
PARTS INCLUDED
- Front mid-pipe — 05-45564
- Rear mid-pipe, left side — 05-45558
- Rear mid-pipe, right side — 05-45559
- Tailpipe / muffler, left side — 05-45567
- Tailpipe / muffler, right side — 05-45566
- 304 stainless steel polished tips (x2) — R49-92028
- 2.5" band clamps (x2) — 05-41061
- 3" band clamp — 05-41055
TECH RESOURCES
Required Extras
- None. aFe Power specifies no additional hardware for this part — the factory down-pipe and all factory hanger locations are reused and every clamp is supplied.
- Installer supplies: standard metric hand tools, penetrating oil, and a lift or jack and jack stands.
- Optional service items: stainless-safe metal polish for the tips.
Installation
PART NUMBER
- 49-36308
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| BMW 535i | F10 | N55 3.0L Turbo I6 | 2011–2015 |
| BMW 535i xDrive | F10 | N55 3.0L Turbo I6 | 2011–2015 |
Years shown follow aFe's published fitment for 49-36308. If you have a 2016 F10 535i, confirm fitment with Speed Logic before ordering.
