OVERVIEW

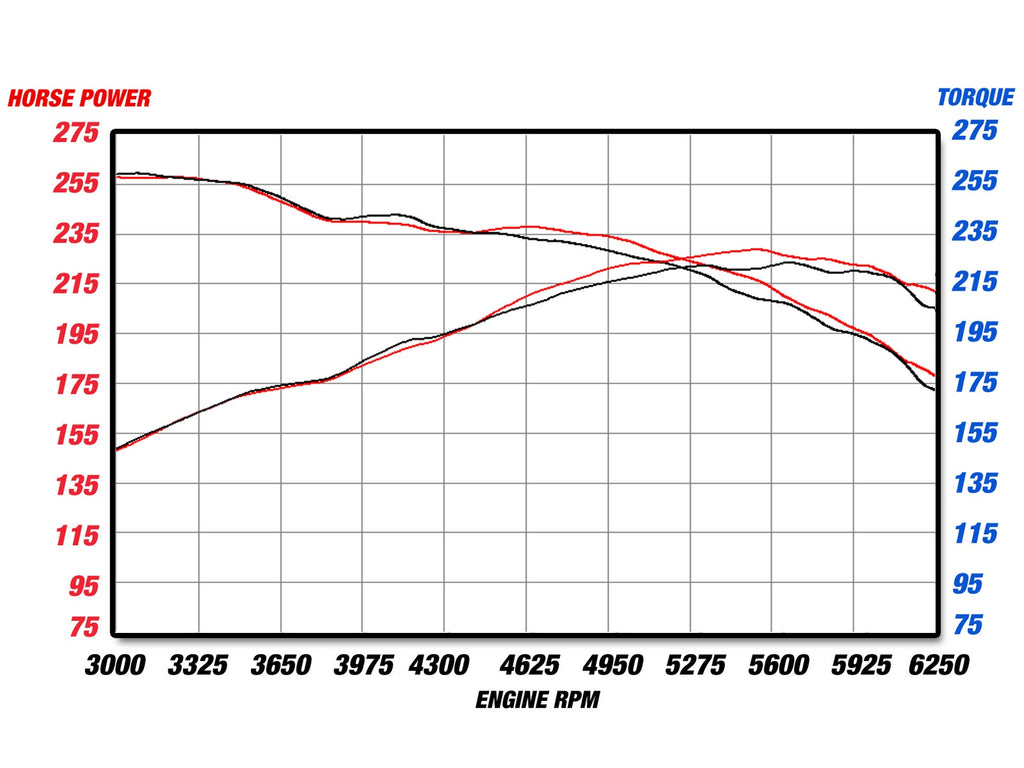

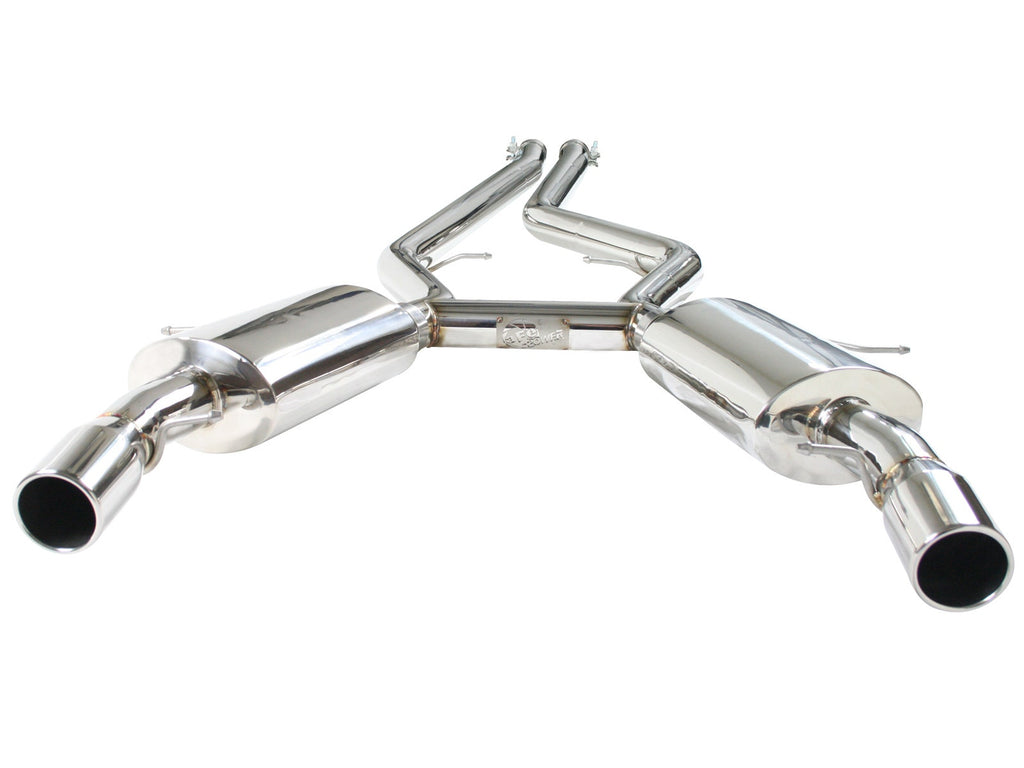

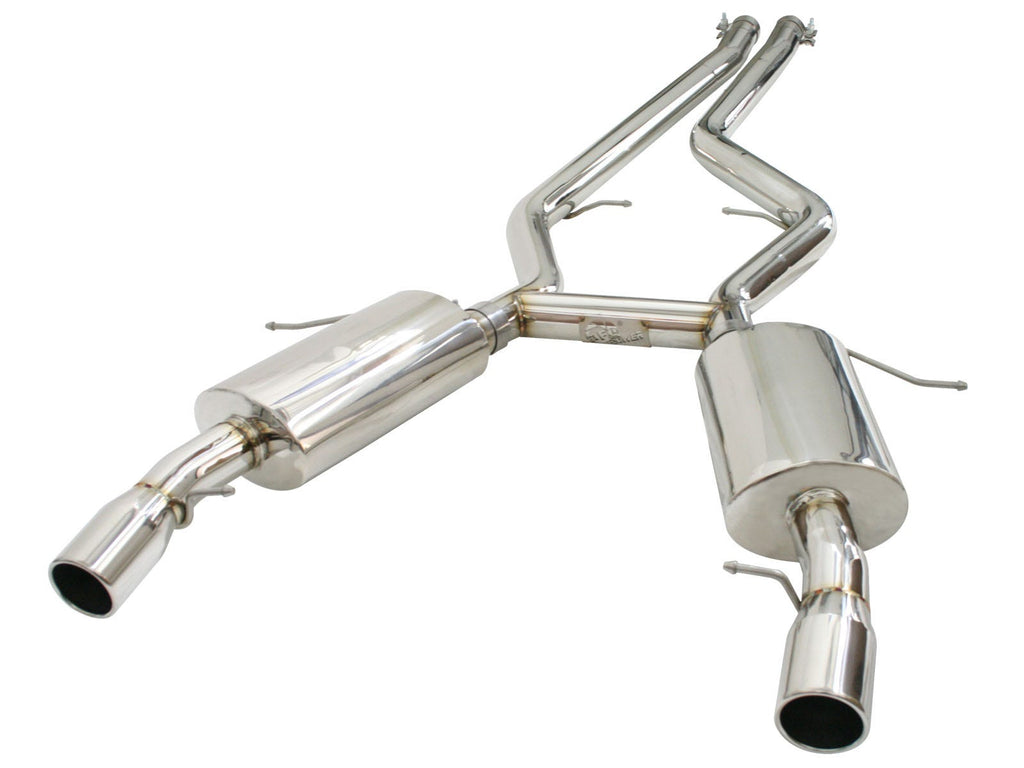

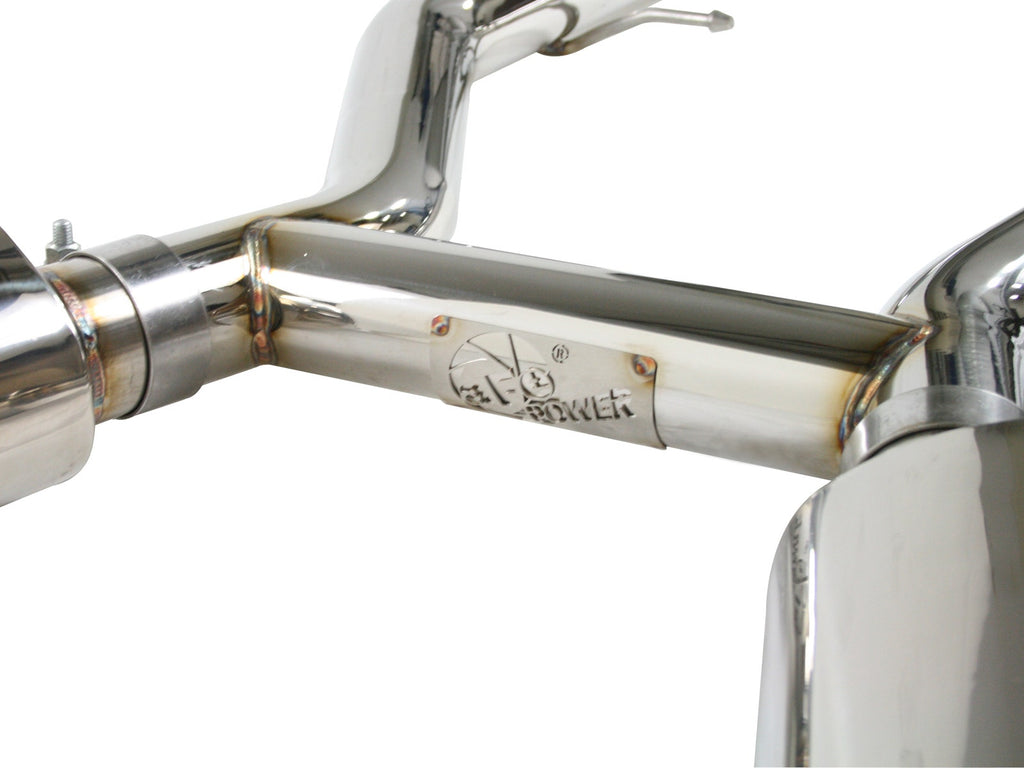

The aFe Power MACH Force-Xp dual tube cat-back exhaust produces 11 horsepower and 10 lbs. x ft. of torque on the N54-powered BMW 335i. It is constructed from 2.75" mandrel-bent, hand-brushed 304 stainless steel and uses a crossover balance tube that equalizes exhaust pressure between the two banks and evenly distributes the exhaust pulses travelling through the system. Beyond the flow and performance benefit, the balance tube reduces sound decibels and minimizes exhaust drone.
A free-flowing muffler absorbs high-pitch tones to produce a mellow but powerful sound, and the system finishes with dual 3.5" polished 304 stainless steel tips. High quality band clamps give a complete 360-degree sealing surface, and the system uses the factory mounting locations for a stable installation.
All aFe exhaust systems are engineered and manufactured at aFe's Corona, California facility.
SPECS
- Gains of 11 horsepower and 10 lbs. x ft. torque
- Construction: 2.75" mandrel-bent, hand-brushed 304 stainless steel

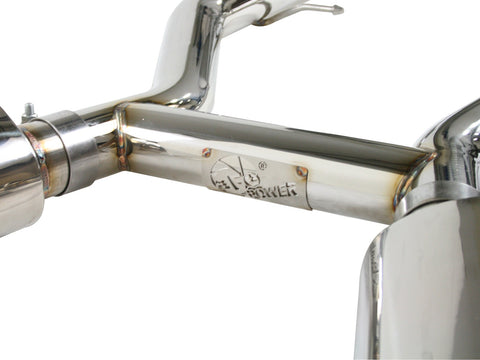

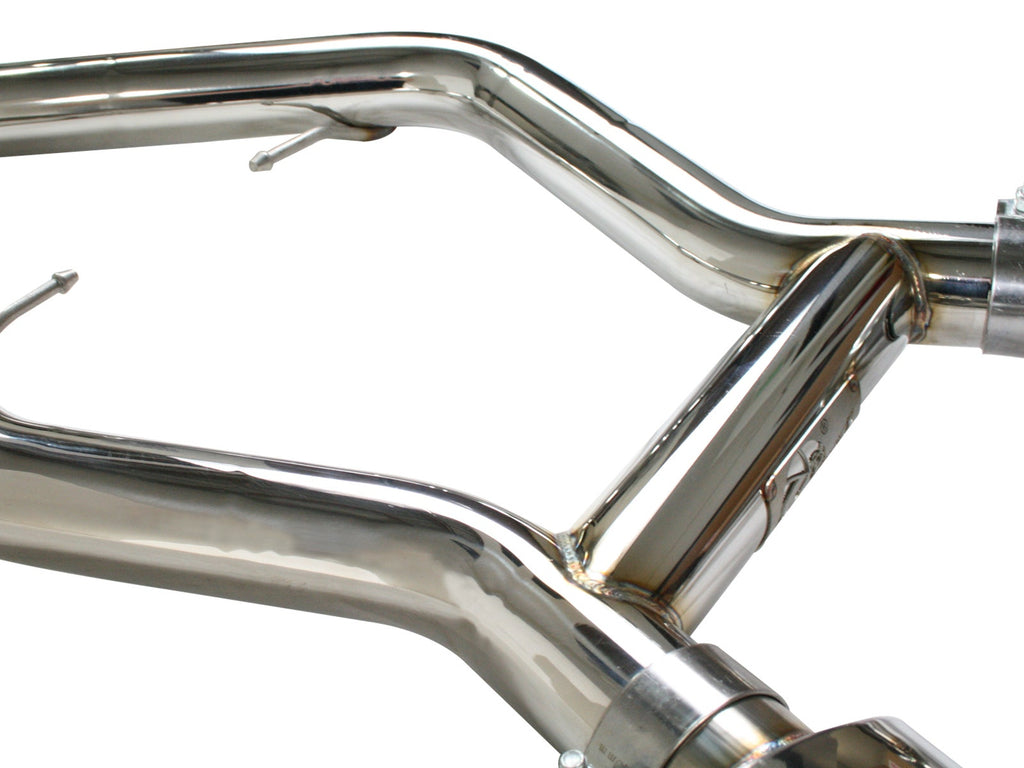

- Crossover balance tube equalizes exhaust pressure and tunes the exhaust pulse
- Free-flowing muffler for a mellow, powerful tone with reduced drone
- Dual 3.5" polished 304 stainless steel tips

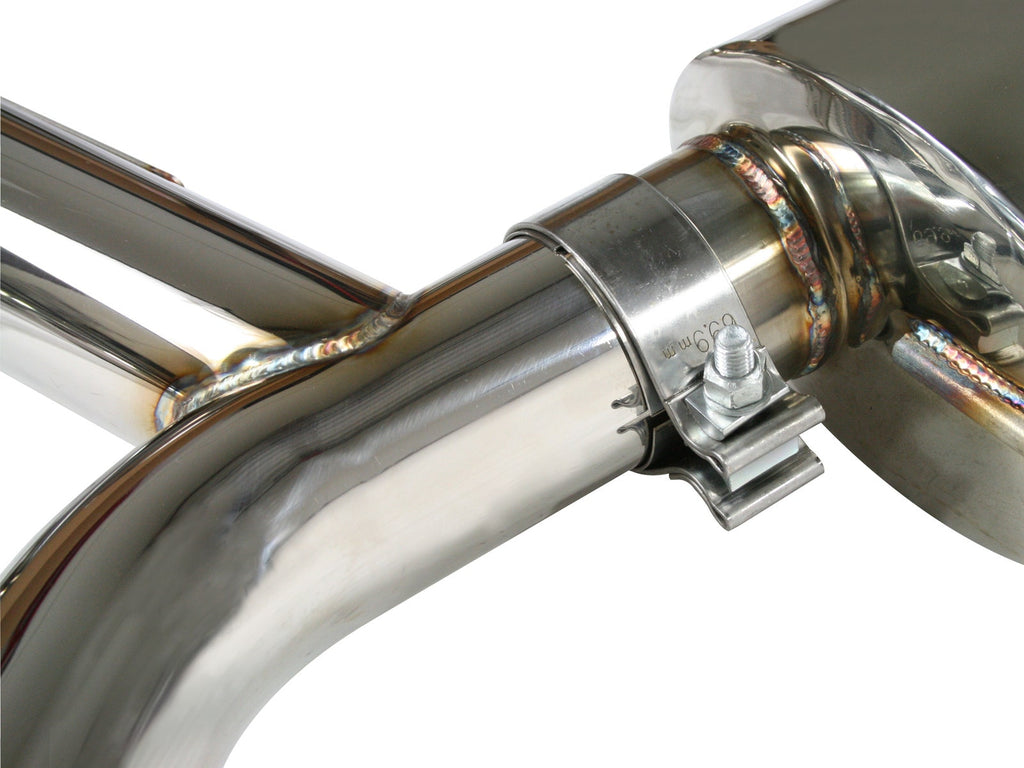

- Band clamps provide a 360-degree sealing surface

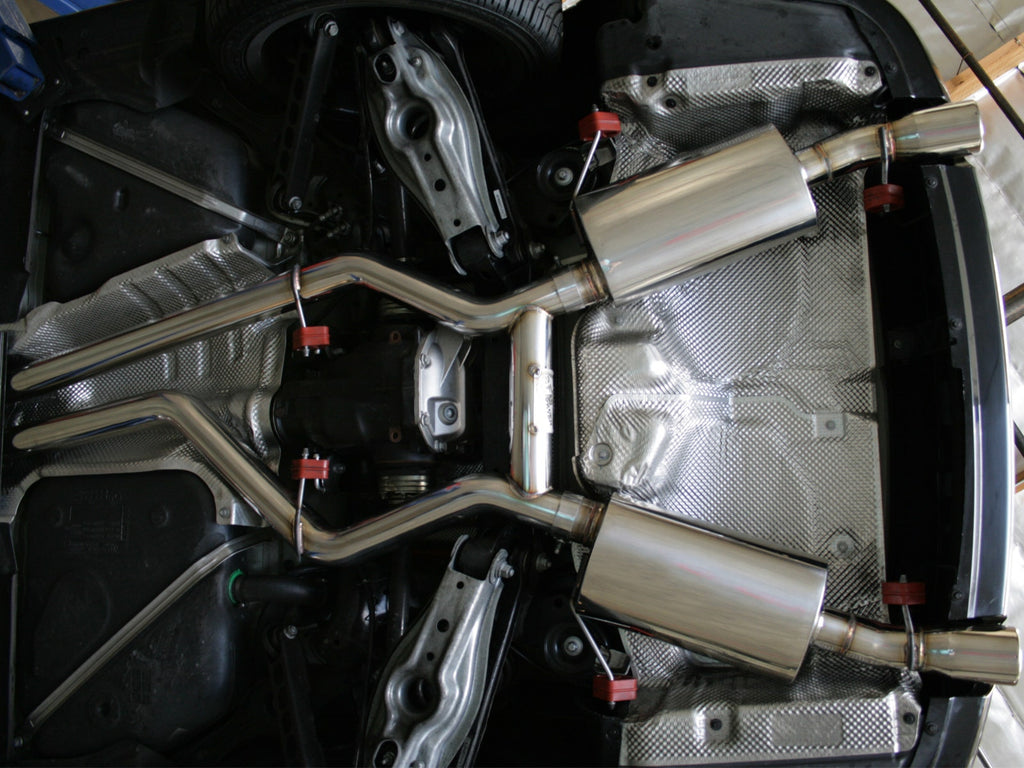

- Uses factory mounting locations
- Cutting of the OE exhaust tubing is required; the cut location is approximately 3" in front of the heat shield seam
- Published install time: approximately 1.5 hours
- Manufactured in Corona, California
PARTS INCLUDED

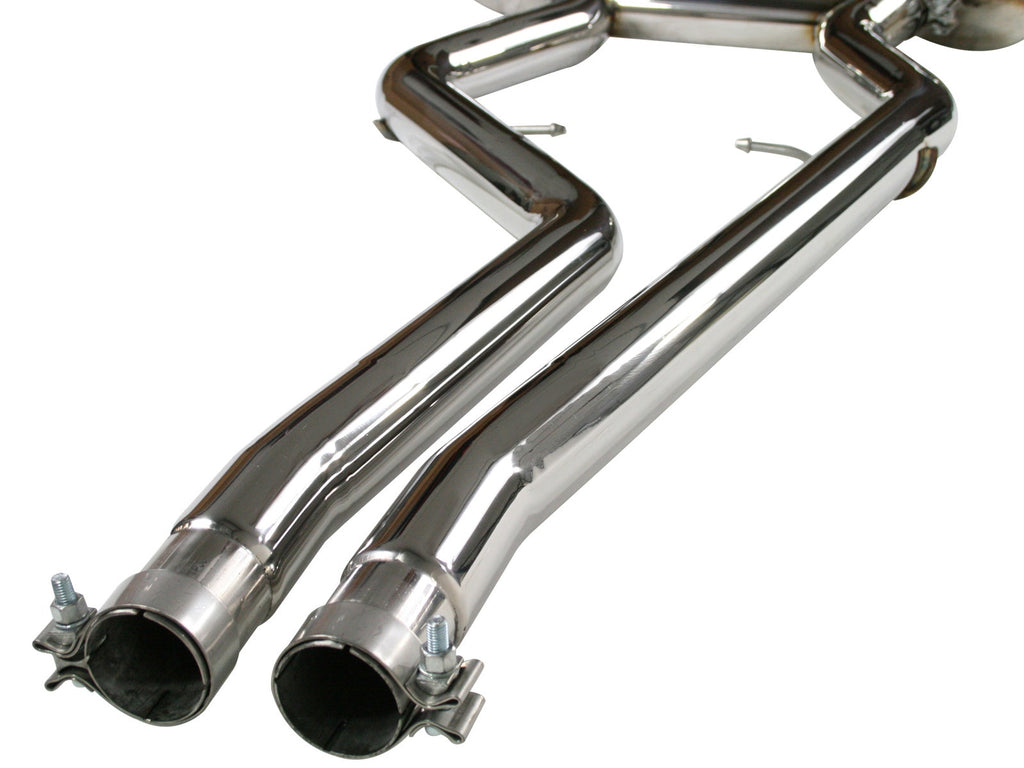

- Mid-pipe assembly (05-45279)
- Cat-back tubing, 2.75" (49-36301)
- Right muffler and tail pipe assembly (05-45274)
- Left muffler and tail pipe assembly (05-45273)
- Clamps, qty 2 (05-41151)
- Band clamp (05-41160)
- Urethane spacer (05-01100)
TECH RESOURCES
Required Extras
- None. aFe specifies no additional purchased hardware for this cat-back system — all clamps and the urethane spacer are supplied in the box.
- No tune is required.
- Installer-supplied: a cutting tool (chop saw or reciprocating saw) is needed because the factory exhaust must be cut. aFe specifies this work be performed by a skilled technician.
- Allow the vehicle to cool fully before installation, and re-tighten all exhaust components after the first 50–100 miles.
Installation
PART NUMBER
- 49-36301 — MACH Force-Xp cat-back system, dual polished tips
VEHICLE APPLICATIONS
| Make / Model | Chassis | Engine | Years |
|---|---|---|---|
| BMW 335i | E90 / E92 | N54 3.0L Twin-Turbo I6 | 2007–2010 |
Rear-wheel drive models only. aFe's installation sheet lists the application as 2007–2009; confirm fitment for 2010 cars with Speed Logic before ordering.
