aFe Mach Force XP Axle-Back / Cat-Back Exhaust – BMW 335i / 435i (F30 / F32)

OVERVIEW

The aFe MACH Force-Xp exhaust system for the BMW N55 is offered here in both axle-back and cat-back form. Both configurations are built from 3" into 2-1/2" mandrel-bent, brushed 304 stainless steel tubing and are 100% hand TIG-welded by certified craftsmen for corrosion resistance, strength and freedom from cracking.

Exhaust flows through a high-flow transverse muffler finished in high-temperature black powder coat, and the system incorporates a factory-style exhaust valve that runs off the factory exhaust valve motor (not included) and the factory performance modes. With the valve closed the exhaust is routed through the muffler for a smooth, tuned note; with the valve open the exhaust bypasses the muffler to release the full sound and performance potential of the N55. aFe rates the cat-back system at up to +12 horsepower and +10 lbs. x ft. of torque.

The system is finished with dual 4" diameter 304 stainless steel tips carrying a laser-etched aFe POWER logo. High-quality band clamps provide a full 360-degree sealing surface, and all factory hanger locations are retained for a hassle-free installation.

SPECS

• +12 HP and +10 lbs. x ft. torque max gains (cat-back)
• 3" to 2-1/2" mandrel-bent, brushed-finish 304 stainless steel tubing

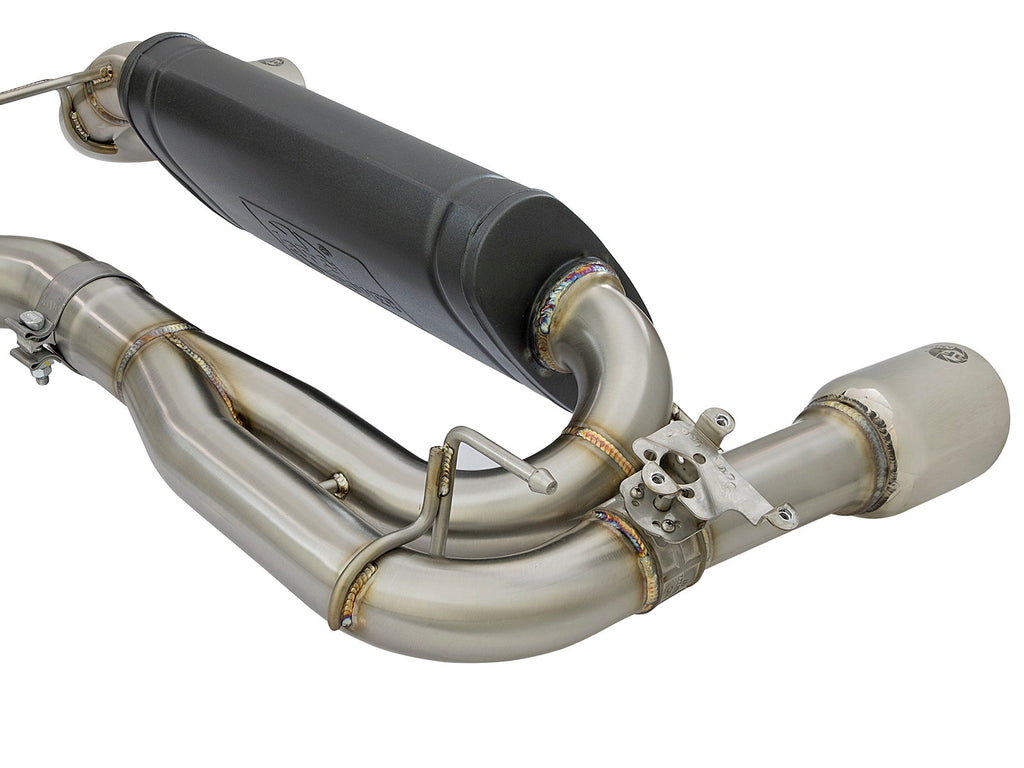

• 100% hand TIG-welded construction
• High-flow transverse muffler with high-temp black powder-coated finish and stamped aFe POWER logo

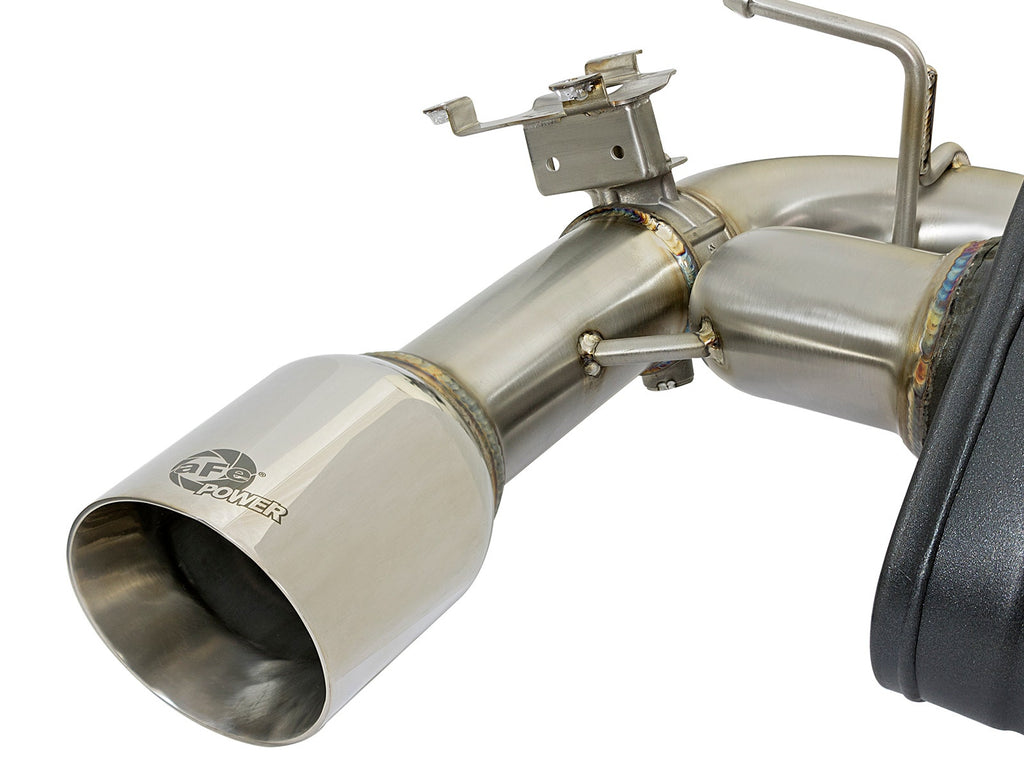

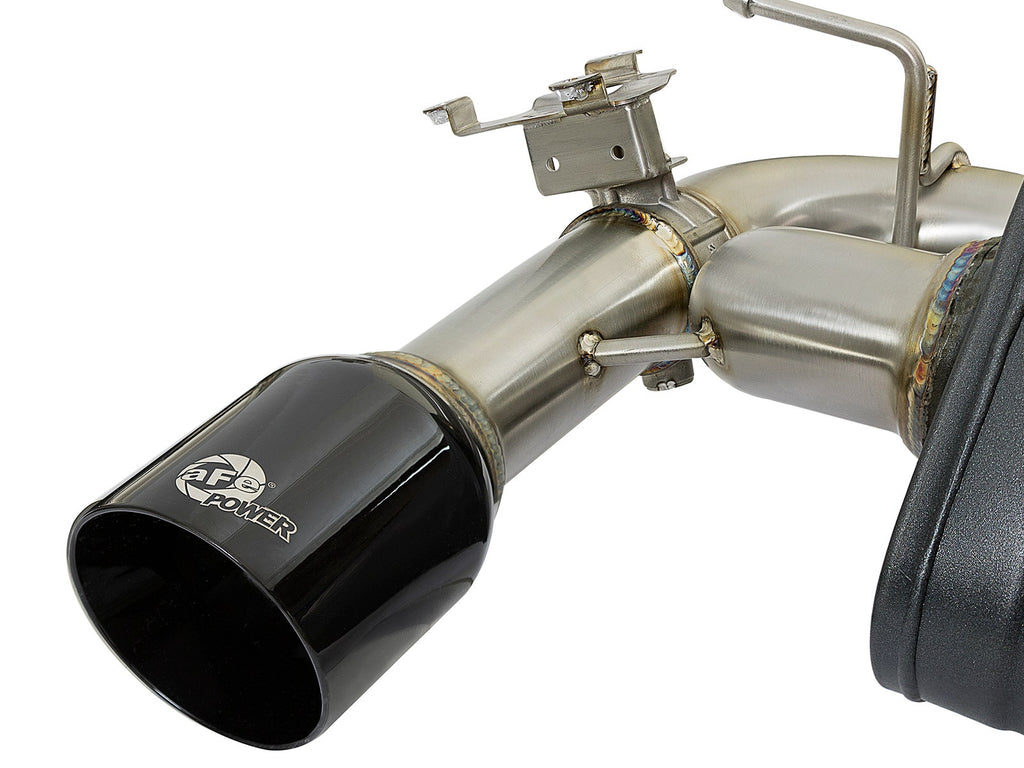

• Dual 4" diameter 304 stainless steel tips with laser-etched aFe POWER logo; polished or gloss black depending on variant
• Factory-style exhaust valve, operated by the factory exhaust valve motor (not included)
• Band clamps for a full 360-degree leak-free sealing surface
• Uses all factory hanger locations
• Optional resonator delete pipe available separately, aFe P/N 49-36622 (no cutting or fabrication required)

PARTS INCLUDED

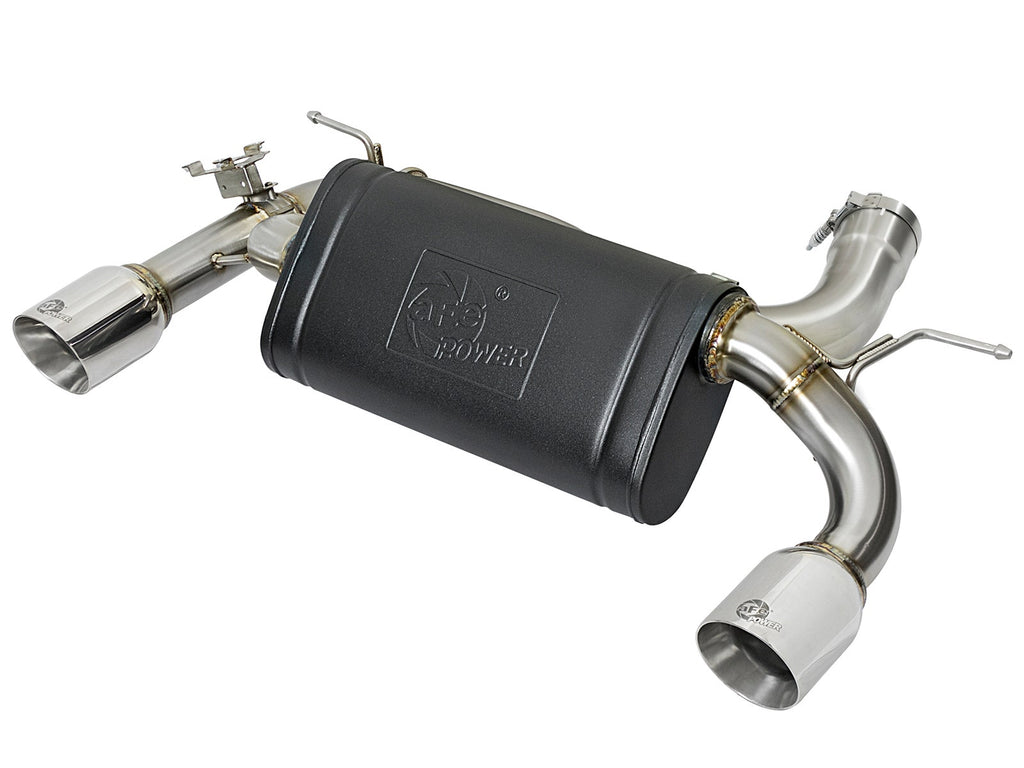

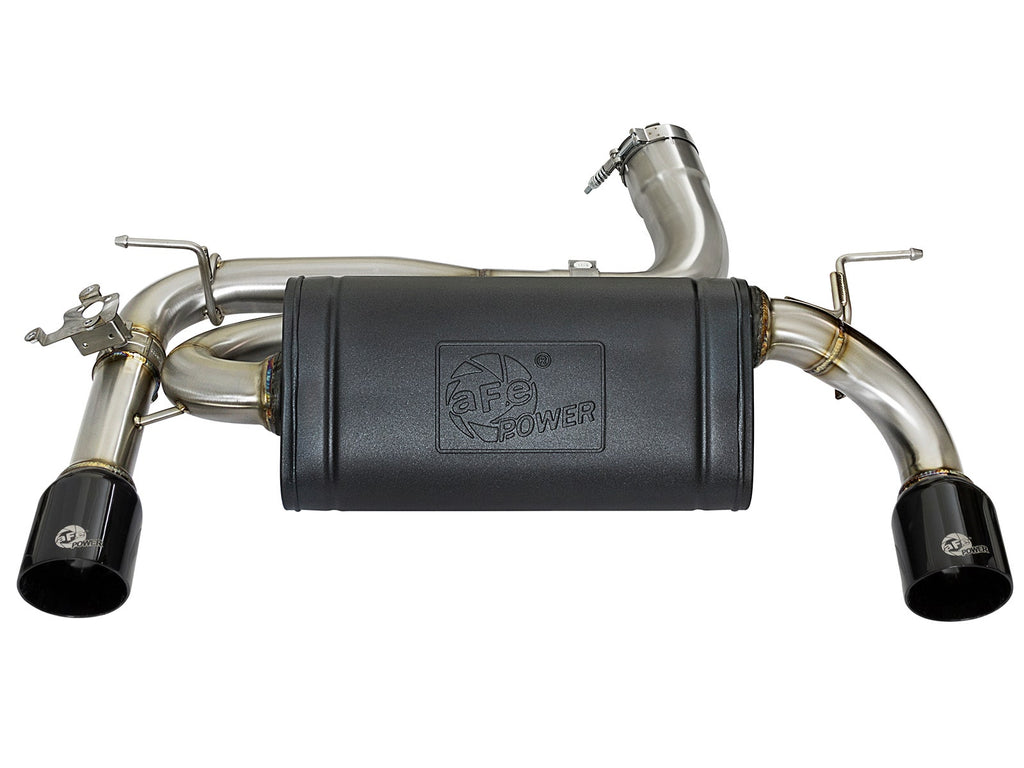

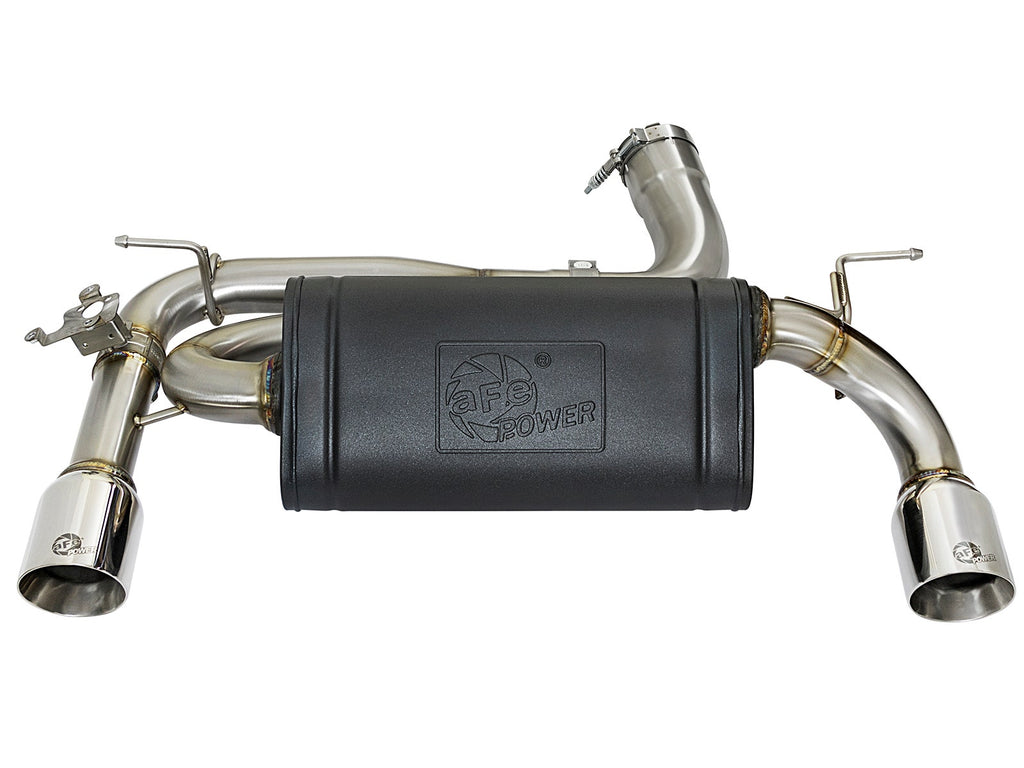

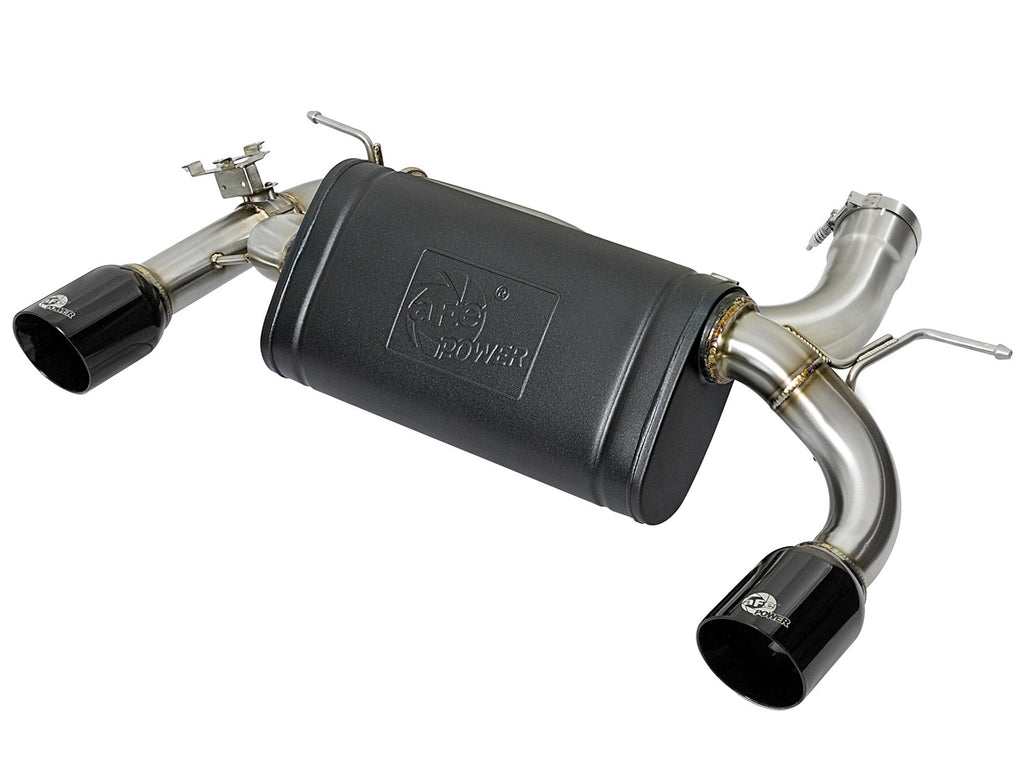

• Axle-back (49-36336-P / 49-36336-B): muffler assembly — 05-145119 polished tips or 05-145120 black tips
• Axle-back: adapter pipe tube 05-145122
• Axle-back: 3" band clamp 05-41055
• Axle-back: stainless steel T-bolt clamp 03-50292

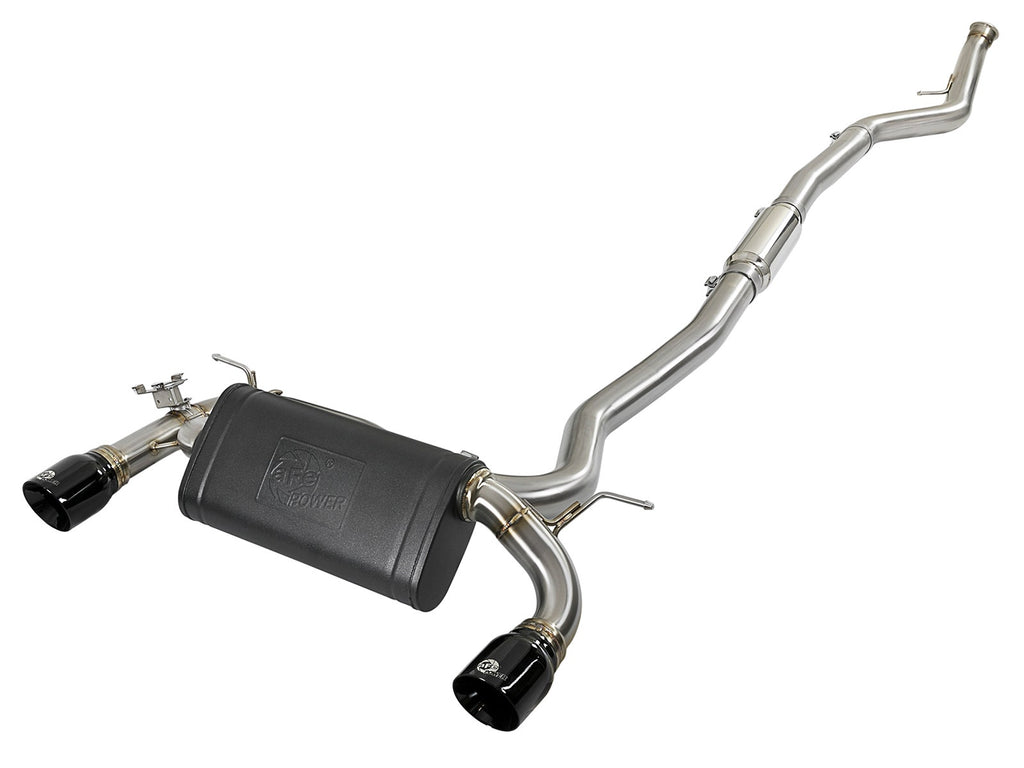

• Cat-back (49-36340-B): muffler assembly 05-145120
• Cat-back: front pipe 05-45867
• Cat-back: resonated mid-pipe #1 05-145193
• Cat-back: mid-pipe #2 05-145406
• Cat-back: 3" band clamps 05-41055

TECH RESOURCES

Additional Parts Required

• None. aFe specifies no additional hardware for this part — the system reuses the vehicle’s factory exhaust valve motor and all factory hanger locations.
• Optional, not required: aFe resonator delete pipe, P/N 49-36622 (sold separately; not currently stocked by Speed Logic).

Installation

• aFe POWER 49-36336-P / 49-36336-B axle-back installation instructions (PDF)
• aFe POWER 49-36340-P / 49-36340-B cat-back installation instructions (PDF)

Notes

• The table above reflects aFe’s fitment for the 49-36336 axle-back system. aFe’s 49-36340 cat-back instructions list the 2012–2015 BMW 335i (F30) N55; confirm cat-back fitment for your chassis with Speed Logic before ordering.

PART NUMBER

• 49-36336-P — axle-back, polished tips
• 49-36336-B — axle-back, black tips
• 49-36340-B — cat-back, black tips
• 49-36340-P — cat-back, polished tips (aFe sibling variant)
