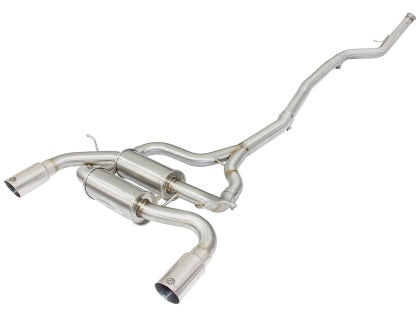

aFe Mach Force XP Cat-Back Exhaust – BMW 335i / 435i (F30 / F32)

OVERVIEW

The aFe POWER MACH Force-Xp cat-back exhaust system was developed for the N55-powered F30 335i and F32/F33 435i. In aFe's in-house dyno testing the system produced a maximum gain of +4 horsepower and +5 lbs. x ft. of torque. Tube diameters and lengths were engineered to maximize performance across the power band while maintaining a strong tone with an aggressive note on shifts.

Construction is 100% hand TIG-welded, mandrel-bent 304 stainless steel with a uniform brushed finish that resists corrosion. The system uses 3" tubing that merges into 2-1/2" tubing for maximum flow, and smooth-transition mandrel bends keep turbulence low. A true mitered merge collector eliminates the dead space that formed collectors tend to create, which would otherwise cause turbulence and hinder flow.

Dual free-flowing transverse mufflers absorb high-pitch tones to produce a powerful sound while unleashing all available horsepower and torque. The system finishes with dual aFe laser-etched 3.5" polished 304 stainless steel tips, and high-quality band clamps provide a complete 360-degree sealing surface. All factory hanger and mounting locations are used for a stable, hassle-free installation.

SPECS

• Maximum gains: +4 HP and +5 lbs. x ft. of torque, verified on aFe's in-house dyno
• Tubing: 3" merging into 2-1/2" mandrel-bent 304 stainless steel
• Construction: 100% hand TIG-welded 304 stainless steel with brushed finish
• Collector: true mitered merge design
• Mufflers: dual free-flowing transverse mufflers
• Tips: dual 3.5" polished 304 stainless steel with laser-etched aFe logos
• Clamps: high-quality band clamps for a full 360-degree sealing surface
• Mounting: uses all factory hanger locations
• Does not use the OEM exhaust valve
• Available with polished or black tips (see PART NUMBER)

PARTS INCLUDED

• Front mid-pipe — 05-45665
• Mid Y-pipe sub-assembly — 05-45669
• Muffler assembly with polished tips — 05-45870 (supplied with 49-36326-P)
• Muffler assembly with black tips — 05-45890 (supplied with 49-36326-B)
• 3" band clamps (x2) — 05-41055
• 2.5" band clamps (x2) — 05-41061

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this part — all clamps are supplied and the factory hangers are reused.
• Installer supplies: standard metric hand tools, penetrating oil, and a lift or jack and jack stands.
• Optional service items: stainless-safe metal polish for the polished tips.

Installation

• aFe Power 49-36326 MACH Force-Xp cat-back exhaust installation instructions (PDF)

Notes

• This system does not retain the OEM exhaust valve.

PART NUMBER

• 49-36326-P — 304 stainless steel with polished tips
• 49-36326-B — 304 stainless steel with black tips
