aFe Mach Force XP Cat-Back Exhaust 49-36311-C – BMW M3 (E90)

OVERVIEW

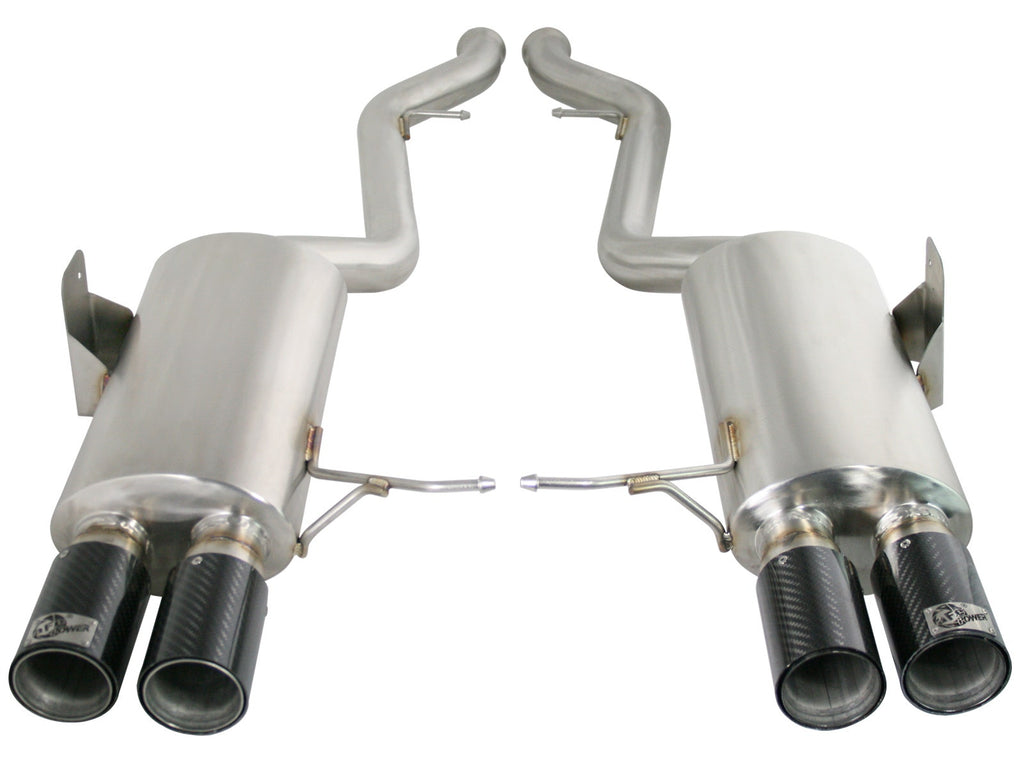

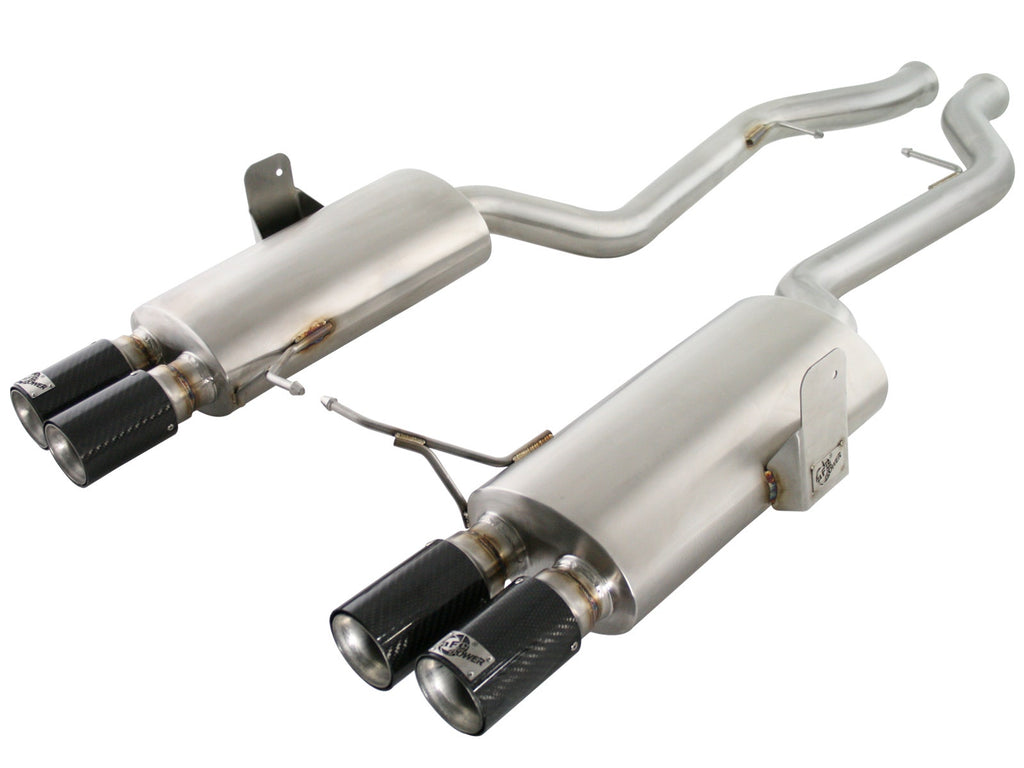

aFe POWER's MACH Force-Xp cat-back exhaust system for the E90 M3 is constructed of 2.50" diameter, mandrel-bent, TIG-welded 304 stainless steel with a hand-brushed finish, and uses all factory mounting locations for an approximate one-hour install. In aFe's testing the system produced +12 horsepower and +11 lbs. x ft. of torque.

This race-inspired system is 15 lbs. lighter than the factory exhaust. Dual mufflers use a single-in, dual-out free-flowing design that gives an aggressive sound at high RPM while keeping a subtle tone at cruising speeds.

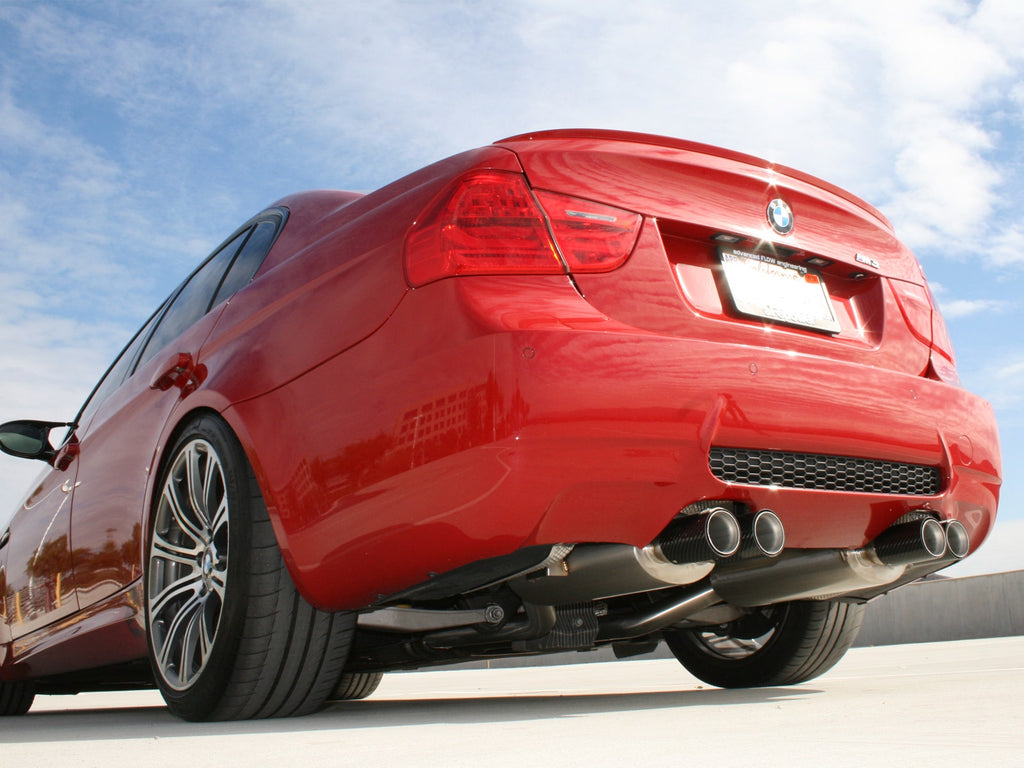

The system is finished with race-tested and proven 3" carbon fiber quad tips, chosen for weight savings and a sporty look and built to withstand extreme temperatures and weather conditions. Installation requires no modifications. All aFe exhaust systems are engineered and manufactured at aFe's Corona, California facility.

SPECS

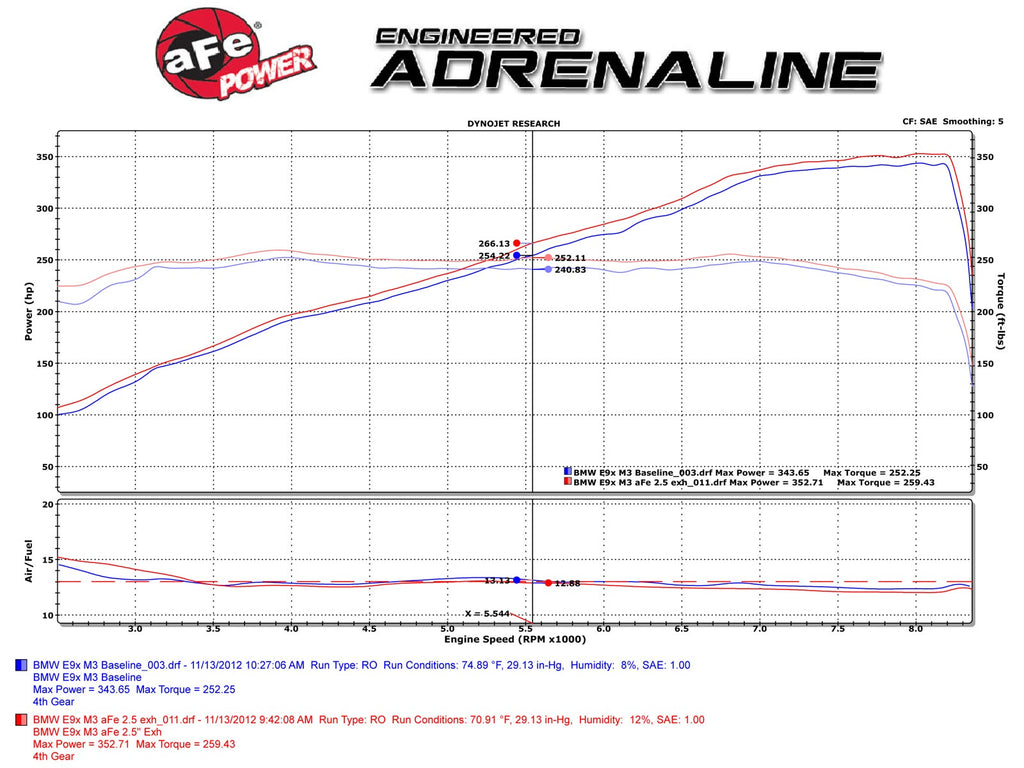

• Maximum gains: +12 HP and +11 lbs. x ft. of torque
• Tubing: 2.50" diameter mandrel-bent 304 stainless steel
• Construction: TIG-welded 304 stainless steel with a hand-brushed finish
• Weight: approximately 15 lbs. lighter than the factory exhaust system
• Mufflers: dual, single-in / dual-out free-flowing design

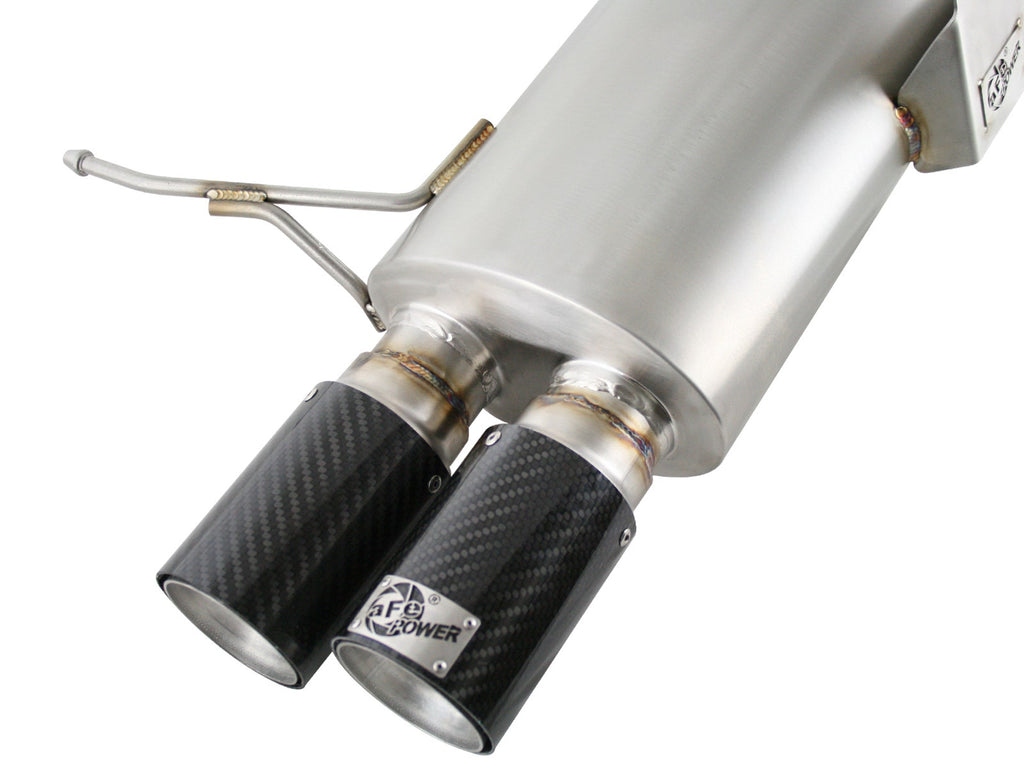

• Tips: 3" carbon fiber quad tips
• Mounting: uses all factory mounting locations; no modifications necessary
• Approximate installation time: 1 hour
• Engineered and manufactured in Corona, California

PARTS INCLUDED

• Left side tail pipe assembly — 05-45546
• Right side tail pipe assembly — 05-45547
• Lock nuts (x2) — 03-50244

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this part — the factory mounting locations and hangers are reused and the required lock nuts are supplied.
• Installer supplies: standard metric hand tools, penetrating oil, and a lift or jack and jack stands.
• Optional service items: carbon-fiber-safe detailer or sealant for the tips.

Installation

• aFe Power 49-36311-C MACH Force-Xp cat-back exhaust with carbon fiber tips installation instructions (PDF)

PART NUMBER

• 49-36311-C
