aFe Mach Force XP Cat-Back Exhaust 49-36317-C – BMW M5 (F10)

OVERVIEW

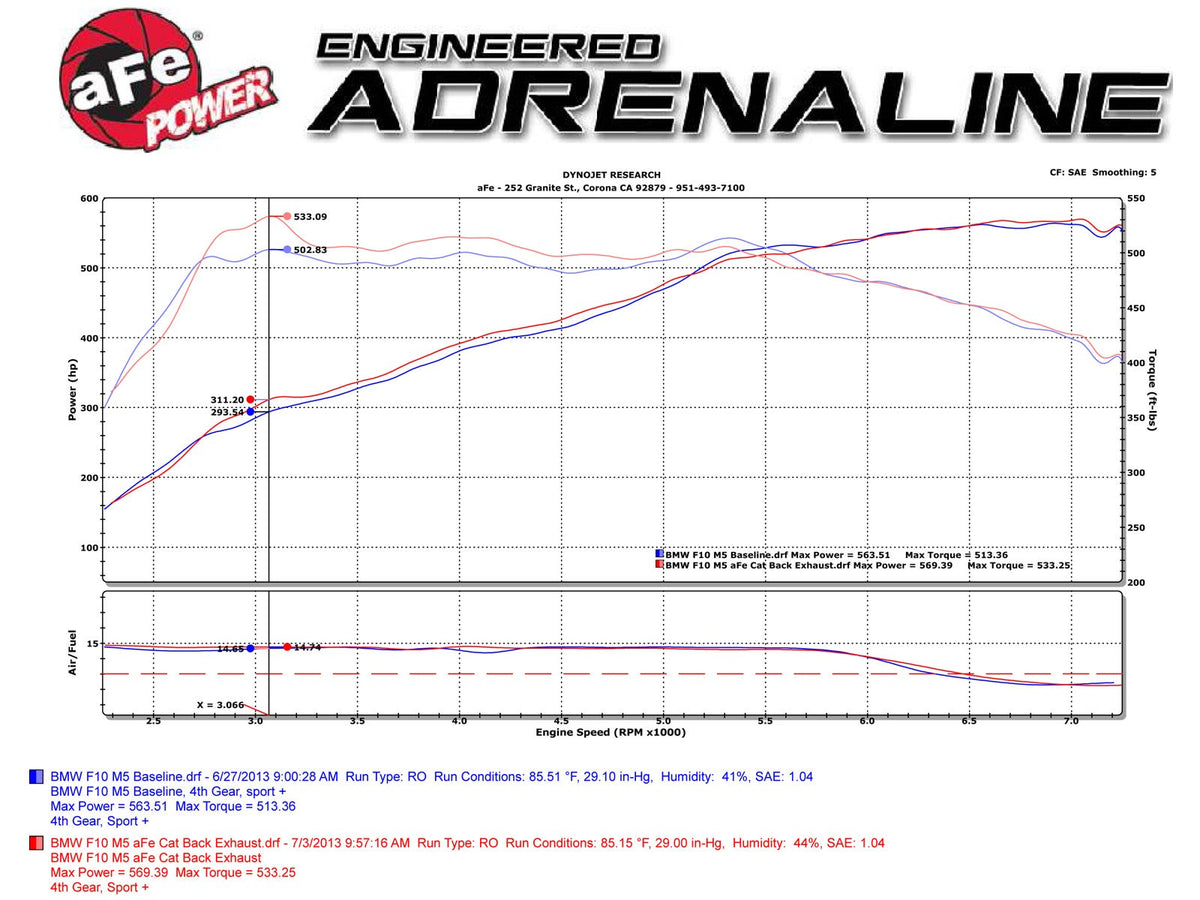

aFe POWER's MACH Force-Xp cat-back exhaust system was developed for the twin-turbo F10 M5. In aFe's testing the system produced +18 horsepower and +30 lbs. x ft. of torque. It is constructed from TIG-welded, 3" mandrel-bent 304 stainless steel and uses a quad high-flow muffler layout, with tube lengths tuned to maximize performance across the power band while maintaining a great tone.

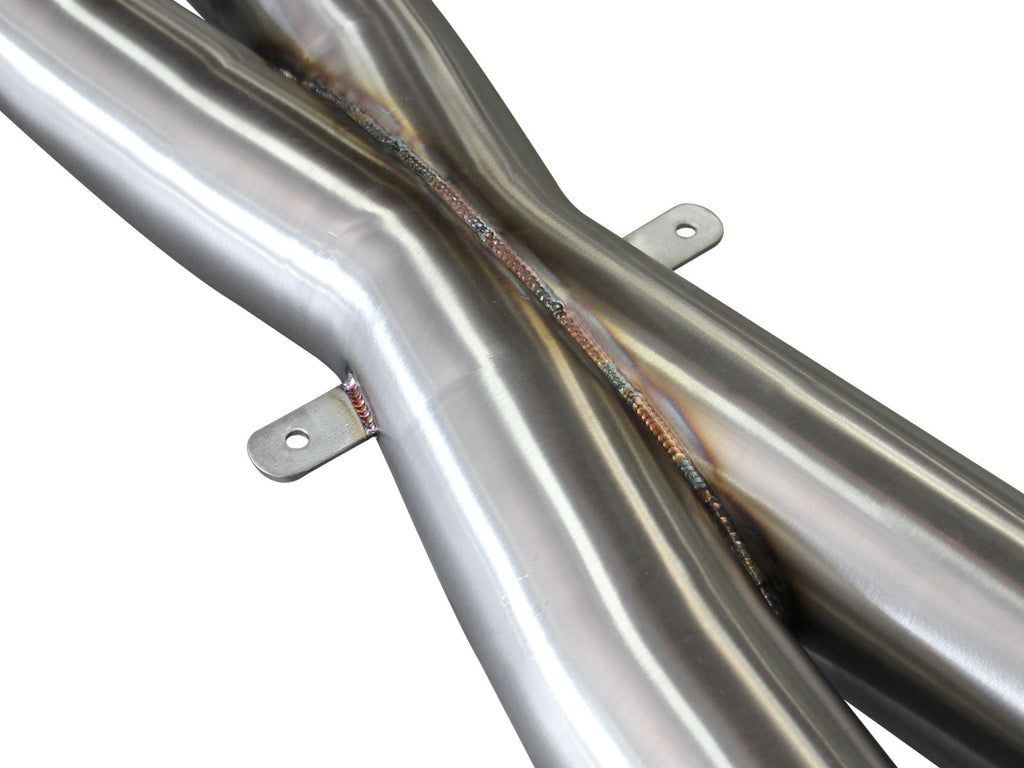

An X-pipe balance tube equalizes and evenly distributes exhaust pulses, increasing flow and performance while minimizing exhaust drone. Mitered merge collectors reduce turbulence and increase exhaust velocity, which raises horsepower and torque and sharpens throttle response. High-quality OE-style flanges and band clamps give a complete 360-degree sealing surface.

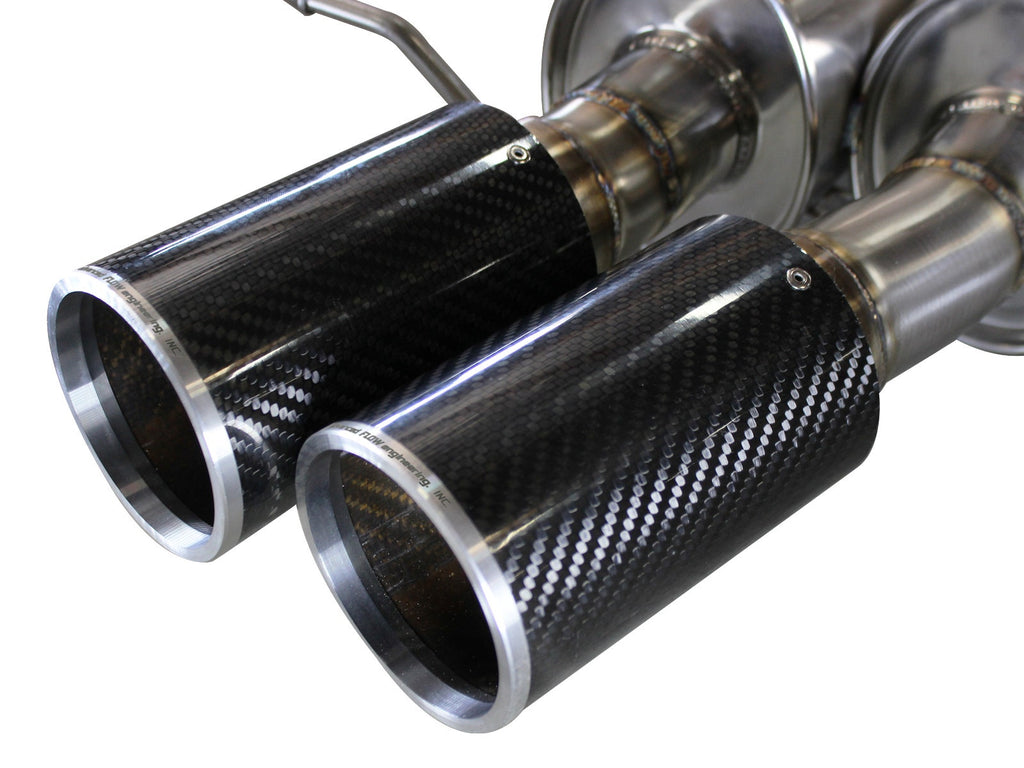

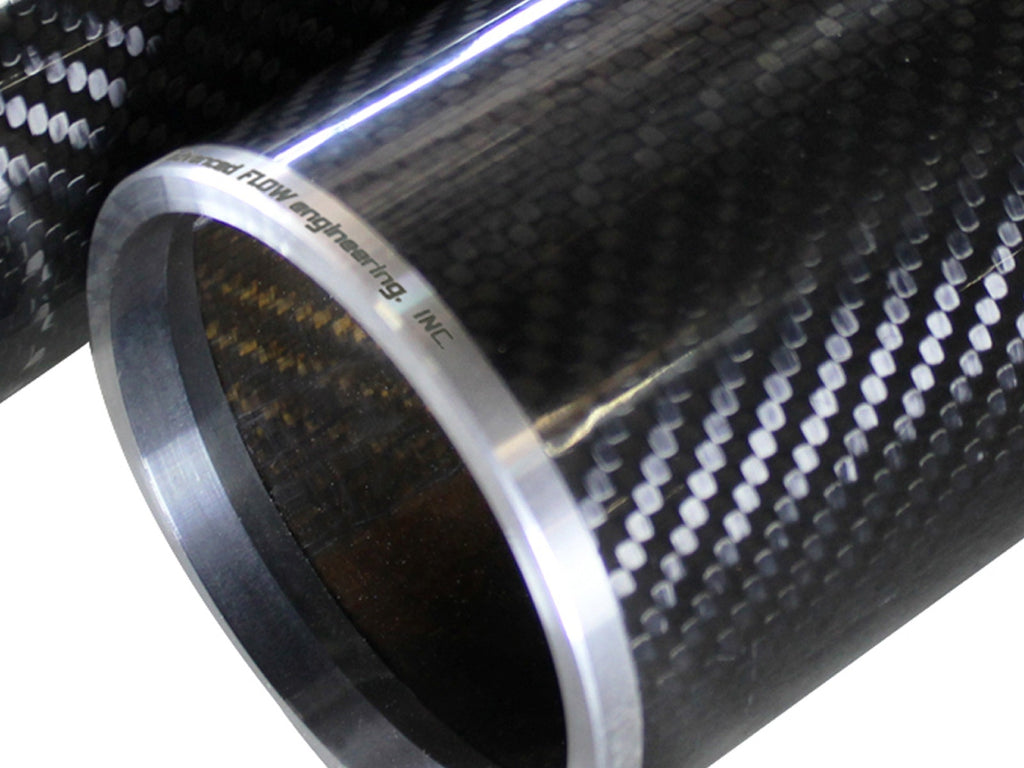

Finishing the system are four 4" carbon fiber tips with 303 stainless steel machined-finish inserts — race inspired, lightweight and built to handle extreme temperatures and weather. The exhaust uses all factory hanger locations for a hassle-free installation with no modifications necessary. All aFe exhaust systems are engineered and manufactured at aFe's Corona, California facility.

SPECS

• Maximum gains: +18 HP and +30 lbs. x ft. of torque
• Tubing: 3" mandrel-bent 304 stainless steel
• Construction: TIG-welded 304 stainless steel
• Mufflers: quad free-flowing high-flow design
• X-pipe balance tube to equalize exhaust pulses and minimize drone
• Collectors: mitered merge design
• Tips: four 4" carbon fiber tips with 303 stainless steel machined-finish inserts
• Sealing: OE-style flanges and band clamps for a full 360-degree sealing surface
• Mounting: uses all factory hanger locations; no modifications necessary
• Engineered and manufactured in Corona, California

PARTS INCLUDED

• X-pipe balance tube — 05-45642
• Left side mid-pipe — 05-45638
• Right side mid-pipe — 05-45639
• Left side slip fit — 05-45650
• Right side slip fit — 05-45654
• Left side tailpipe with carbon fiber tip — 05-45649
• Right side tailpipe with carbon fiber tip — 05-45653
• 2.5" band clamps (x3) — 05-41061
• 3.0" band clamps (x2) — 05-41055
• Spacers (x6) — 05-46058
• Vacuum plugs (x2) — 03-50201

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this part — every clamp, spacer and plug is supplied and the factory hangers are reused.
• Installer supplies: standard metric hand tools, penetrating oil, and a lift or jack and jack stands.
• Optional service items: carbon-fiber-safe detailer or sealant for the tips.

Installation

• aFe Power 49-36317-C / 49-36317-P MACH Force-Xp cat-back exhaust installation instructions (PDF)

Notes

• Years shown follow aFe's official installation instructions for 49-36317. If you have a 2016 F10 M5, confirm fitment with Speed Logic before ordering.

PART NUMBER

• 49-36317-C — 304 stainless steel cat-back with carbon fiber tips (this listing)
• 49-36317-P — the same system with polished stainless steel tips
