aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake 54-12922-B – BMW 230i / 330i / 430i (B48)

OVERVIEW

The aFe Power Magnum FORCE Stage-2 cold air intake replaces the factory airbox on the B46 and B48 2.0L turbocharged four-cylinder with a dyno-tuned system rated at 350 CFM at 7" H₂O. aFe records maximum gains of +12 horsepower and +12 lbs. x ft. of torque, outflowing the factory intake by up to 14%.

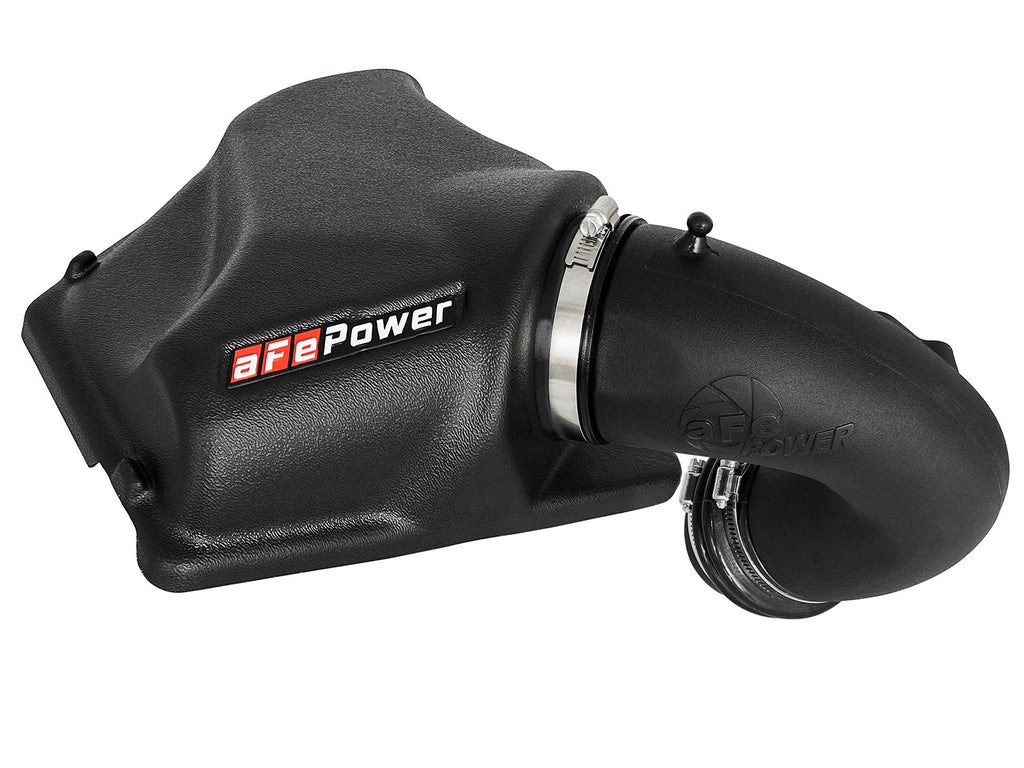

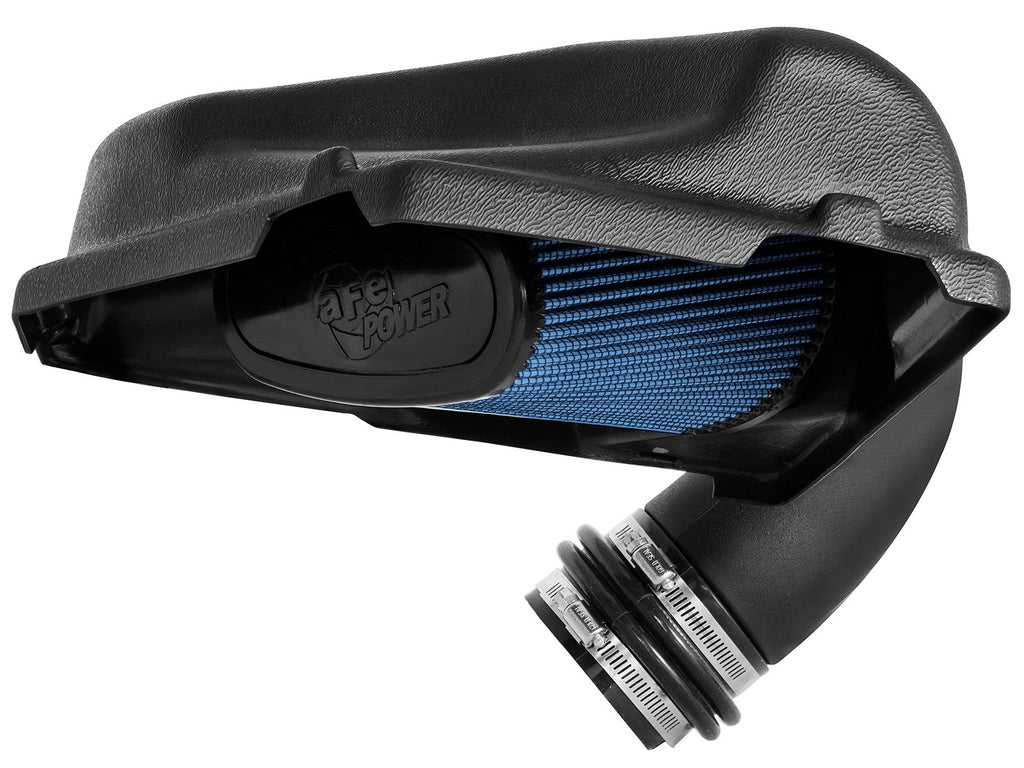

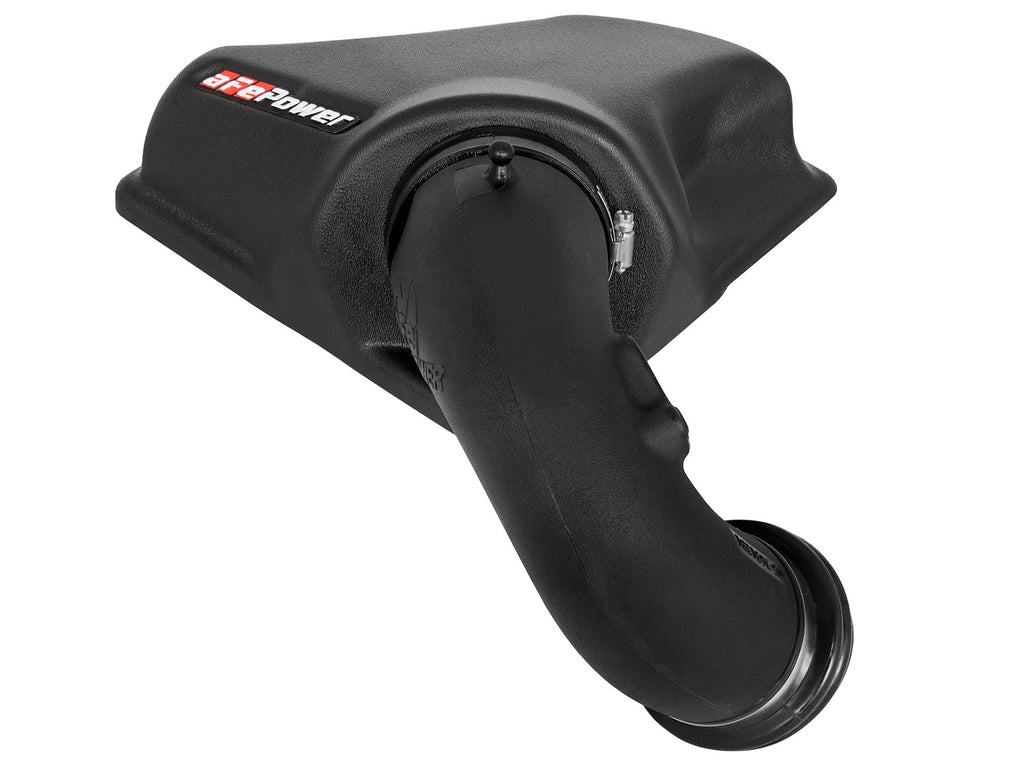

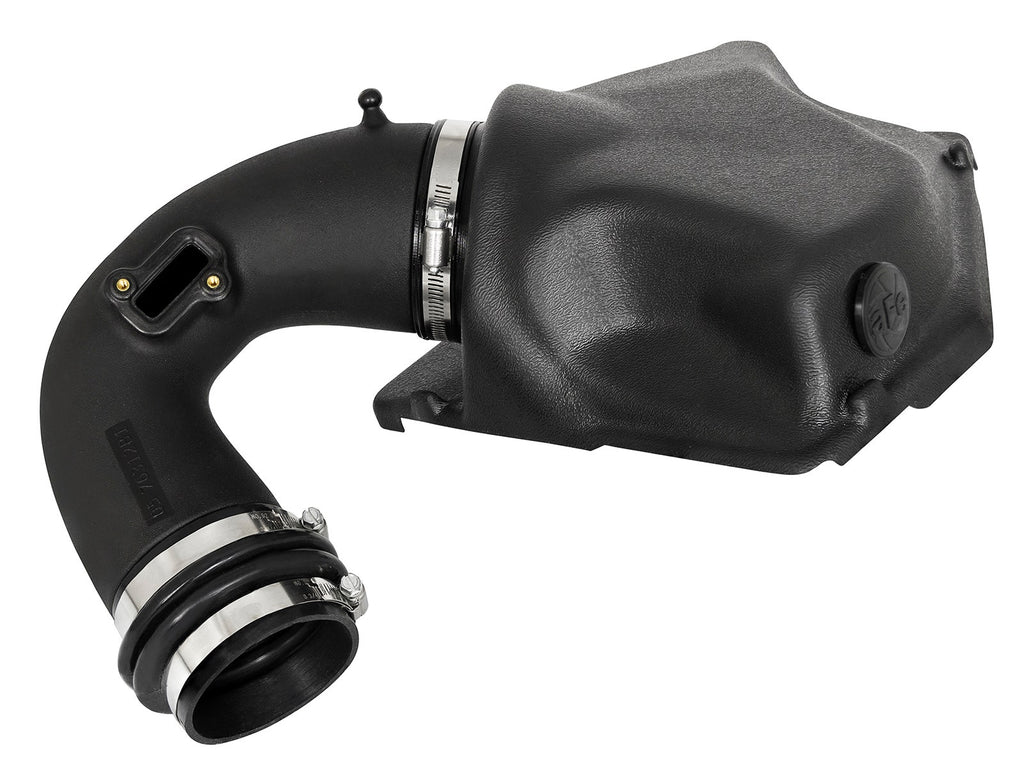

A 7" tall conical 360-degree radial flow Pro 5R air filter sits under a lightweight vacuum-formed plastic cover that creates a stealthy under-hood look and reduces intake noise without sacrificing power. The cover carries an auxiliary air inlet, and a urethane plug is included if you prefer to block that inlet off. The CAD-designed roto-molded intake tube is dyno-tuned for maximum power while maintaining a precise fit.

All clamps, couplings and hardware are supplied. This is a direct bolt-on kit that requires no cutting or drilling of factory parts.

SPECS

• Rated airflow: 350 CFM at 7" H₂O
• Max gains of +12 HP and +12 lbs. x ft. torque
• Outflows the factory intake by up to 14%
• Pro 5R oiled media: five layers of progressively finer mesh cotton gauze, washable and reusable
• Filter: 7" tall conical, 360-degree radial flow
• Intake tube: CAD-designed, roto-molded, dyno-tuned

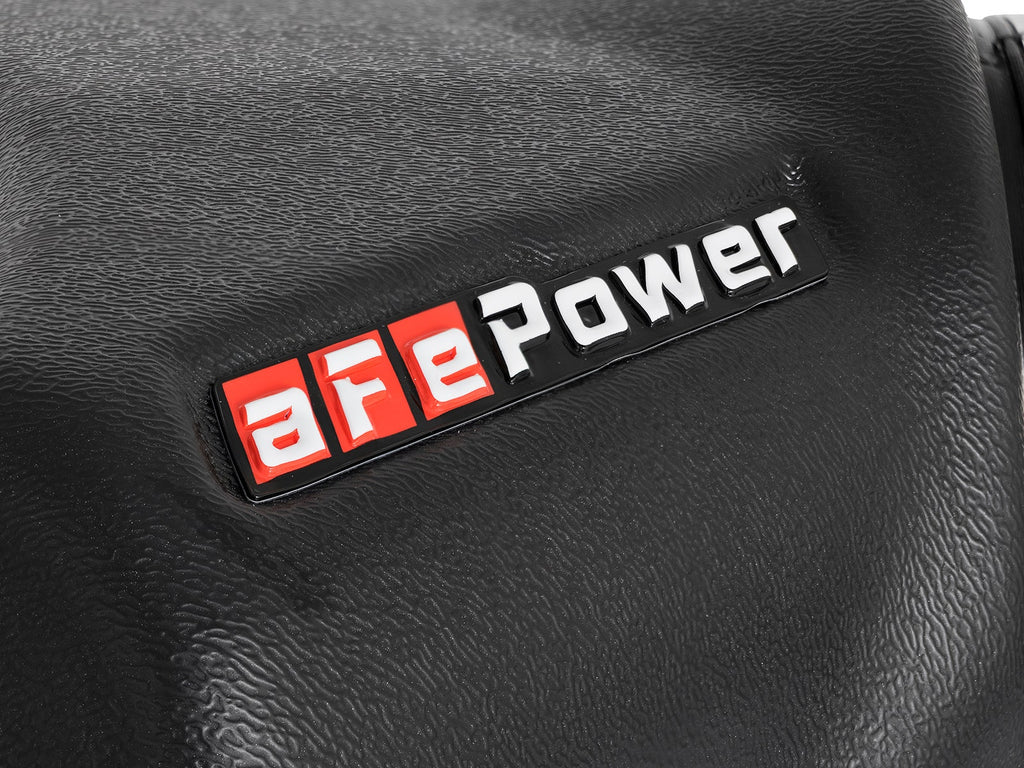

• Cover: lightweight vacuum-formed plastic, black, with auxiliary air inlet and supplied block-off plug
• Reuses the factory mass air flow sensor; no reprogramming required
• No cutting or drilling of factory parts
• Not CARB exempt — not legal for sale or use in California

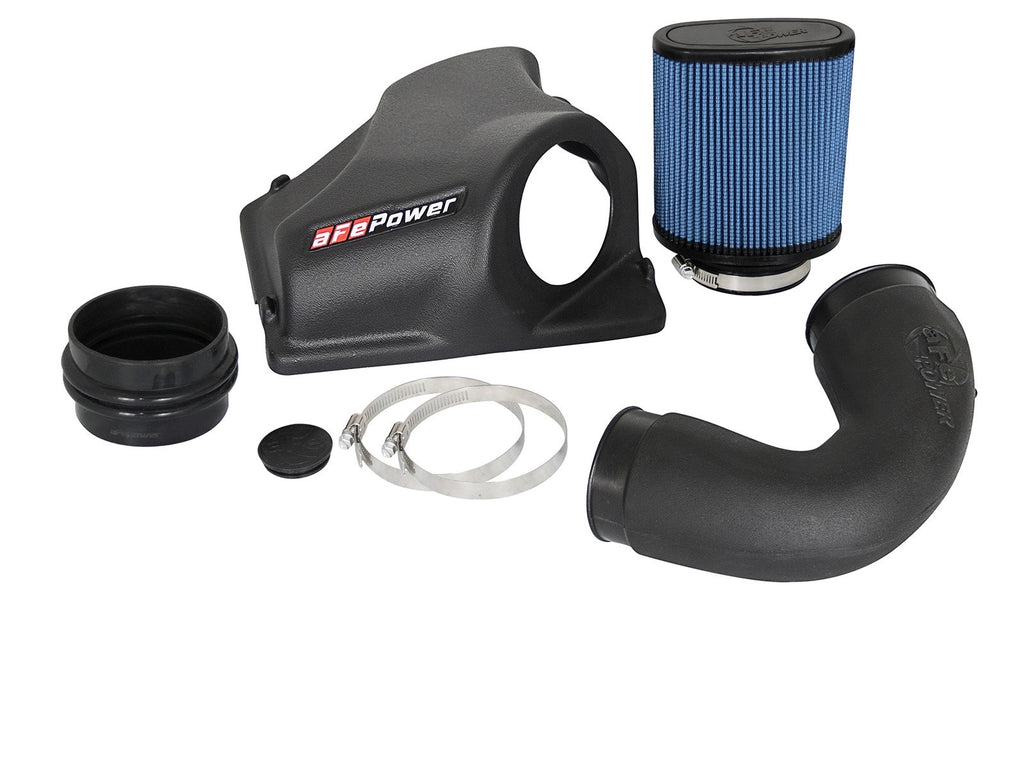

PARTS INCLUDED

• Pro 5R oiled air filter (24-90096)
• Intake tube (05-76312B1)
• Black vacuum-formed cover (05-12912B2)
• Silicone double-hump coupling (05-01416)
• Silicone plug for the auxiliary air inlet (05-01387)
• Clamps, #060, qty 2 (03-50002)
• Torx screws, M4, qty 2 (03-50490)

TECH RESOURCES

Additional Parts Required

• None. aFe specifies no additional hardware for this intake — the coupling, clamps, screws and block-off plug are all supplied in the box.
• No tune is required and the factory mass air flow sensor is reused.
• Service item (not required): replacement Pro 5R oiled filter, aFe 24-90096. The oil-free Pro DRY S filter for this housing is aFe 21-90096.

Installation

• aFe 54-12922-B installation instructions (PDF)

Notes

• This product is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles.
• Does not fit convertible models. 2016 330i and 330i xDrive listings are non-US market vehicles. Confirm fitment with Speed Logic if your car is not listed exactly as shown.

PART NUMBER

• 54-12922-B — Pro 5R oiled filter with black cover
• 54-12922-C — same kit with the carbon-fiber-look cover
• 51-12922-B — same kit with the Pro DRY S oil-free filter and black cover

VEHICLE APPLICATIONS
