aFe Momentum GT Pro 5R Cold Air Intake – BMW B58 (G2x / G42)

OVERVIEW

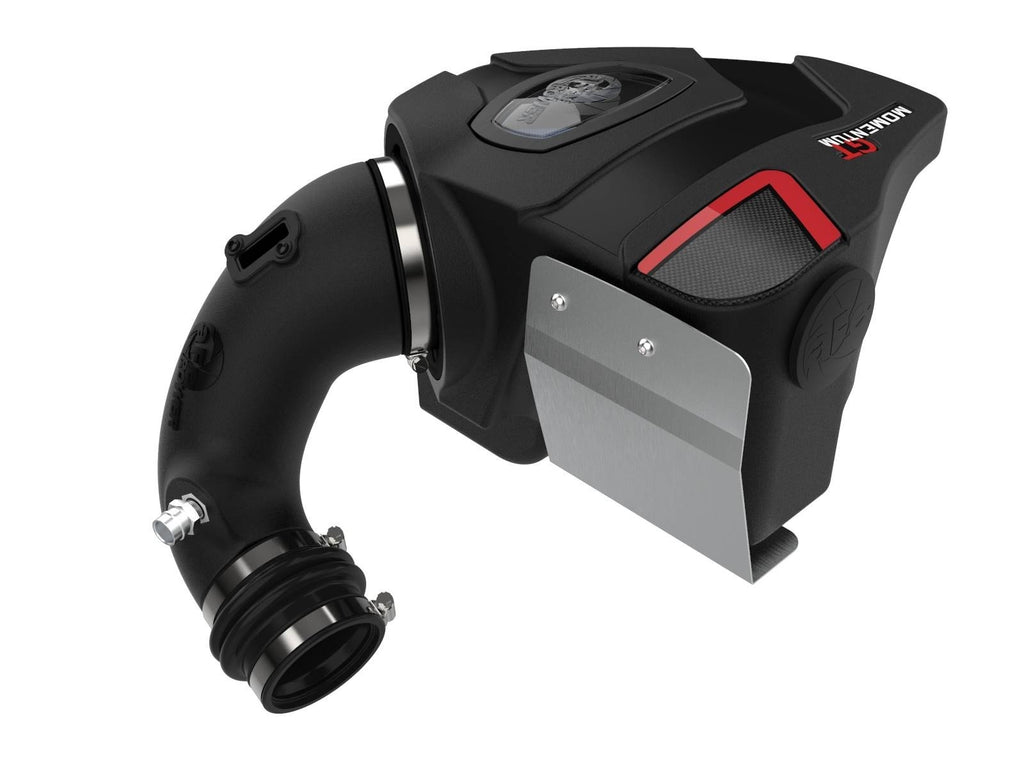

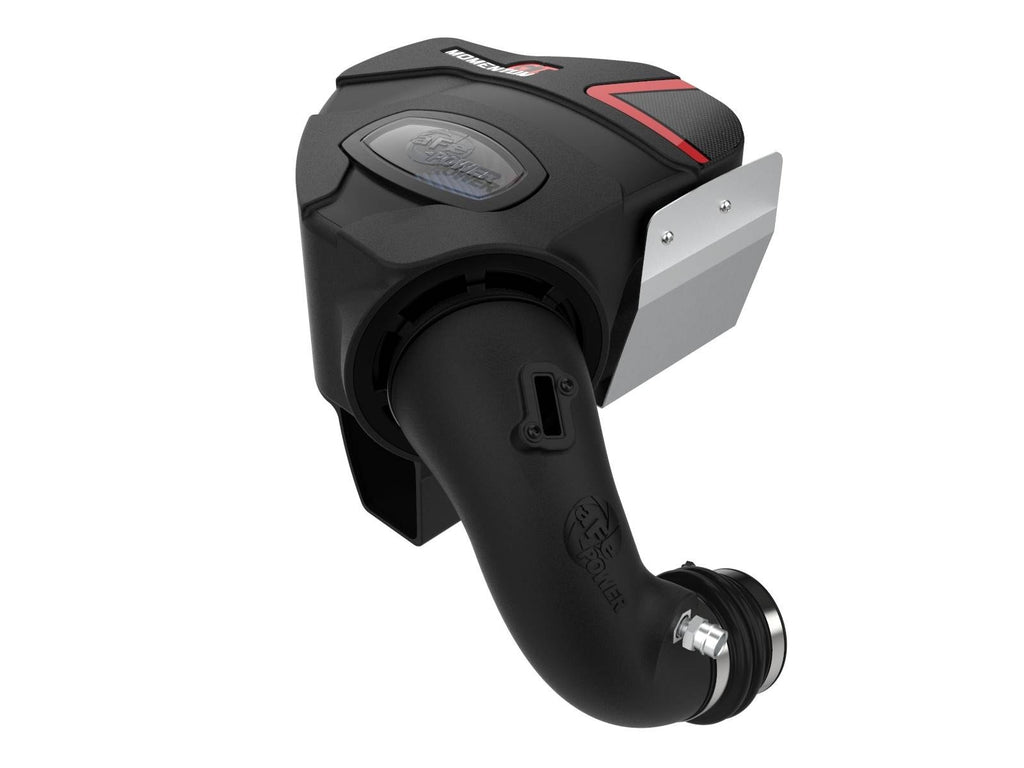

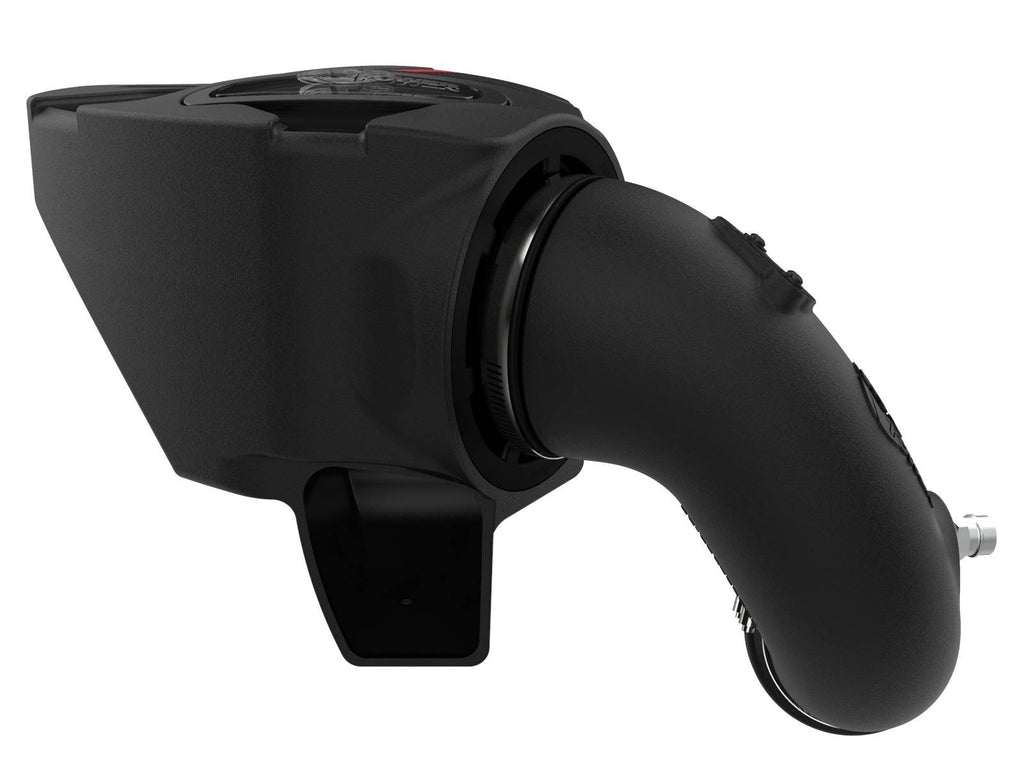

The aFe Power Momentum GT cold air intake is a complete, sealed induction system for the B58-powered BMW M340i, M440i and M240i. A one-piece housing molded from heat-resistant XLPE cross-linked polyethylene isolates the filter from engine heat, an aluminum heat-shield panel keeps hot air away from the housing, and a computer-designed, dyno-tuned XLPE intake tube completes the path to the turbo. aFe measures 340 CFM at 7" H₂O — 15% more flow than the factory intake — for dyno-proven gains of up to +13 horsepower and +14 lbs. x ft. of torque.

This version is supplied with the oiled Pro 5R filter: a 6" tall, 360-degree radial-flow element on a 4-1/2" round flange, built from five layers of progressively finer cotton gauze. It is washable and re-usable, and aFe rates the media as best suited to street and track use.

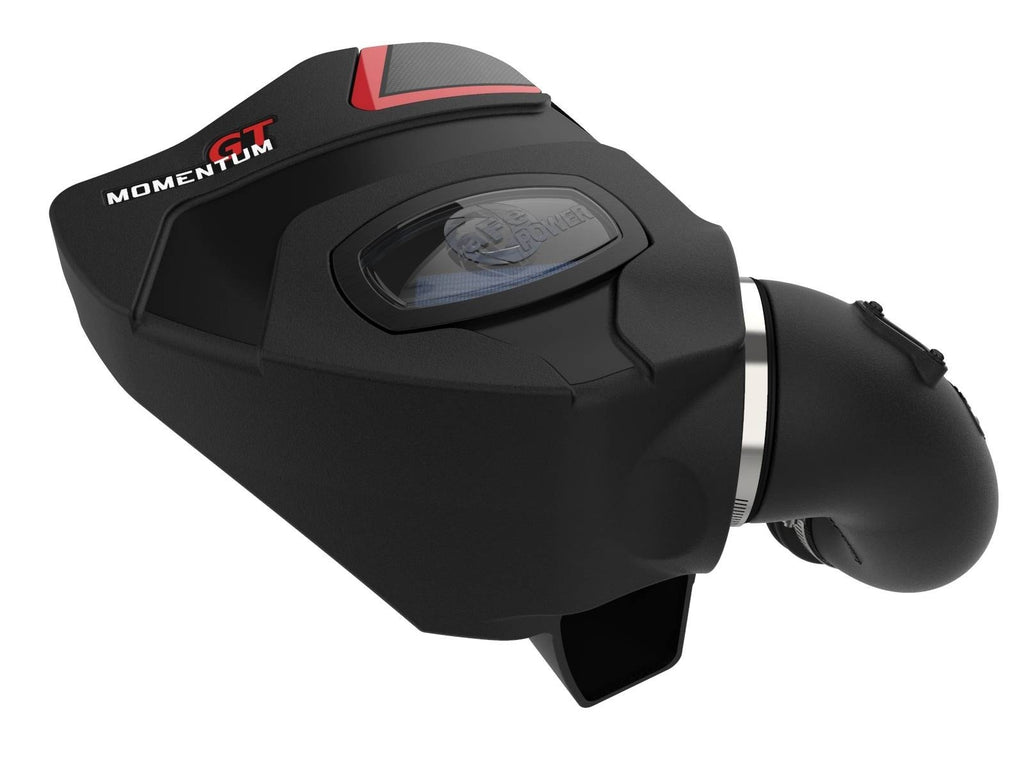

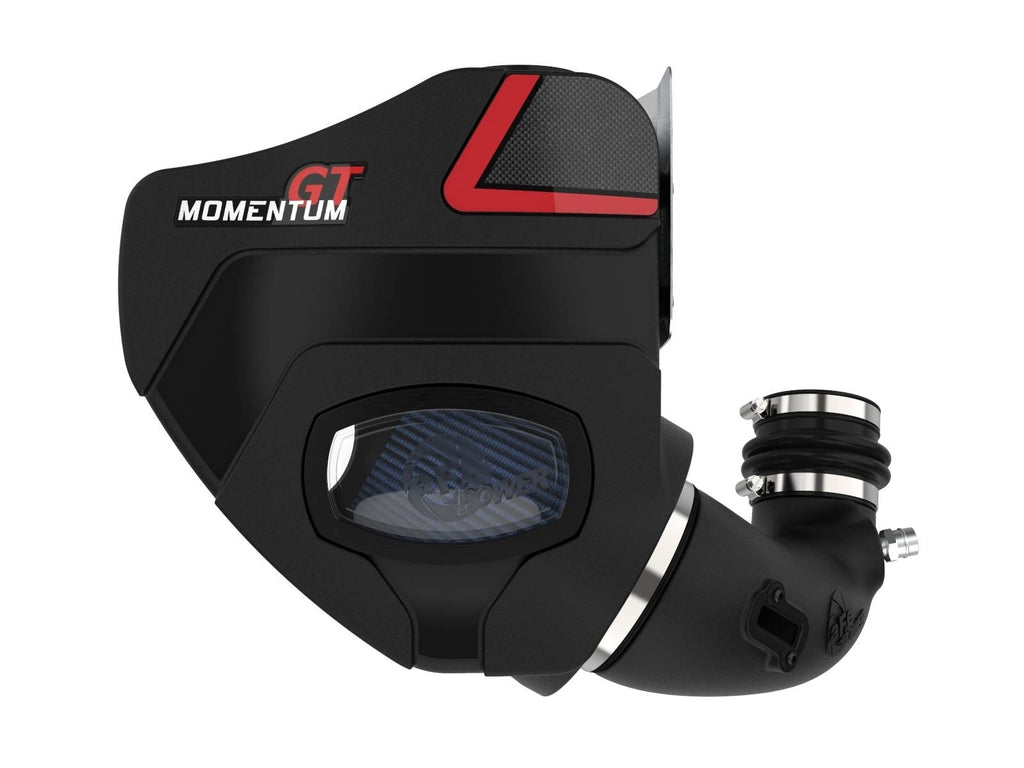

A large clear sight window in the housing lets you inspect the filter without disassembling anything. The system uses the factory mounting locations and aFe’s patent-pending filter-to-housing interface, so it goes together with about half the parts of a conventional cold air intake. Stainless-steel worm clamps and a premium bellows coupling are included.

SPECS

• Dyno-proven gains: up to +13 HP and +14 lbs. x ft. of torque
• Measured airflow: 340 CFM @ 7" H₂O
• Outflows the factory intake by 15%
• Filter media: aFe Pro 5R oiled, 5-layer progressively finer cotton gauze; washable and re-usable (aFe P/N 24-91144)
• Filter size: 6" tall, 360-degree radial-flow element on a 4-1/2" round flange
• Housing: one-piece sealed, heat-resistant XLPE cross-linked polyethylene, with clear filter sight window (aFe P/N 05-5070060B2)
• Intake tube: computer-designed, dyno-tuned heat-soak-resistant XLPE (aFe P/N 05-5070060B1)
• Heat management: durable aluminum heat-shield panel
• Hardware: stainless-steel worm clamps and a 3.1" ID x 3" long silicone bellows coupling
• Installation: uses factory mounting locations; patent-pending filter-to-housing interface uses about half the parts of a traditional cold air intake
• Fitment note: will not fit vehicles that comply with BMW RDE (Real Driving Emissions) statutes
• Emissions status: not CARB exempt at this time — not legal for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles.

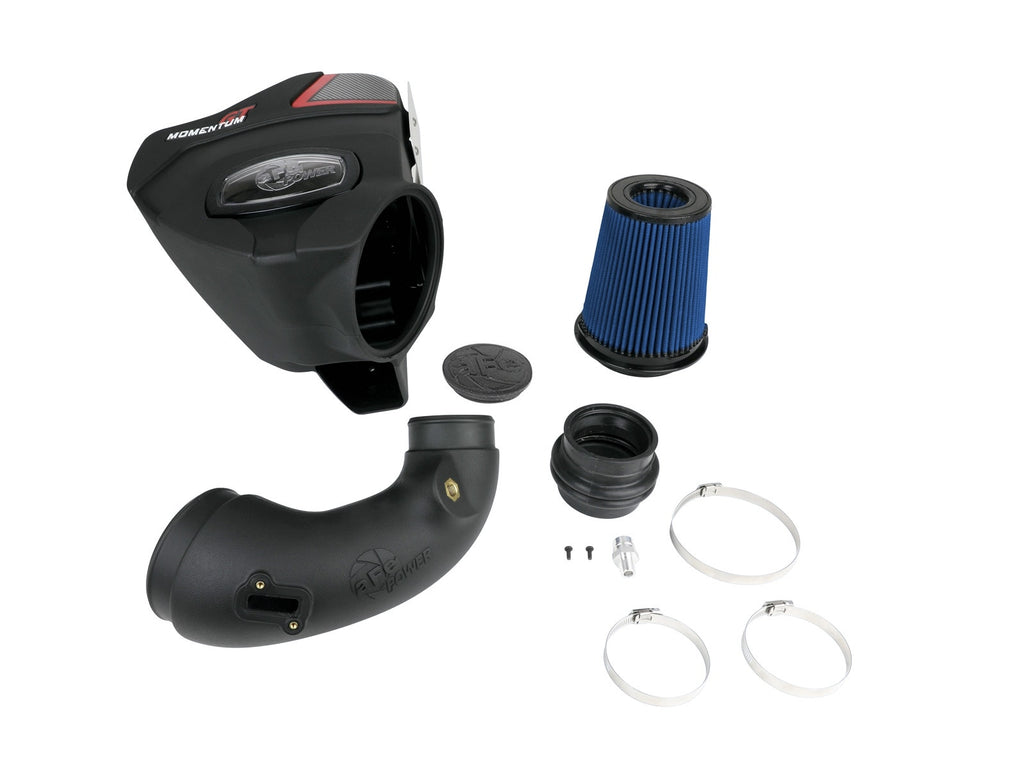

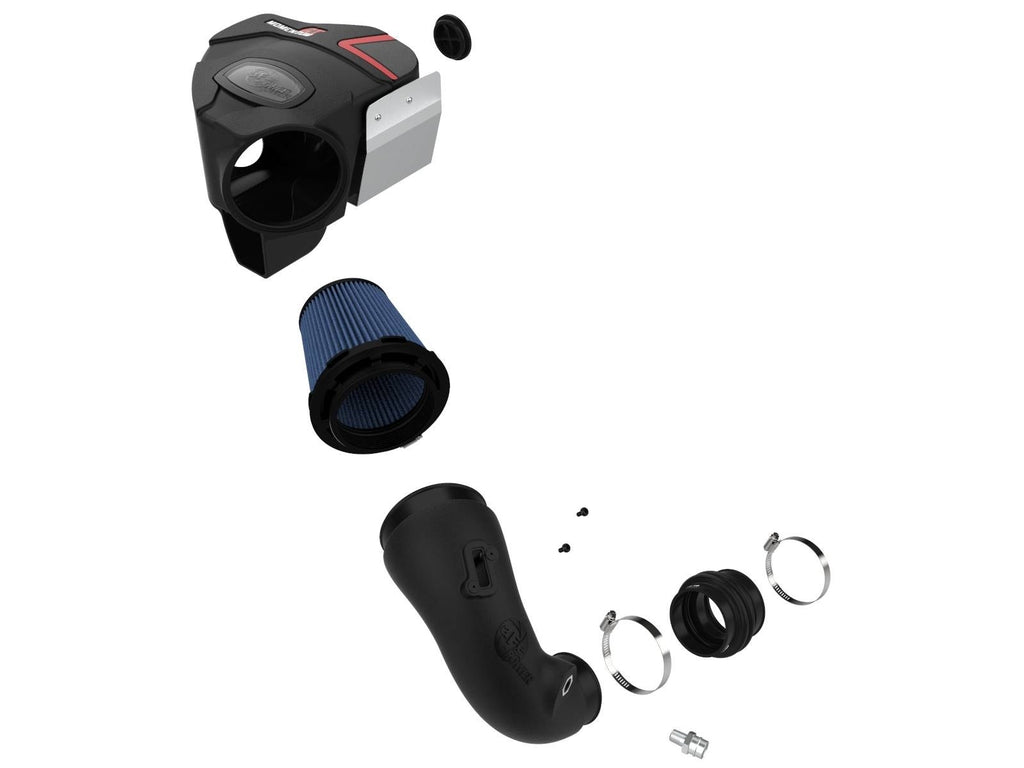

PARTS INCLUDED

• Pro 5R air filter (24-91144) — 1
• Intake tube (05-5070060B1) — 1
• Housing (05-5070060B2) — 1
• Silicone bellows coupling, 3.1" ID x 3" L (05-01525) — 1
• Hose clamp, #048 (03-50007) — 2
• Aluminum fitting, 1/4-NPT (03-50644) — 1
• Auxiliary plug (05-01482) — 1
• M4 screw (03-50490) — 2

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware, tune or fluids for this intake — it is a direct bolt-on kit that requires no cutting or drilling of factory parts.
• Installer-supplied: basic hand tools, including a T-handle or driver for M4 Torx screws and a nut driver for the hose clamps.
• Optional service item: the Pro 5R filter is a washable, re-usable oiled cotton-gauze element and must be re-oiled with aFe filter oil after each cleaning.

Installation

• aFe Power 50-70060R / 50-70060D installation instructions (PDF)

Notes

• Applications above follow aFe Power’s current installation instructions. This intake will not fit vehicles built to BMW RDE (Real Driving Emissions) specification. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• 50-70060R
