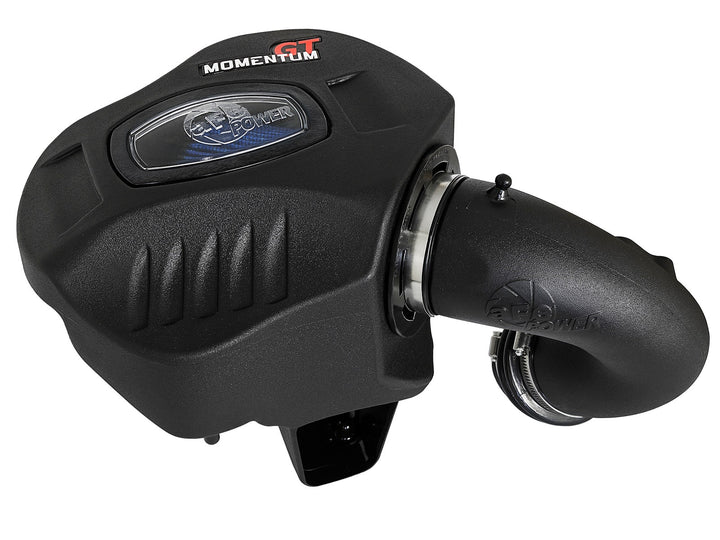

aFe Momentum GT Pro 5R Cold Air Intake 54-76312 – BMW 230i / 330i / 430i (B48)

OVERVIEW

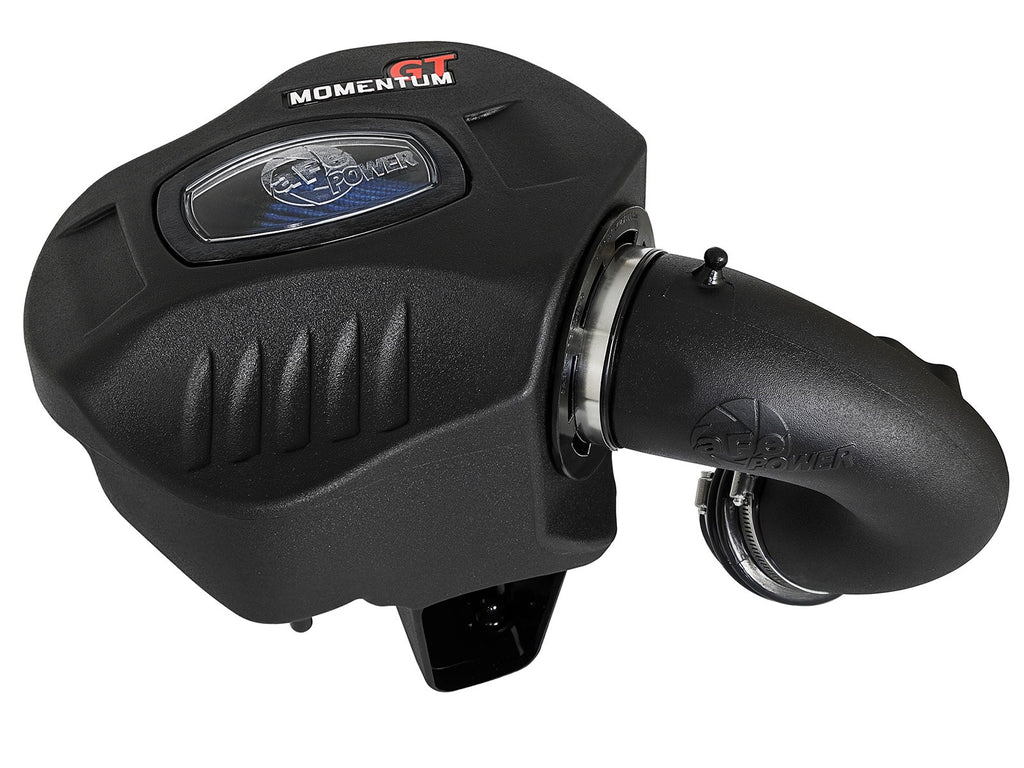

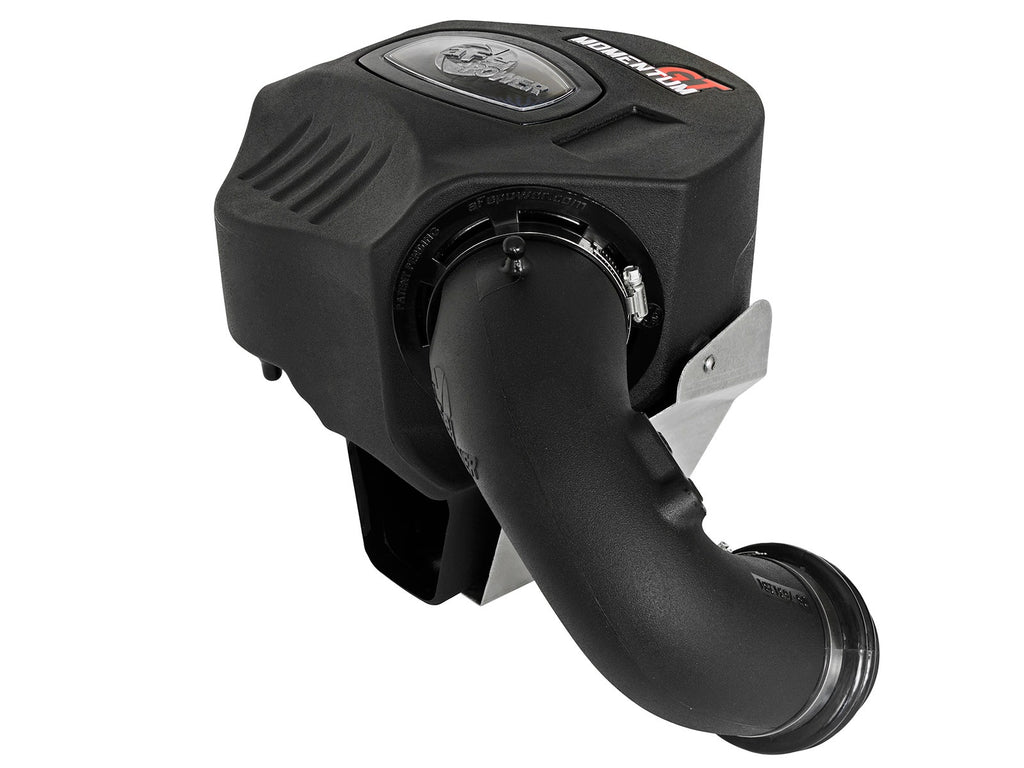

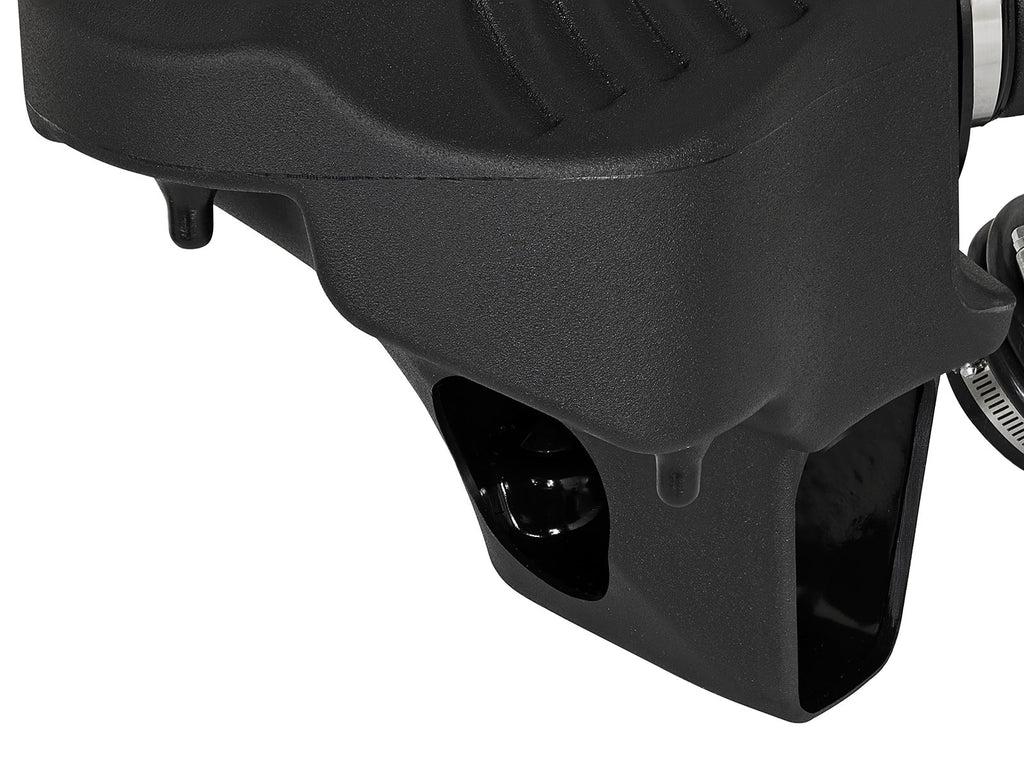

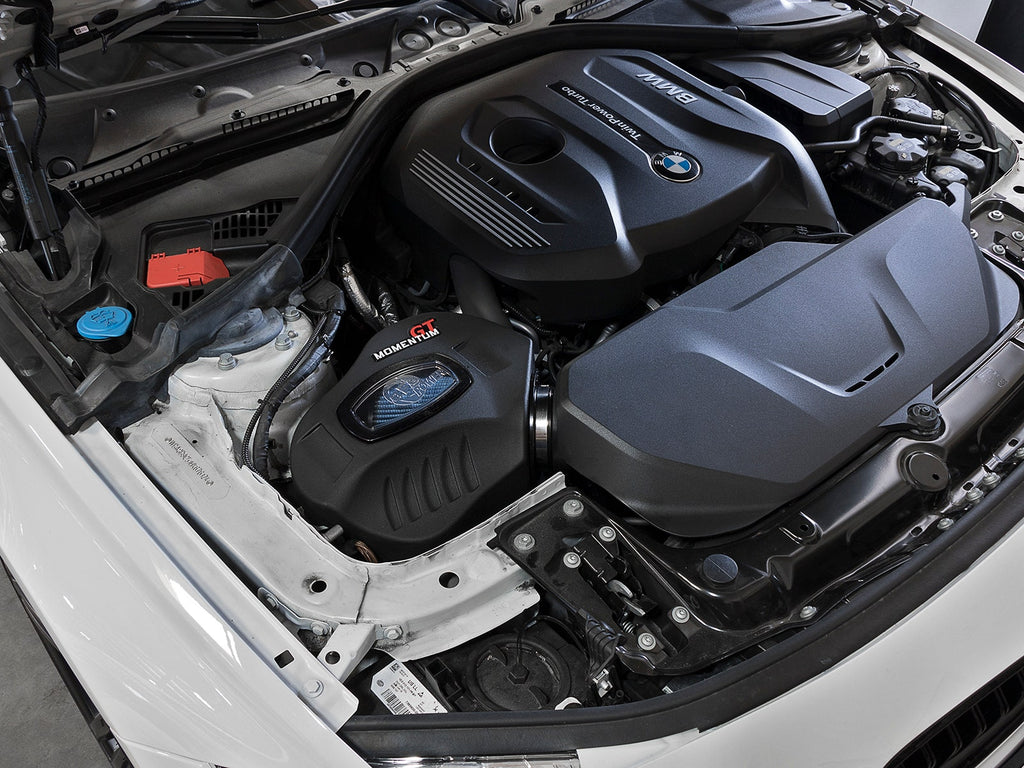

The aFe Power Momentum GT cold air intake is a fully sealed induction system for the B46/B48-powered BMW 230i, 330i and 430i. A one-piece roto-molded housing with an auxiliary air scoop replaces the factory airbox and ensures the coolest possible intake charge, while an aluminium heat-shield panel protects the housing from turbocharger heat. aFe measures 350 CFM at 7" H₂O — up to 24% more than the factory intake — for gains of up to +13 horsepower and +12 lbs. x ft. of torque.

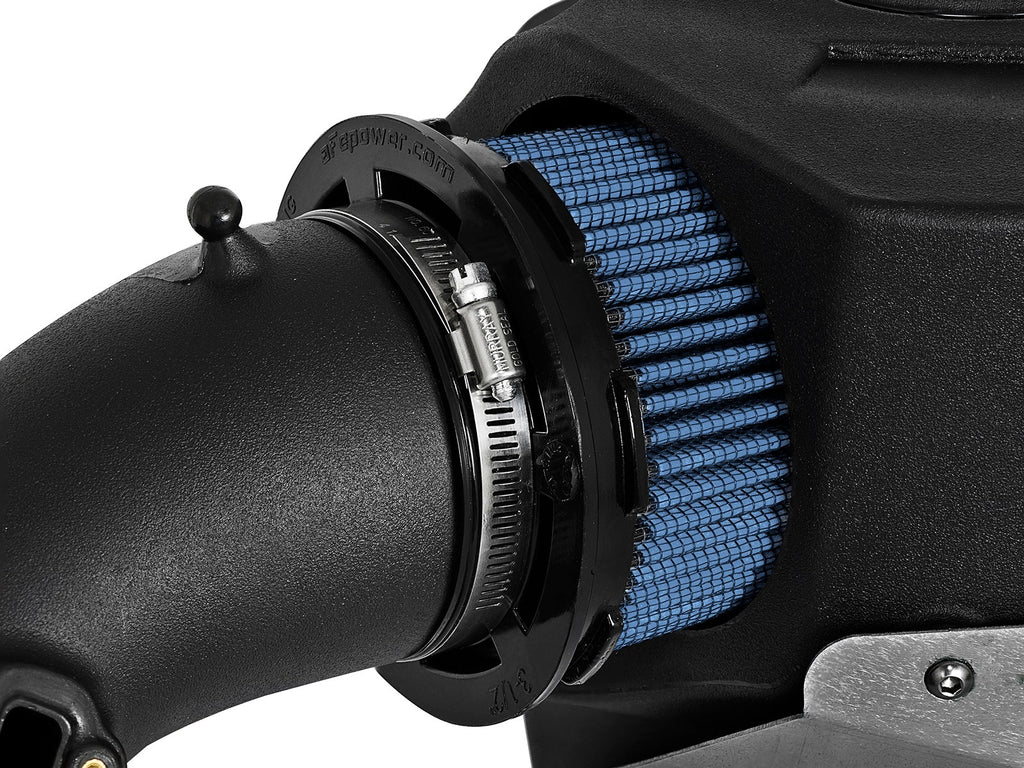

This version uses the pre-oiled Pro 5R filter, an 8" tall, 360-degree radial-flow element with five layers of progressively finer mesh cotton gauze. aFe’s patent-pending filter-to-housing interface allows the largest possible filter for the available air volume while simplifying assembly.

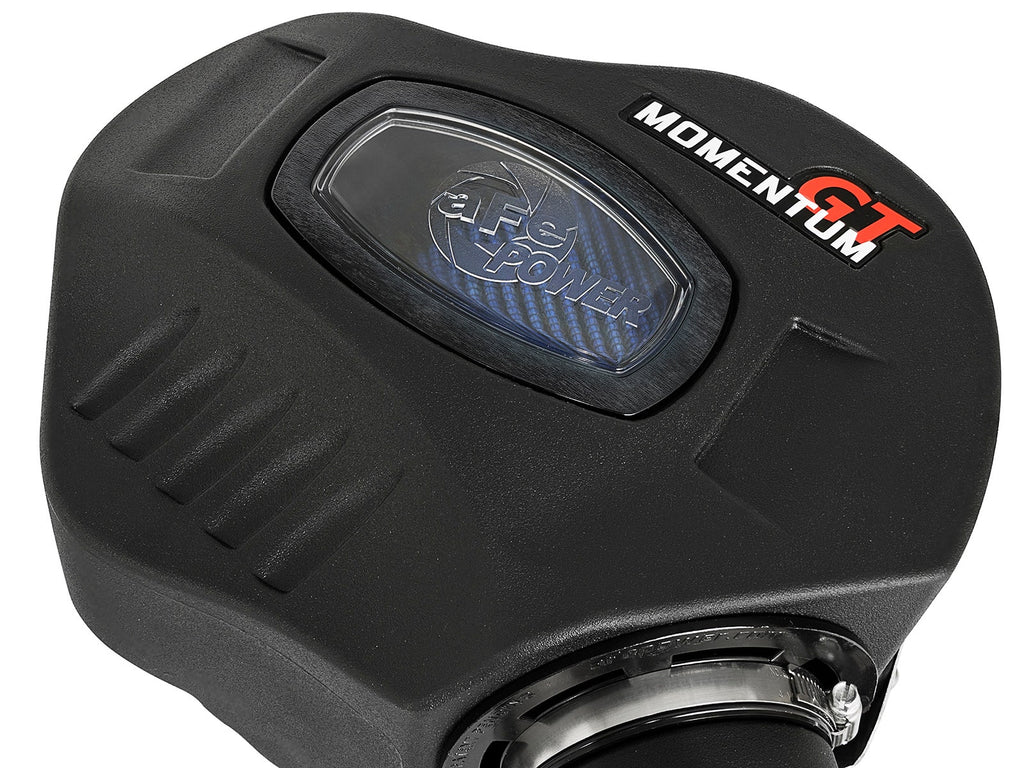

A built-in sight window lets you inspect the filter without disassembly. Premium stainless-steel clamps and a silicone bellow coupling are supplied, and the kit is a direct bolt-on requiring no cutting or drilling of factory parts.

SPECS

• Dyno-tested gains: +13 HP and +12 lbs. x ft. of torque (peak)
• Measured airflow: 350 CFM @ 7" H₂O
• Outflows the factory intake by up to 24%
• Filter media: aFe Pro 5R pre-oiled, 5-layer progressively finer mesh cotton gauze (aFe P/N 24-91103)
• Filter size: 8" tall, 360-degree radial-flow element
• Housing: one-piece roto-molded sealed housing with auxiliary air scoop and built-in filter sight window (aFe P/N 05-76309B2)
• Intake tube: CAD-designed, dyno-tuned roto-molded plastic (aFe P/N 05-76312B1)

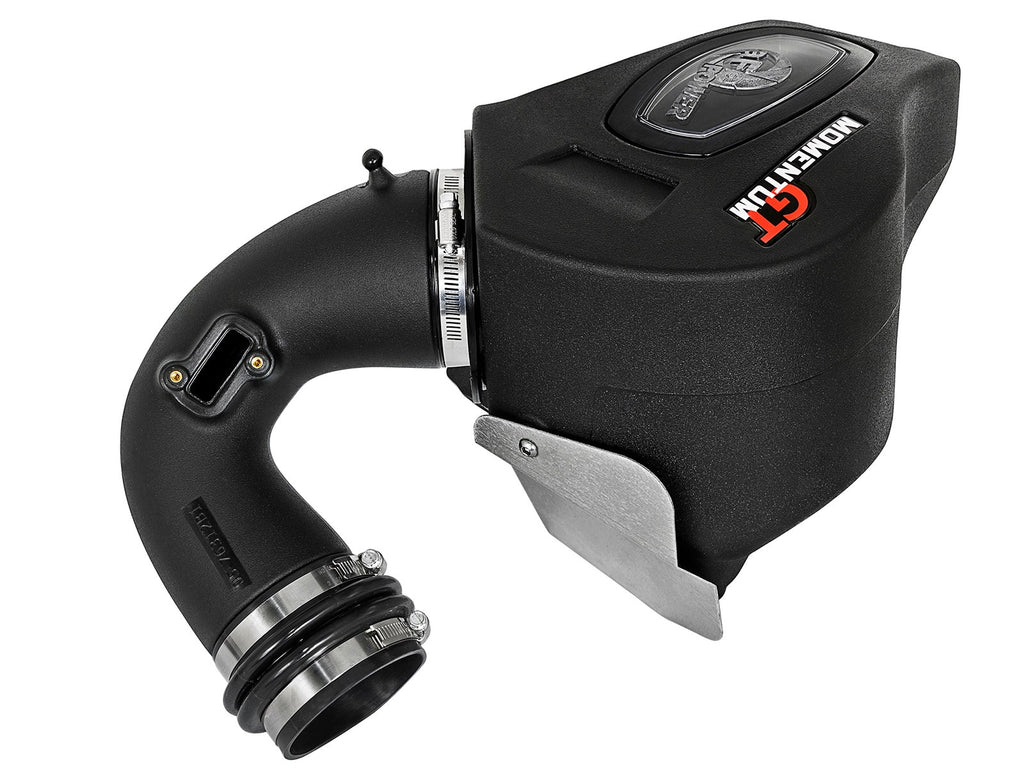

• Heat management: aluminium heat-shield panel secured to the housing
• Hardware: premium stainless-steel clamps and a silicone bellow coupling
• Installation: direct bolt-on — no cutting or drilling of factory parts
• Emissions status: not CARB exempt at this time — not legal for sale in California or for use on any vehicle registered with the California Department of Motor Vehicles.

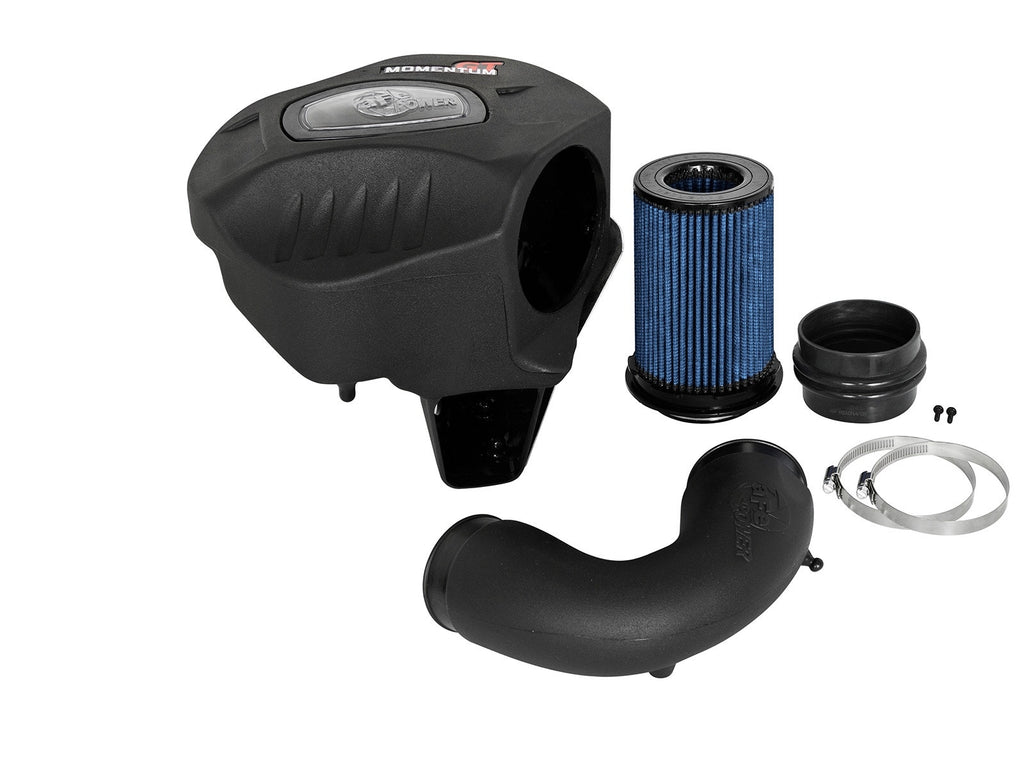

PARTS INCLUDED

• Pro 5R air filter (24-91103) — 1
• Housing (05-76309B2) — 1
• Intake tube (05-76312B1) — 1
• Rubber mount (03-50534) — 1
• Silicone double-hump coupling (05-01416) — 1
• Hose clamp, #052 (03-50008) — 2
• M4 Torx screw (03-50490) — 2

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware, tune or fluids for this intake — it is a direct bolt-on kit that requires no cutting or drilling of factory parts.
• Installer-supplied: basic hand tools, including a T-handle or driver for M4 Torx screws and a nut driver for the hose clamps.
• Optional service item: the Pro 5R filter is a washable, re-usable oiled cotton-gauze element and must be re-oiled with aFe filter oil after each cleaning.

Installation

• aFe Power 51-76312 / 54-76312 installation instructions (PDF)

Notes

• Year ranges above follow aFe Power’s current installation instructions, which group the 3-Series and 4-Series applications as 2016–2020 and the 2-Series as 2017–2020; the previous listing showed narrower per-model ranges. Confirm fitment with Speed Logic before ordering.

PART NUMBER

• 54-76312 — Momentum GT intake with Pro 5R oiled filter (this listing)
• 51-76312 — same kit with the Pro DRY S oil-free filter
