aFe Momentum GT Pro 5R Cold Air Intake 54-76311 – BMW 335i / 435i / M235i / M2 (N55)

OVERVIEW

The aFe Power Momentum GT is a fully sealed cold air intake for the N55-powered BMW F2x/F3x range, including the F87 M2. aFe rates it at up to +15 horsepower and +13 lbs. x ft. of torque, outflowing the factory intake by up to 10%.

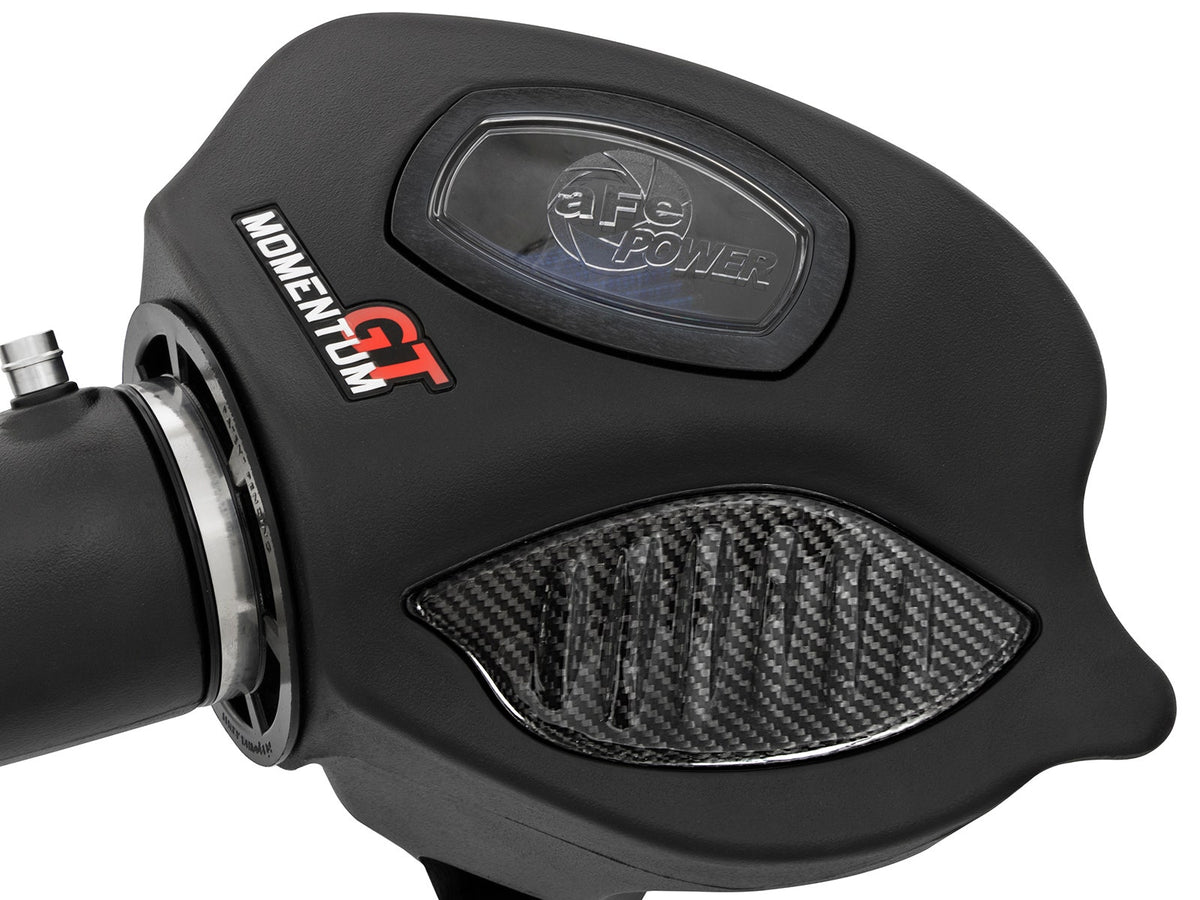

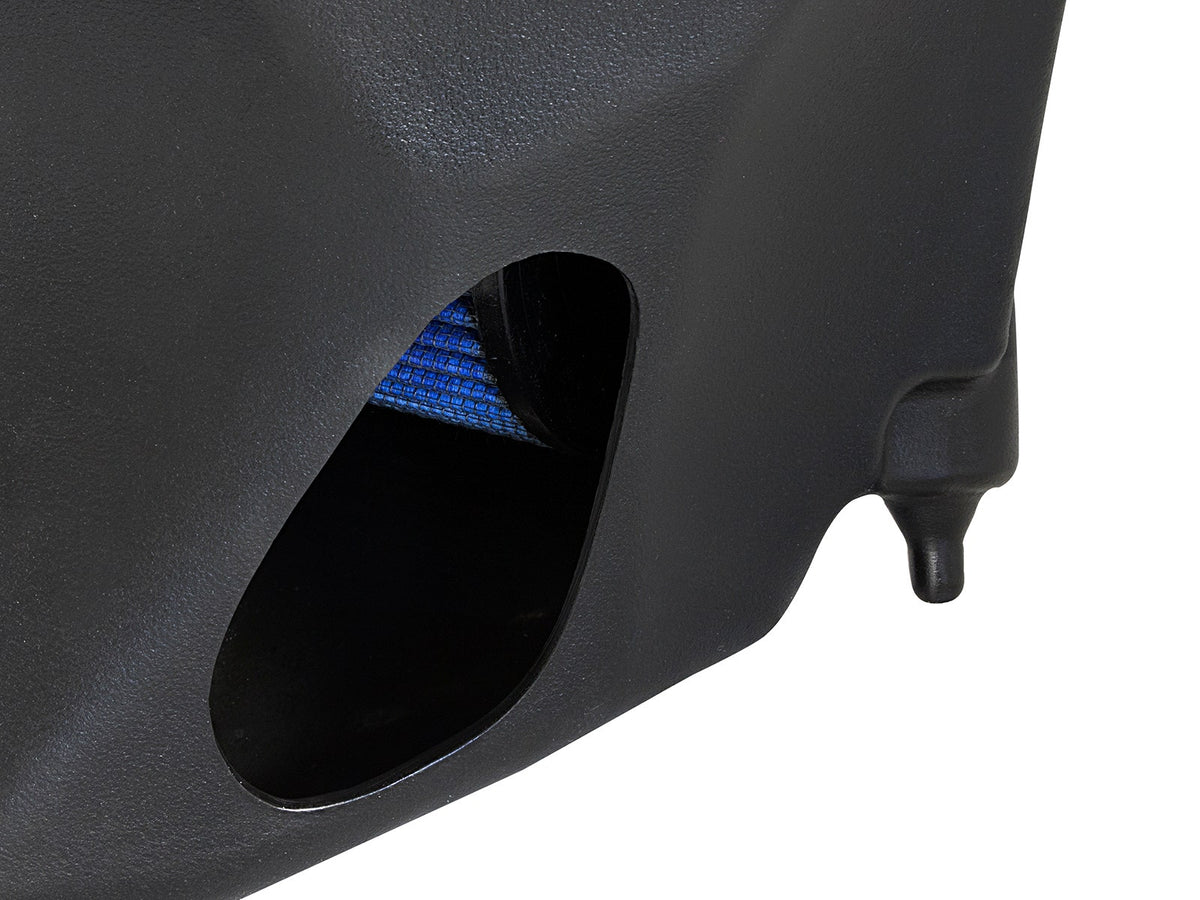

The system is built around a one-piece sealed housing with an auxiliary air inlet, which replaces multi-piece factory-style boxes and feeds the filter the coolest charge available. A large clear sight window lets the filter be inspected without pulling anything apart, and the patent-pending filter-to-housing interface allows a much larger element than a conventional airbox while cutting part count. The housing carries a lightweight, high-gloss clear-coated 2 x 2 twill-weave carbon fiber trim overlay for a motorsport look.

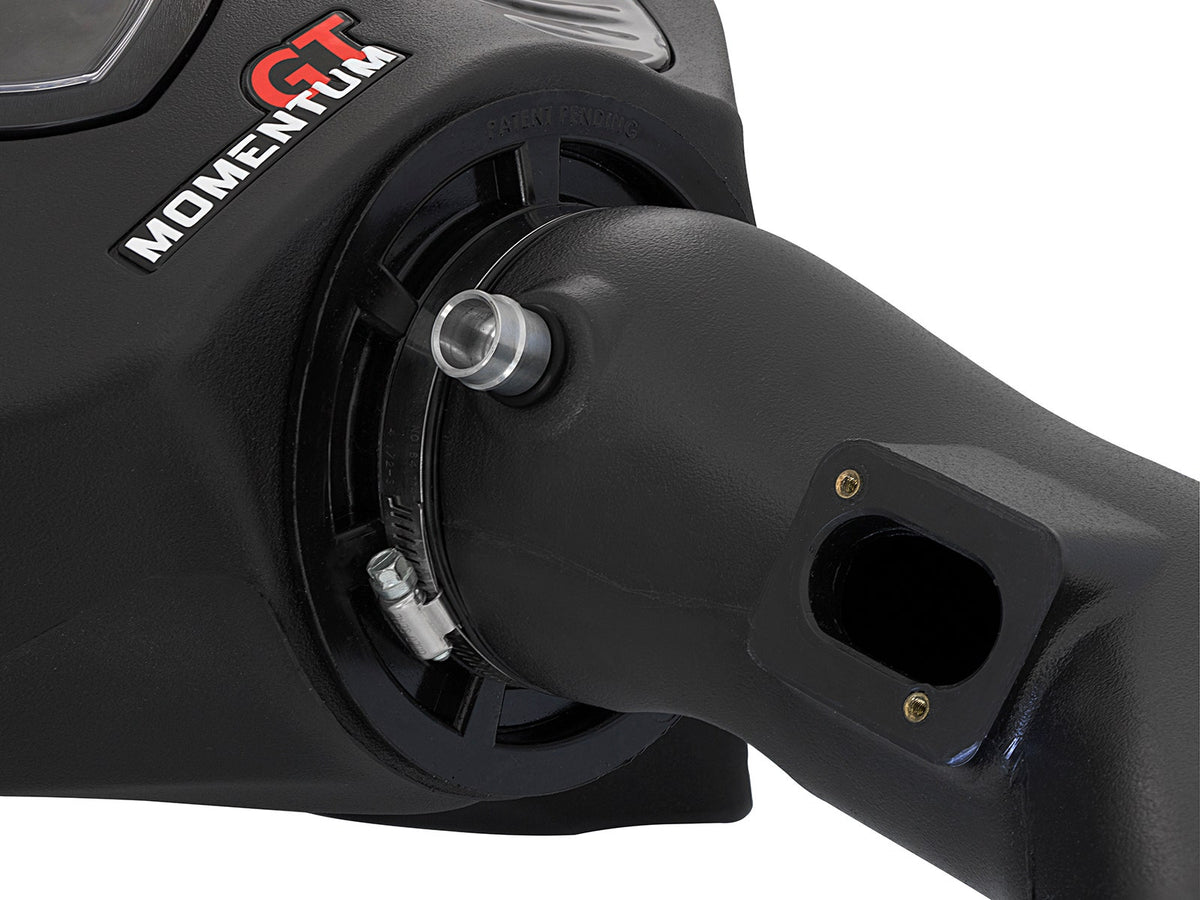

Inside sits a 7-1/2" tall inverted-top, 360-degree radial-flow Pro 5R air filter using five layers of progressively finer mesh cotton gauze media, pre-oiled for maximum airflow and cleanable for reuse. A CAD-designed, dyno-tuned roto-molded intake tube connects the housing to the turbo inlet, and a premium stainless-steel clamp secures the joint. No cutting or drilling of factory parts is required.

SPECS

• Maximum gains: +15 HP and +13 lbs. x ft. torque

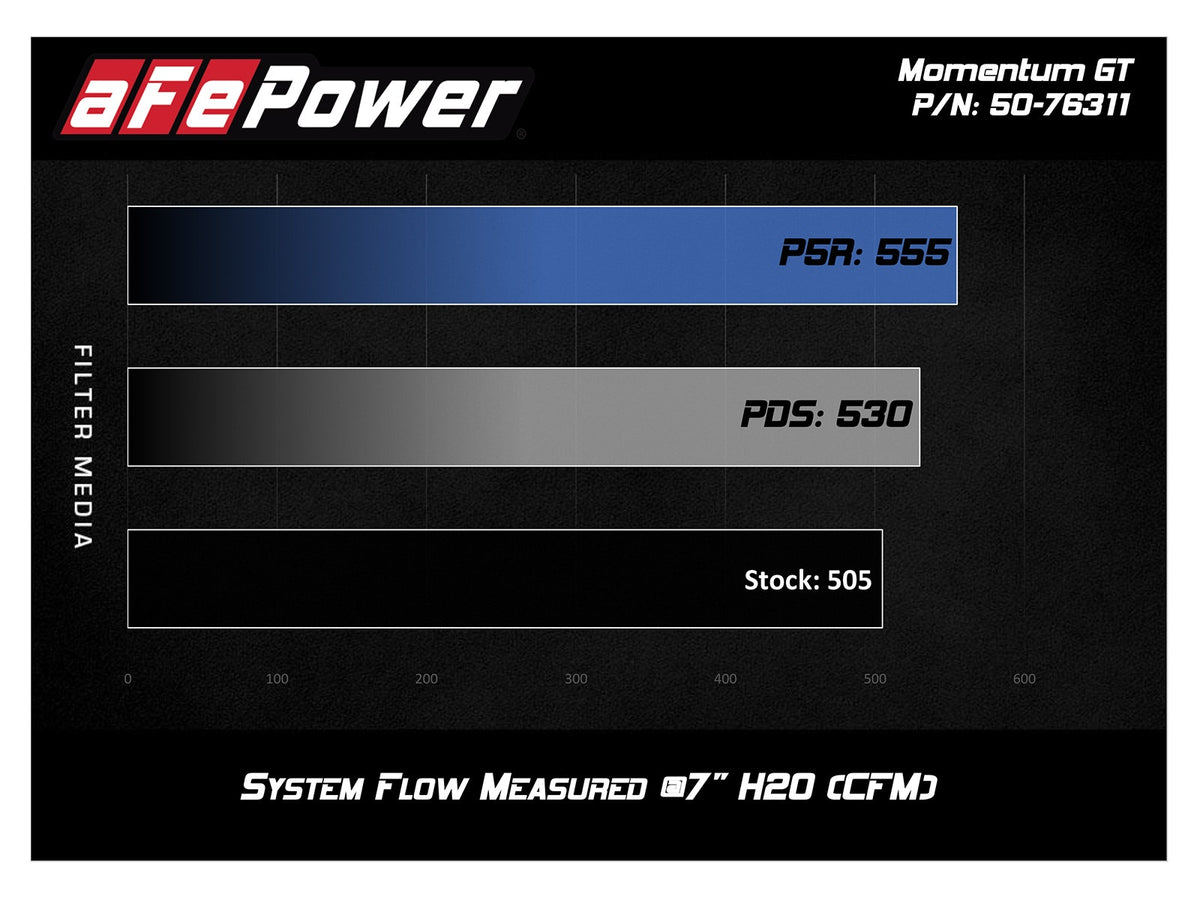

• Outflows the factory intake by up to 10%
• Filter: Pro 5R, 7-1/2" tall inverted top, 360-degree radial flow
• Filter media: five-layer progressively finer mesh cotton gauze, oiled, cleanable and reusable
• Housing: one-piece sealed with auxiliary air inlet, clear sight window
• Housing trim: high-gloss clear-coated 2 x 2 twill-weave carbon fiber
• Intake tube: CAD-designed, dyno-tuned, roto-molded
• Patent-pending filter-to-housing interface
• Premium stainless-steel clamp
• No cutting or drilling of factory parts
• Not CARB exempt

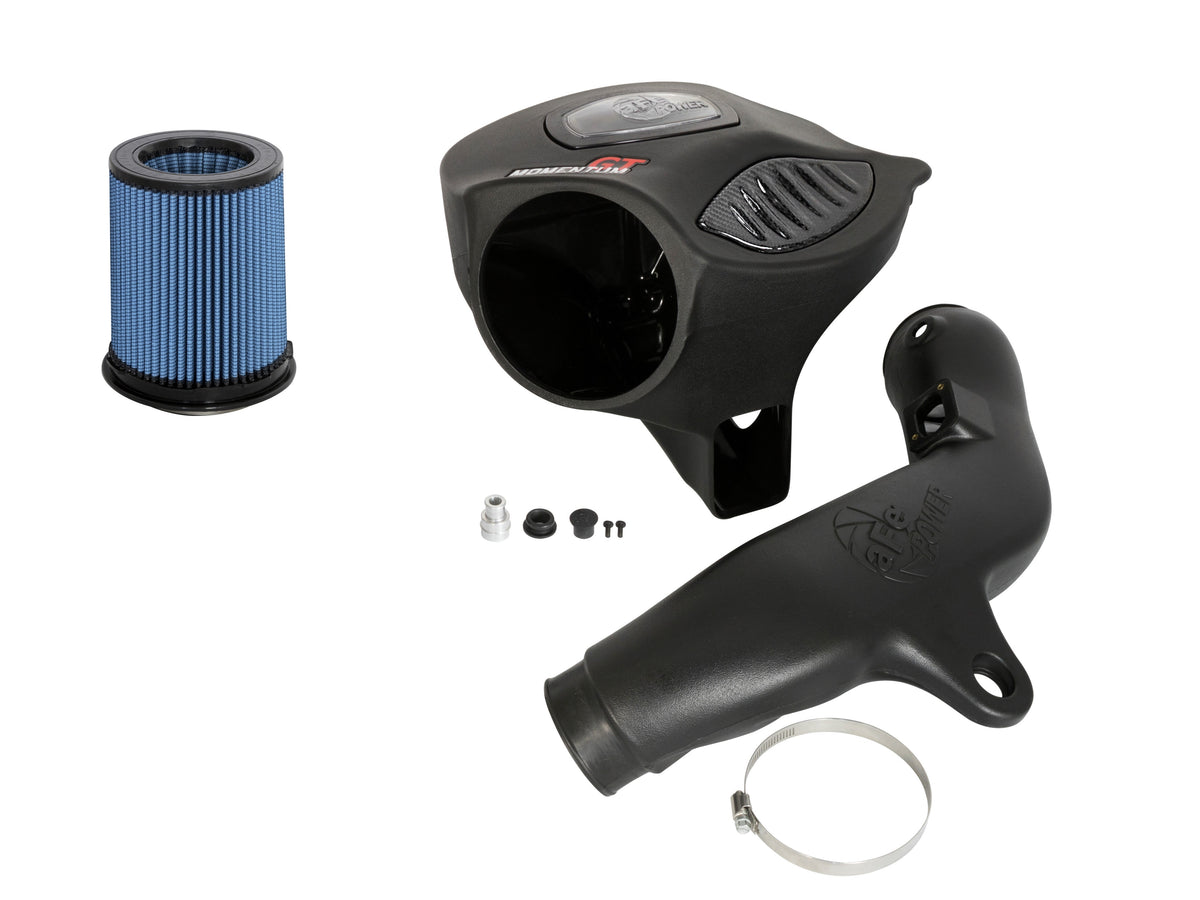

PARTS INCLUDED

• Pro 5R air filter (24-91108) — 1
• Intake housing (05-76311B2) — 1
• Intake tube (05-82202B1) — 1
• Air temperature sensor grommet (03-50033) — 1
• Torx bit, T20 (03-50066) — 1
• Cap, 1/2 (03-50103) — 1
• Vacuum line fitting (05-01246) — 1
• Screw, Torx M4 (03-50490) — 2

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this intake — the kit is a complete bolt-on and includes the T20 Torx bit needed for the sensor screws.
• Installer supplies basic hand tools: metric sockets and wrenches, a flat screwdriver and a trim tool for the engine cover.
• Optional service item: aFe Pro 5R filter cleaning and re-oil kit for periodic filter maintenance.

Installation

• aFe Power 54-76311 / 51-76311 / 52-76311 Momentum GT cold air intake — installation instructions (PDF)

Notes

• Note: This intake system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
• Chassis codes follow aFe Power's installation instructions, which list this intake for F30/F34, F32/F33/F36 and F20/F21/F22 N55 platforms. Confirm fitment with Speed Logic if your car is a borderline model year or a non-US market variant.

PART NUMBER

• 54-76311 — Momentum GT intake with Pro 5R oiled filter (this listing)
• 51-76311 — same kit supplied with the Pro DRY S oil-free filter
• 52-76311 — sibling number listed on aFe's instruction sheet for this platform
