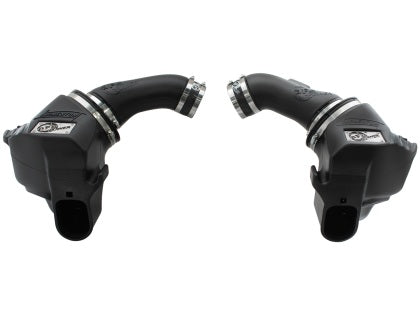

aFe Momentum Pro 5R Stage 2 Intake 54-76301 – BMW M5 (F10)

OVERVIEW

aFe Power's Momentum Stage 2 Si sealed intake system is built for the S63 twin-turbo 4.4L V8 in the F10 M5 and its M6 siblings. On aFe's dyno the system produced up to 28 horsepower and 31 lbs. x ft. of torque, and it outflows the factory intake by 29%.

The kit uses twin black roto-molded sealed airboxes that keep warm engine air out of the intake tract while cleaning up the look of the engine bay. Each housing uses aFe's patent-pending filter-to-housing interface, which allows the largest practical filter to be fitted while keeping installation simple. Air is drawn from the factory air inlet plus a secondary auxiliary air port.

This version is supplied with dual 6-1/2" tall conical Pro 5R filters, using five layers of progressively finer mesh cotton gauze media and 100% polyurethane construction for long life and repeated cleaning cycles. CAD-designed intake tubes are engineered to release all available horsepower while fitting precisely, and reinforced silicone couplings join the tubes to the turbo inlet adapters. The kit comes complete with all necessary hardware.

SPECS

• Maximum gains: up to +28 HP and +31 lbs. x ft. torque
• Outflows the factory intake by 29%
• Filters: dual 6-1/2" tall conical Pro 5R, pre-oiled
• Filter media: five layers of progressively finer mesh cotton gauze, 100% polyurethane construction, cleanable and reusable
• Housings: twin black roto-molded sealed airboxes
• Patent-pending filter-to-housing interface
• Intake tubes: CAD-designed, one per bank
• Reinforced silicone couplings to the turbo inlet adapters
• Draws from the factory air inlet plus a secondary auxiliary air port
• Not legal for street use; not CARB exempt

PARTS INCLUDED

• Pro 5R air filter (24-91073) — 2
• Housing, driver side (05-76301B3) — 1
• Housing, passenger side (05-76301B4) — 1
• Intake tube, driver side (05-76301B1) — 1
• Intake tube, passenger side (05-76301B2) — 1
• Coupling, 3-1/2" (05-01280) — 2
• Clamp, 056 (3-1/16"–4") (03-50009) — 4
• Clamp, 096 (4-1/2"–6-1/2") (03-50003) — 2
• Screw, cheese head M4 (03-50221) — 4

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this intake — the kit ships complete with all necessary hardware.
• Installer supplies basic hand tools: metric sockets and wrenches, Torx drivers, a flat screwdriver and a trim tool for the engine cover clips.
• Optional service item: aFe Pro 5R filter cleaning and re-oil kit for periodic filter maintenance.

Installation

• aFe Power 51-76301 / 54-76301 / 52-76301 Momentum Stage 2 Si intake — installation instructions (PDF)

Notes

• Note: This system is not legal for street use and cannot be installed in a California registered vehicle, nor can this system be sold legally in California.
• Year ranges above follow aFe Power's official installation instructions, which cover a wider span than the 2012–2014 range shown in the product title. Confirm fitment with Speed Logic if your car is a borderline model year.

PART NUMBER

• 54-76301 — Momentum Stage 2 Si intake with Pro 5R oiled filters (this listing)
• 51-76301 — same kit supplied with Pro DRY S oil-free filters
• 52-76301 — sibling number listed on aFe's instruction sheet for this platform
