aFe Momentum Pro 5R Stage 2 Intake 54-82202 – BMW 335i / 435i / M235i (N55)

OVERVIEW

The aFe Power Momentum Stage-2 Si is a fully sealed cold air intake for the N55 turbocharged inline-six. In aFe testing it produced up to 11 horsepower and 15 lbs. x ft. of torque and outflows the factory intake by 37%.

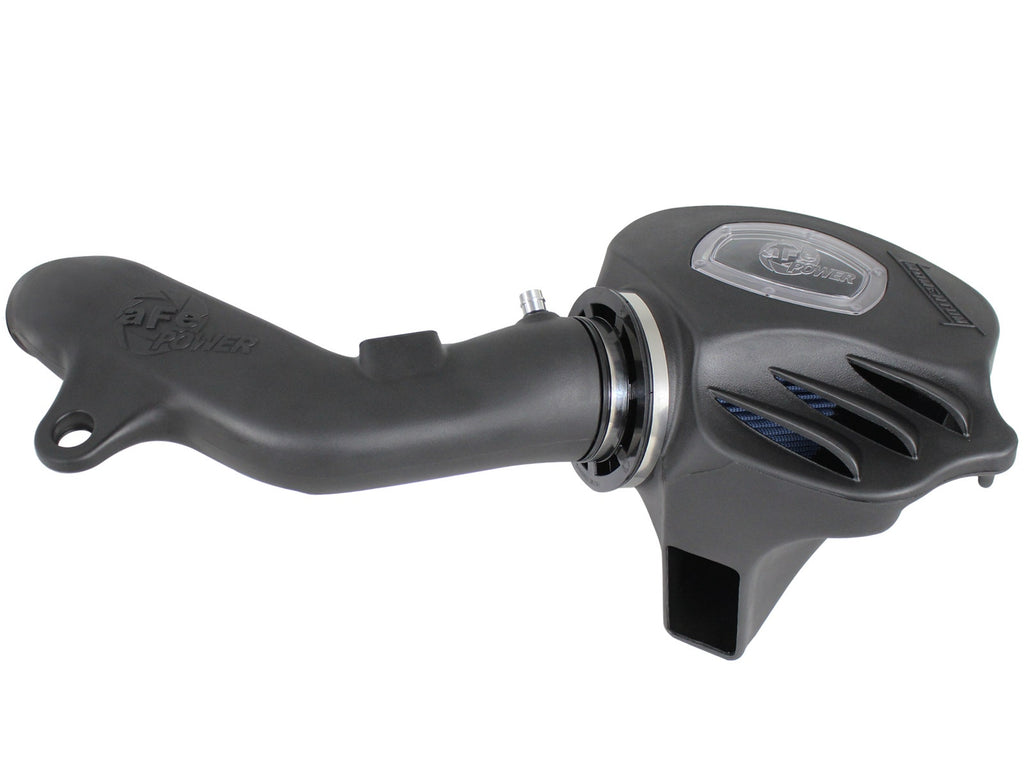

The air filter sits inside a one-piece, patent-pending black roto-molded housing that keeps warm engine bay air away from the intake charge. A built-in clear sight window lets you inspect the filter without disassembling anything, and horizontal louvers molded into the housing feed additional cold air to the filter. A patent-pending filter-to-housing interface allows the largest possible filter while keeping installation simple.

The intake tube is CAD-designed to unleash the available horsepower and to fit the factory engine bay precisely. The kit ships complete with all necessary hardware.

SPECS

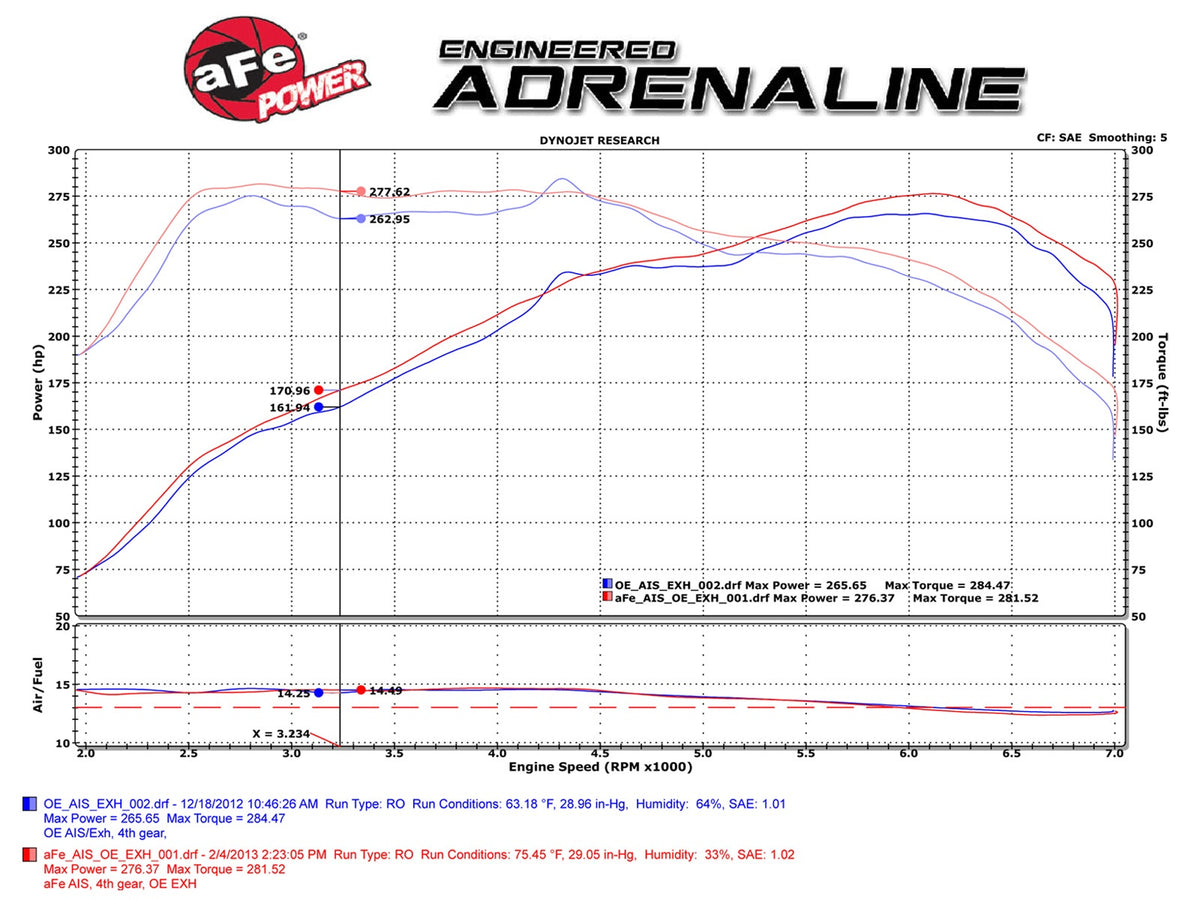

• Dyno-tested gains up to +11 HP and +15 lbs. x ft. torque

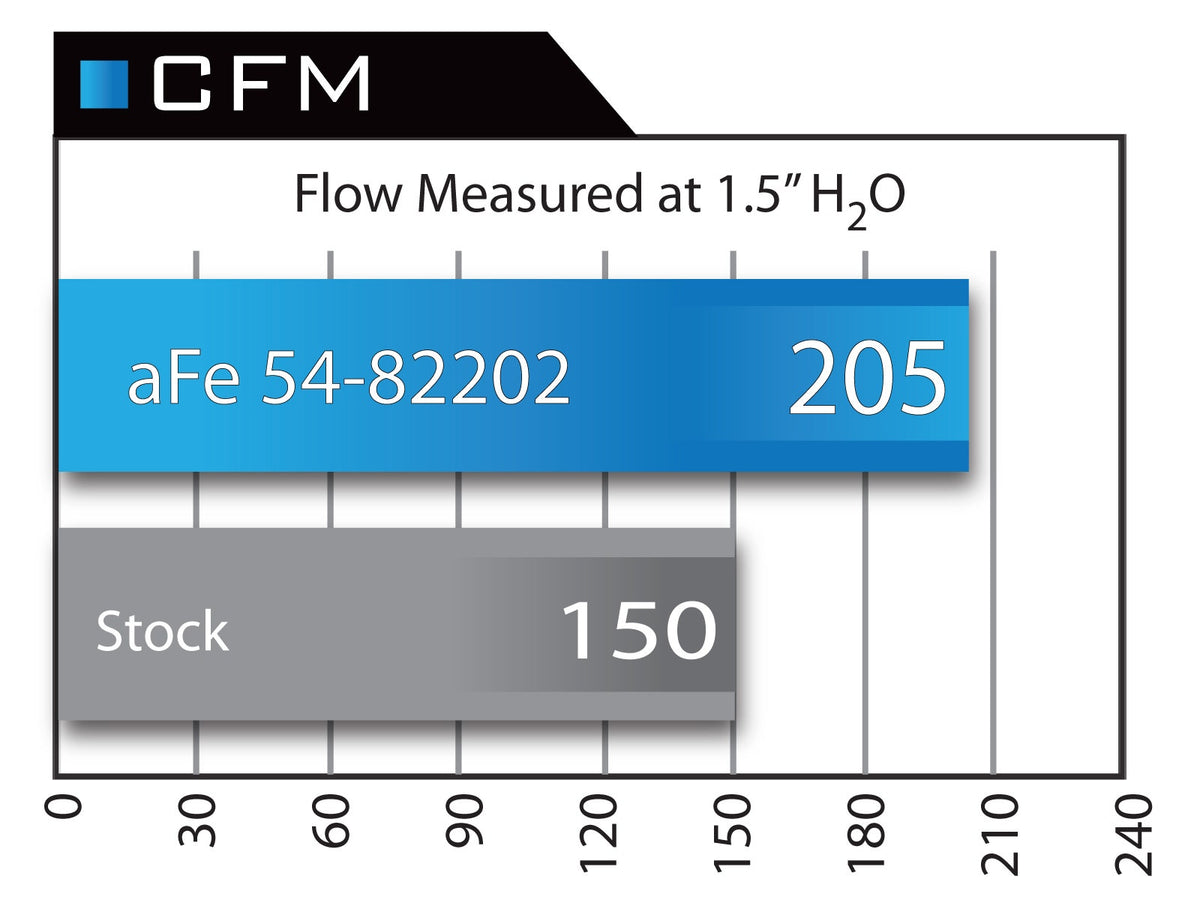

• Outflows the factory intake by 37%

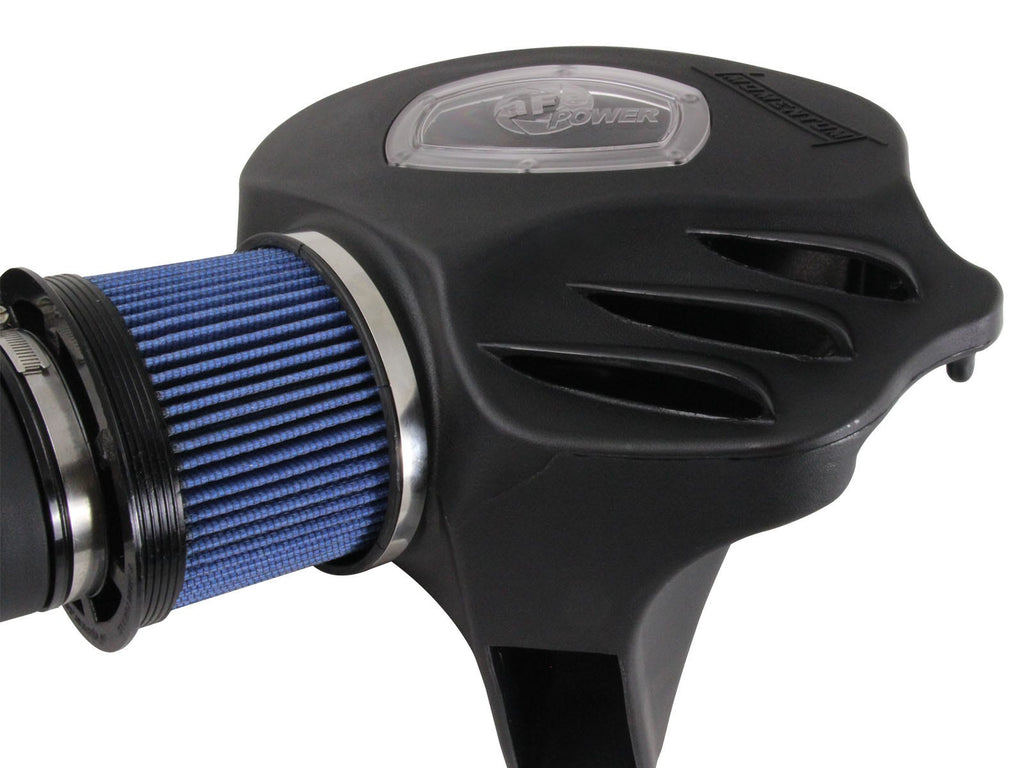

• Pro 5R oiled filter media: five layers of progressively finer mesh cotton gauze
• 7-1/2" tall conical filter with tall, open, evenly spaced pleats for dust holding capacity
• Filter is washable and reusable for multiple cleaning cycles

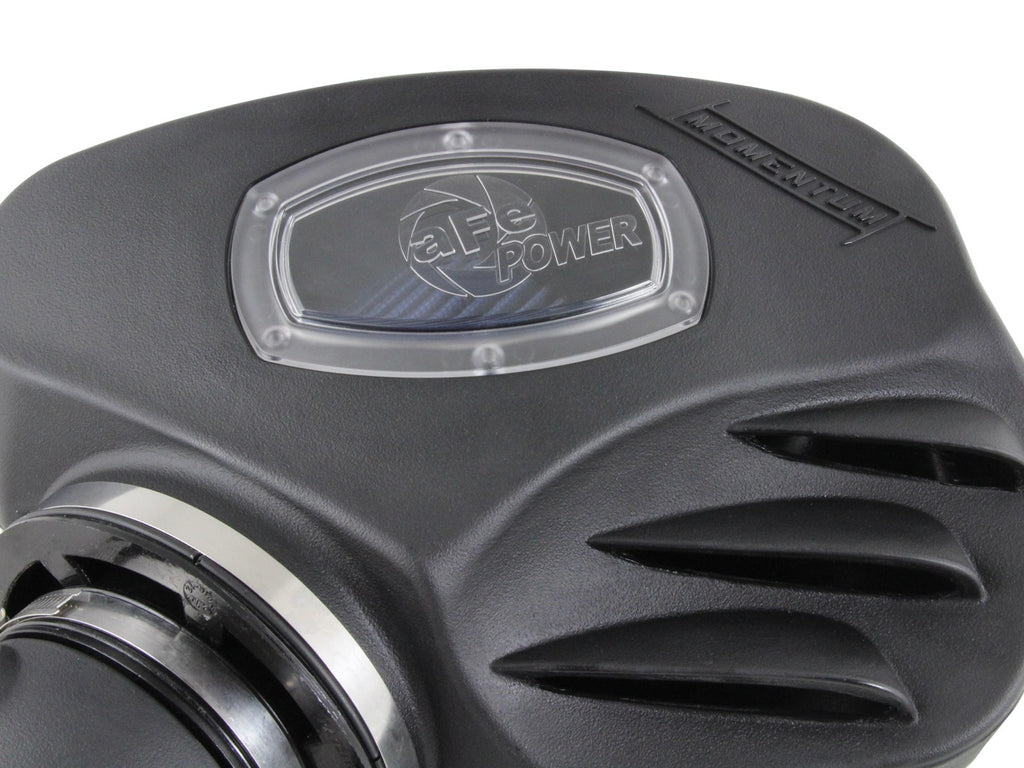

• One-piece roto-molded sealed housing with built-in clear sight window
• Horizontal louvers in the housing increase cold air delivery to the filter
• Patent-pending filter-to-housing interface maximizes filter size

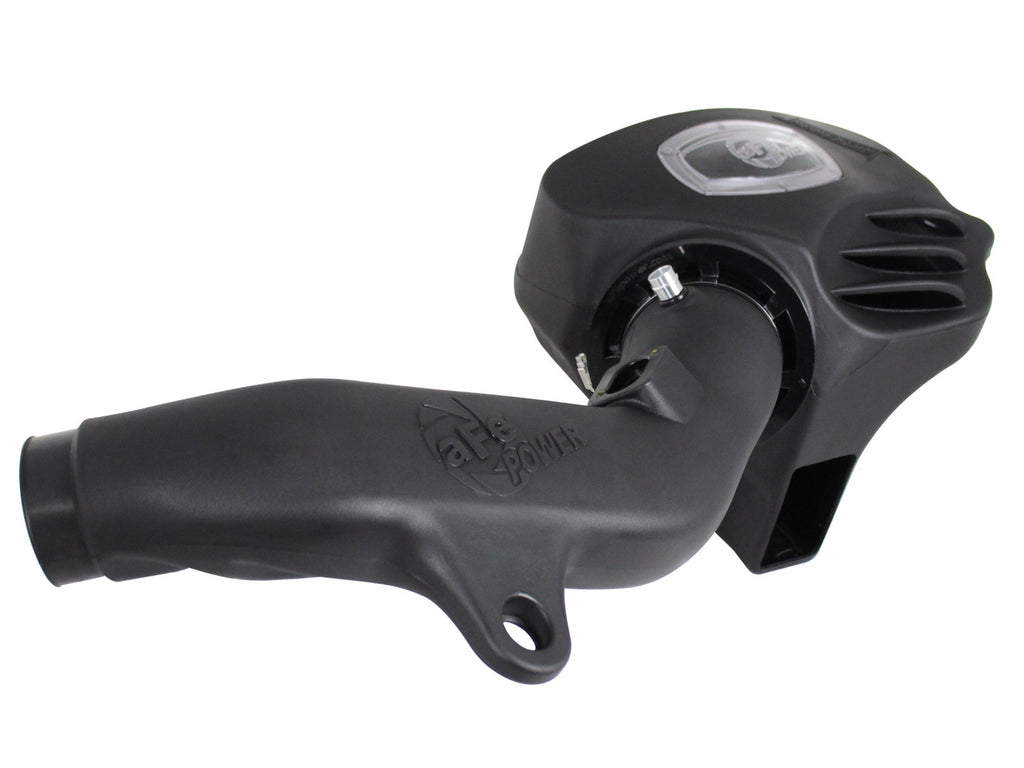

• CAD-designed intake tube
• All mounting hardware included
• Emissions: legal in California for racing vehicles only; use on vehicles driven on public streets or highways is prohibited in California and in states that have adopted California emission regulations

PARTS INCLUDED

• Pro 5R oiled air filter (24-91063)
• Intake tube (05-82202B1)
• Sealed roto-molded housing (05-82202B2)
• Clamp, #096 (03-50003)
• M4 screws, qty 2 (03-50221)
• Grommet (03-50033)
• 1/2" cap (03-50103)
• Vacuum line fitting (05-01246)
• Torx bit (03-50066)

TECH RESOURCES

Additional Parts Required

• None. aFe specifies no additional hardware for this intake — the clamp, screws, grommet, cap, vacuum fitting and Torx bit are all supplied in the box.
• No tune is required and the factory mass air flow sensor is reused.
• Service item (not required): replacement Pro 5R oiled filter, aFe 24-91063. The oil-free Pro DRY S filter for this housing is aFe 21-91063.

Installation

• aFe 54-82202 installation instructions (PDF)

Notes

• M135i and M135i xDrive are non-US market vehicles. Confirm fitment with Speed Logic if your car is not listed exactly as shown.

PART NUMBER

• 54-82202 — Momentum Stage-2 Si intake with Pro 5R oiled filter
• 51-82202 — same kit supplied with the Pro DRY S oil-free filter
