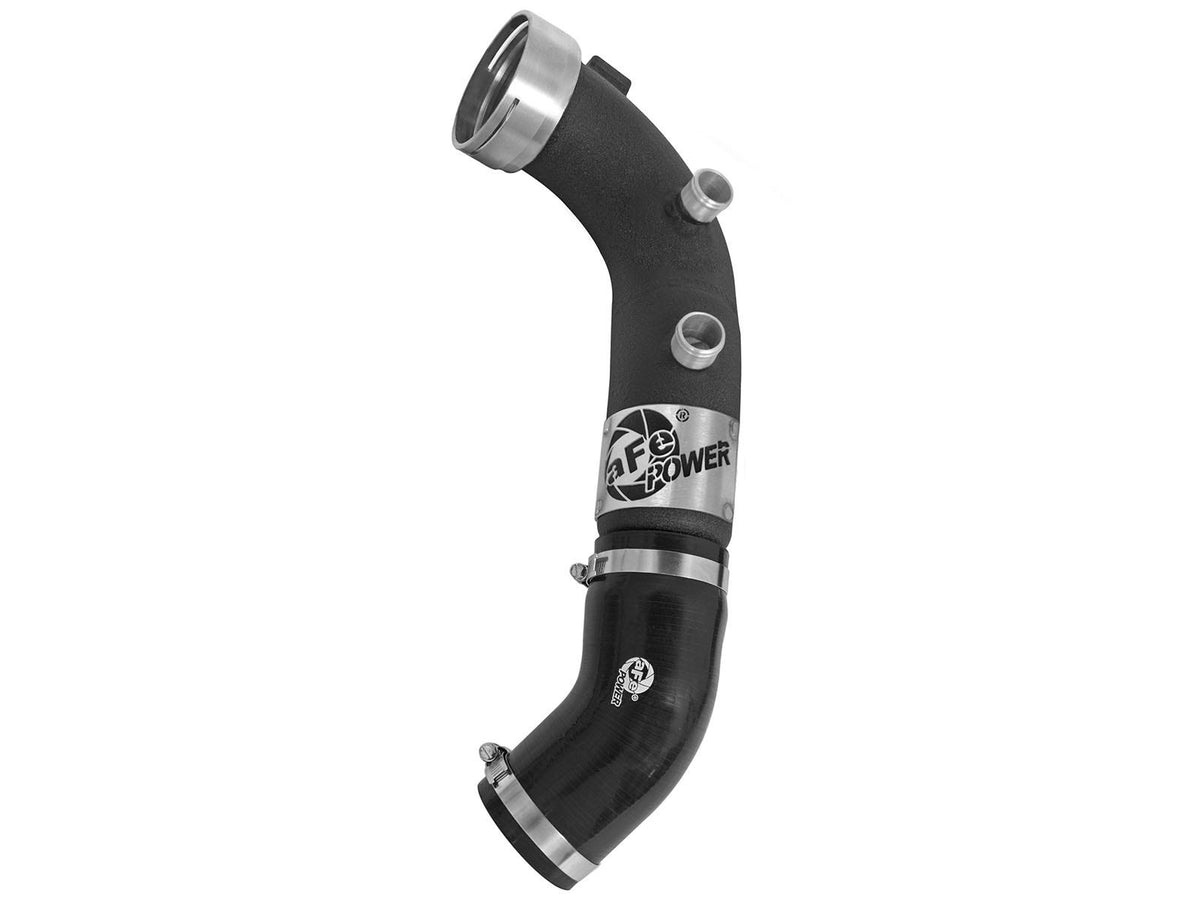

aFe N54 Charge Pipe 46-20159-B – BMW 135i / 335i (N54)

OVERVIEW

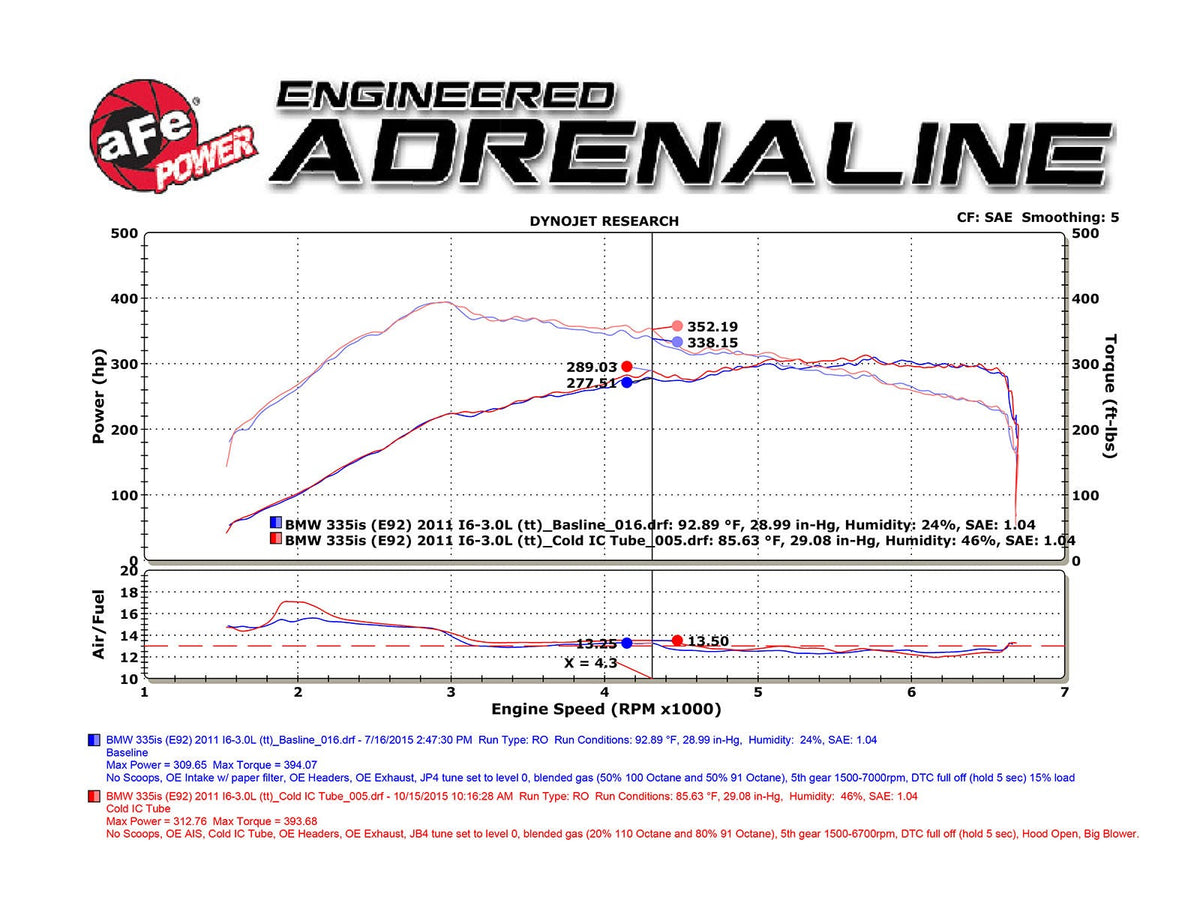

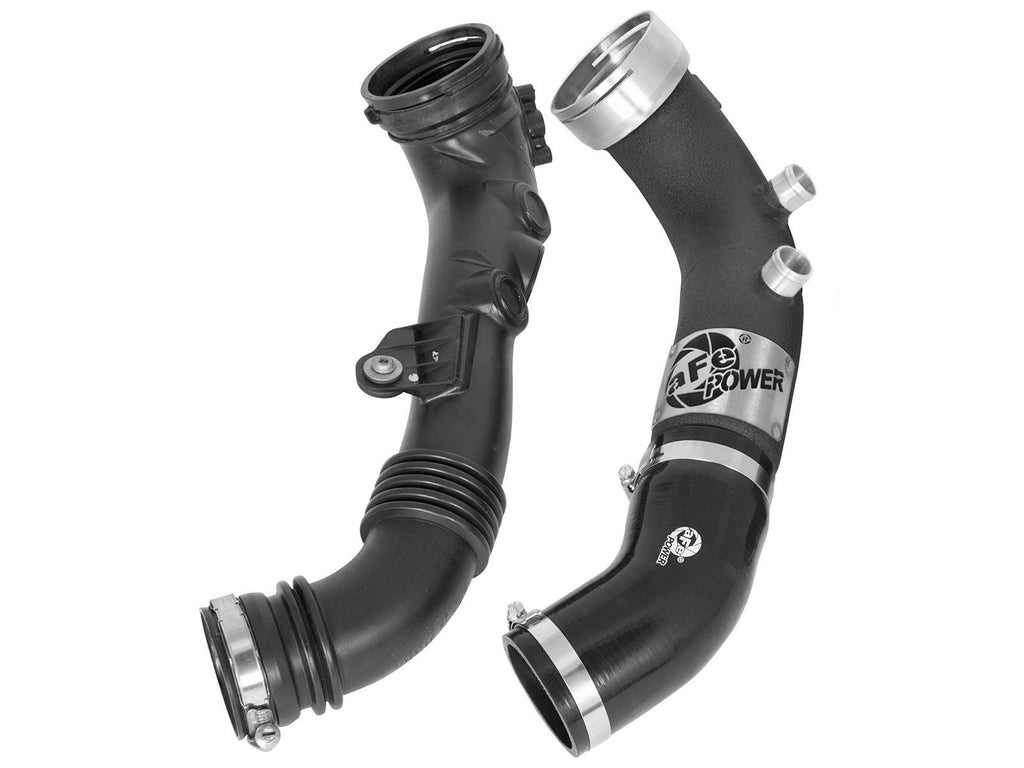

The aFe Power BladeRunner cold-side intercooler tube replaces the restrictive plastic factory charge pipe on the N54 twin-turbo BMW with a 3" mandrel-bent aluminum tube. aFe measured a 16% flow increase over the factory intercooler tube (test results are from P/N 46-20249-B). The smooth mandrel bends reduce turbulence, which raises horsepower and torque while lowering exhaust gas temperatures.

The tube retains the OE-style throttle body quick connect, machined from 6061-T6 billet aluminum, so the factory connection method and the factory diverter valves are preserved. It works with the OE intercooler, and a laser-cut aluminum aFe Power logo plate is welded on for an aggressive look.

The tube is powder-coated wrinkle black, which insulates it from engine heat and protects against corrosion. A heavy-duty 5-ply reinforced silicone coupling and premium stainless-steel clamps give a leak-free seal, and all necessary hardware is included for a hassle-free installation.

SPECS

• Outflows the factory intercooler tube by 16% (results are from P/N 46-20249-B)
• Tube: 3" cold-side mandrel-bent aluminum
• Finish: wrinkle-black powder coat for heat and corrosion resistance

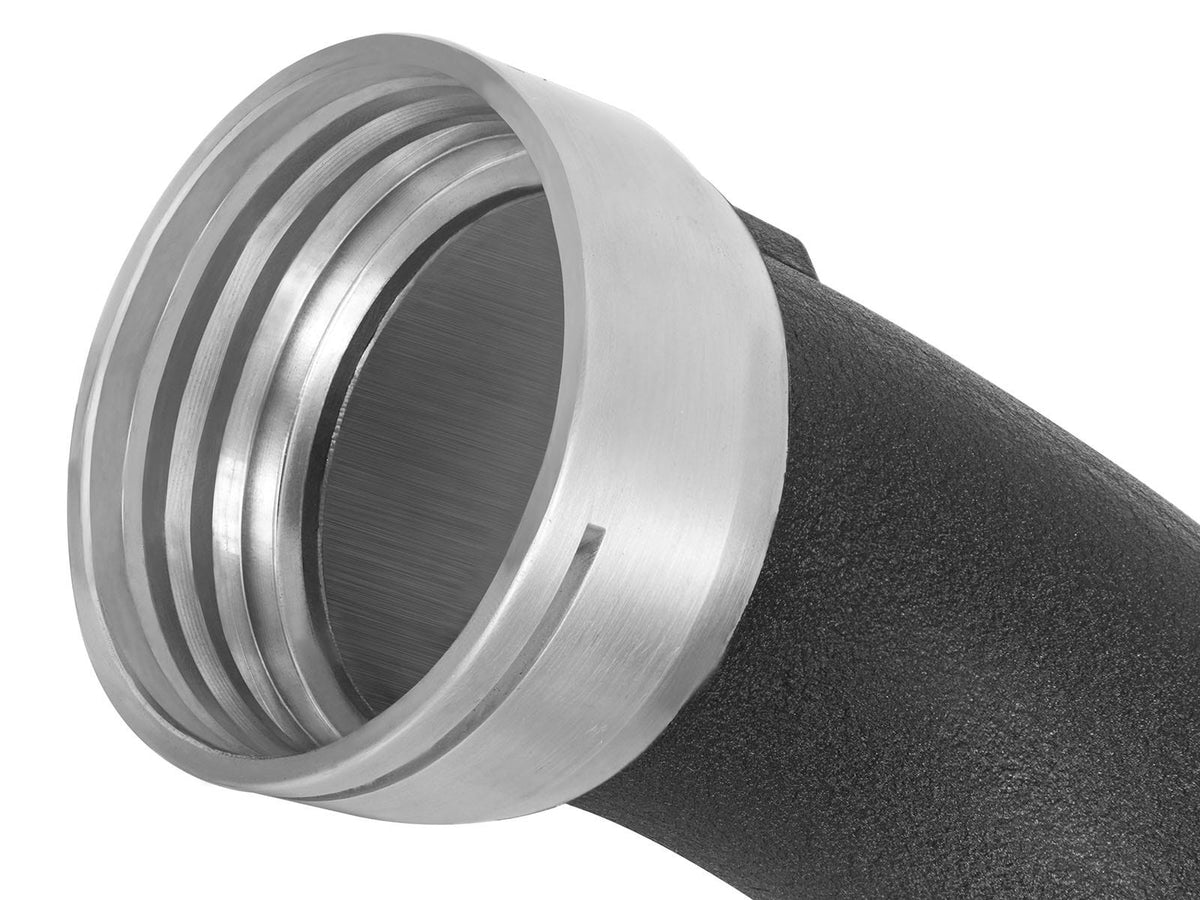

• Throttle body connection: OE-style quick connect machined from 6061-T6 billet aluminum

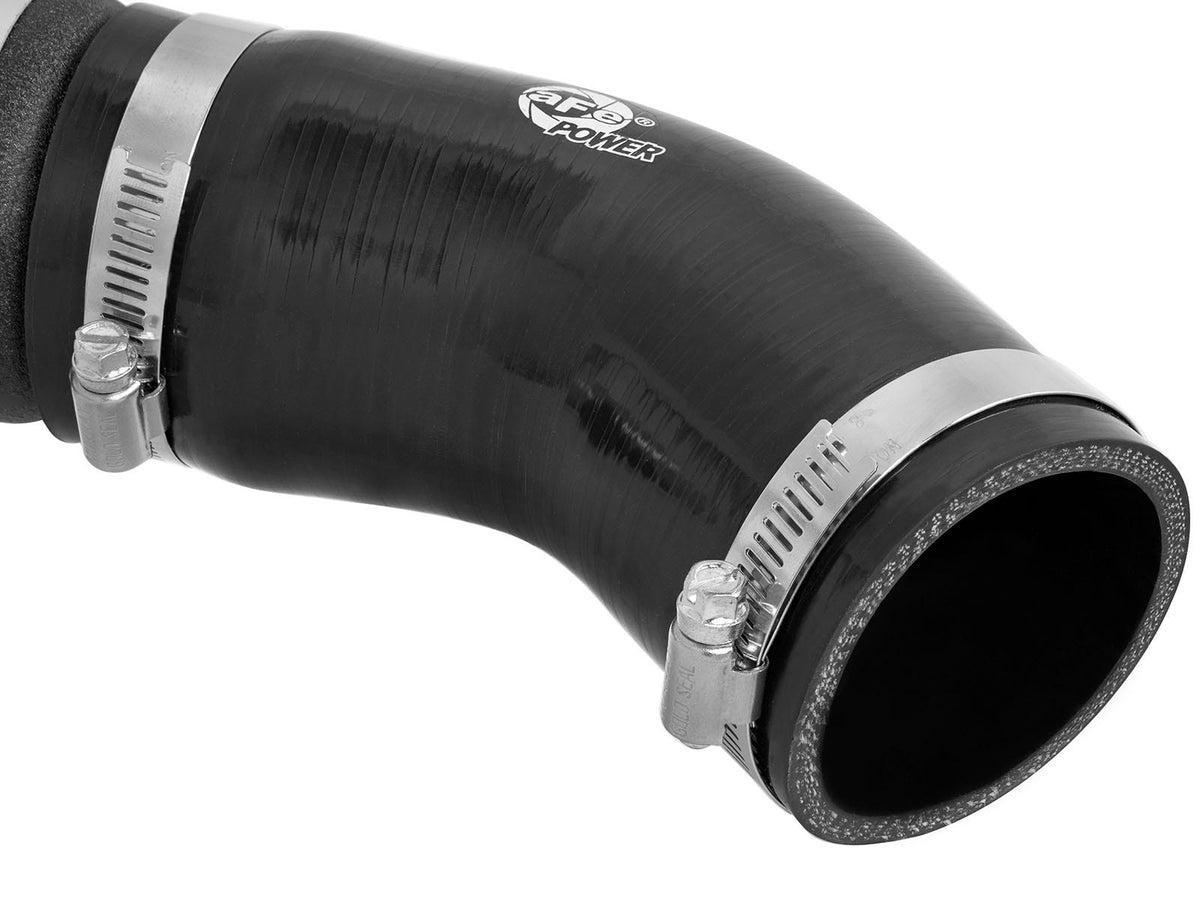

• Coupling: 5-ply reinforced silicone
• Premium stainless-steel clamps
• Works with the OE intercooler

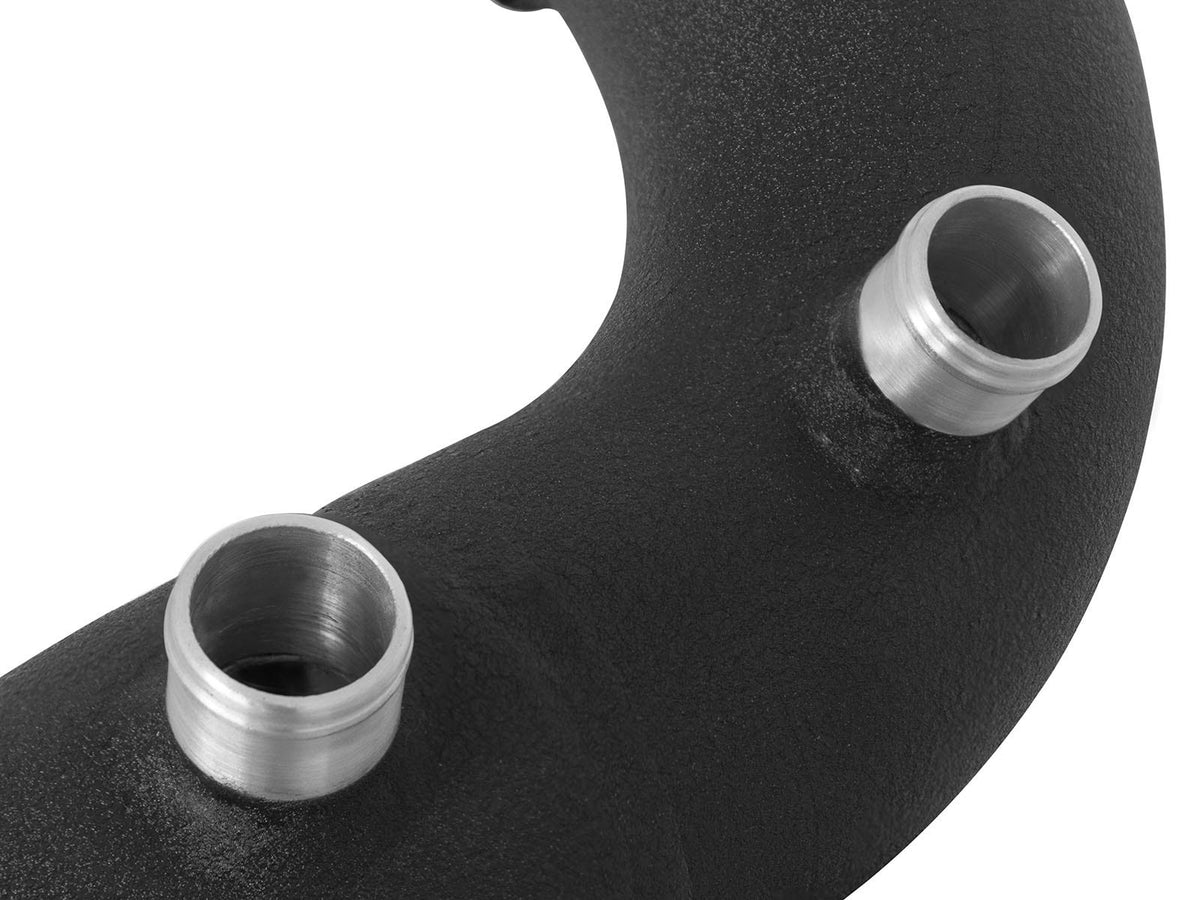

• Retains the factory diverter valves

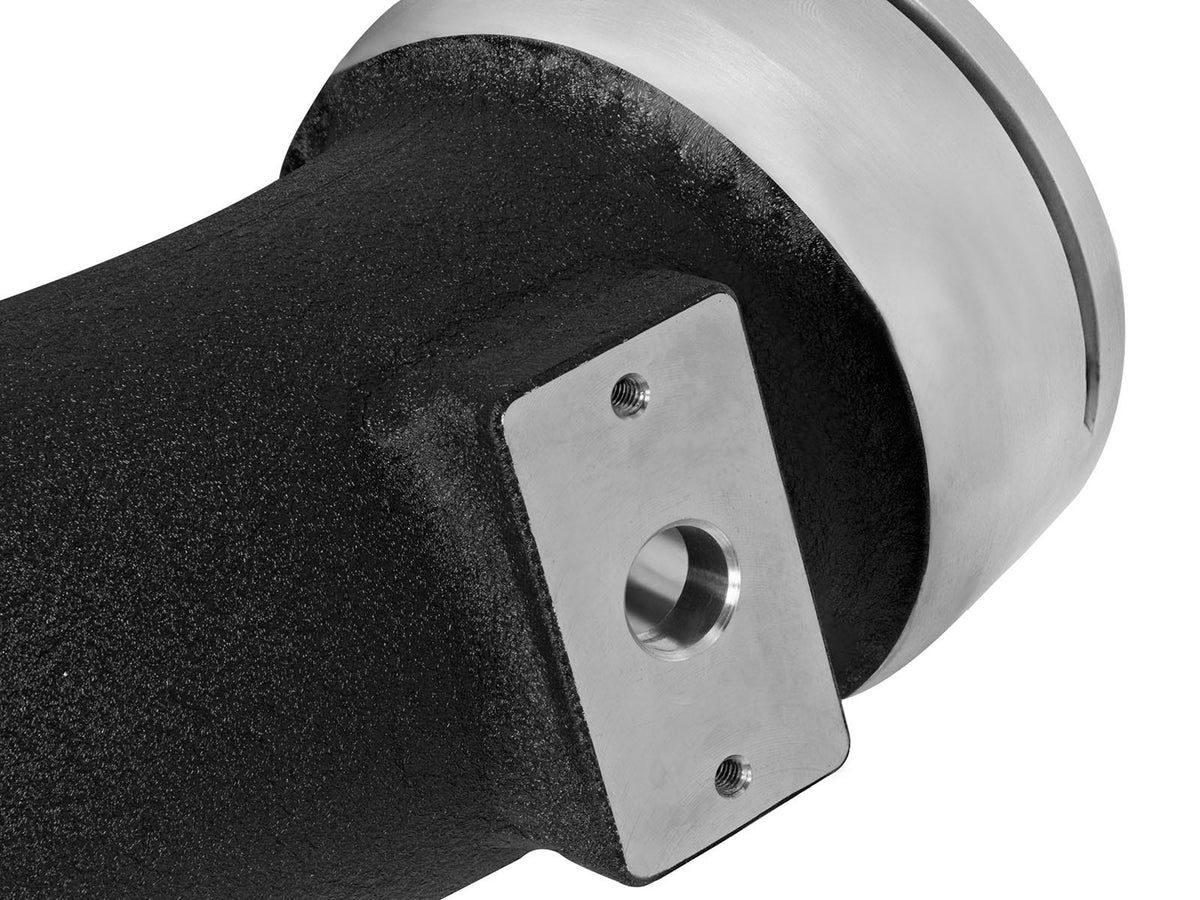

• Welded-on laser-cut aluminum aFe Power logo plate
• Not CARB exempt

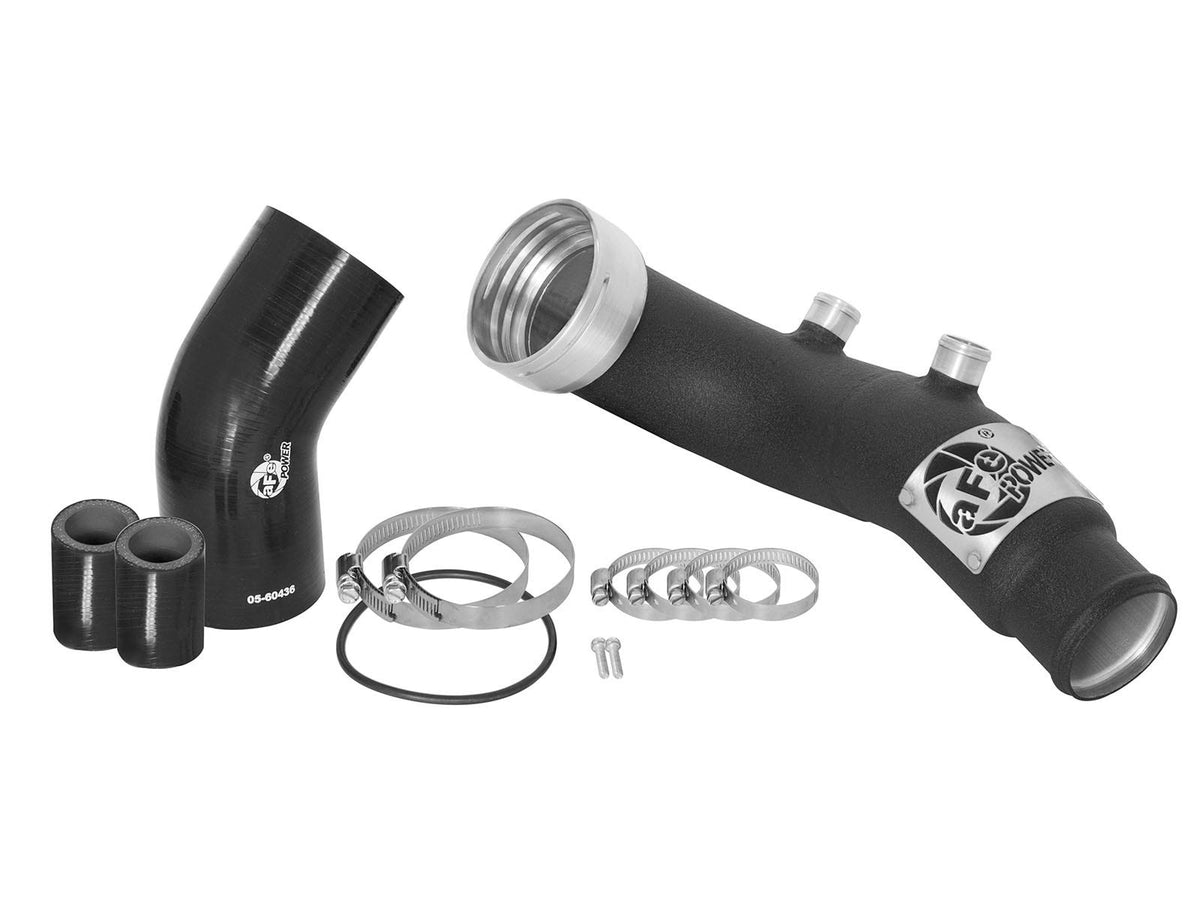

PARTS INCLUDED

• Cold-side intercooler tube — 1
• Couplings — 3
• Clamps — 6
• O-ring — 1
• Screws — 2

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this charge pipe — it bolts to the OE intercooler and throttle body and includes all necessary hardware.
• Installer supplies basic hand tools: metric sockets and wrenches, a nut driver for the hose clamps and a trim tool for the engine cover and underbody panel clips.

Installation

• aFe Power 46-20159-B BladeRunner cold-side intercooler tube — installation instructions (PDF)

Notes

• Note: This system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
• aFe Power's installation instructions list this part for the 335i E90/E92/E93 N54 only. The 135i (E82/E88) referenced in the product title is not on aFe's official application list for this number — confirm fitment with Speed Logic before ordering for a 1 Series.

PART NUMBER

• 46-20159-B — BladeRunner cold-side intercooler tube, wrinkle black
