aFe Momentum Cold Air Intake 54-76303 – BMW 528i / 528ix (F10)

OVERVIEW

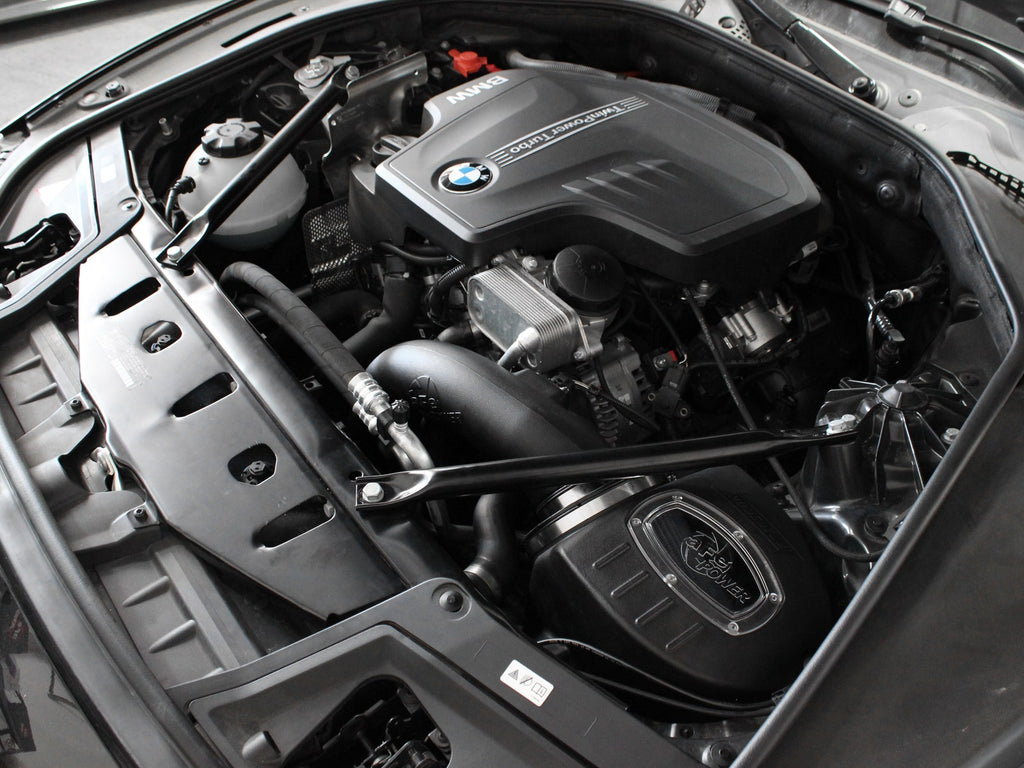

aFe Power's Momentum sealed cold air intake replaces the factory airbox on the N20-powered F10 528i. aFe rates it at up to +11 horsepower and +13 lbs. x ft. of torque, outflowing the factory intake system by 31%.

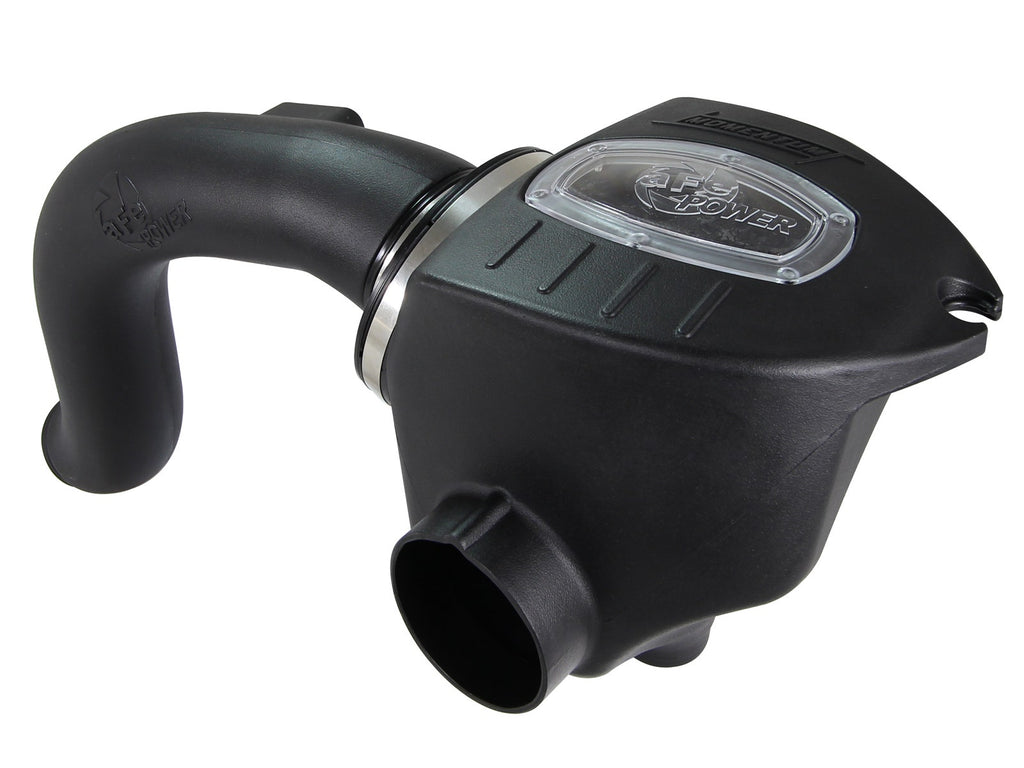

The smooth one-piece sealed housing carries an auxiliary air scoop that feeds the coolest available charge; a urethane plug is included if you prefer to block the scoop off. A large clear sight window lets the filter be inspected without disassembly, and the patent-pending filter-to-housing interface allows a far larger element than the factory box while simplifying installation.

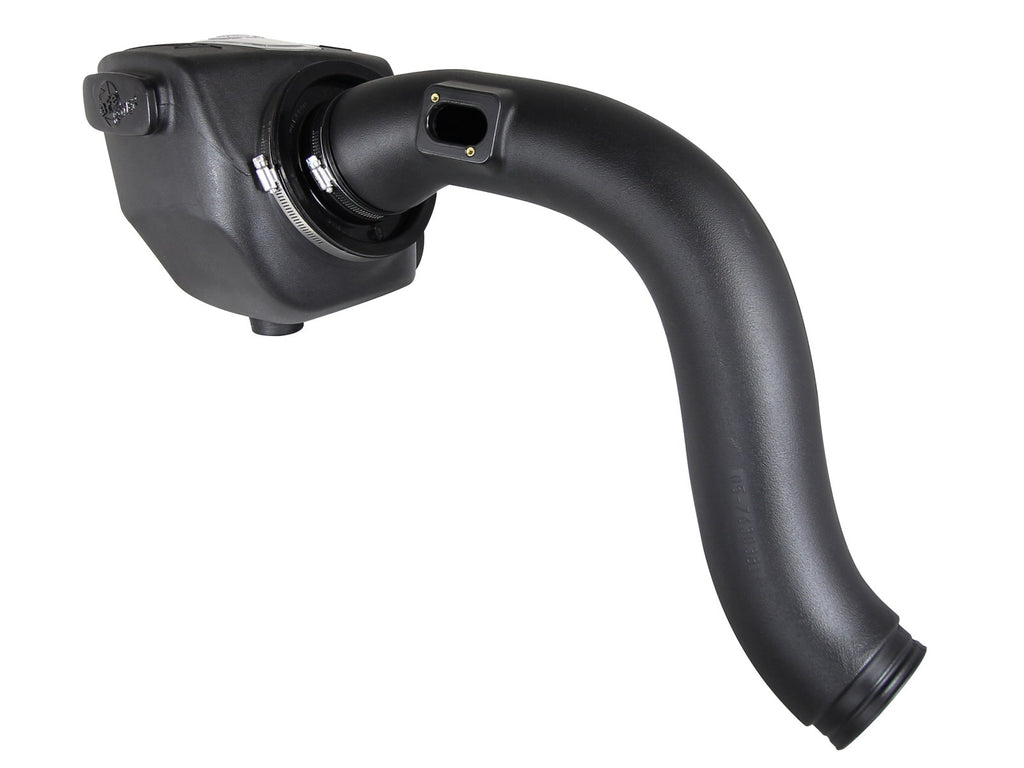

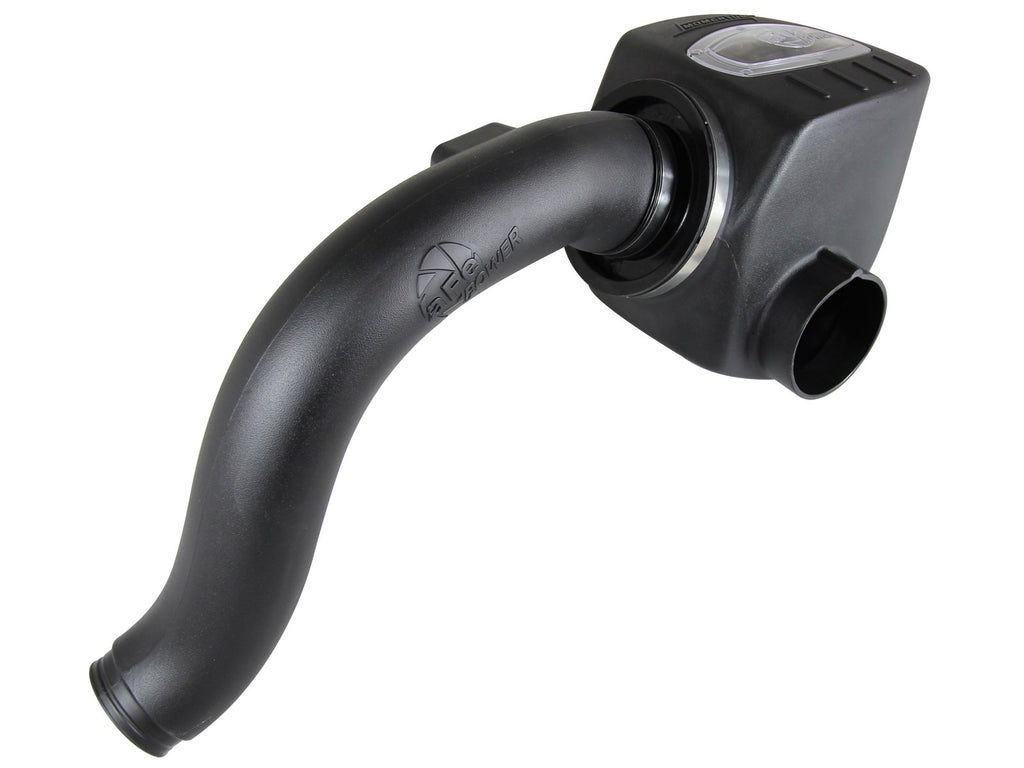

The filter is a 7-1/2" tall oval, 360-degree radial-flow element. Part number 51-76303 ships with the oil-free Pro DRY S filter, whose three layers of progressively finer porosity synthetic media wash clean with soap and water; 54-76303 ships with the pre-oiled five-layer Pro 5R cotton gauze element. A CAD-designed roto-molded intake tube and premium clamps complete the kit, which is designed with fewer parts for a quick and simple installation.

SPECS

• Maximum gains: +11 HP and +13 lbs. x ft. torque
• Outflows the factory intake system by 31%
• Filter size: 7-1/2" tall oval, 360-degree radial flow
• Pro DRY S media (51-76303): three layers of progressively finer porosity synthetic, oil-free, washable and reusable
• Pro 5R media (54-76303): five layers of progressively finer mesh cotton gauze, pre-oiled, cleanable and reusable
• Housing: one-piece sealed with auxiliary air scoop; urethane plug included to block the scoop
• Built-in sight window for filter inspection without disassembly
• Patent-pending filter-to-housing interface
• Intake tube: CAD-designed, roto-molded
• Premium clamps
• Not CARB exempt

PARTS INCLUDED

• Air filter — Pro DRY S (21-91088) or Pro 5R (24-91088) depending on part number — 1
• Roto-molded intake tube (05-76303B1) — 1
• Roto-molded housing (05-76303B2) — 1
• Clamp, 096 4-1/2"–6-1/2" (03-50003) — 1
• Torx bit, T20 (03-50066) — 1
• Screw, M4 (03-50221) — 2
• Urethane plug (05-01225) — 1

TECH RESOURCES

Additional Parts Required

• None. aFe Power specifies no additional hardware for this intake — the kit is a complete bolt-on and includes the T20 Torx bit needed for the sensor screws.
• Installer supplies basic hand tools: metric sockets and wrenches, a flat screwdriver and a trim tool for the engine cover clips.
• Optional service item: an aFe filter cleaning kit matched to your media — water-based for Pro DRY S, clean-and-re-oil for Pro 5R.

Installation

• aFe Power 51-76303 / 54-76303 Momentum cold air intake — installation instructions (PDF)

Notes

• Note: This intake system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
• Years above follow aFe Power's official installation instructions (2012–2016), which end a year earlier than the 2012–2017 range shown in the product title. Confirm fitment with Speed Logic if your car is a 2017 model.

PART NUMBER

• 54-76303 — Momentum intake with Pro 5R oiled filter
• 51-76303 — Momentum intake with Pro DRY S oil-free filter
