aFe Stage 2 Pro 5R Intake 54-82082-1 – BMW 535i (F10, N55)

OVERVIEW

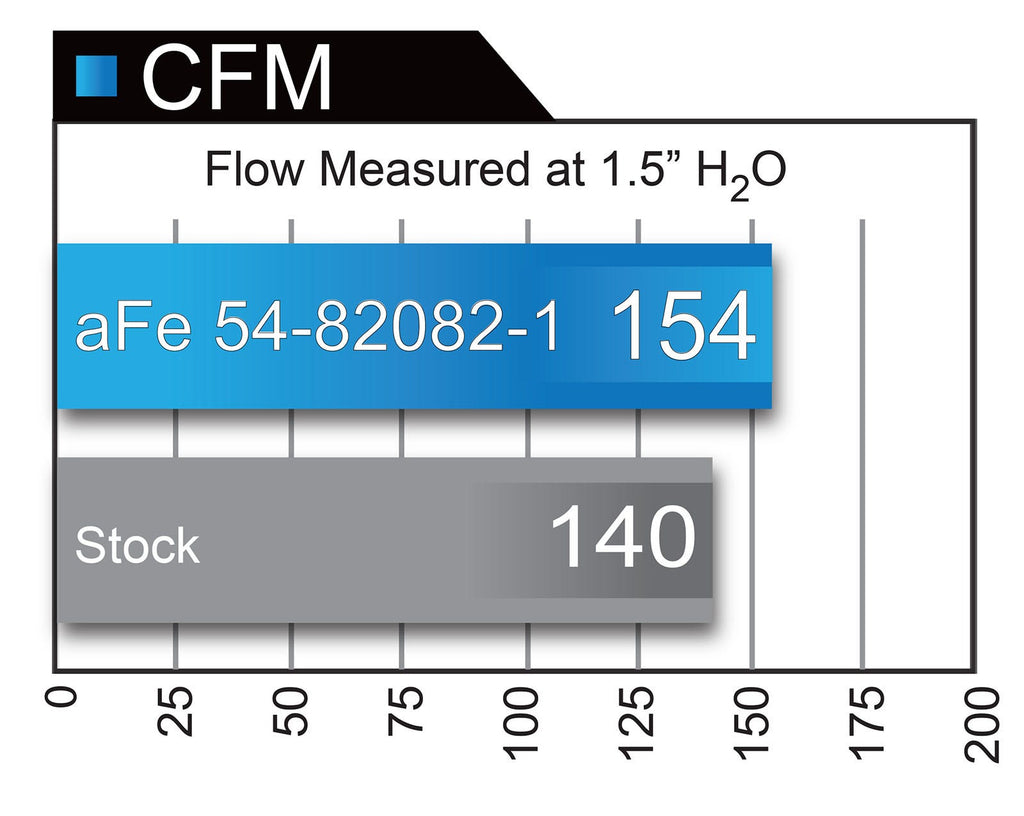

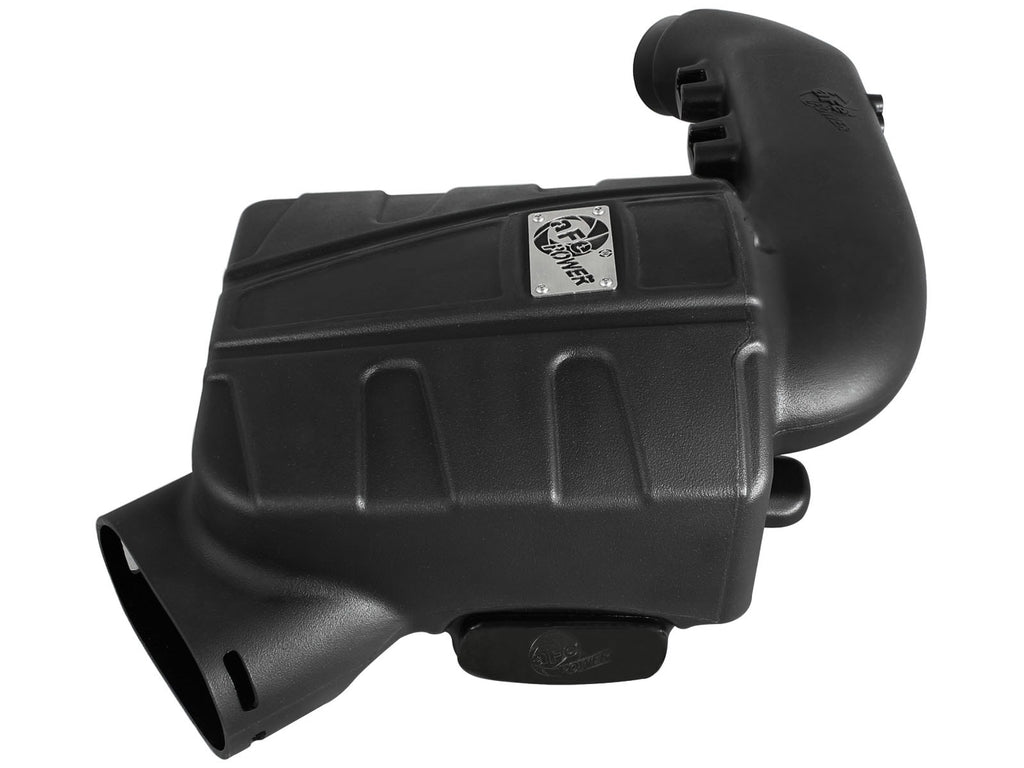

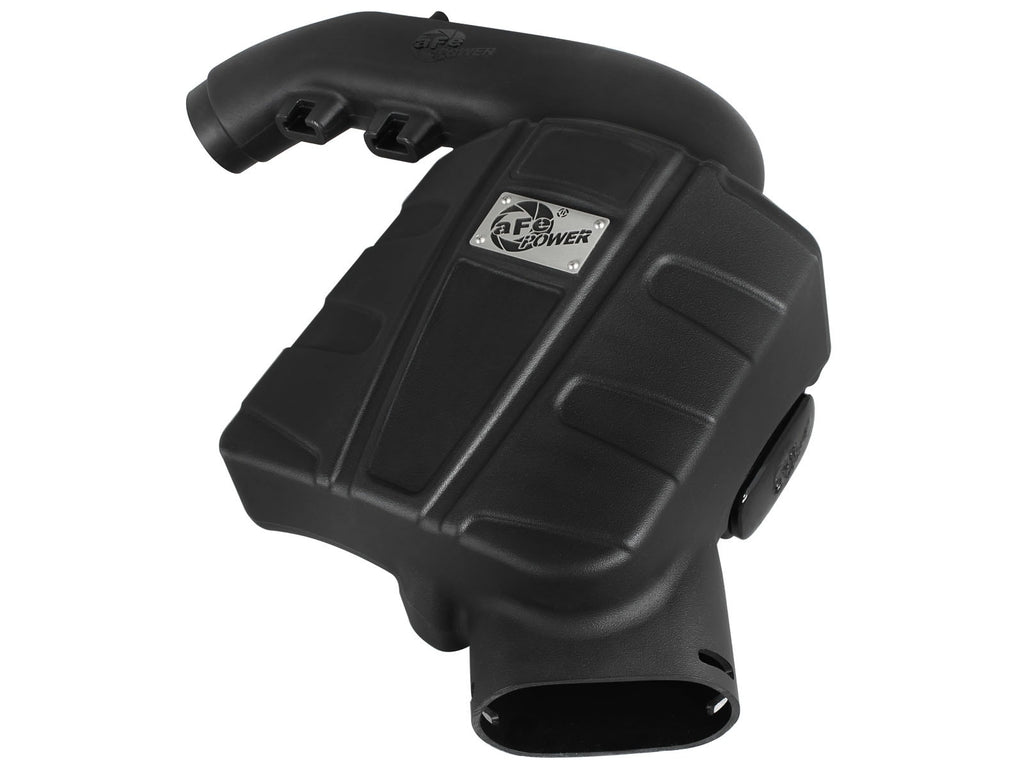

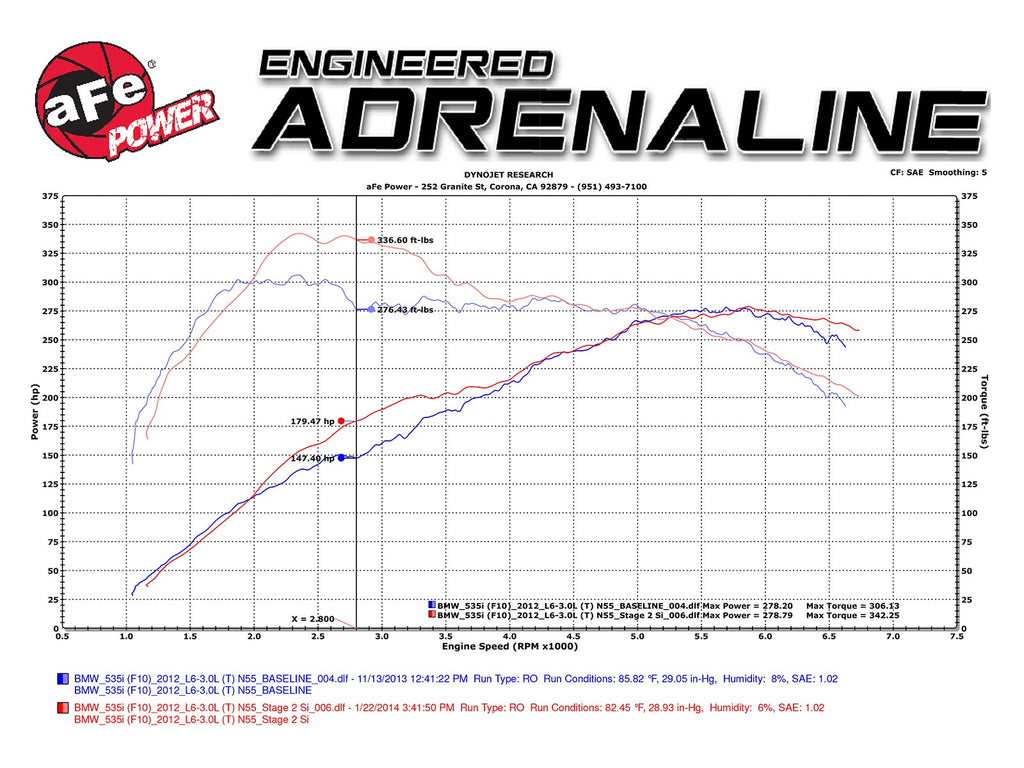

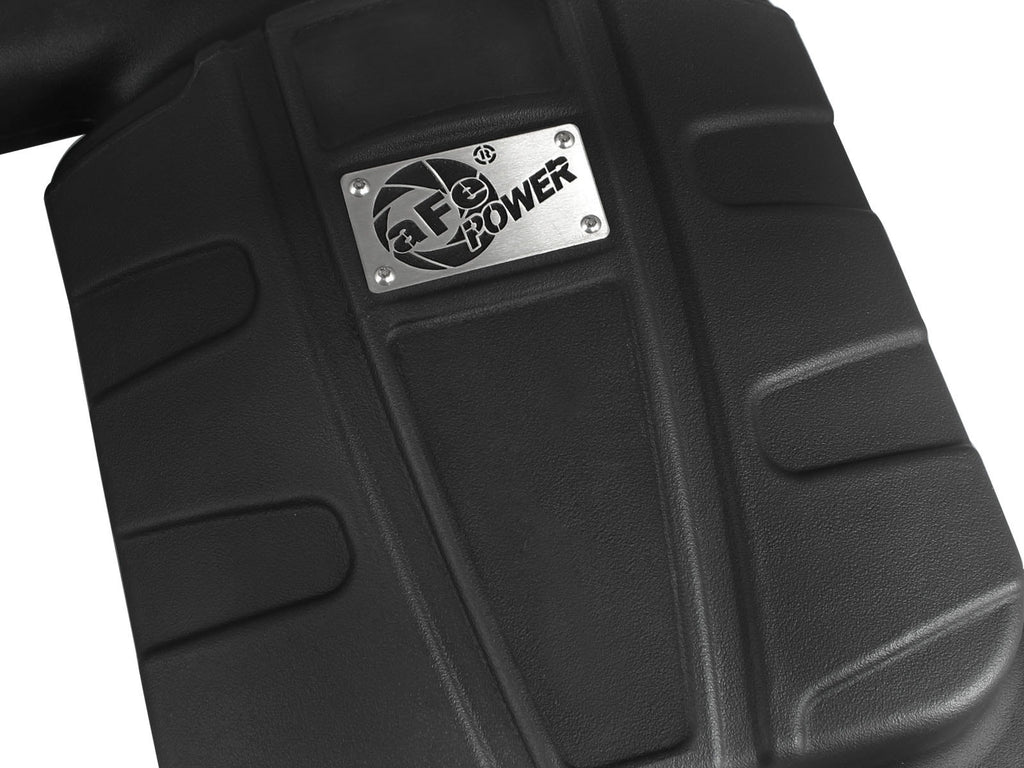

The aFe POWER Magnum FORCE Stage-2 Si sealed intake system replaces the factory airbox on the N55 with a custom CAD-designed, roto-molded one-piece housing made from heat-soak resistant black cross-linked polyethylene. Eliminating the multi-piece factory assembly ensures the coolest intake charge available, and an auxiliary air scoop feeds the housing. A urethane plug is included if you prefer to seal the scoop completely. aFe records maximum gains of +32 horsepower and +60 lbs. x ft. of torque, with the system out-flowing the factory intake by 10%.

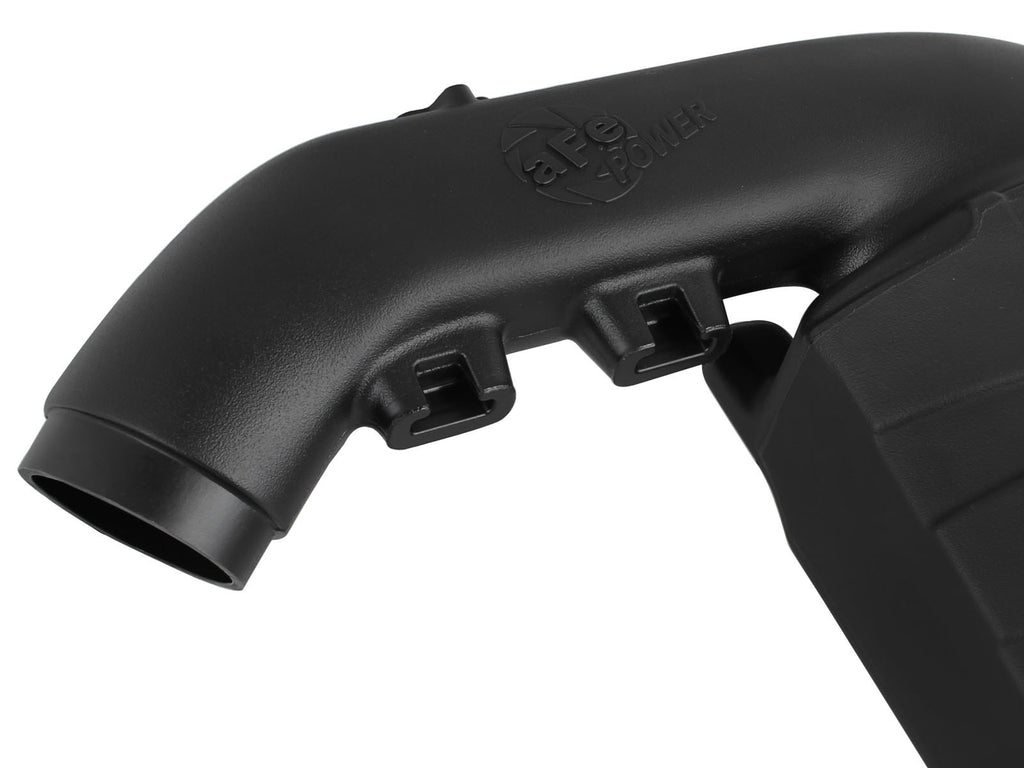

Airflow passes through a high quality plastic CAD-designed, dyno-tuned, roto-molded intake tube engineered for maximum power while maintaining a perfect fit, with mounting tabs molded in for easy installation.

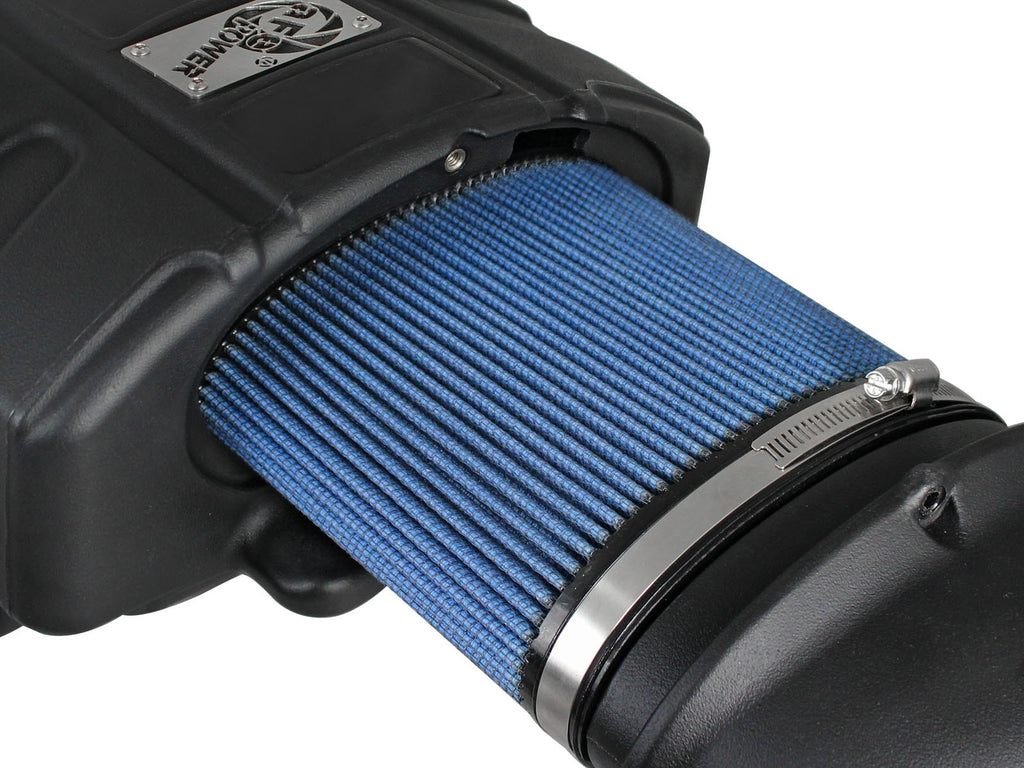

The sealed housing holds a pre-oiled 6-1/2 inch tall oval 360-degree radial flow Pro 5R air filter built from five layers of progressively finer mesh cotton gauze media for maximum airflow and performance. The filter-to-housing interface allows the largest possible element, increasing available air volume while simplifying assembly. Premium stainless steel hardware and clamps secure the filter and tube, and the system is designed with fewer parts for a quick, simple installation with no cutting or drilling of OEM parts.

SPECS

• +32 HP maximum gain (aFe measured)
• +60 lbs. x ft. torque maximum gain (aFe measured)
• Outflows the factory intake by 10%
• Filter media: Pro 5R oiled, 5-layer progressively finer mesh cotton gauze
• Filter size: 6-1/2 in. tall oval, 360-degree radial flow
• Filter is washable and reusable
• Housing: one-piece roto-molded sealed design in heat-soak resistant black cross-linked polyethylene, with auxiliary air scoop
• Urethane plug included to fully seal the auxiliary air scoop if desired
• Intake tube: CAD-designed, dyno-tuned, roto-molded with molded-in mounting tabs
• Hardware: premium stainless steel screws and clamp
• No cutting or drilling of OEM parts required for installation
• Emissions: not CARB exempt; not legal for sale in California or for use on California-registered vehicles

PARTS INCLUDED

• 1x Pro 5R air filter, blue media (aFe 24-90073)
• 1x Intake housing (aFe 05-82082B2)
• 1x Intake tube (aFe 05-82082B1)
• 1x Urethane plug (aFe 05-01225)
• 2x M6 button head socket screws (aFe 03-50102)
• 2x M4 Torx screws (aFe 03-50490)

TECH RESOURCES

Additional Parts Required

• None. aFe POWER specifies no additional hardware for this intake system - it is a complete bolt-on kit that reuses the factory mass air sensor and mounting points.
• Installer-supplied tools: metric socket and wrench set, hex/Allen key set, Torx driver set and a flat-blade screwdriver.
• Optional service item: an oiled-media filter cleaning and re-oiling kit for periodic maintenance. Pro 5R elements must be re-oiled after cleaning.

Installation

• aFe POWER 51-82082-1 / 54-82082-1 Magnum FORCE Stage-2 Si sealed intake - installation instructions (PDF)

Notes

• This intake system is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
• aFe POWER's installation instructions list 535i/ix/GT 2011–2017, 640i/ix/Gran Coupe 2011–2019, 740i/Li 2011–2015, X3 35ix 2011–2017 and X4 35ix/M40ix 2014–2018. Where those ranges differ slightly from the rows above, the rows follow Speed Logic's per-model fitment data. Please confirm your exact build with Speed Logic before ordering.

PART NUMBER

• 54-82082-1 - Stage-2 Si sealed intake with Pro 5R oiled filter media (this listing)
• 51-82082-1 - identical kit supplied with Pro DRY S oil-free filter media; both numbers share aFe's installation document
