AMS Performance BMW F8X M3/M4 S55 Carbon Fiber Intakes

OVERVIEW

The AMS Performance carbon intakes replace the F8X M3/M4's plastic airboxes and intake tubes with sealed, hand-laid carbon fiber airboxes, tubes and front ducts, plus reusable dry media filters. The enclosed boxes keep out hot engine-bay air, and the carbon ducts run all the way to the front grille with full scoops, feeding the turbos cold, high-pressure air.

AMS flow testing showed a 27% reduction in intake restriction at 4,500 RPM versus the factory system. Neodymium magnetic lids give tool-free filter access, and the 3K twill carbon is rated to 240°C, so it won't yellow or fade.

SPECS

• 27% reduction in airflow restriction at 4,500 RPM versus OEM
• Enclosed carbon fiber airboxes with neodymium magnetic lids
• Carbon front ducts with full scoops behind the grille
• 3K twill hand-laid carbon fiber, rated to 240°C; no yellowing or fading
• CNC-machined billet 6061-T6 mounting hardware with OEM-style fitment features
• Reusable synthetic dry media filters (no oiling)
• Plug-and-play, no permanent modification
• Weight: 12 lbs

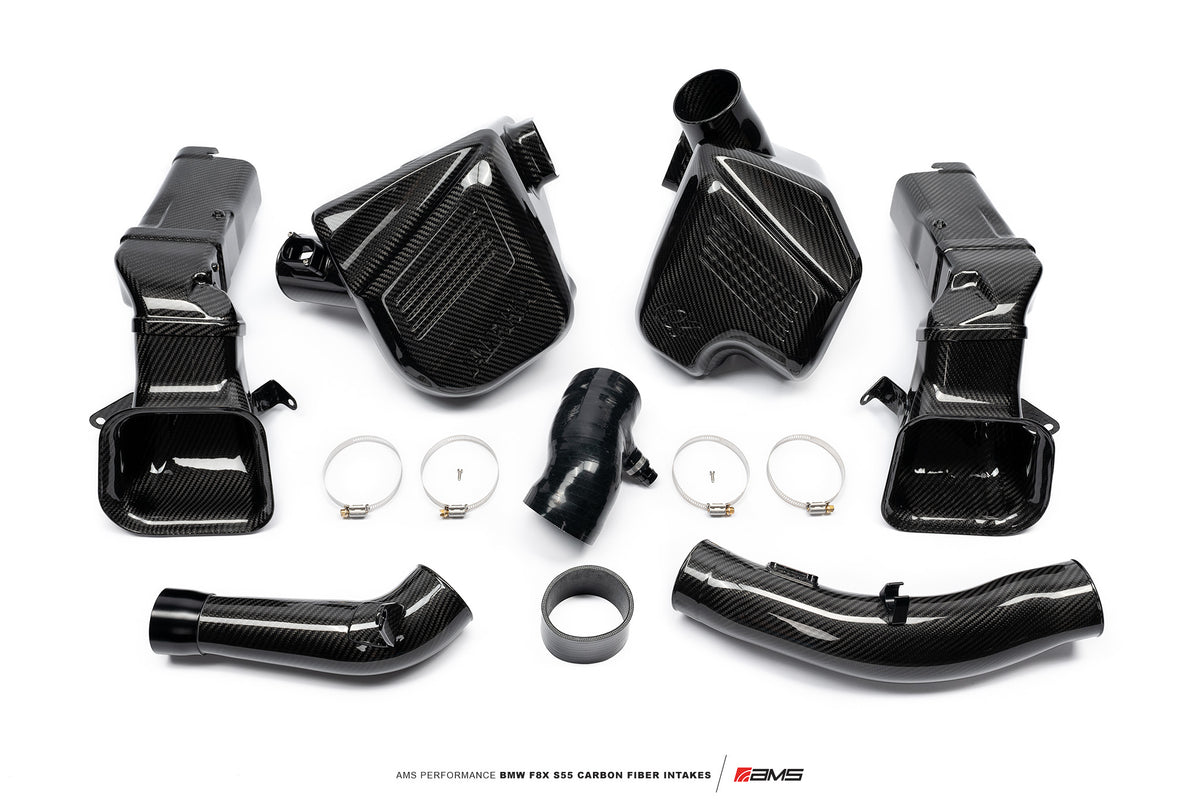

PARTS INCLUDED

• Carbon fiber airboxes with magnetic lids (pair)
• Carbon fiber intake tubes and front intake ducts
• Dry media filters (pair)
• Billet aluminum mounting hardware

TECH RESOURCES

Additional Parts Required

• ECU calibration with MAF scaling. AMS provides MAF scaling data for calibrating the ECU with these intakes: AMS S55 Carbon Intakes MAF Calibration Data (XLSX)

Installation

• AMS Performance BMW S55 Carbon Intakes Install Instructions (PDF)

Notes

• Filter care: Clean with compressed air (30–40 psi) from the inside out. For a deep clean, use a mild biodegradable degreaser, rinse, and let dry fully.
• Carbon fiber: Parts are hand-laid; slight imperfections or weave variation are normal.
• Emissions: AMS Performance has not completed CARB/EPA compliance testing for this part. Not legal for emissions-controlled vehicles in California without a completed AMS race waiver.

PART NUMBER

• AMS.39.08.0001-1
