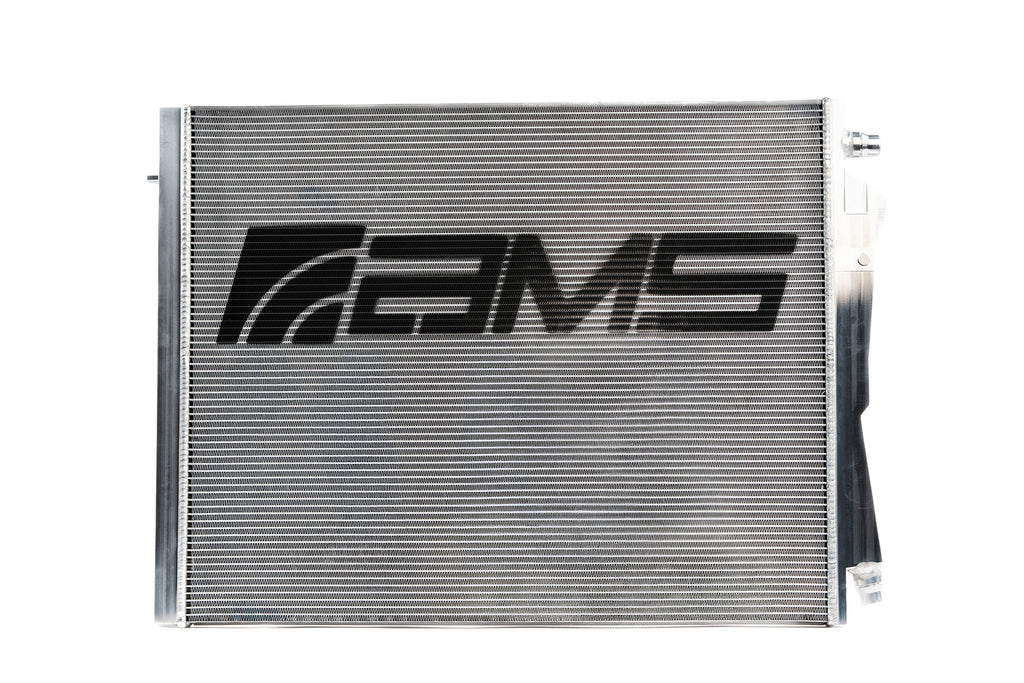

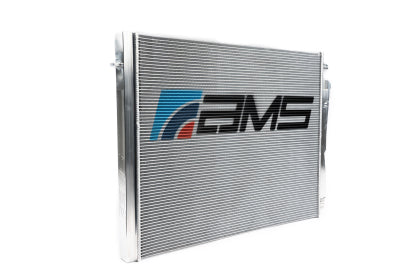

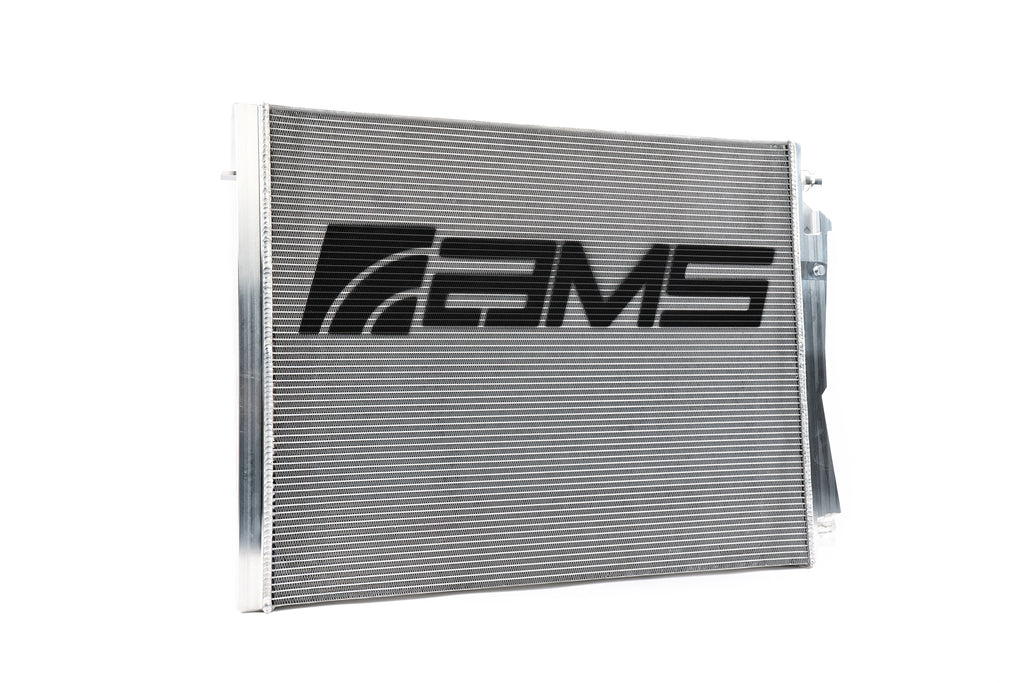

AMS Performance BMW G8X M2/M3/M4 S58 Heat Exchanger

OVERVIEW

The AMS Performance heat exchanger for the BMW G8X S58 platform is the largest drop-in unit available for the M2, M3 and M4. Its dual-pass core is 35% larger than the factory unit and holds double the coolant, keeping intake temperatures down and power consistent on track, during high-speed pulls, or in hot climates. Billet 6061-T6 end tanks are CAD-designed and CNC-machined so the unit slides in and locks into the factory mounting points with no cutting or drilling.

In AMS testing, including time-attack validation on a BMW M2 race car, the AMS unit recorded a peak intercooler air outlet temperature of 112.8°F versus 116.4°F for the OEM system and 120.2°F for the leading aftermarket competitor. A separate coolant test showed a 16°F lower coolant outlet temperature than that competitor.

Choose a logo finish above: Standard or M Colors.

SPECS

• Dual-pass, motorsport-grade core, 35% larger than OEM
• Double the fluid capacity of the OEM heat exchanger
• Billet 6061-T6 aluminum end tanks, CNC-machined
• AMS-spec core fin height and density

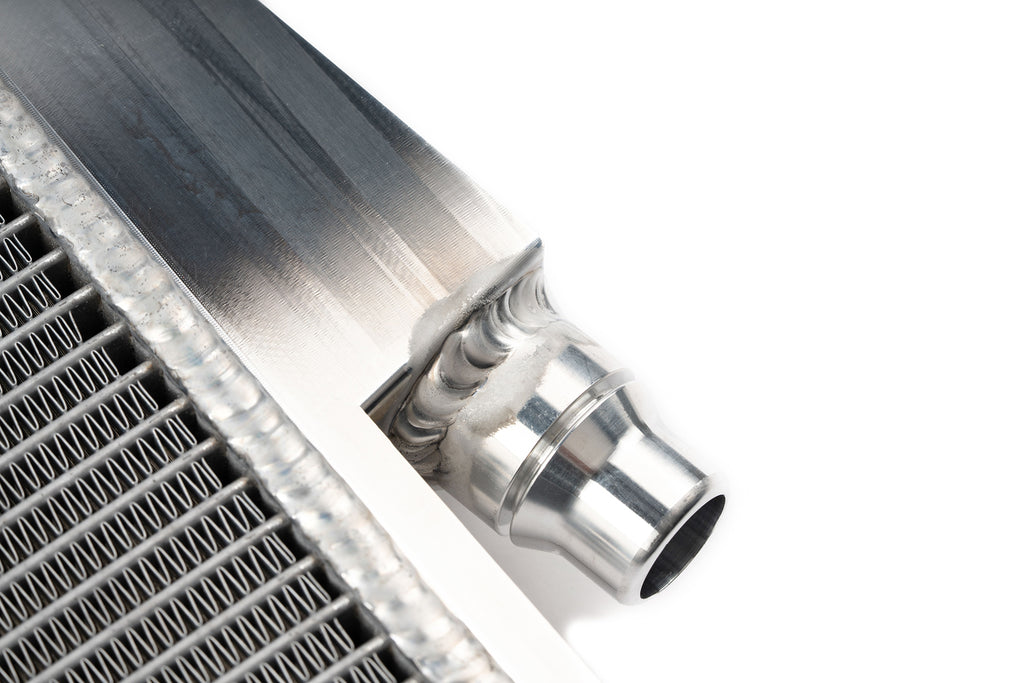

• Radiused coolant inlet/outlet fittings for lower pressure drop
• Direct bolt-on using factory mounting points; no cutting or drilling
• Suitable for stock or modified vehicles
• Weight: 8 lbs

PARTS INCLUDED

• (1) AMS Performance G8X S58 heat exchanger assembly in the selected logo finish (Standard or M Colors)

TECH RESOURCES

Additional Parts Required

• None. AMS Performance specifies a direct bolt-on install using factory mounting points.

Installation

• AMS Performance BMW G8X M2/M3/M4 S58 Heat Exchanger Install Instructions (PDF)

Notes

• AMS Performance has not completed CARB/EPA compliance testing for this part. Not legal for emissions-controlled vehicles in California without a completed AMS race waiver.

PART NUMBER

• AMS.48.02.0001-1 (Standard logo)
• AMS.48.02.0001-2 (M Colors logo)
