AWE Tuning Touring Axle-Back Exhaust – BMW M240i / M235i (F22)

OVERVIEW

AWE Tuning's Touring Edition axle-back for the F22 2 Series covers both the N55 M235i and the B58 M240i. It is a non-baffled, straight-through design that uses AWE's 180 Technology to cancel interior drone while adding a fuller tone, finished with dual double-walled tips in two sizes and two finishes.

On the M235i it installs on its own; on the M240i, AWE requires the matching performance mid pipe to be run with it. Select the tip size and finish at the variant level.

SPECS

• CNC mandrel-bent, .065" wall T304L stainless steel, straight-through
• AWE 180 Technology drone cancellation
• Max gains at the crank: M240i 9 hp / 11 ft-lbs; M235i 8 hp / 15 ft-lbs
• Dual double-walled tips: 90mm or 102mm, Chrome Silver or Diamond Black
• Not for convertible models
• AWE Lifetime Exhaust Warranty

PARTS INCLUDED

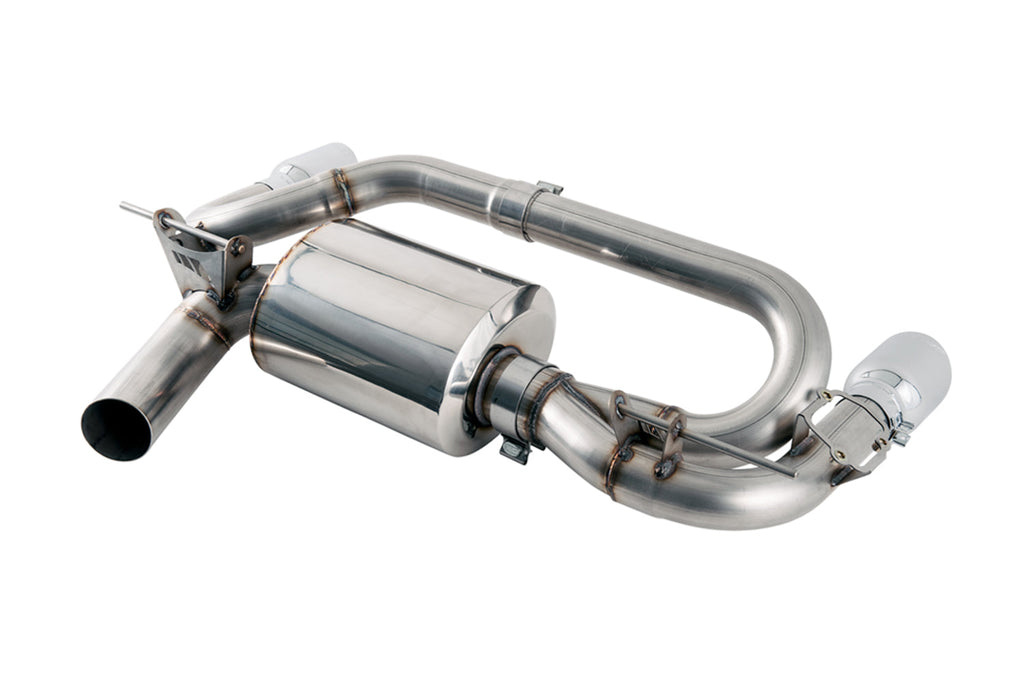

• Resonator outlet tube, coupler, rear 180 Technology resonator and dual outlet section
• 3" Accu-Seal clamps and hanger collars
• Two tips in the selected size and finish, 7/64" Allen key

TECH RESOURCES

Additional Parts Required

• M240i (B58): AWE Performance Mid Pipe for F22 M240i (3015-11034) is required. AWE states M240i models require the mid pipe and axle-back together.
• M235i (N55): no additional parts required. Installation cuts the factory mid pipe; saw or tubing cutter, deburring tool and torque wrench, installer-supplied.
• Professional installation on a lift is recommended.

Installation

• AWE Touring Edition Axle-Back Exhaust for 2014+ BMW M235i installation instructions (Rev 1.0, PDF). AWE has not published a separate M240i guide.

Notes

• Tip size and finish are selected at the variant level. Fitment per AWE and ECS Tuning: F22 coupe only, RWD and xDrive; not the F23 convertible.

PART NUMBER

• 3010-32028 (90mm, Chrome Silver)
• 3010-33038 (90mm, Diamond Black)
• 3010-32030 (102mm, Chrome Silver)
• 3010-33034 (102mm, Diamond Black)
