AWE Tuning BMW F3X 335i/435i Touring Edition Axle-Back Exhaust - Diamond Black Tips (90mm)

OVERVIEW

The AWE Tuning Touring Edition Axle-Back Exhaust is the street-focused member of the AWE Exhaust Suite for the BMW F3X 335i and 435i. It replaces the factory rear muffler section with a straight-through, full 3" CNC mandrel-bent system built from U.S.-sourced T304 stainless steel.

Drone is handled by AWE’s patented 180 Technology®. Exhaust gases pass through strategically located ports into reflection chambers; by controlling the size and location of those ports and chambers, AWE controls when the reflected sound waves rejoin the main exhaust flow, creating a one-hundred-and-eighty-degree out-of-phase wave that cancels the problematic frequencies and leaves the AWE signature note.

This listing is the diamond black 90mm configuration. The system is engineered, designed and manufactured in house at AWE, and is backed by AWE’s guarantees of perfect fitment and no check engine light. An AWE Performance Mid Pipe is available separately for racing applications.

SPECS

• Axle-back exhaust, straight-through design — replaces the factory rear muffler section
• Full 3" CNC mandrel-bent system
• T304 stainless steel construction, U.S.-sourced
• AWE 180 Technology® patented drone-cancelling resonator
• Max gains of 15 hp and 32 ft-lbs of torque at the crank

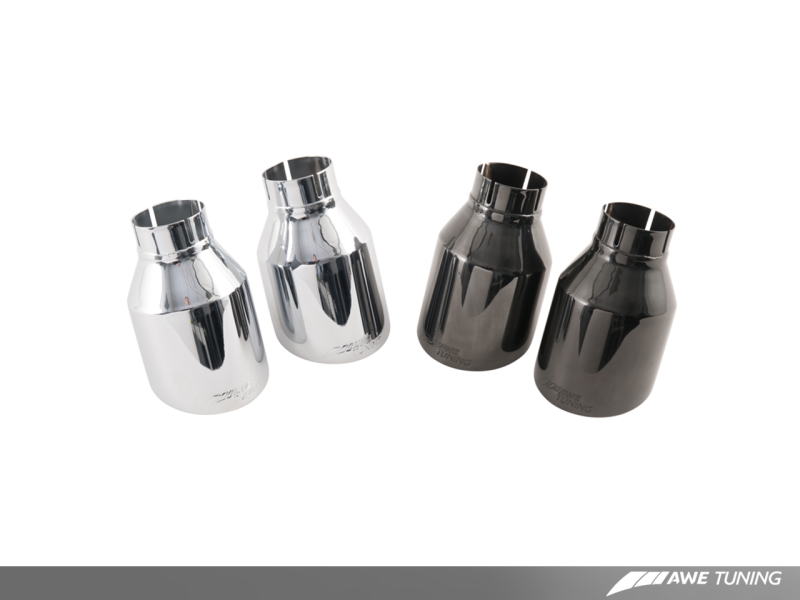

• Tips: diamond black 90mm, double-walled
• Tip options across the range: 90mm or 102mm double-walled, chrome silver or diamond black
• Touring Edition — street-oriented sound level; Performance Mid Pipe offered separately for racing applications
• Engineered, designed and manufactured in house at AWE
• No check engine light — guaranteed by AWE
• Perfect fitment — guaranteed by AWE
• AWE Lifetime Exhaust Warranty

PARTS INCLUDED

• Complete axle-back kit as supplied by AWE Tuning; see the installation instructions for the full bill of materials.

TECH RESOURCES

Required Extras

• None. AWE Tuning specifies no additional hardware for this axle-back exhaust — it bolts to the factory mid pipe using the hardware supplied in the kit.
• Optional, for racing applications only: AWE Tuning BMW F3X 335i/435i Performance Mid Pipe.
• Installer-supplied: vehicle lift or jack stands, metric sockets and wrenches, and penetrating oil for the factory clamp hardware.

Installation

• AWE Tuning F3X 335i / 435i Touring Edition Axle-Back Exhaust — Installation Instructions (Rev 3.1, PDF)

PART NUMBER

• 3010-33028 — AWE Tuning Touring Edition Axle-Back Exhaust, F3X 335i / 435i, diamond black tips (90mm)

VEHICLE APPLICATIONS

Model years shown reflect the production years of the listed chassis and engine combinations. AWE Tuning publishes fitment by platform rather than by year — confirm fitment with Speed Logic before ordering.
