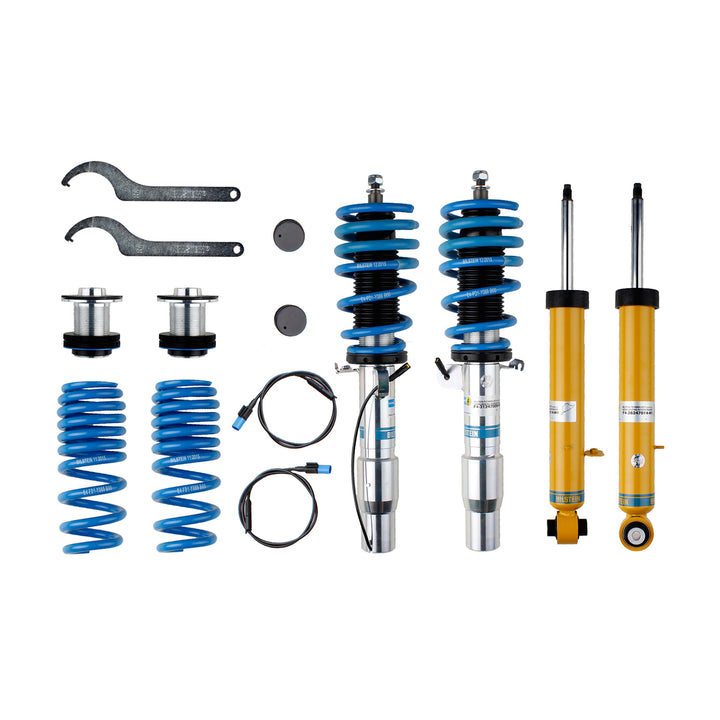

Bilstein B16 DampTronic Suspension Kit – BMW M3 / M4 (F80 F82)

OVERVIEW

Bilstein B16 DampTronic suspension kits feature ride-height adjustability with dampers that are compatible with the OE electronic damping system. All of the active features of the factory electronic suspension, along with the factory controls, are retained after installation.

The kit uses monotube performance dampers with matched springs tuned specifically for the F80 M3 and F82/F83 M4. The zinc-coated, threaded-body design gives you the flexibility to find the perfect ride-height setting for your intended use while providing protection against the harshest road elements.

B16 DampTronic kits are made in Germany and use technology tested on the Nordschleife.

SPECS

• Bilstein B16 (DampTronic) suspension kit
• Monotube performance dampers with application-matched springs
• Dampers compatible with the OE electronic damping system; factory adaptive functions and controls are retained
• Zinc-coated threaded damper bodies for ride-height adjustment
• Front lowered height: 30–40 mm, up to 990 kg axle load
• Rear lowered height: 5–25 mm, up to 1250 kg axle load
• Front main spring rate: 514.26 lbs/in (progressive)
• Rear main spring rate: 799.96 lbs/in (progressive)
• Finish: zinc front dampers, yellow rear dampers, blue springs
• Made in Germany
• Bilstein Limited 5-Year Warranty
• Position: front and rear — one kit per vehicle

PARTS INCLUDED

• Complete front and rear Bilstein B16 (DampTronic) suspension kit as supplied by Bilstein; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Factory electronic suspension is required. This kit is only for M3 and M4 models originally equipped with the OE Adaptive M suspension / electronic damping system.
• Bilstein specifies no additional hardware beyond the kit itself.
• A four-wheel alignment is mandatory after installation — changing ride height alters camber, caster and toe.
• Professional installation is strongly recommended. Spring compressors and BMW strut tooling are required, and the front strut assemblies are under spring load.
• The electromagnetic damper valve cables must be routed and connected as shown in the installation instructions.
• Re-check ride height and re-torque the fasteners after the springs have settled, then re-align the car if the height is changed again later.

Installation

• Bilstein B16 DampTronic (E4-WM4-Y713A00) installation instructions and parts certificate (PDF)
• Bilstein shock absorber installation safety notice (PDF)

Notes

• For M3 and M4 models with factory electronic suspension only. Confirm your model year and suspension option with Speed Logic before ordering.

PART NUMBER

• Bilstein part number: 49-246988
