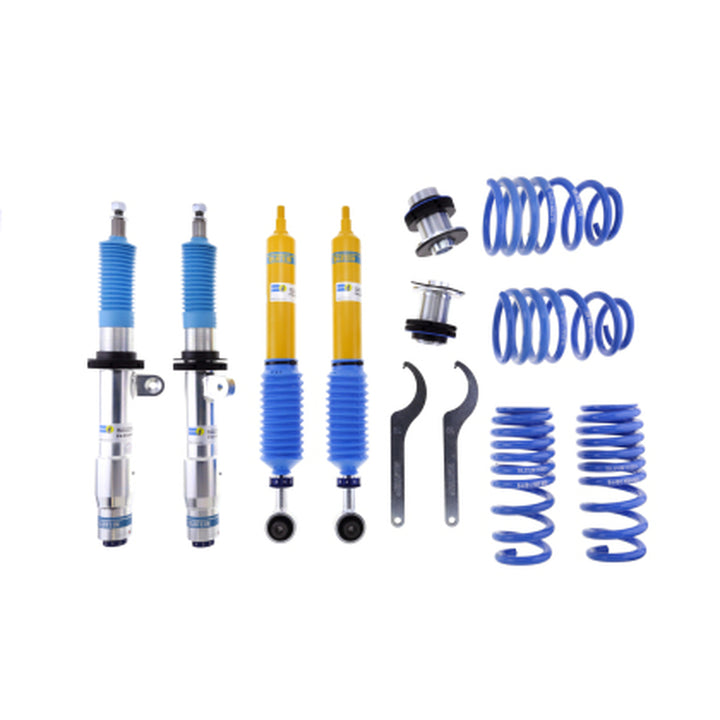

Bilstein B16 PSS10 Coilover Kit 48-244091 for 2015-2021 BMW M2 / M3 / M4 (F87 / F80 / F82 / F83)

OVERVIEW

The Bilstein B16 (PSS10) suspension kit brings 10-stage manually adjustable damping and threaded-body ride-height adjustment to the F87 M2, F80 M3 and F82/F83 M4. Dial the damping from street comfort to track-day firmness, and set ride height independently front and rear.

The kit pairs Bilstein monotube dampers with progressive-rate springs matched to the platform. It is made in Germany and backed by Bilstein's Limited 5-Year Warranty.

SPECS

• Bilstein B16 (PSS10) suspension kit
• Monotube dampers with 10-stage manually adjustable damping
• Threaded-body ride-height adjustment
• Front main spring rate: 514.26 lbs/in (progressive)
• Rear main spring rate: 799.96 lbs/in (progressive)
• Finish: zinc dampers, blue springs
• Made in Germany
• Bilstein Limited 5-Year Warranty
• Position: front and rear — one kit per vehicle

PARTS INCLUDED

• Complete front and rear Bilstein B16 (PSS10) suspension kit as supplied by Bilstein; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Recommended tool: Bilstein Spanner Wrench Set E4-XS1-Z001A00 for ride-height adjustment.
• Speed Logic guidance: this is a passive (non-electronic) kit and is not intended for cars equipped with factory EDC / Adaptive M suspension. Contact Speed Logic if your car has adaptive dampers.
• A four-wheel alignment is required after installation.

Installation

• Bilstein B16 PSS10 48-244091 (E4-WM4-Y705A00) installation instructions (PDF)
• Bilstein shock absorber installation safety notice (PDF)
• Professional installation by a qualified suspension shop is recommended; contact Speed Logic for install support.

PART NUMBER

• Bilstein part number: 48-244091

VEHICLE APPLICATIONS
