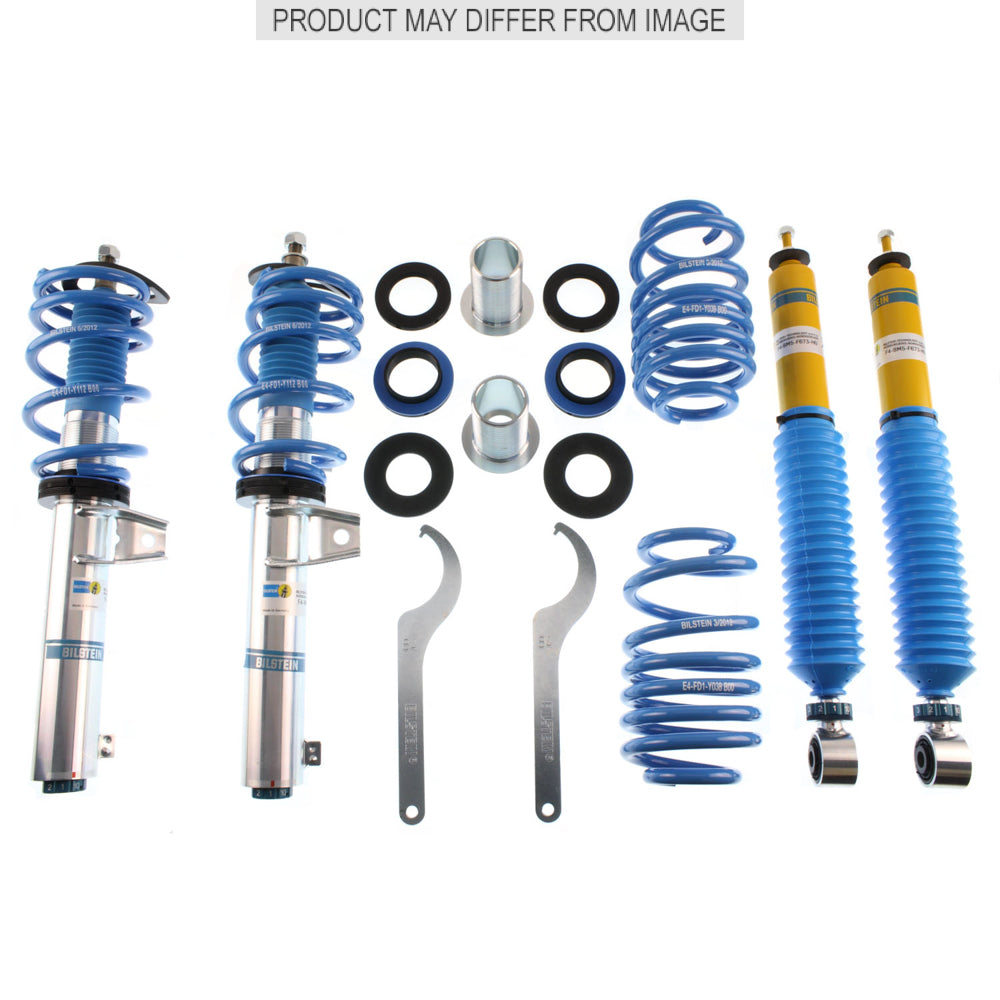

Bilstein B16 PSS10 Comfort Coilover Kit – BMW F22 / F30 / F32 (RWD)

OVERVIEW

The engineers at Bilstein created the ultimate race-inspired suspension: the B16 PSS10 — and this is the Comfort Edition, tuned with softer springs and a more comfort-oriented base ride for the street.

The manually adjustable monotube gas dampers offer ten precise compression and rebound settings, from maximum comfort to a sportier ride, selected by the twist of a dial. The threaded damper bodies allow accurate adjustment of the front and rear progressive-rate springs, so you can set vehicle ride height, center of gravity and handling balance exactly where you want them.

This kit is designed for rear-wheel-drive F22/F23 228i and 230i, F30 320i, 328d, 328i, 330e, 330i, 335i, 340i and ActiveHybrid 3, and F32/F33/F36 428i, 430i, 435i and 440i models without factory Electronic Damper Control (EDC).

SPECS

• Bilstein B16 (PSS10) coilover suspension kit — Comfort Edition
• Ten-stage manually adjustable compression and rebound damping, from Comfort to Sport, set by dial
• Front main spring: 289 lbs/in, progressive; rear main spring: 428 lbs/in, progressive — softer than the standard B16 PSS10 for a more comfort-oriented ride
• Monotube gas-pressure damper technology
• Threaded damper bodies with a 20 mm ride-height adjustment range at both axles
• Round threads for easy adjustment
• Spring plates and lock nuts made from a special aluminum alloy
• Triple-C-Technology surface coating for long-lasting corrosion resistance
• Road-tested and fine-tuned by Bilstein ride engineers under extreme motorsport conditions
• Made in Germany
• Bilstein Limited 5-Year Warranty
• Position: front and rear — one kit per vehicle

PARTS INCLUDED

• Complete front and rear Bilstein B16 (PSS10) Comfort coilover kit as supplied by Bilstein; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• Not for cars with factory Electronic Damper Control (EDC / Adaptive M Suspension). Bilstein lists this kit for vehicles without EDC only — confirm your car does not have EDC before ordering.
• Recommended tool: Bilstein spanner wrench set E4-XS1-Z001A00 for setting ride height on the threaded damper bodies.
• A four-wheel alignment is mandatory after installation — changing ride height alters camber, caster and toe.
• Professional installation is strongly recommended. Spring compressors and BMW strut tooling are required, and the front strut assemblies are under spring load.
• Damping is set by hand at each corner — allow access to all four dampers when choosing ride height, and set front and rear to matching positions before road testing.
• Re-check ride height and re-torque the fasteners after the springs have settled, then re-align the car if the height is changed again later.

Installation

• Bilstein B16 PSS10 Comfort (E4-WM4-Y667A00) installation instructions and parts certificate (PDF)
• Bilstein shock absorber installation safety notice (PDF)

Notes

• Rear-wheel-drive models only; xDrive cars use a different Bilstein kit.
• Bilstein does not list the 230i for model year 2020 for this kit.

PART NUMBER

• Bilstein part number: 48-229012
