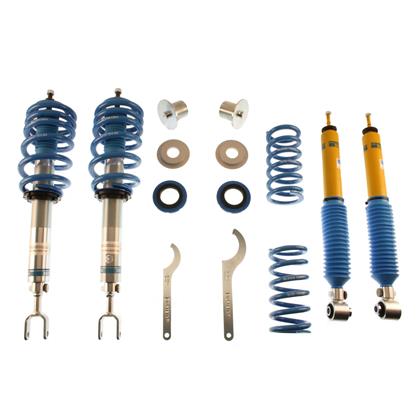

Bilstein B16 PSS10 Street Comfort Coilover Kit – BMW E82 / E90 / E92

OVERVIEW

The engineers at Bilstein created the ultimate race-inspired street suspension. This version of the B16 PSS10 is tuned for a little more street comfort than the standard PSS10, which makes it a strong choice for cars that see far more daily driving than track action — but with all of the adjustability and technology of the standard E82/E9X PSS10 kit.

The manually adjustable monotube gas dampers offer ten precise compression and rebound settings, from maximum comfort to aggressive sport, selected by the twist of a dial. The threaded damper bodies allow accurate adjustment of the front and rear progressive-rate springs, so you can set vehicle ride height, center of gravity and handling balance exactly where you want them.

The kit is designed specifically for the E82 1 Series (128i, 135i and 135is) and rear-wheel-drive E90/E92 3 Series (325i, 328i, 330i, 335i and 335is). Bilstein road-tests and fine-tunes these kits under extreme motorsport conditions, including the Autobahn and the Nurburgring Nordschleife.

SPECS

• Bilstein B16 (PSS10) coilover suspension kit
• Ten-stage manually adjustable compression and rebound damping, from Comfort to Sport, set by dial
• Progressive-rate front and rear sport springs
• Comfort tune: a softer base ride than the standard E82 / E9X PSS10 kit, with the same adjustability
• Front lowered height: 20–40 mm, up to 1020 kg axle load
• Rear lowered height: 20–40 mm, up to 1020 kg axle load
• Front main spring rate: 399 lbs/in (progressive)
• Rear main spring rate: 399 lbs/in (progressive)
• Finish: zinc front dampers, yellow rear dampers, blue springs
• Monotube gas-pressure damper technology
• Threaded damper bodies with a 20 mm ride-height adjustment range at both axles
• Round threads for easy adjustment
• Spring plates and lock nuts made from a special aluminum alloy
• Triple-C-Technology surface coating for long-lasting corrosion resistance
• Road-tested and fine-tuned by Bilstein ride engineers under extreme motorsport conditions
• Made in Germany
• Bilstein Limited 5-Year Warranty
• Position: front and rear — one kit per vehicle

PARTS INCLUDED

• Complete front and rear Bilstein B16 (PSS10) Comfort coilover kit as supplied by Bilstein; see the installation instructions for the full bill of materials.

TECH RESOURCES

Additional Parts Required

• None. Bilstein supplies this as a complete front and rear kit and specifies no additional hardware for installation.
• A four-wheel alignment is mandatory after installation — changing ride height alters camber, caster and toe.
• Professional installation is strongly recommended. Spring compressors and BMW strut tooling are required, and the front strut assemblies are under spring load.
• Damping is set by hand at each corner — allow access to all four dampers when choosing ride height, and set front and rear to matching positions before road testing.
• Re-check ride height and re-torque the fasteners after the springs have settled, then re-align the car if the height is changed again later.

Installation

• Bilstein B16 PSS10 (E4-WM4-Y586A00) installation instructions and parts certificate (PDF)
• Bilstein shock absorber installation safety notice (PDF)

Notes

• Bilstein lists this kit for rear-wheel-drive models only. Year coverage varies by body style within a chassis — confirm your exact model, drivetrain and factory suspension option with Speed Logic before ordering.

PART NUMBER

• Bilstein part number: 48-195232
