Burger Motorsports Aluminum Charge Pipe Kit – BMW 535i / 640i / 740i / X5 / X6 (F10 / F12 / F15 / E70, N55)

OVERVIEW

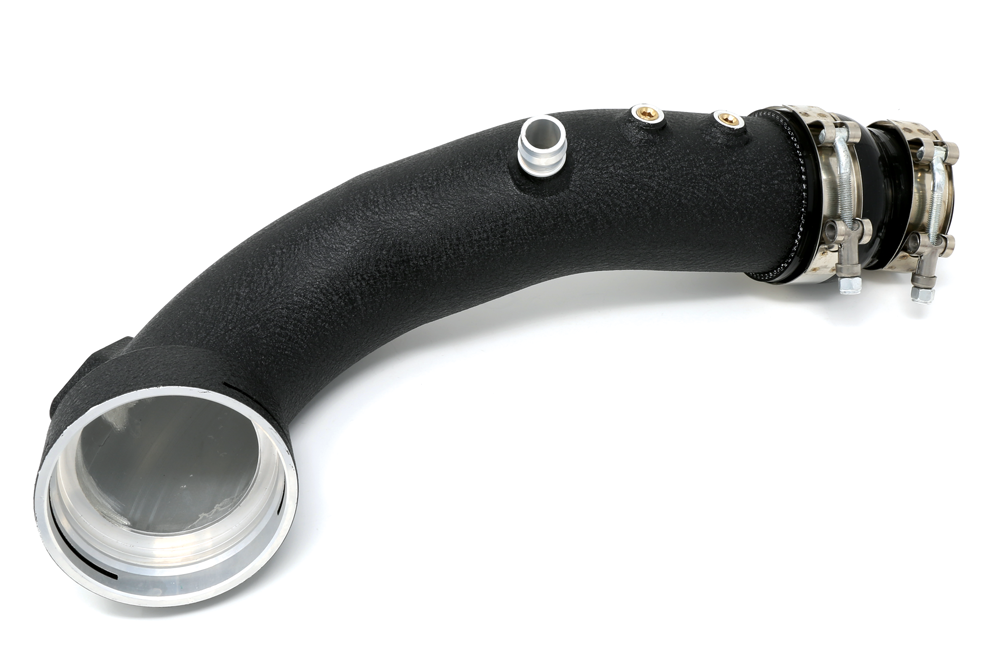

Larger N55 BMWs such as the 535i, 640i, 740i, X5 and X6 use the same fragile plastic charge pipe design that can crack under added boost. This Burger Motorsports kit replaces it with a heavy-duty aluminum pipe and is covered by a lifetime warranty.

The pipe mounts with OEM-style hardware, keeps the emissions fittings, and can be uninstalled to go back to stock. Two 1/8" NPT bungs placed on opposite sides let you add a boost gauge, meth injection or other sensors.

SPECS

• Material: all-aluminum construction
• Finish: matte black
• Flanges: CNC machined
• Ports: (2) 1/8" NPT bungs set 180 degrees apart
• Mounting: OEM-style hardware
• Emissions fittings retained
• Fully reversible installation
• Weight: 4.0 lb (1814 g)
• Warranty: lifetime

PARTS INCLUDED

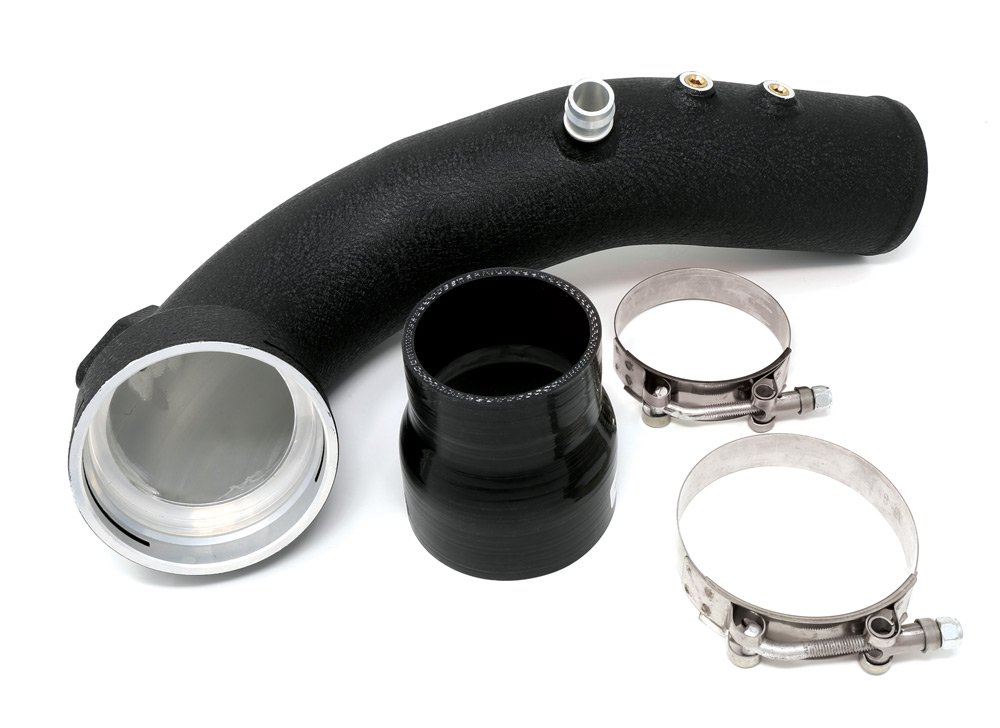

• (1) BMS aluminum replacement charge pipe with (2) 1/8" NPT bungs

Charge pipe gaskets and clips are not included; transfer them from the factory charge pipe.

TECH RESOURCES

Additional Parts Required

• Required: charge pipe gaskets (reuse the factory gaskets from the original pipe, or purchase replacements if worn or damaged)
• Required: charge pipe clips (reuse the factory clips from the original pipe, or purchase replacements if worn or damaged)

Installation

• Burger Motorsports does not publish an install guide for this part. Contact Speed Logic for install support or in-house installation.

VEHICLE APPLICATIONS

Fits N55 models only. Not for N54, N63 or B58 engines. Burger Motorsports lists 2011–2017 (535i / 640i / 740i) and 2011–2018 (X5 / X6); years shown are each model's US N55 production years within that range.
