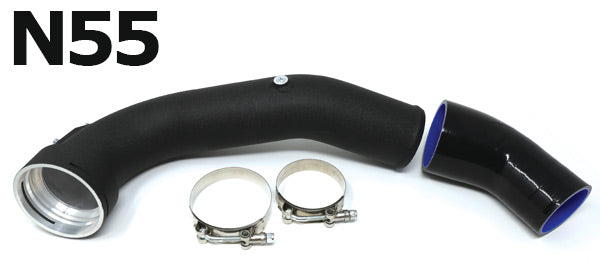

Burger Motorsports Aluminum Replacement Charge Pipe – BMW 135i / 335i (E82 / E88 / E9x, N55)

OVERVIEW

On the E-chassis N55, the stock plastic charge pipe tends to crack under increased boost, causing boost leaks and limp mode. This Burger Motorsports pipe swaps that weak point for an all-aluminum part made to survive tuned boost, and it carries a lifetime warranty.

It installs with OEM-style mounting hardware, retains the emissions fittings and can be removed to return to stock. A heavy-duty silicone coupler and clamps are supplied, and two plugged 1/8" NPT ports give you a place to tap in a boost gauge, meth injection or other sensors.

SPECS

• Material: all-aluminum construction
• Finish: matte black
• Flanges: CNC machined
• Ports: (2) 1/8" NPT bungs set 180 degrees apart
• Replaces OEM BMW charge-air duct 13717615026
• Mounting: OEM-style, direct fit
• Emissions fittings retained
• Fully reversible installation
• Weight: 5.0 lb (2268 g)
• Warranty: lifetime

PARTS INCLUDED

• (1) BMS aluminum replacement charge pipe
• (1) Heavy-duty silicone coupler
• (2) Heavy-duty clamps
• (2) 1/8" NPT bung plugs

Charge pipe gaskets and clips are not included; transfer them from the factory charge pipe.

TECH RESOURCES

Additional Parts Required

• Required: charge pipe gaskets (reuse the factory gaskets from the original pipe, or purchase replacements if worn or damaged)
• Required: charge pipe clips (reuse the factory clips from the original pipe, or purchase replacements if worn or damaged)

Installation

• BMS N55 E-Chassis Charge Pipe Installation Video

VEHICLE APPLICATIONS

Fits N55 E-chassis 1 Series and 3 Series only. Not for F-chassis N55 models.
