Burger Motorsports Aluminum Replacement Charge Pipe – BMW M135i / M235i / M2 / 335i / 435i (F2x / F3x / F87, N55)

OVERVIEW

The 2012+ F-chassis N55 ships with a plastic charge pipe that is prone to splitting once boost is turned up. Burger Motorsports offers an all-aluminum replacement that eliminates that failure point and bolts directly into place of the original.

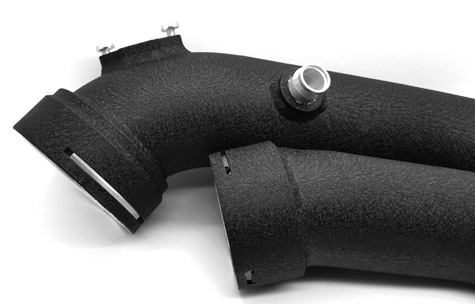

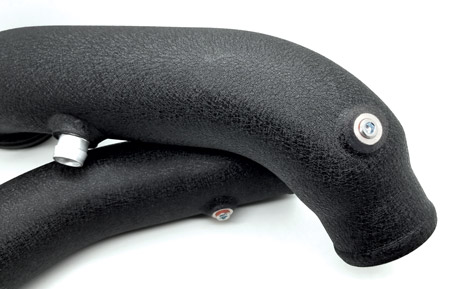

The pipe uses CNC-machined flanges with OEM-style connections, and two capped 1/8" NPT ports are ready for a boost gauge, water/methanol injection or diagnostic fittings. Choose the automatic or manual rear-wheel-drive version, or the version for xDrive models; the manual version adds a rubber cap to close off the unused automatic transmission vent port.

SPECS

• Material: aluminum
• Flanges: CNC machined
• Ports: (2) pre-capped 1/8" NPT ports
• Connection: OEM-style hardware, direct bolt-in replacement
• Manual version: includes an extra rubber cap for the unused automatic transmission vent port
• Weight: 5.0 lb (automatic and manual RWD versions), 4.2 lb (xDrive version)

PARTS INCLUDED

• (1) BMS aluminum replacement charge pipe with (2) pre-capped 1/8" NPT ports
• Mounting hardware required for installation
• (1) Rubber cap for the transmission vent port (manual transmission version only)

TECH RESOURCES

Additional Parts Required

• None. Burger Motorsports includes the hardware needed for installation.
• Select the correct version: automatic RWD, manual RWD, or All iX Models for xDrive cars.

Installation

• Burger Motorsports does not publish an install guide for this part. Contact Speed Logic for install support or in-house installation.

VEHICLE APPLICATIONS

Choose the automatic or manual version for rear-wheel-drive cars, and the All iX Models version for xDrive cars.
