Burger Motorsports Competition Cold Air Intake – BMW M240i / M340i / M440i (B58)

OVERVIEW

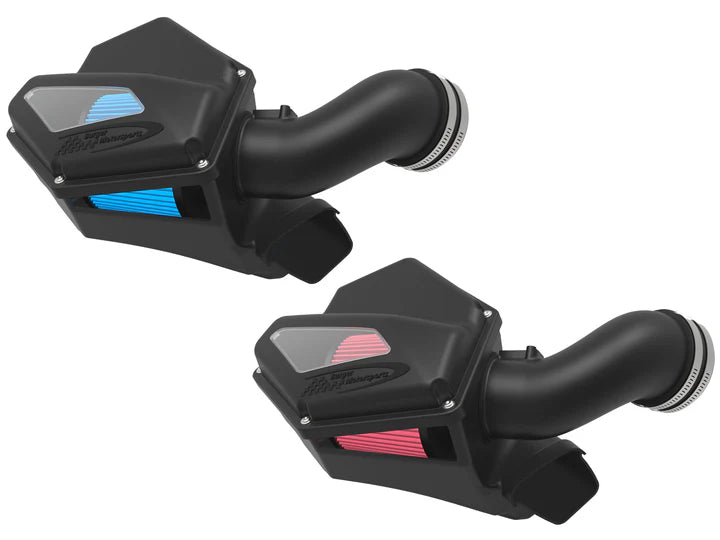

The Burger Motorsports Competition Cold Air Intake is built for the Gen 2 B58 powered 2020–2024 BMW M340i, 2021–2024 M440i and 2022+ M240i, including xDrive models, with Gen 3 B58 fitments also covered.

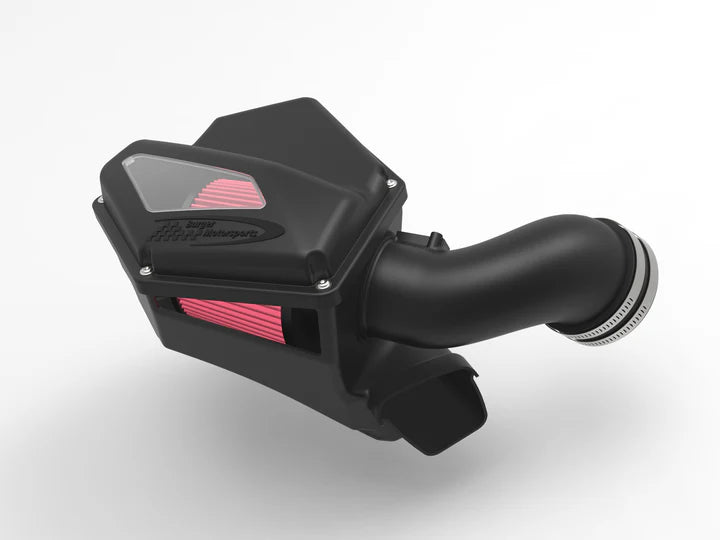

Developed over more than a year of street and track testing, it is the first intake for the Gen 2 B58 that keeps a clean OEM+ look and OEM materials while delivering the sound and airflow of an open intake. Inside is the BMS proprietary renewable inverted cone performance filter; outside, OEM-level fitment and finish. The airbox lid carries a clear window for quick filter inspection, the intake uses the OEM cold air inlet, and a large inlet hole on the cold side of the airbox feeds more air and more induction sound. The factory heat shield is reused to keep intake air temperatures as low as BMW intended, and the rubber accordion hose and factory resonator are replaced with a smooth pipe to deliver less turbulent air to the turbo.

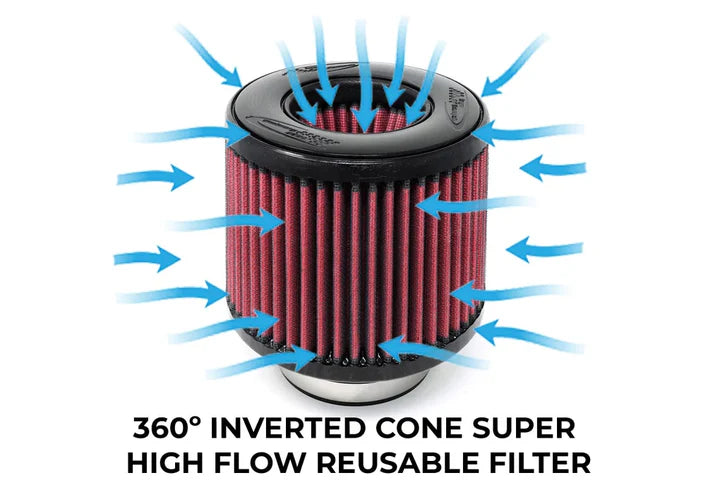

The BMS renewable inverted cone filter outflows the stock paper element, lasts the life of the vehicle, and includes a built-in velocity stack so air is drawn into the intake system more smoothly — the same approach used in most racing applications.

SPECS

• Adds up to 18+ horsepower
• Flows approximately 50% more air than the factory intake
• Dramatic induction sound improvement over stock
• Improves throttle response
• Retains the OEM heat shield to keep intake air temperatures low
• Retains the OEM cold air ducting and cold air inlet
• Enclosed high-flow airbox with a clear inspection window in the lid
• Enlarged inlet opening on the cold side of the airbox
• Factory rubber accordion hose and resonator replaced by a smooth high-flow intake tube

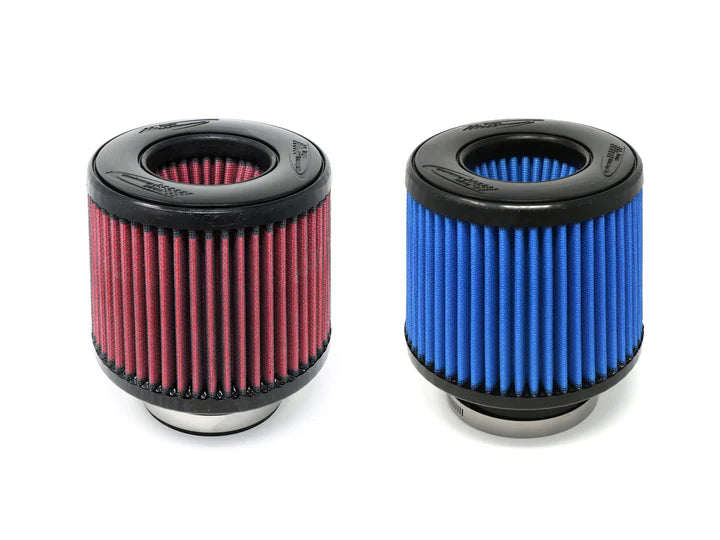

• BMS 1123 inverted cone performance filter with built-in velocity stack: red oiled, blue oiled, or dry extendable
• Stainless steel hardware throughout
• Compatible with the factory or BMS billet strut brace

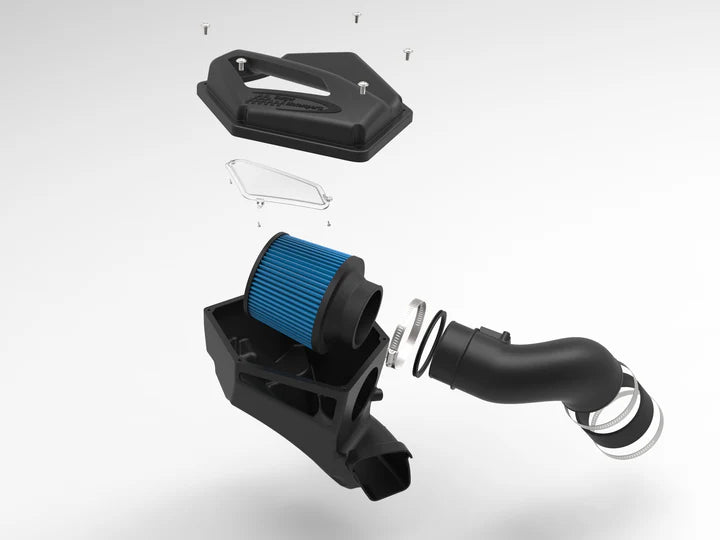

PARTS INCLUDED

• (1) Airbox lid with clear window
• (5) Stainless steel button head M6 x 1mm thread, 10mm long hex drive airbox lid screws
• (4) Stainless steel button head M6 x 1mm thread, 10mm long hex drive heat shield screws
• (2) Stainless steel M4 x 0.7mm thread, 8mm long MAF sensor screws
• (1) High flow airbox bottom
• (1) BMS 1123 inverted cone performance filter (red oiled, blue oiled or dry extendable, per selection)
• (1) High flow intake tube
• (1) 4" silicone coupler (Gen 2 B58); Gen 3 kits ship with a 3.5" coupler
• (2) 4" heavy-duty 90-110 hose clamps
• (1) 11.75" piece of rubber weather stripping

TECH RESOURCES

Additional Parts Required

• None. Burger Motorsports specifies no additional hardware for this intake — it reuses the OEM heat shield and OEM cold air ducting.
• Installer-supplied tools: basic hand tools plus hex drivers for the supplied M4 and M6 button head screws.
• Optional service item: the red and blue oiled filters are cleaned and re-oiled rather than replaced, so a filter cleaning and oiling kit is worth keeping on hand. The dry extendable filter is cleaned with compressed air from the inside out.

Installation

• BMS B46/B48/B58 BMW Competition Cold Air Intake Install Guide (PDF)

Notes

• Burger Motorsports does not publish an official part number for this intake, so no part number is listed. The parts list above is the Gen 2 B58 kit; Gen 3 kits differ in coupler size. Confirm fitment with Speed Logic before ordering.
