Burger Motorsports Billet Intake – BMW 530i / 540i (G30) & 640i GT (G32)

OVERVIEW

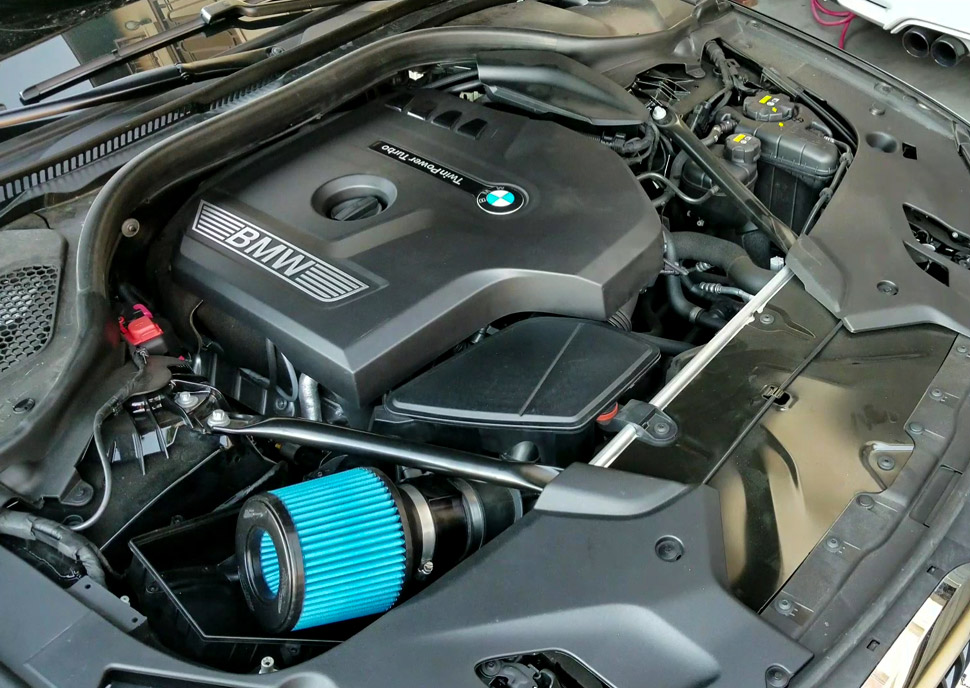

The Burger Motorsports Billet Intake is a plug-and-play upgrade for the 2017–2023 G30 BMW 530i, 530e and 540i and the G32 640i Gran Turismo. Burger Motorsports rates it at up to 8 wheel horsepower on the B58, along with sharper throttle response, quicker turbo spool and much louder induction sound.

The MAF housing and brackets are CNC machined from billet aluminum and anodized black for strength and a clean look. The OEM cold air intake tube, insulating base and heat shield all remain fully functional. A renewable BMS high-flow inverted cone filter replaces the factory element. Installation takes only minutes and is fully reversible.

SPECS

• Adds up to 8 wheel horsepower
• More airflow than stock
• CNC-machined billet aluminum MAF housing and brackets, black anodized
• Retains OEM cold air ducting, insulating base and heat shield
• Improved throttle response
• Dramatic induction sound improvement

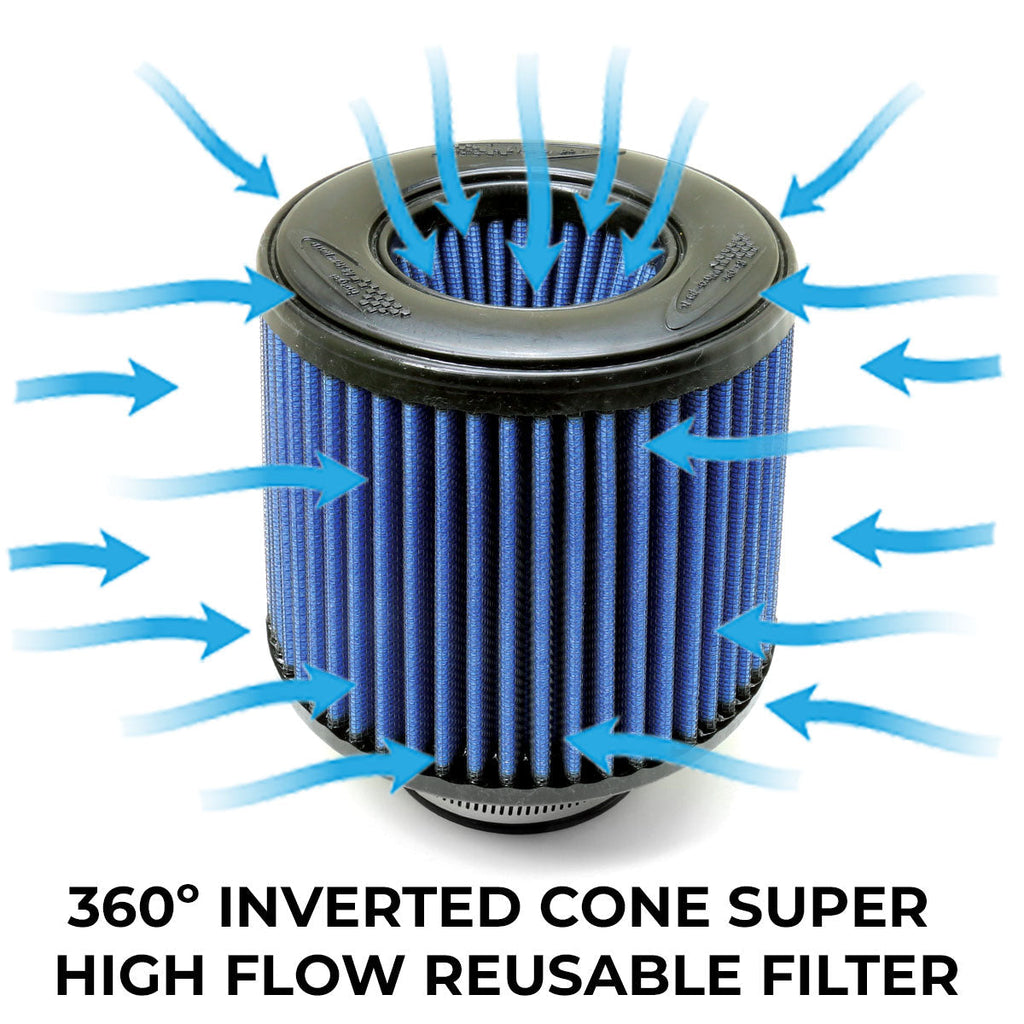

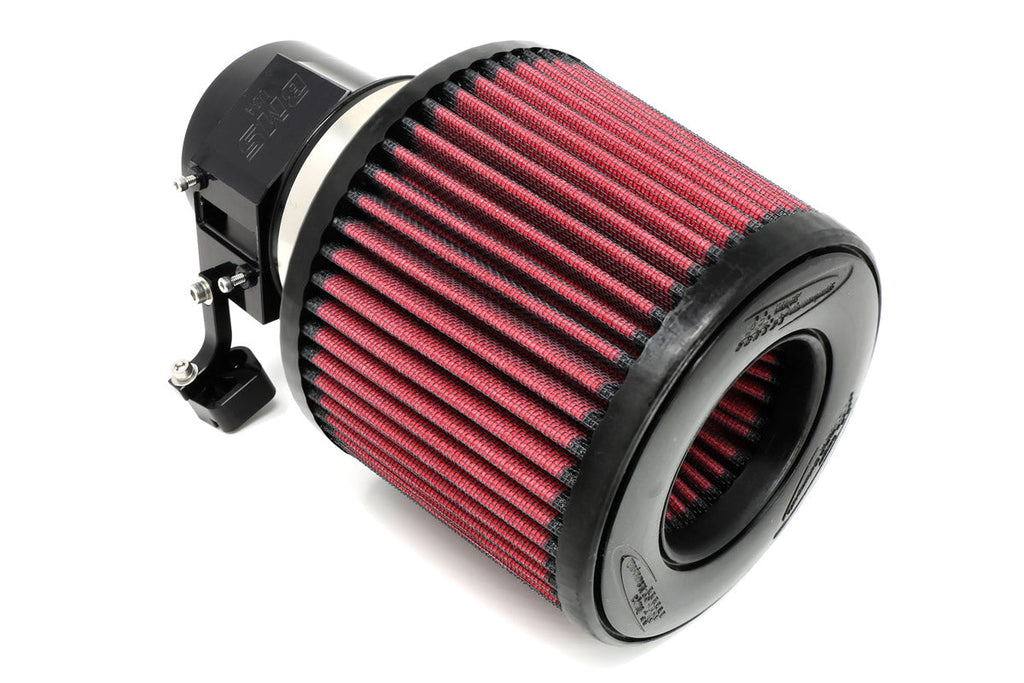

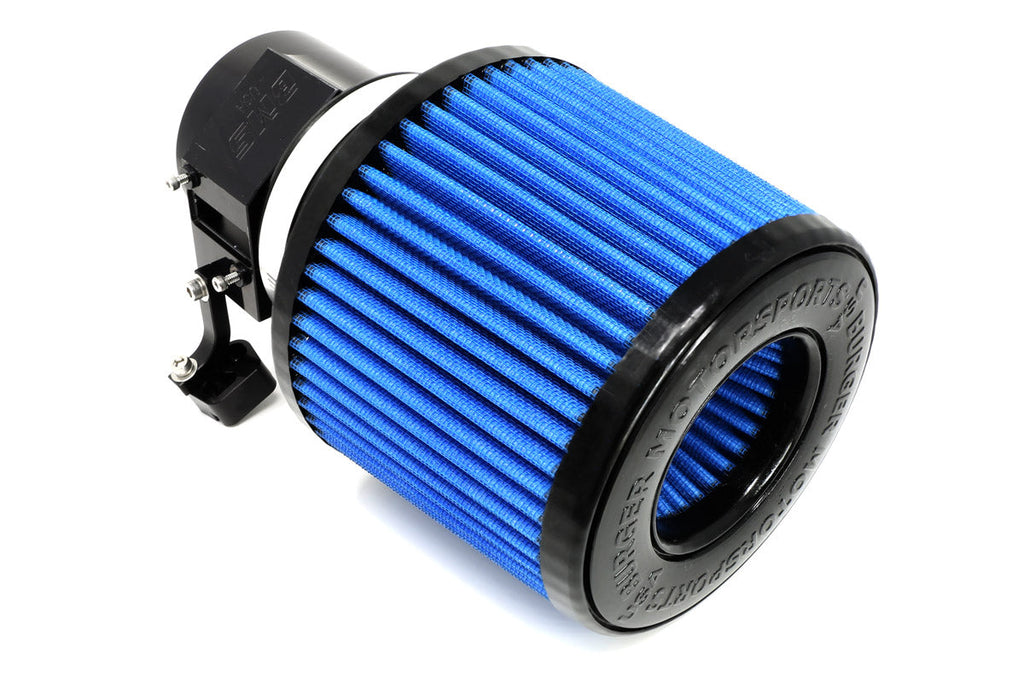

• BMS 1123 inverted cone filter: blue oiled, red oiled, or dry extendable
• Fully reversible installation
• Made in the USA

PARTS INCLUDED

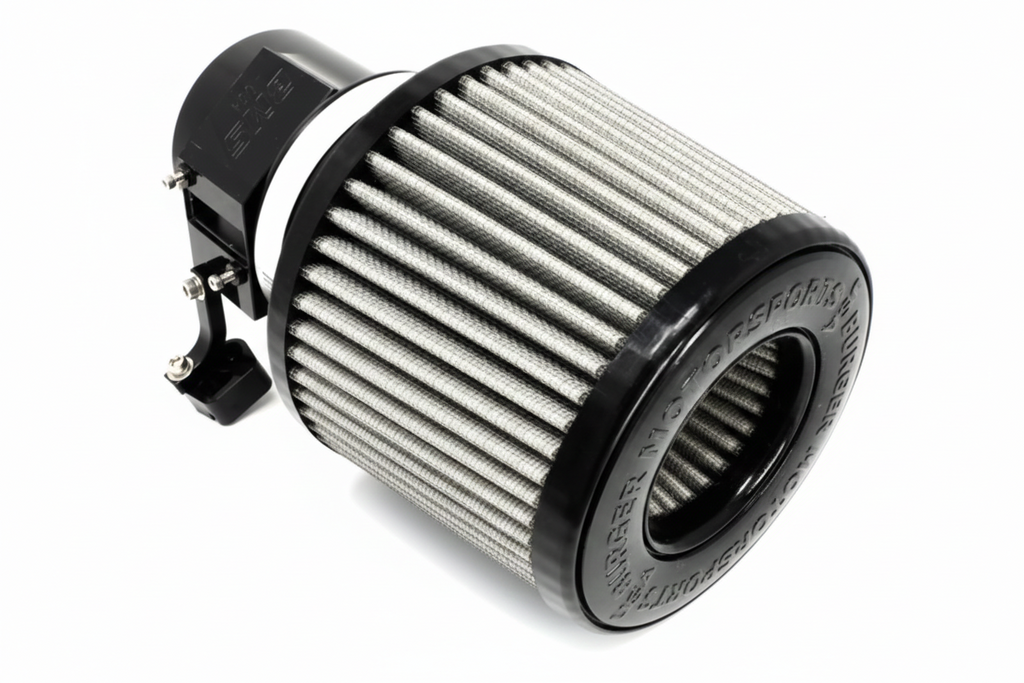

• (1) Billet MAF housing
• (1) BMS renewable 1123 inverted cone filter with clamp (per selection)
• (1) Billet "J" bracket
• (1) Billet airbox bracket
• (2) Stainless M4-0.7 x 10 socket head cap MAF screws
• (3) Stainless M5-0.80 x 12 socket head cap bracket screws
• (2) Bracket screw washers

TECH RESOURCES

Additional Parts Required

• None. The intake reuses the OEM cold air duct, insulating base and heat shield.
• Filter cleaning and oil kit, optional. Used for the oiled filter versions. Contact Speed Logic for availability.
• Tools: basic hand tools and hex keys for the M4 and M5 socket head screws.

Installation

• BMS Billet Intake Install Guide – G30 / G31 / G32 (PDF)

Notes

• Does not fit the 550i / M550i (V8).
• Burger Motorsports does not publish part numbers for this product, so none is listed.
