Burger Motorsports BMS 7.5" High Density RACE Replacement Intercooler – BMW 135i, 1M, 335i, 335is, 535i (E8x, E9x, E60/E61, N54/N55)

OVERVIEW

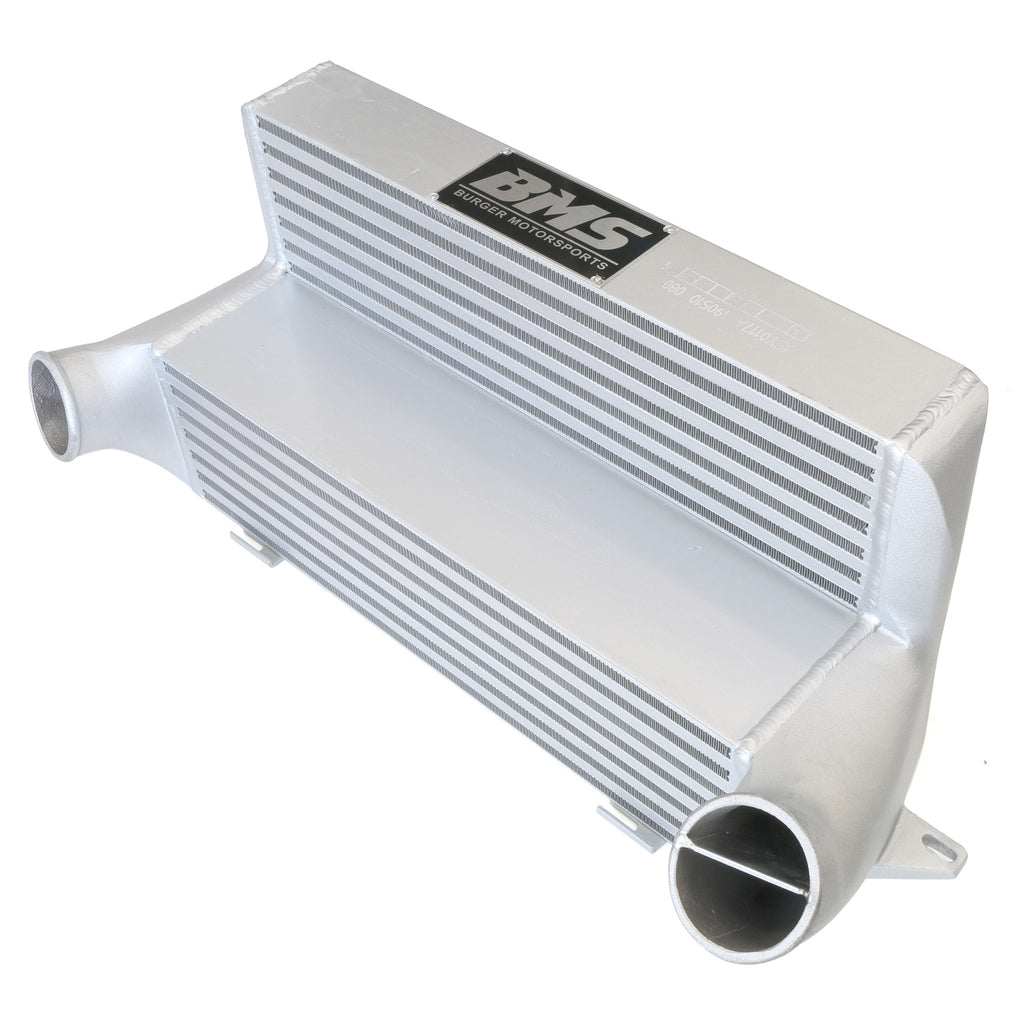

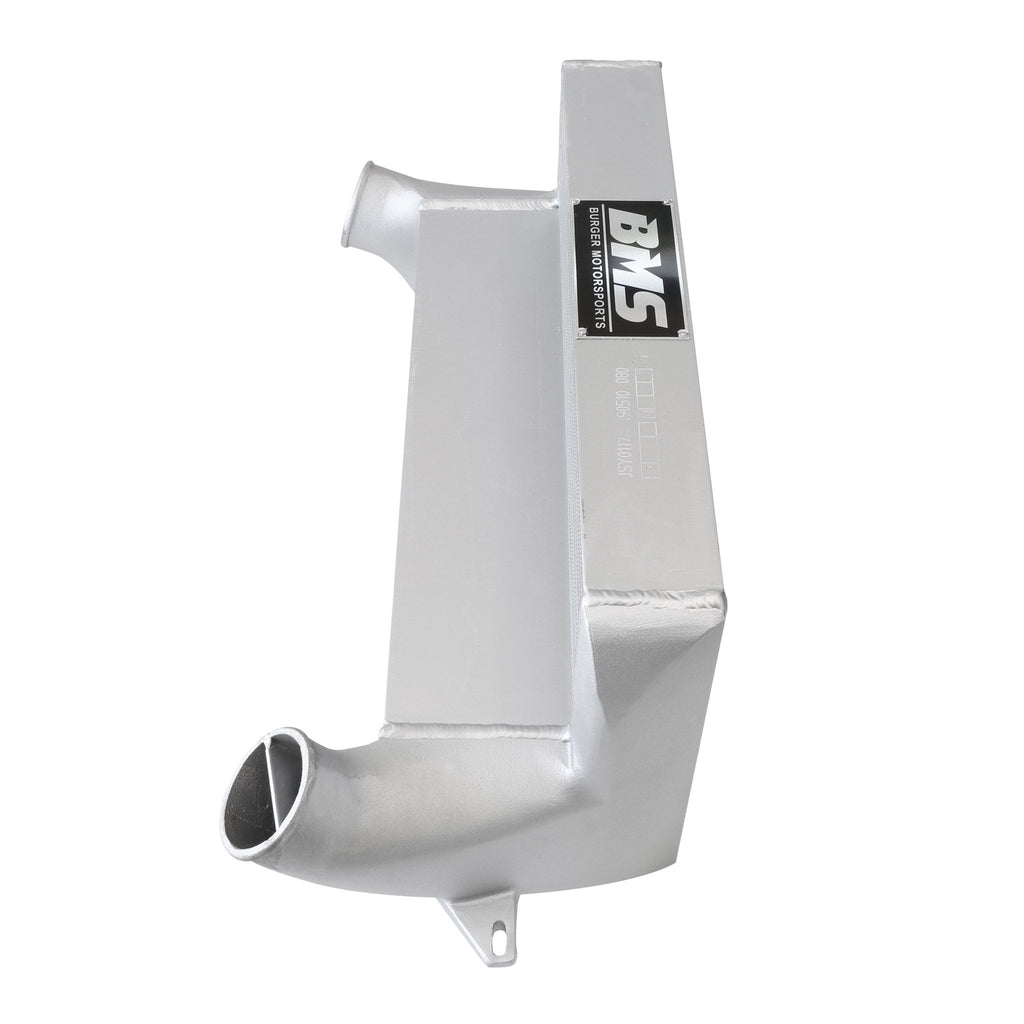

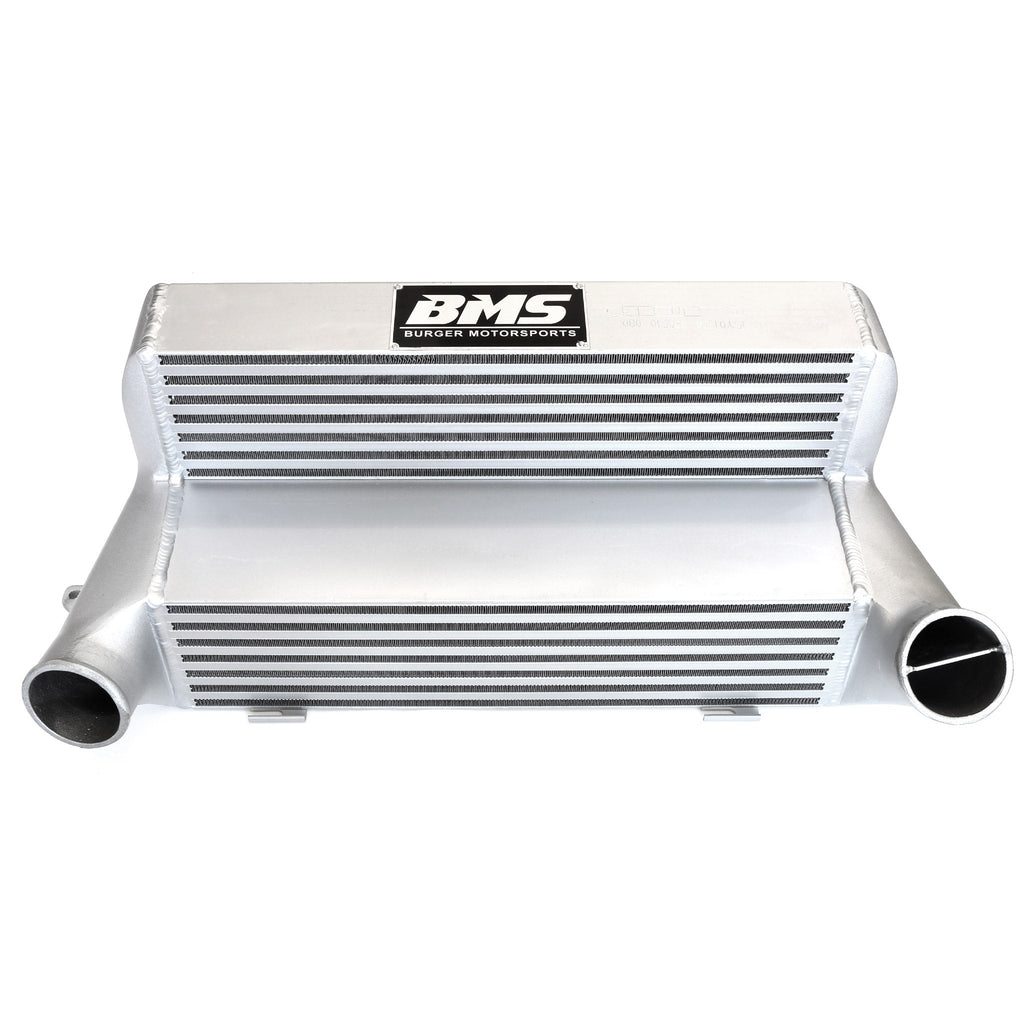

The BMS RACE intercooler is a high density, 7.5" deep replacement for the factory front mount intercooler on N54 and N55 E chassis BMWs. It uses a much larger core and oversized end tanks, along with an internal hot-side flow diverter that spreads incoming charge air evenly across the full core even at lower engine speeds.

Built for big-power builds, this cooler is rated for well over 1000whp and keeps intake temperatures in check where the stock unit heat soaks – roughly 10whp+ at peak and as much as 30whp+ over the factory intercooler on long pulls and back-to-back runs. It bolts in as a direct replacement on 1 Series and 3 Series models, with adapter brackets needed for the 535i.

SPECS

• Core: 7.5" deep x 5.5" x 3"; overall height 11"
• High density, oversized core with enlarged end tanks
• Internal hot-side flow diverter for even flow across the core
• Rated for over 1000whp
• Approximately 10whp+ peak gain; up to 30whp+ over stock on extended or back-to-back pulls
• Reduces heat soak versus the factory intercooler
• Direct bolt-in replacement (535i requires adapter brackets)
• Compatible with N54 and N55 applications
• Shipping weight: approx. 45 lb

PARTS INCLUDED

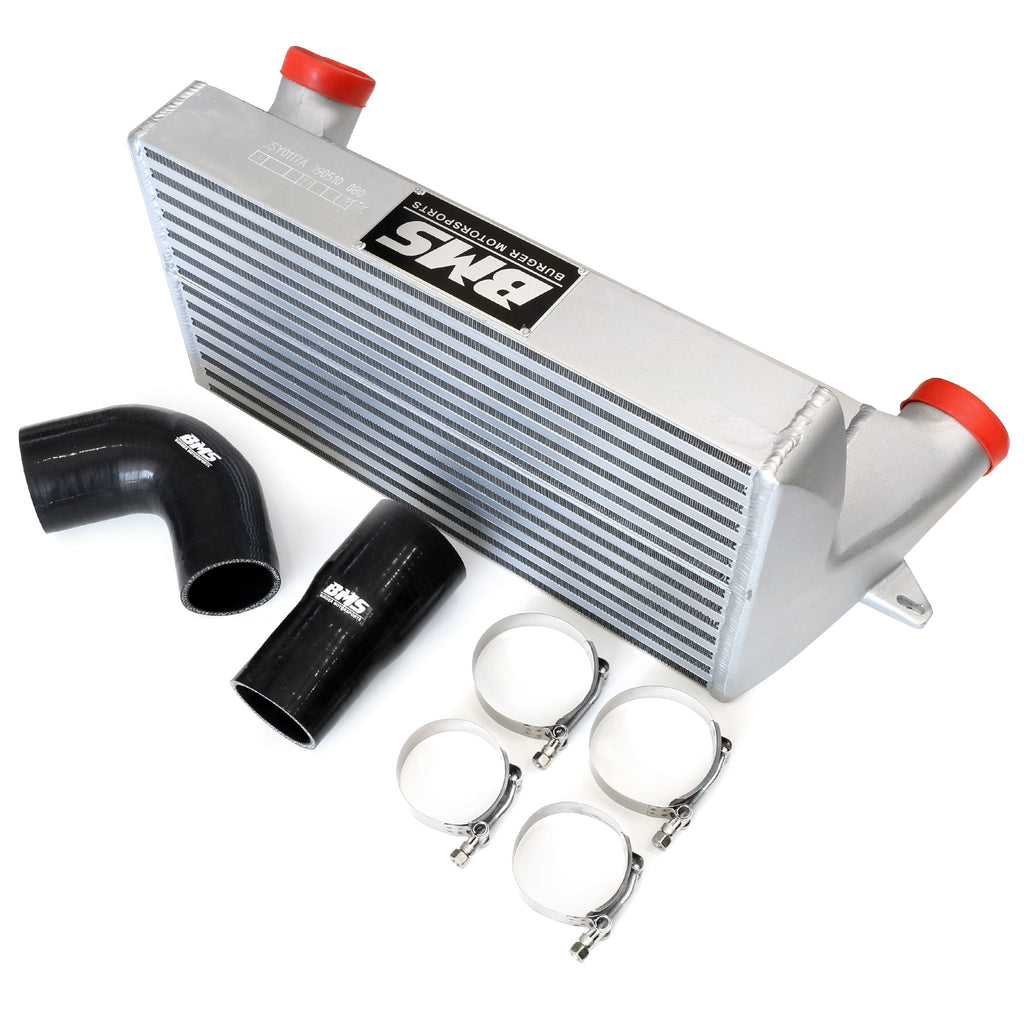

• (1) BMS 7.5" High Density RACE Replacement Intercooler
• (1) Required mounting hardware

TECH RESOURCES

Additional Parts Required

• Required for E60/E61 535i: BMS 535i E chassis N54 intercooler adapter brackets (sold separately). Contact Speed Logic to order.
• Optional: BMS E chassis RACE intercooler J-pipe, 2.5" or 3" (sold separately); recommended for 2010+ models.
• Minor trimming of the plastic shrouding is required during installation.

Installation

• BMS E-Chassis 7.5" RACE Intercooler Install Video (YouTube)

VEHICLE APPLICATIONS

Fits N54 and N55 E chassis models listed. E60/E61 535i requires adapter brackets (sold separately). 2010+ models may require the RACE intercooler J-pipe (sold separately).
