Product details
OVERVIEW

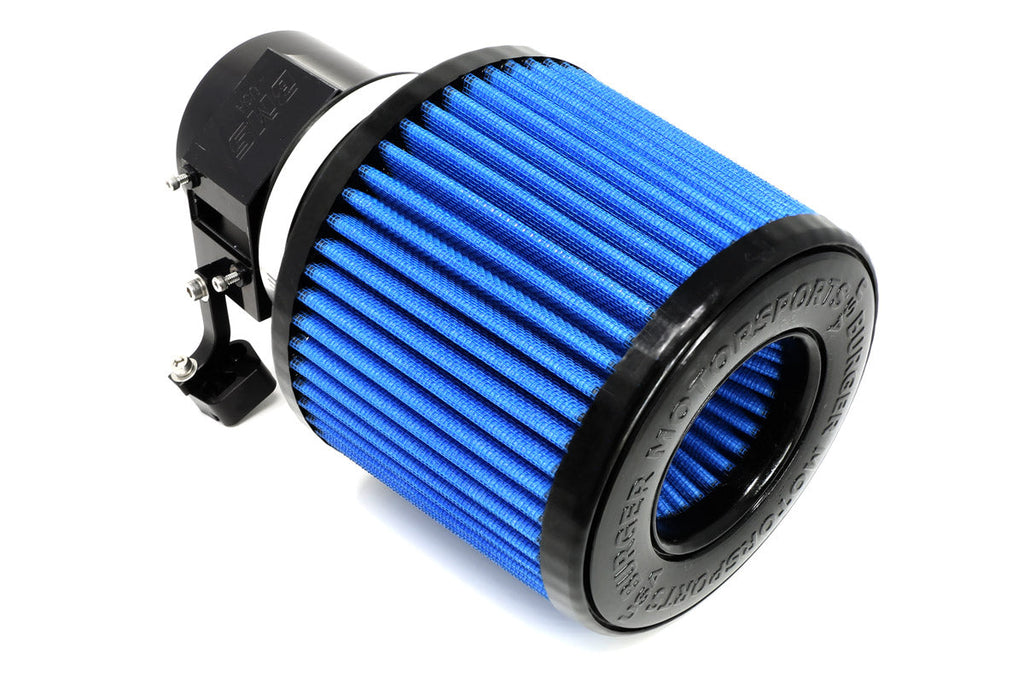

Designed for the B48-powered G01 X3 and G02 X4 30i, this BMS billet intake trades the factory MAF housing and airbox top for a black anodized billet aluminum housing carrying a large inverted cone filter. The stock cold air duct, insulated base and heat shield all remain, so intake temperatures stay in check.

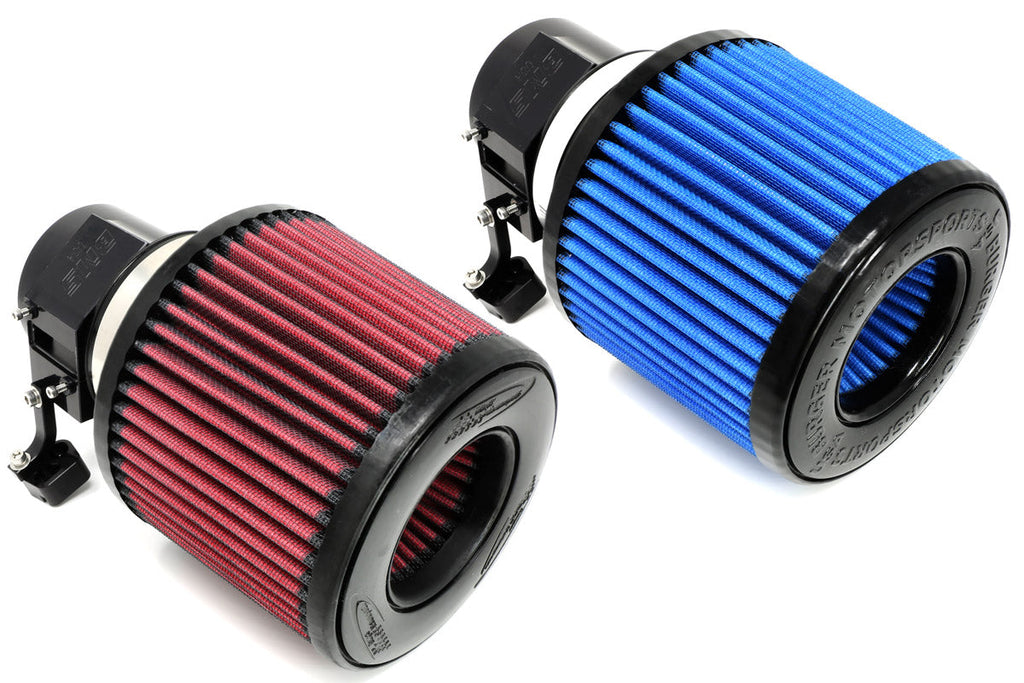

The higher-flowing setup improves throttle response, helps the turbo spool and adds a sportier sound under acceleration. Choose blue or red oiled filters or a dry filter; the kit is plug-and-play and can be returned to stock whenever needed.
SPECS
- Engine: BMW B48 2.0L turbo inline-4
- CNC-machined billet aluminum MAF housing, black anodized

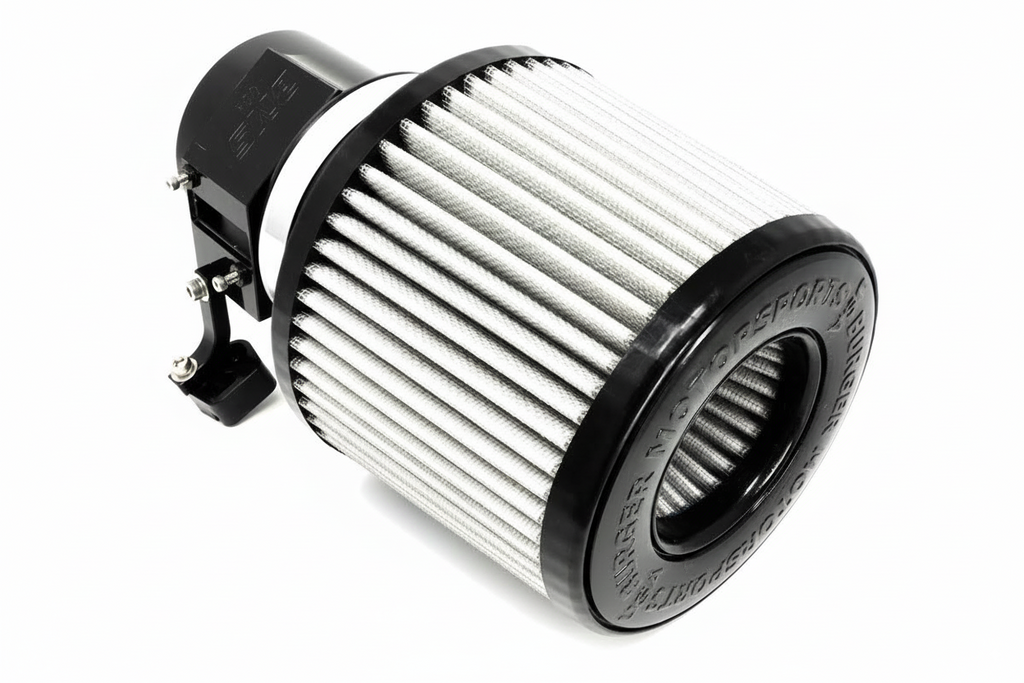

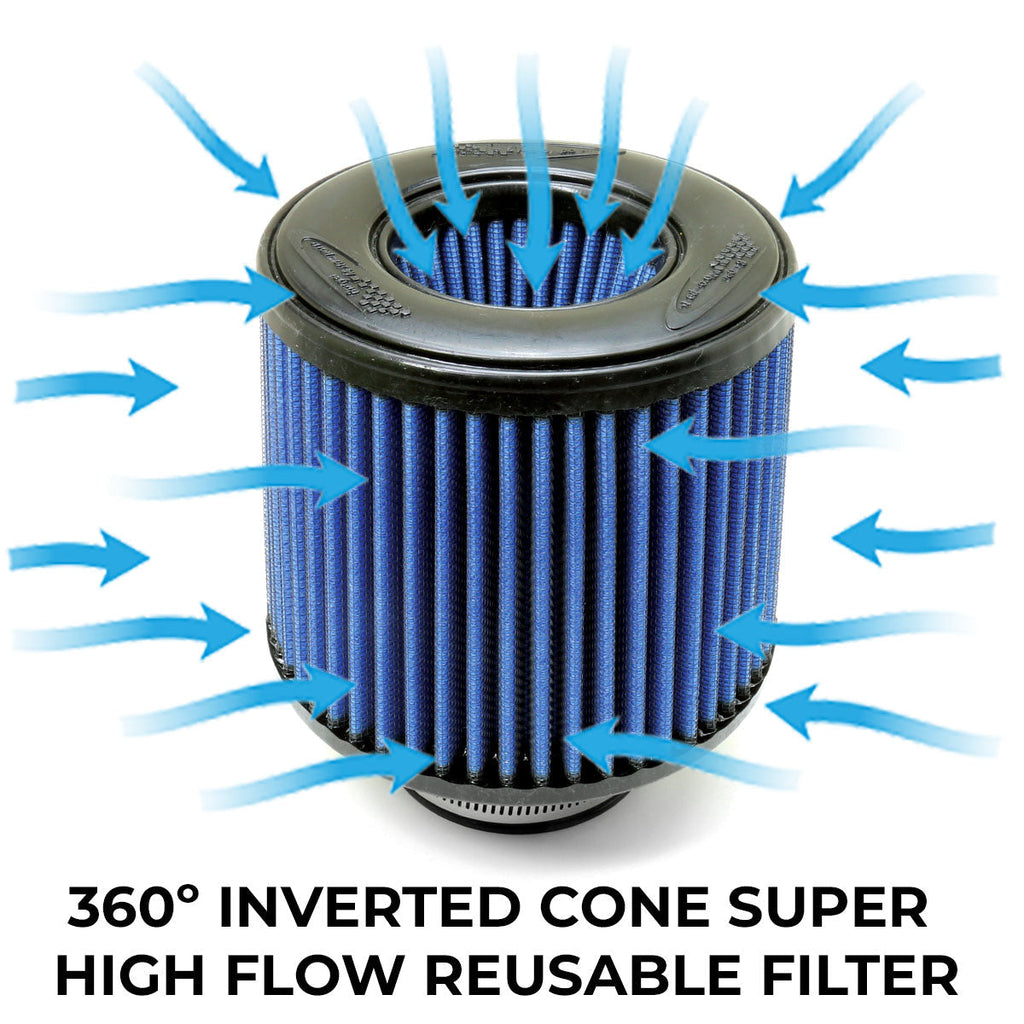

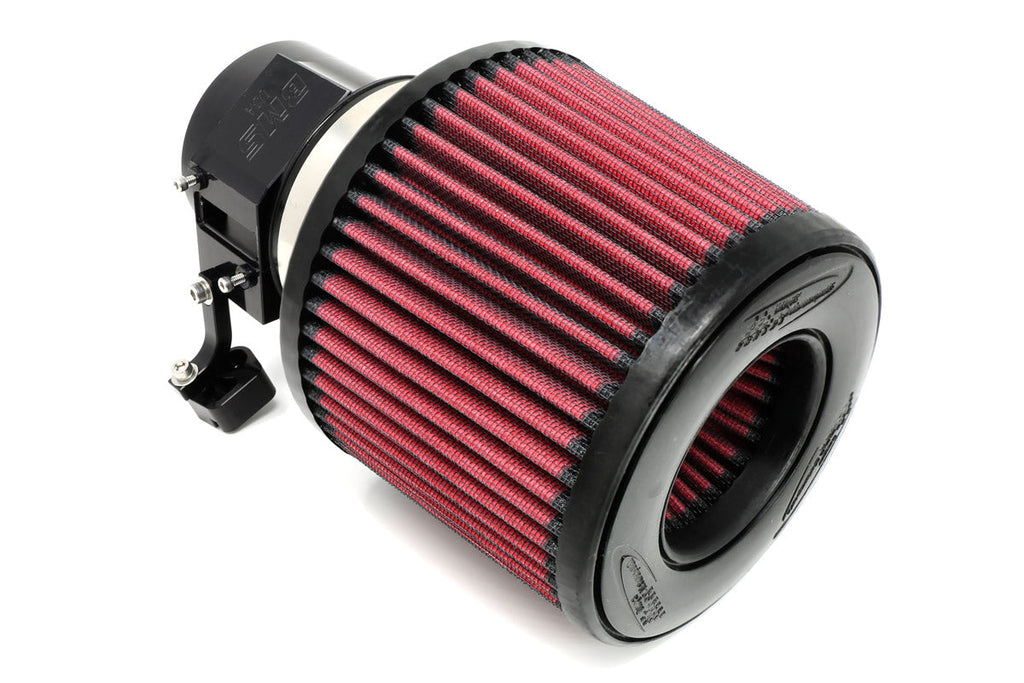

- 1123 high-flow inverted cone filter with built-in velocity stack: red oiled, blue oiled or dry extendable
- Retains OEM cold air ducting, insulating base and heat shield
- Gain claimed by the manufacturer: up to 8 wheel horsepower
- Plug-and-play, reversible installation
- Weight: 4.0 lb (1,814 g)
- Made in the USA
PARTS INCLUDED
- (1) Billet MAF housing
- (1) 1123 inverted cone filter with clamp
- (1) Billet "J" bracket
- (1) Billet airbox bracket
- (2) MAF screws (M4-0.7 x 10 stainless socket head cap)
- (2) Bracket screws (M5-0.80 x 12 stainless socket head cap)
- (2) Bracket screw washers
TECH RESOURCES
Additional Parts Required
- No additional parts required; retains the factory cold air ducting, airbox base and heat shield
- Optional: BMS replacement 1123 inverted cone filters (blue oiled, red oiled or dry) for service
- Optional: performance air filter cleaning & oil kit for oiled filters
Installation
VEHICLE APPLICATIONS
B48 four-cylinder 30i models only; not for M40i (B58) models.
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | X3 sDrive30i | G01 | B48 2.0L Turbo I4 | 2018–2024 |
| BMW | X3 xDrive30i | G01 | B48 2.0L Turbo I4 | 2018–2024 |
| BMW | X4 xDrive30i | G02 | B48 2.0L Turbo I4 | 2019–2025 |
