Burger Motorsports Elite Front Mount Performance Intake – BMW M2 / M3 / M4 (G87 / G80 / G82 / G83, S58)

OVERVIEW

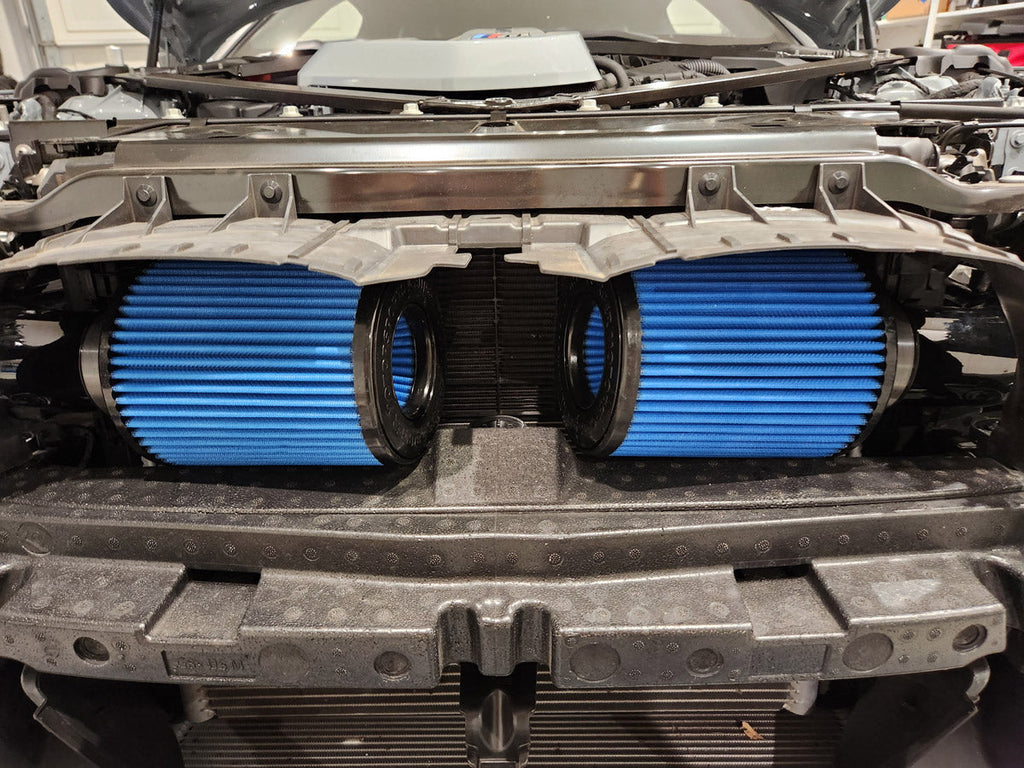

The BMS Elite Front Mount intake relocates the filters for the S58 M2, M3 and M4 forward, where they can draw cooler, denser air from the front of the car instead of the engine bay. Powder-coated aluminum tubing routes that air back to the turbo inlet through a billet adapter.

Choose blue or red oiled filters and a gloss or matte black finish to suit your build. The front-mount layout delivers crisper throttle response, quicker spool and a more pronounced intake sound, and it installs with hand tools and can be removed later.

SPECS

• Engine: BMW S58 3.0L twin turbo inline-6
• Front-mount filter placement for cooler intake air
• Dual 3" inverted cone BMS365 oiled performance filters (blue or red)
• Powder-coated aluminum tubing: 3.5" intake tubes, 3" L tubes and 3" 180° tube
• Finish: gloss black or matte black
• Billet turbo inlet adapter
• Bolt-on, reversible installation

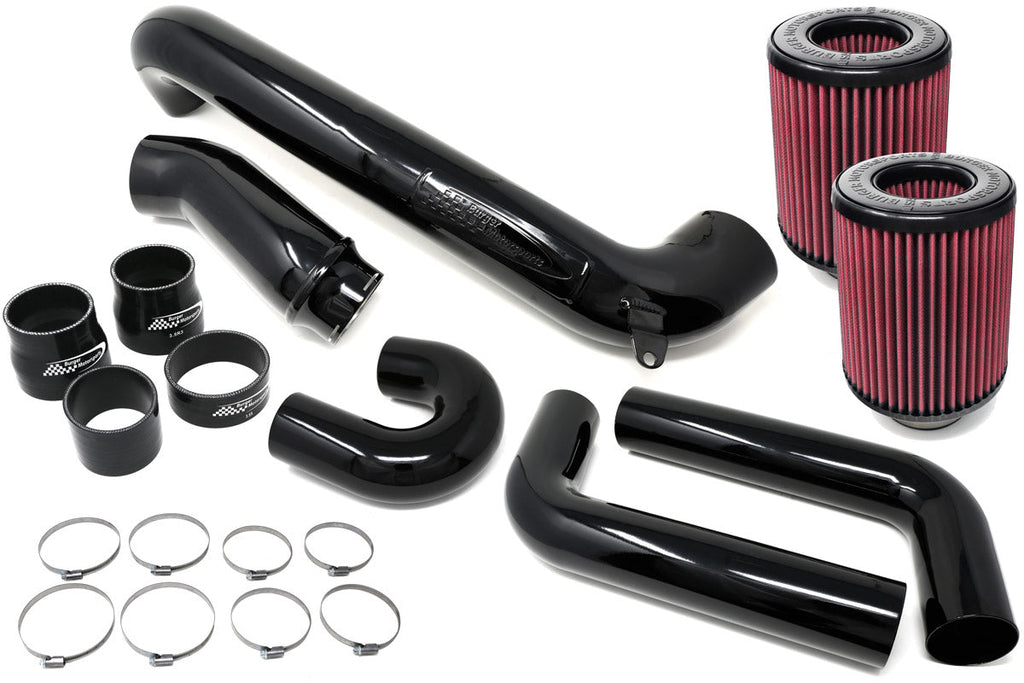

PARTS INCLUDED

• (2) 3" inverted cone BMS365 performance air filters with clamps
• (2) 3.5" powder-coated aluminum intake tubes
• (2) 3" powder-coated aluminum L tubes
• (1) 3" powder-coated aluminum 180° tube
• (2) 3.5" to 3" silicone couplers
• (1) 3.5" silicone coupler
• (1) 3" silicone coupler
• (1) Billet adapter
• (4) 3.5" clamps
• (4) 3" clamps

TECH RESOURCES

Additional Parts Required

• No additional parts required; tubes, couplers, clamps and billet adapter are included
• Optional: BMS replacement BMS365 3" inverted cone filters (blue or red oiled) for service
• Optional: performance air filter cleaning & oil kit for oiled filters

Installation

• BMS G8x S58 Front Mount Intake Installation Guide (PDF)
