Product details
OVERVIEW
This top-mount BMS intake for the S58 M2, M3 and M4 swaps the factory intake tract for twin 3.5" aluminum pipes feeding large inverted cone filters. A CNC-machined billet adapter joins the pipes to the turbo inlet, giving a smoother, less restrictive path for air than the stock plumbing.

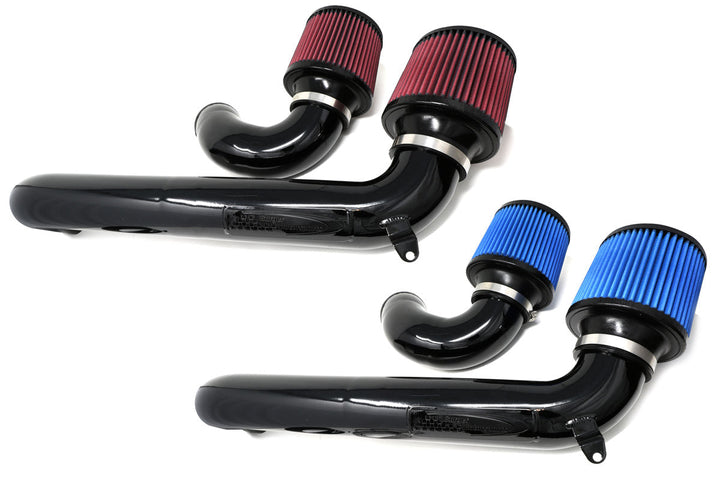

Pick a matte black finish (BMS) or a gloss black finish (BMS Elite), then choose red oiled, blue oiled or dry filters. The upgrade sharpens throttle response, helps the turbos spool sooner and adds a deeper intake sound, all with a bolt-on, reversible install.
SPECS
- Engine: BMW S58 3.0L twin turbo inline-6
- Dual 3.5" aluminum intake pipes
- 1123 renewable inverted cone filters: red oiled, blue oiled or dry extendable
- Finish: matte black (BMS) or gloss black (BMS Elite)
- CNC billet turbo inlet adapter
- Top-mount layout
- Bolt-on, reversible installation

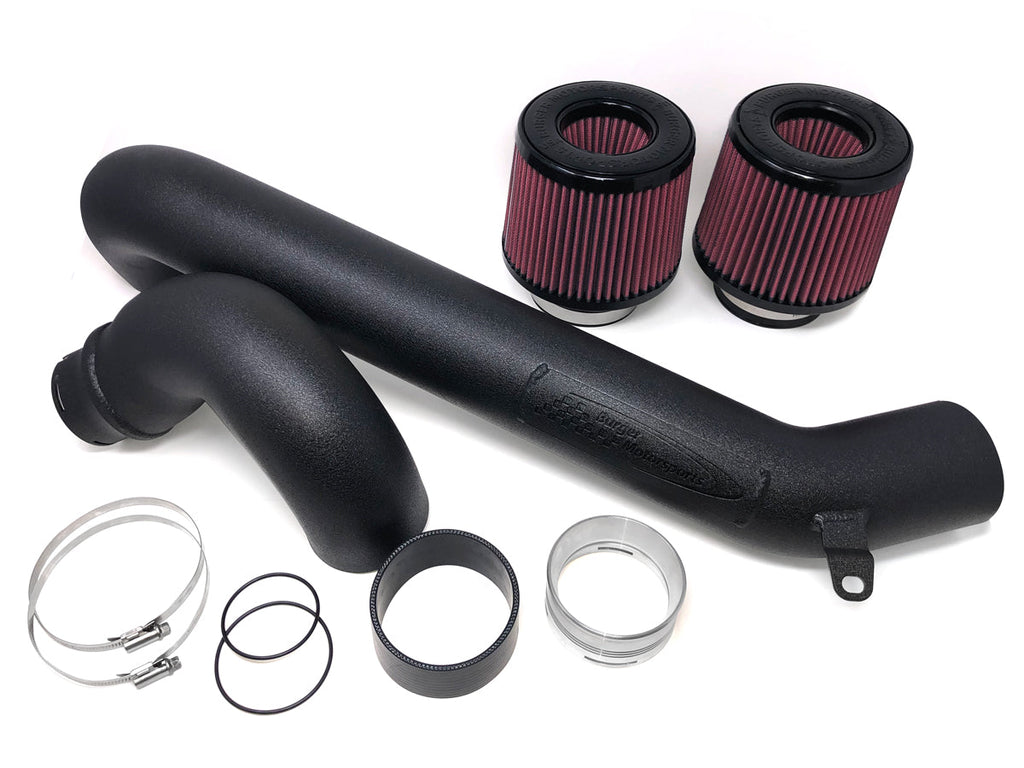

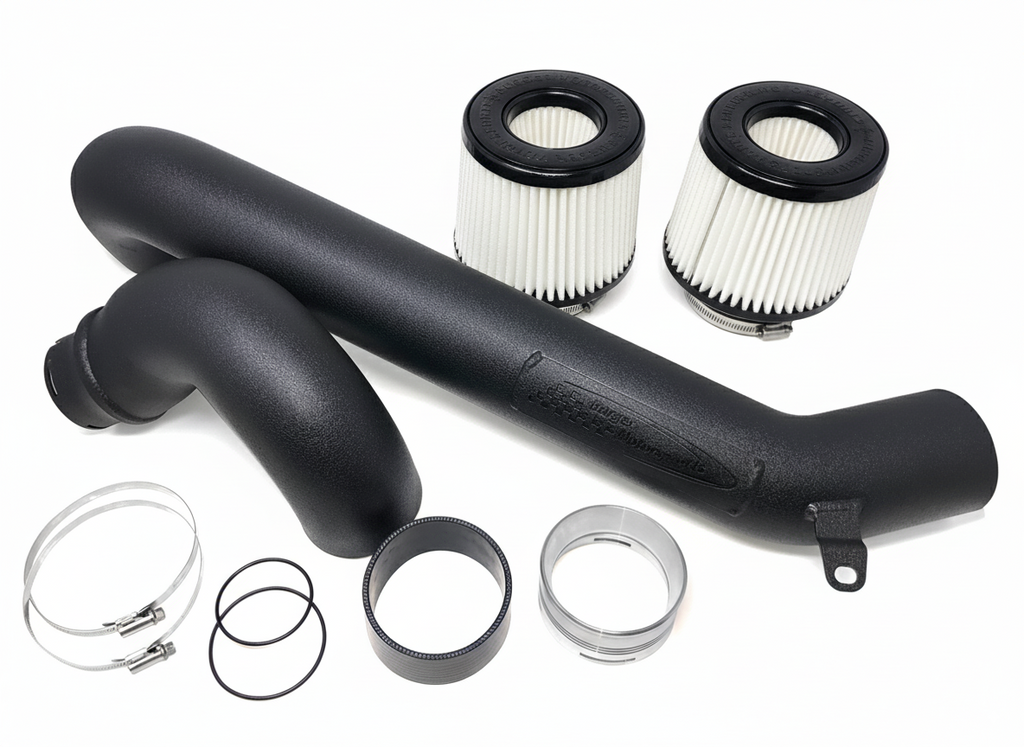

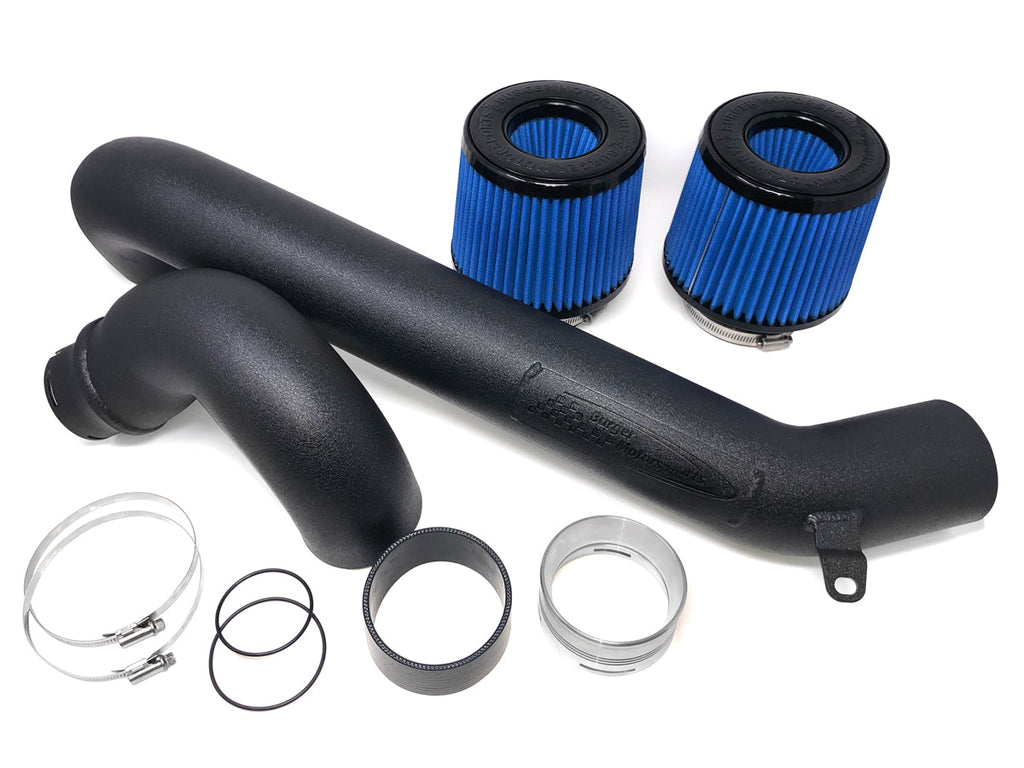

PARTS INCLUDED
- (2) 3.5" aluminum intake pipes
- (2) 1123 renewable inverted cone filters with clamps
- (1) Billet turbo inlet adapter
- (1) 3.5" silicone coupler
- (2) 90–110 mm clamps
TECH RESOURCES
Additional Parts Required
- No additional parts required; billet turbo inlet adapter and couplers are included
- Optional: BMS replacement 1123 inverted cone filters (blue oiled, red oiled or dry) for service
- Optional: performance air filter cleaning & oil kit for oiled filters
Installation
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | M2 | G87 | S58 3.0L Twin Turbo I6 | 2023+ |
| BMW | M3 | G80 | S58 3.0L Twin Turbo I6 | 2021+ |
| BMW | M3 Competition | G80 | S58 3.0L Twin Turbo I6 | 2021+ |
| BMW | M4 | G82 | S58 3.0L Twin Turbo I6 | 2021+ |
| BMW | M4 Competition | G82 | S58 3.0L Twin Turbo I6 | 2021+ |
| BMW | M4 Convertible | G83 | S58 3.0L Twin Turbo I6 | 2022+ |
