OVERVIEW
The BMS Elite intake for the S58-powered X3 M and X4 M replaces the restrictive top cover of the factory airbox with twin 3.5" inverted cone filters that have velocity stacks built in. The factory airbox base and cold air ducting stay in place, so the filters keep drawing cool outside air.
Expect quicker throttle response, faster turbo spool and a more aggressive induction note, with the largest gains showing up on cars running elevated boost. Choose oiled filters in red or blue, or a dry filter that is serviced with compressed air. Installation is straightforward and can be undone at any time.
SPECS
- Engine: BMW S58 3.0L twin turbo inline-6

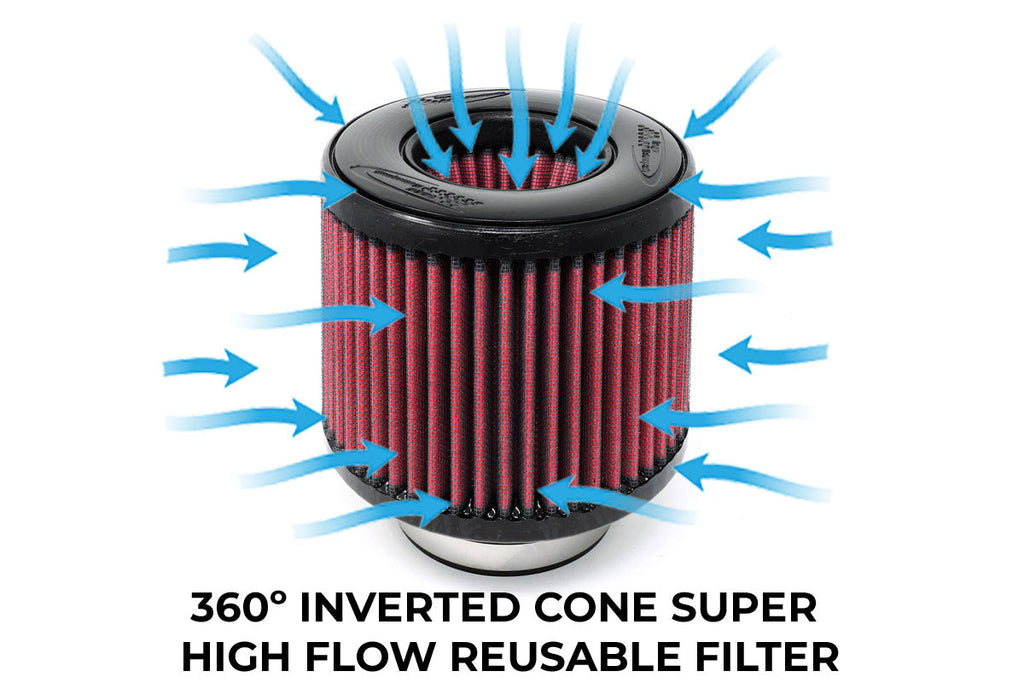

- Dual 3.5" high-flow inverted cone filters (1123) with built-in velocity stacks

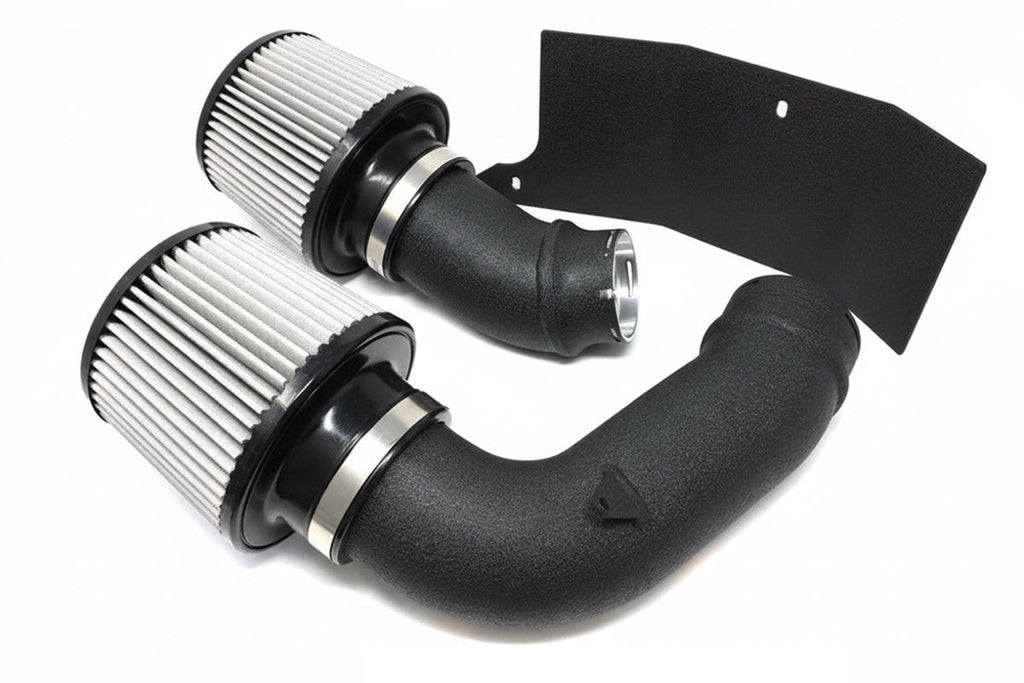

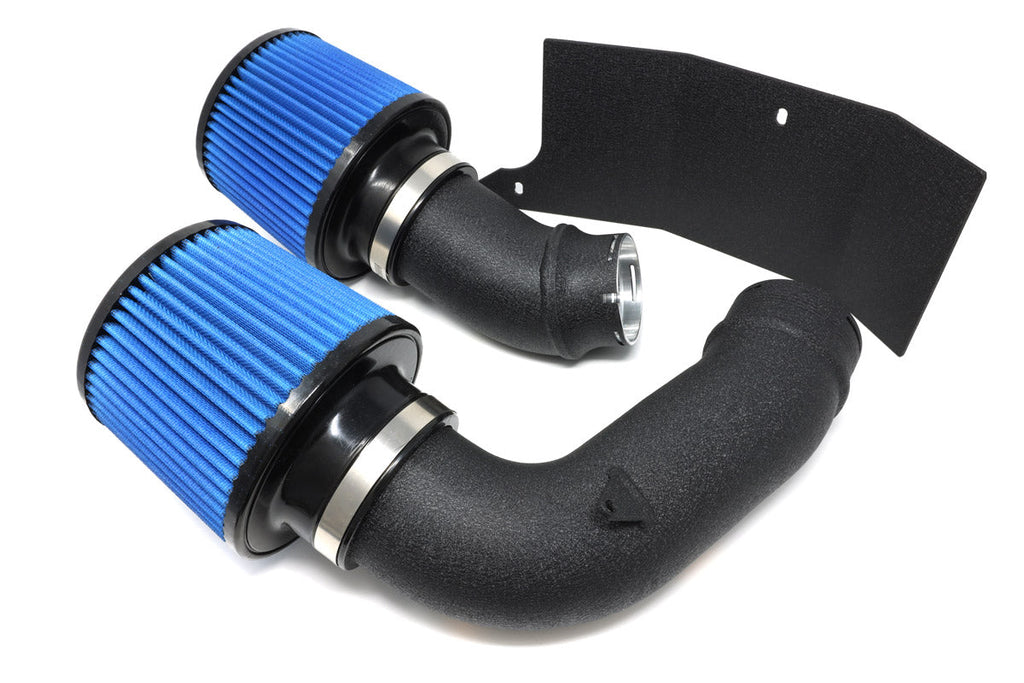

- Filter choices: red oiled, blue oiled or dry extendable
- Replaces the factory airbox cover; retains the OEM airbox base and cold air ducting
- Aluminum intake pipes with heat shield
- Gain claimed by the manufacturer: up to 50 wheel horsepower on high-boost tunes (results depend on boost level)
- Oiled filters: clean and re-oil roughly every 15,000–20,000 miles
- Dry filters: clean by blowing compressed air from the inside out
- Bolt-on, reversible installation

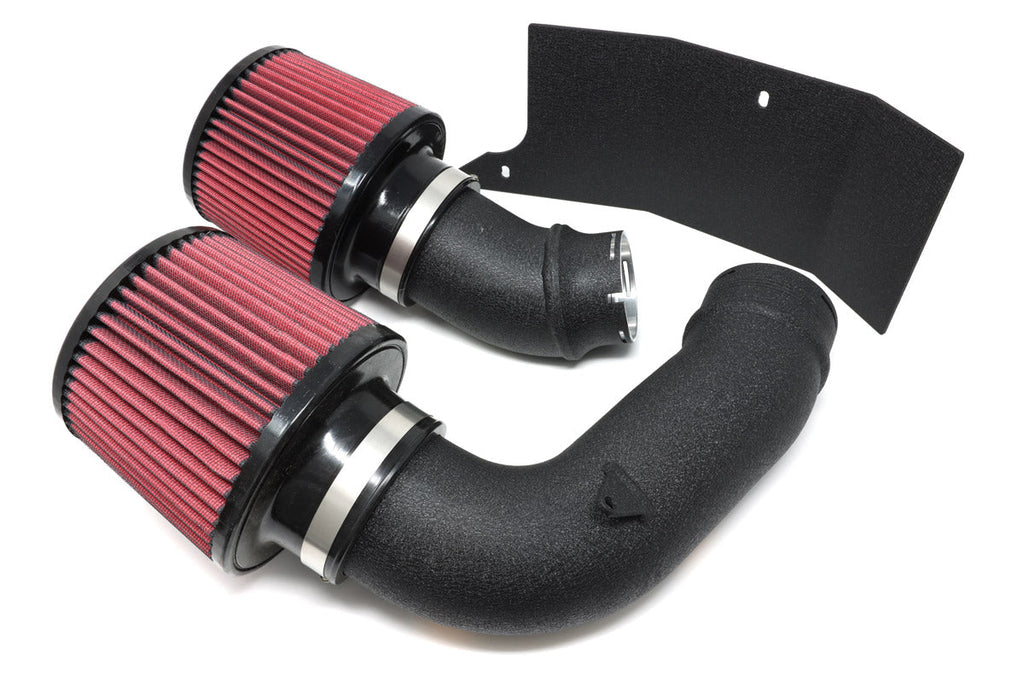

PARTS INCLUDED
- (2) Aluminum intake pipes
- (2) 1123 inverted cone filters with clamps
- Small and large O-rings
- (1) Heat shield
- (2) M6 nuts and bolts
TECH RESOURCES
Additional Parts Required
- No additional parts required; retains the factory airbox and cold air ducting
- Optional: BMS replacement 1123 inverted cone filters (blue oiled, red oiled or dry) for service
- Optional: performance air filter cleaning & oil kit for oiled filters
Installation
VEHICLE APPLICATIONS
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | X3 M | F97 | S58 3.0L Twin Turbo I6 | 2020+ |
| BMW | X3 M Competition | F97 | S58 3.0L Twin Turbo I6 | 2020+ |
| BMW | X4 M | F98 | S58 3.0L Twin Turbo I6 | 2020+ |
| BMW | X4 M Competition | F98 | S58 3.0L Twin Turbo I6 | 2020+ |
