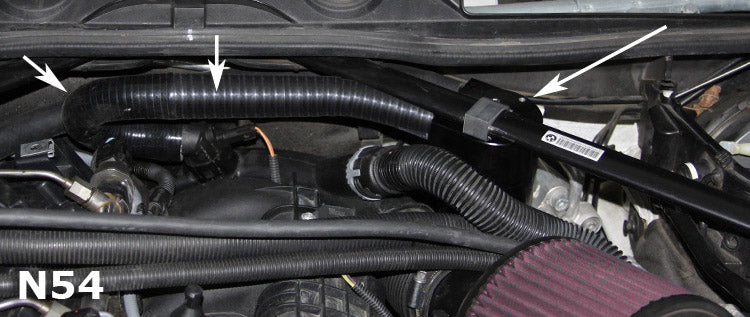

BMS oil catch can installed in BMW N54 engine bay
Carbon-fouled N54 intake valves caused by PCV oil vapor
Oil collected by BMS oil catch can
BMS BMW oil catch can assembly

Burger Motorsports

Burger Motorsports BMS Oil Catch Can – BMW 535i (E60, E61, N54)

  • Sale
  • $179.00
Shipping calculated at checkout.

OVERVIEW

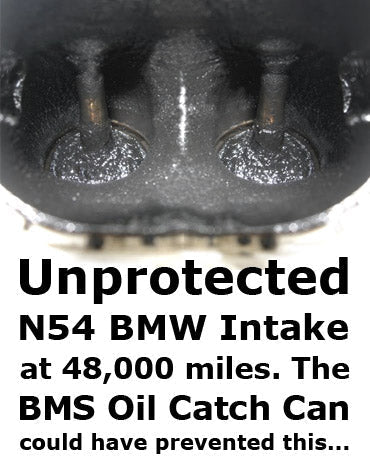

This BMS catch can is set up specifically for the N54-powered E60 sedan and E61 Touring 535i. It sits in the boost-side crankcase ventilation line and separates oil mist from the PCV gases before they can coat the intake tract, intercooler and charge piping or bake onto the direct-injected intake valves – all while keeping the factory closed-loop PCV system working as designed.

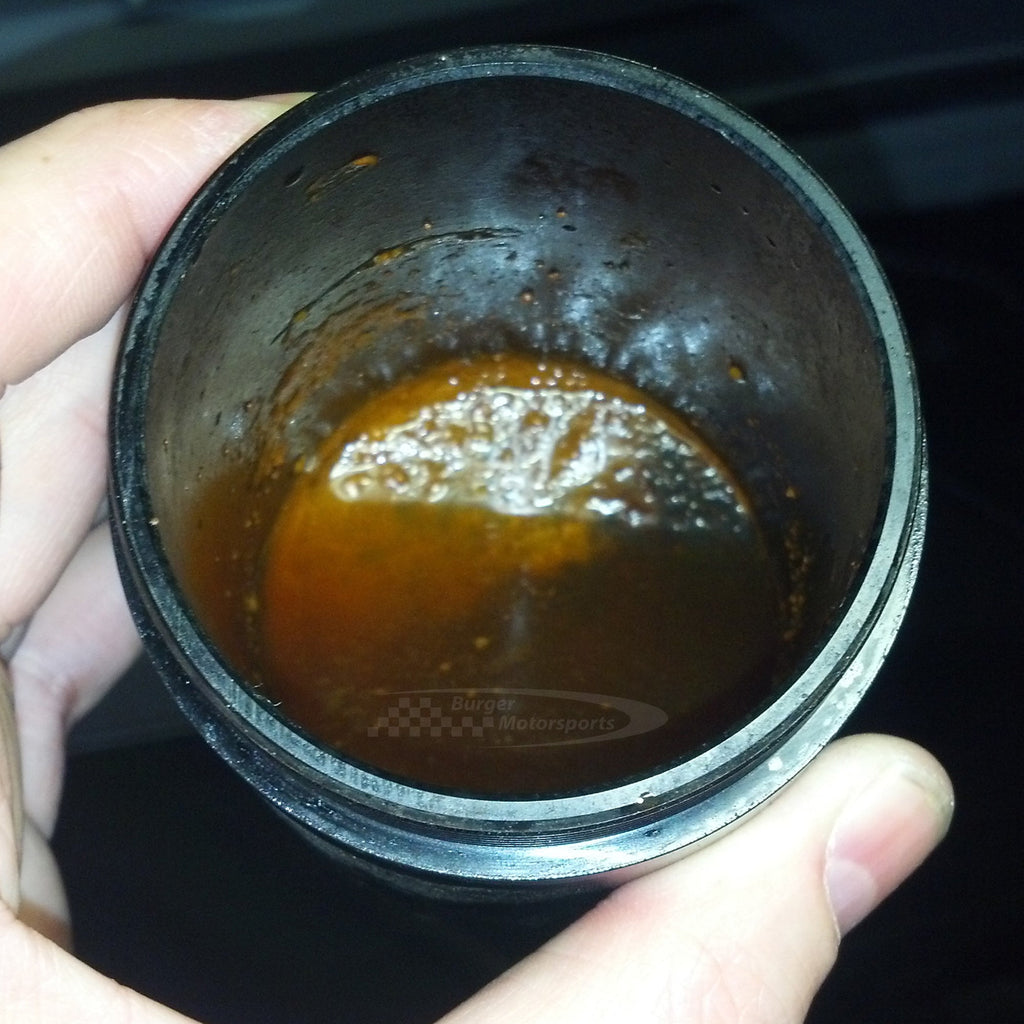

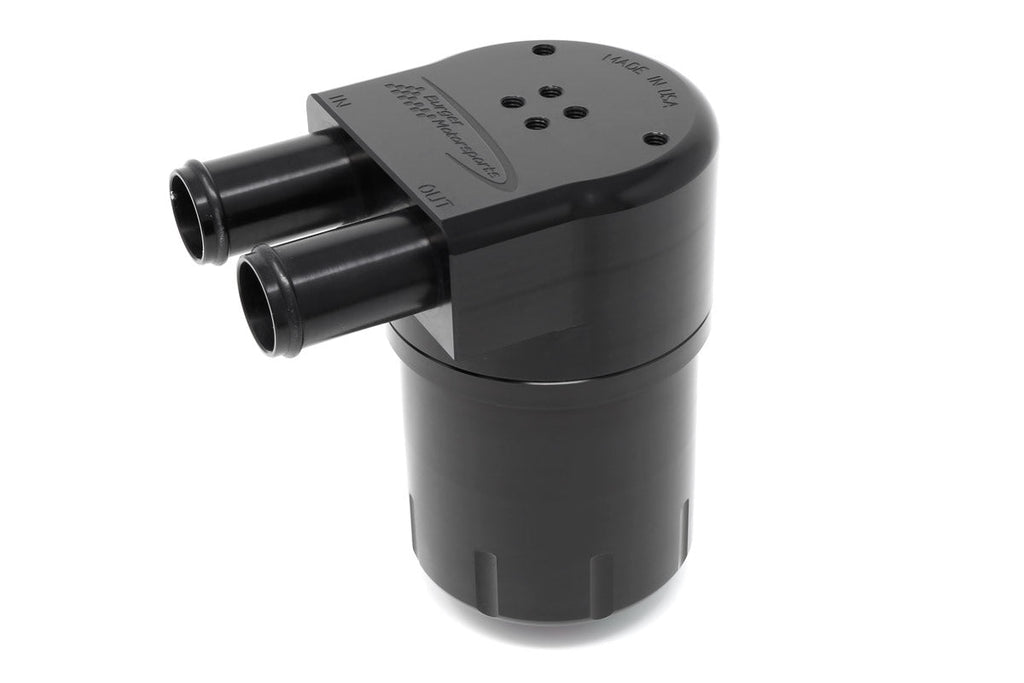

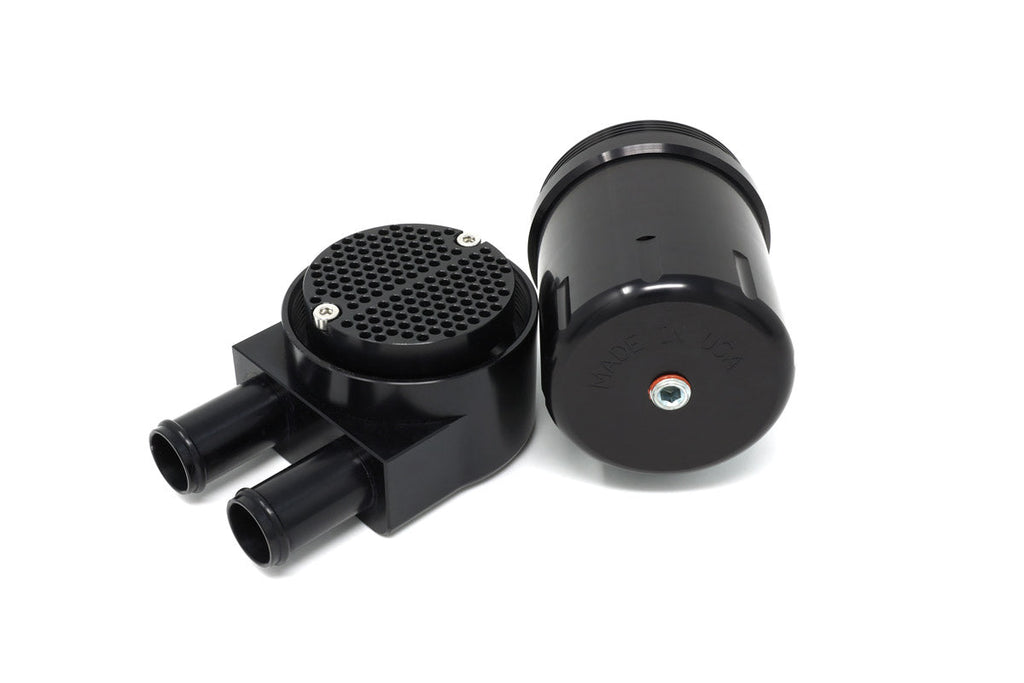

The can is fully CNC machined from solid aluminum with no welds and anodized black, with an internal baffle separator and 16mm+ ports that are larger than the OEM PCV lines. The 535-specific bracket and hose set lets it install in about 20 minutes. Collected oil is drained by unscrewing the base every 3–6 months. Burger builds it in the USA and guarantees it for the life of the vehicle.

SPECS

  • Can height with lid: 4.4 in (111 mm)
  • Can diameter: 2.5 in (63.7 mm)
  • Lid length (back to nozzle end): 4.0 in (101 mm)
  • Nozzle outer diameter: 0.75 in (19.2 mm)
  • Nozzle inner diameter: 0.669 in (17 mm)
  • Fluid capacity: up to 5.5 fl oz (162.6 mL)
  • Inlet/outlet: 16mm+ (exceeds OEM PCV sizing)
  • Separation: non-clogging, no-service baffle design
  • Material: CNC-machined billet aluminum, no welding
  • Finish: black anodized
  • Drain: removable threaded base
  • Install time: approx. 20 minutes
  • Shipping weight: 3.5 lb
  • Made in USA; lifetime guarantee

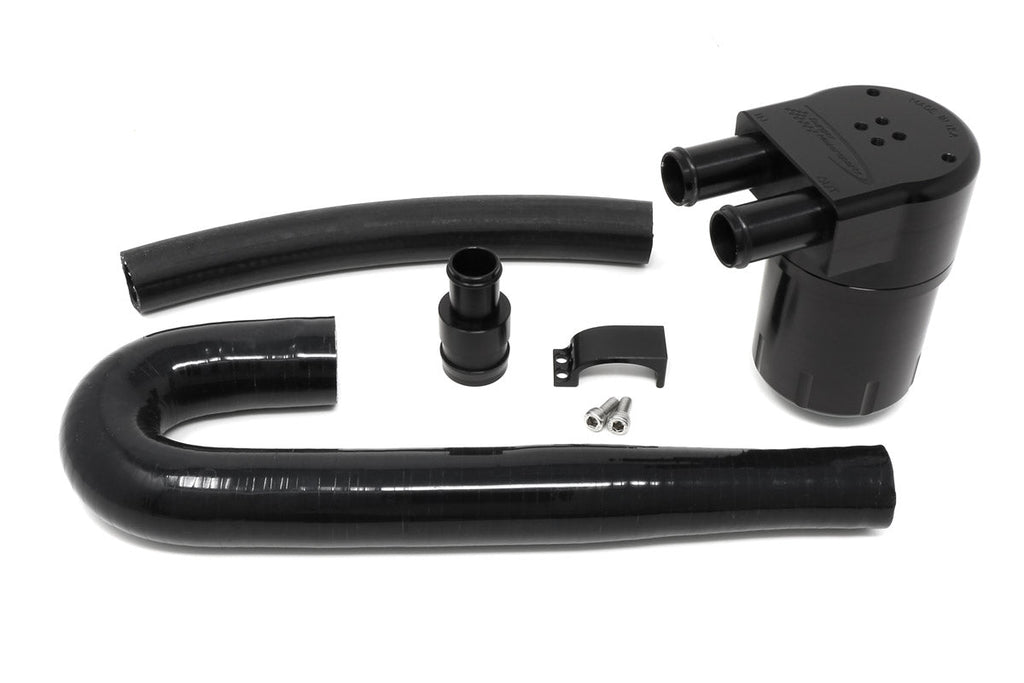

PARTS INCLUDED

  • (1) BMS N54 oil catch can
  • (1) Mounting bracket
  • (1) 13" length of heater hose
  • (1) 6" length of heater hose
  • (1) Gray plastic coupler
  • (1) Set of mounting hardware

Ships with all brackets, hoses and hardware needed for installation.

TECH RESOURCES

Additional Parts Required

  • No additional parts required – Burger states brackets, hoses and all required hardware are included.
  • Optional: BMS clear-view transparent catch can base (sold separately as an upgrade; not recommended where temps regularly reach 32°F / 0°C or below).

Installation

VEHICLE APPLICATIONS

N54 E60/E61 535i only.

Make Model Chassis Engine Years
BMW 535i Sedan E60 N54 3.0L Twin Turbo I6 2008–2010
BMW 535i xDrive Sedan E60 N54 3.0L Twin Turbo I6 2008–2010
BMW 535i Touring E61 N54 3.0L Twin Turbo I6 2008–2010
BMW 535i xDrive Touring E61 N54 3.0L Twin Turbo I6 2008–2010
