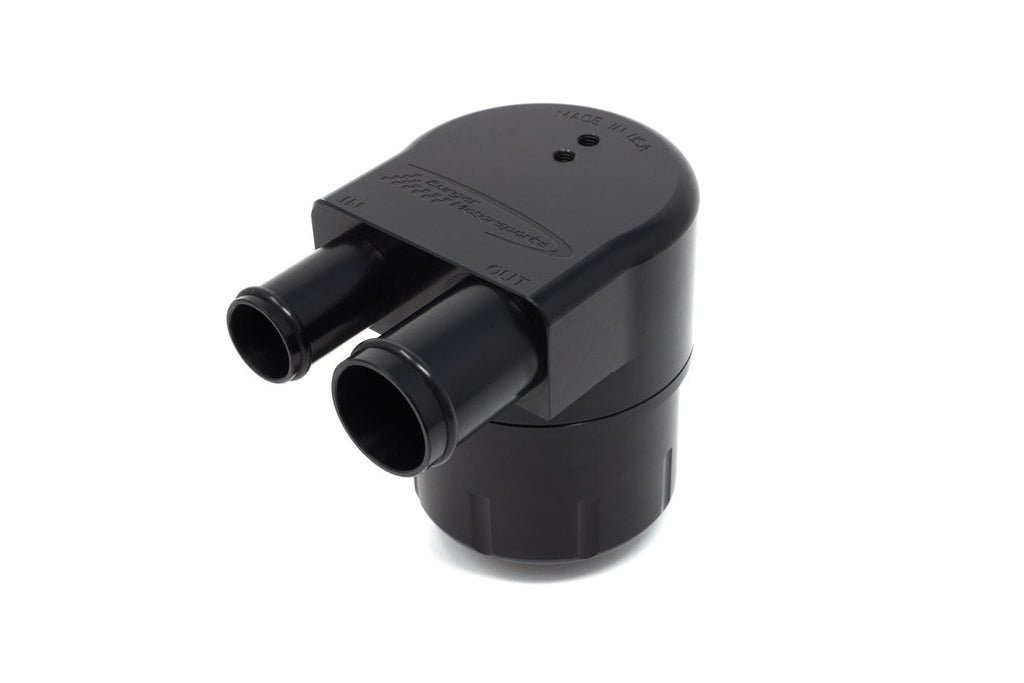

Burger Motorsports BMS Oil Catch Can – BMW M135i / 235i / 335i / 435i (F20, F21, F22, F30, F31, F32, F33, F36, N55)

OVERVIEW

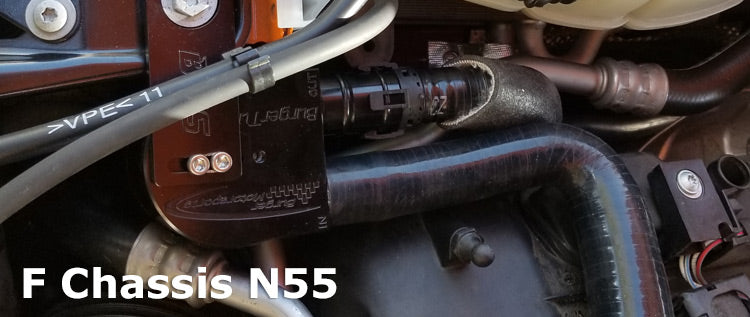

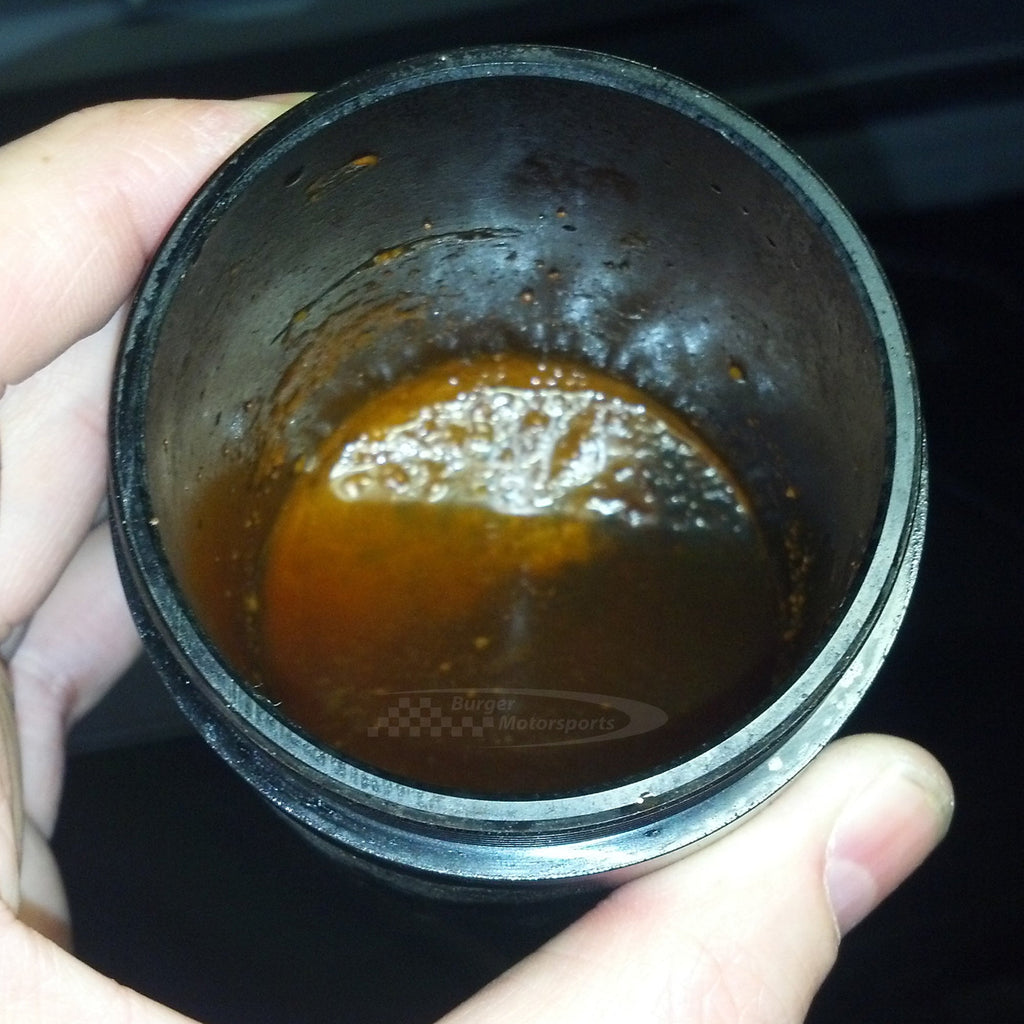

The F-chassis version of the BMS catch can is made for N55-powered 1, 2, 3 and 4 Series models. It captures the oil mist that the PCV system feeds back into the turbo inlet, keeping the intercooler, charge pipes and direct-injected intake valves cleaner and reducing oil exposure for the VANOS-equipped N55, while leaving the factory closed-loop PCV system intact.

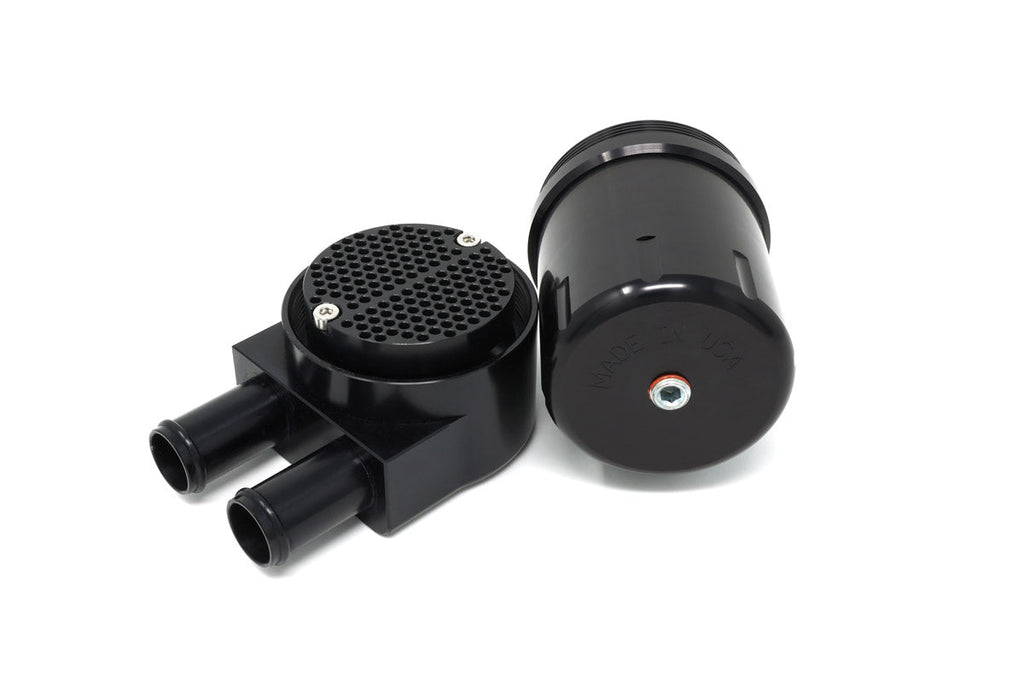

Like the rest of the BMS line it is CNC machined from aluminum, uses a triple-baffle separator and 16mm+ inlet and outlet ports, and needs no routine service beyond draining. Model-specific brackets are supplied – choose the 235i coupe, 235i convertible, or 335i/435i option – and Burger quotes about 20 minutes for installation with the included hardware. Collected oil drains through a plug so it can be disposed of with used engine oil.

SPECS

• Can height with lid: 4.4 in (111 mm)
• Can diameter: 2.5 in (63.7 mm)
• Lid length (back to nozzle end): 4.0 in (101 mm)
• Nozzle outer diameter: 0.75 in (19.2 mm)
• Nozzle inner diameter: 0.669 in (17 mm)
• Fluid capacity: up to 3.5 fl oz (103.5 mL)
• Inlet/outlet: 16mm+
• Separation: triple-baffle design
• Material: CNC-machined aluminum
• Drain: drain plug
• Bracket: rounded bracket (235i coupe/convertible) or S55-style bracket (335i/435i)
• Install time: approx. 20 minutes
• Made in USA; lifetime guarantee

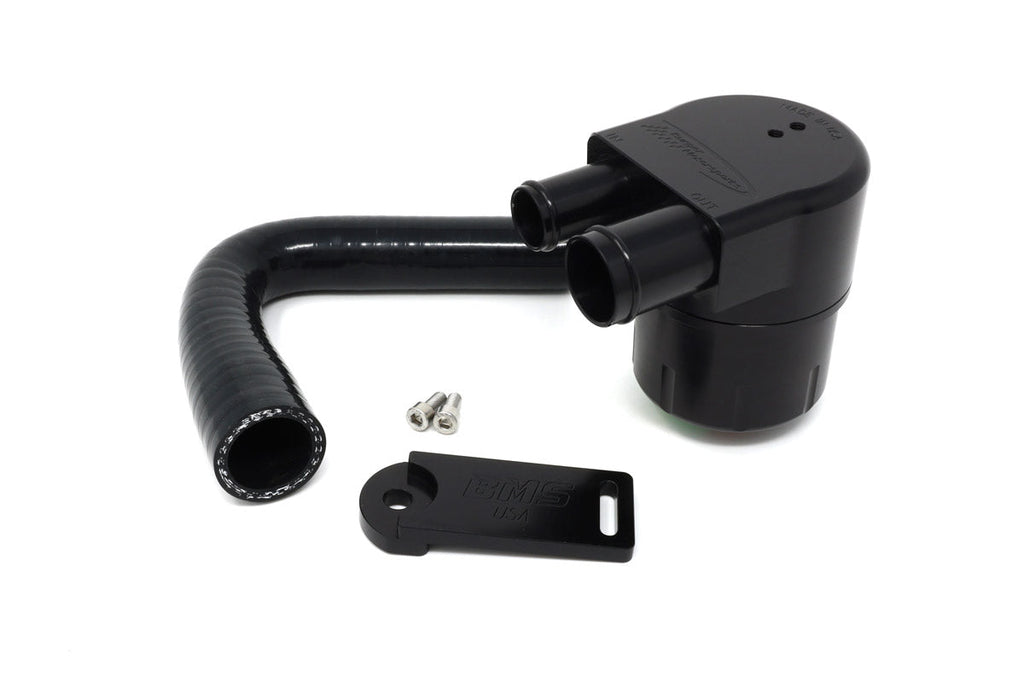

PARTS INCLUDED

• (1) BMS F-chassis N55 oil catch can
• (1) Model-specific mounting bracket (rounded for 235i, S55-style for 335i/435i)
• (1) Set of inlet/outlet hoses
• (1) Set of mounting hardware

Ships with all brackets, hoses and hardware needed for installation.

TECH RESOURCES

Additional Parts Required

• No additional parts required – Burger states all required installation hardware is included.
• Select the correct model option: 235i (coupe or convertible) kits ship with a rounded bracket; 335i/435i kits ship with the S55-style bracket.

Installation

• BMS F-Chassis N55 Oil Catch Can Installation Guide (PDF) (Burger Motorsports guide)

VEHICLE APPLICATIONS

N55 F-chassis only; does not fit the N55 M2. Select your model at checkout: 235i kits use a rounded bracket, 335i/435i kits use an S55-style bracket.
