Burger Motorsports BMS Oil Catch Can – BMW M140i / M240i / 340i / 440i (F20 / F21 / F22 / F23 / F30 / F32 / F33 / F36, Gen 1 B58)

OVERVIEW

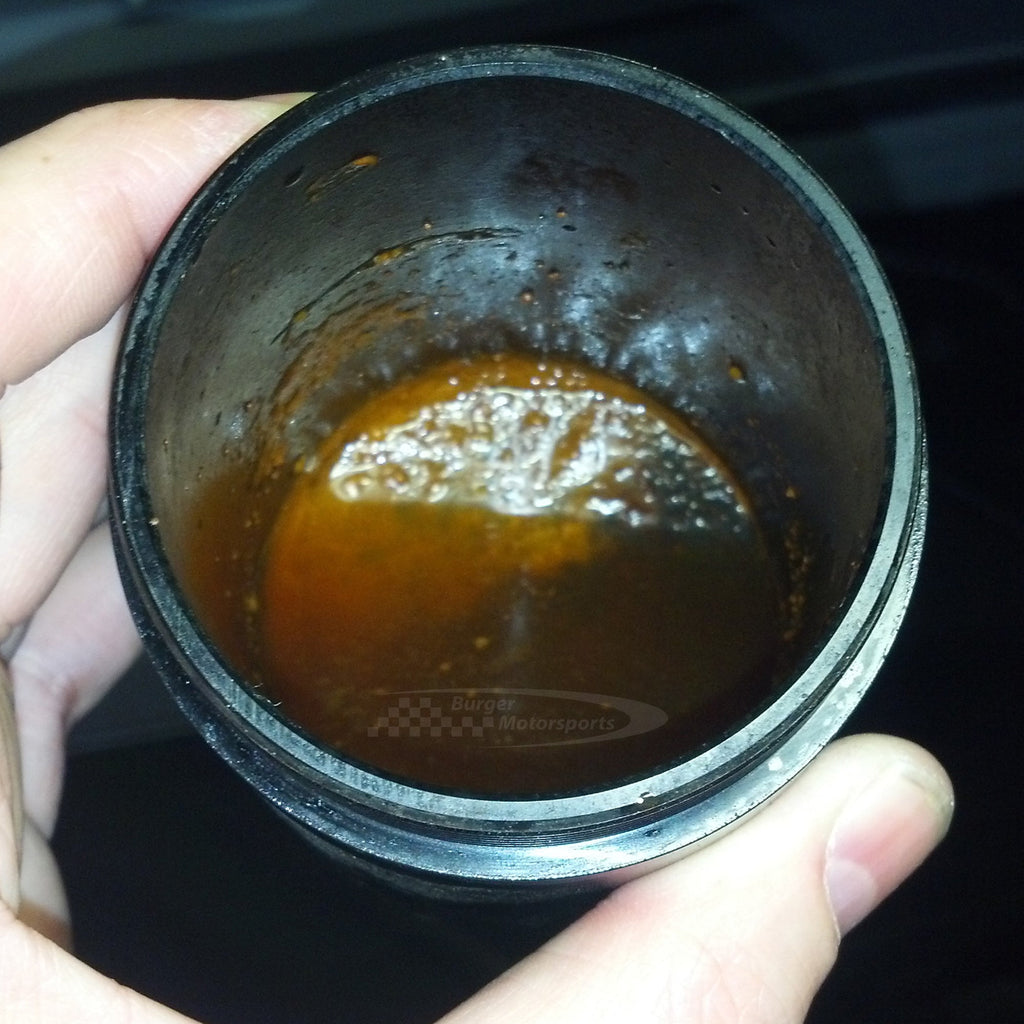

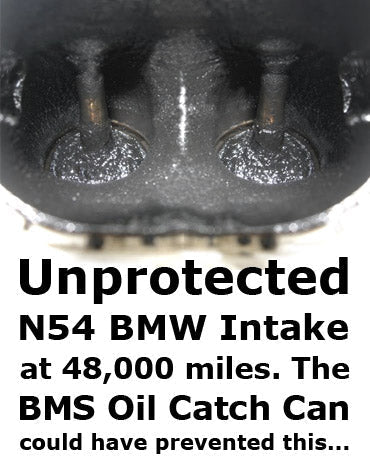

This BMS catch can is built for the first-generation B58 turbo six in F-chassis BMWs. It intercepts oil vapor, fuel and water that the crankcase ventilation system would otherwise feed into the intake, where it builds up as carbon on the valves and coats the turbo inlet.

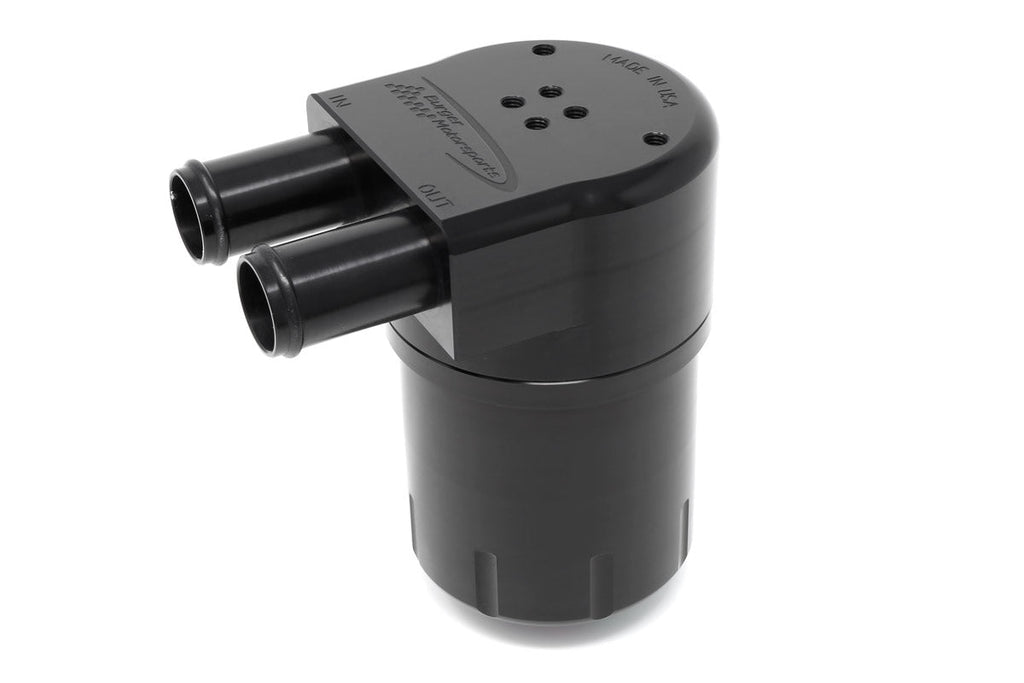

Machined from billet aluminum without welds and black anodized, the can uses three internal baffles and large 16 mm+ connections while keeping the factory closed-loop PCV routing intact. It is designed to mount alongside the BMS B58 intake, takes roughly 20 minutes to fit, and can be removed without leaving a trace.

SPECS

• Can height with lid: 4.4 in (111 mm)
• Can diameter: 2.5 in (63.7 mm)
• Lid length (back to nozzle end): 4 in (101 mm)
• Nozzle OD: 0.75 in (19.2 mm)
• Nozzle ID: 0.669 in (17 mm)
• Fluid capacity: up to 5.5 fl oz (162.6 mL)
• Inlet/outlet size: 16 mm+ (larger than OEM PCV passages)
• Material: CNC-machined billet aluminum, black anodized, no welds

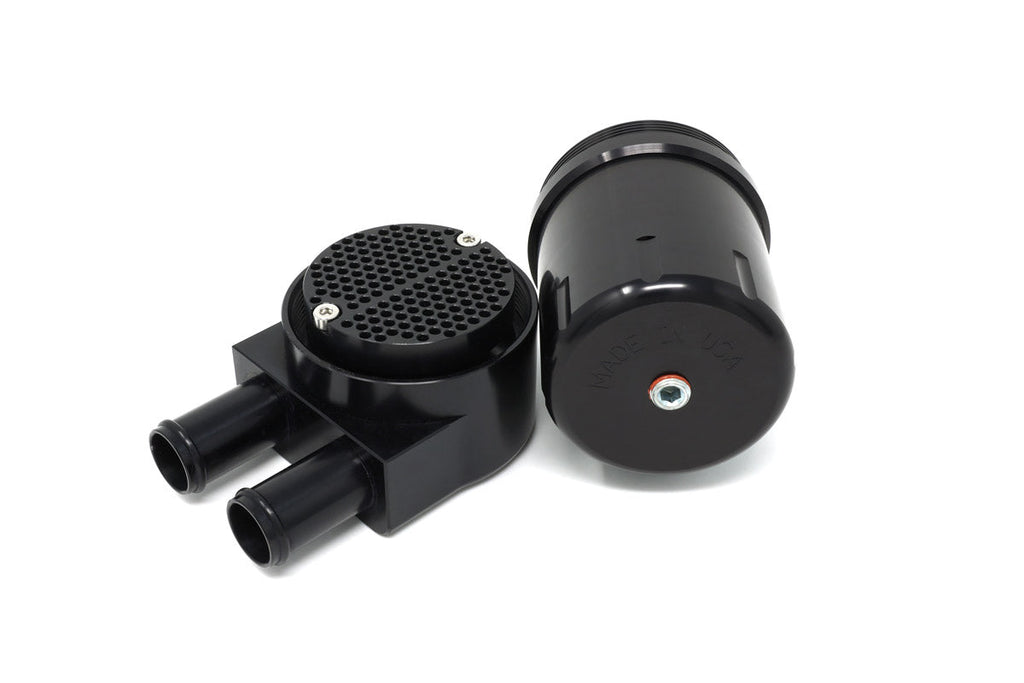

• Separation: triple-baffle internal design
• PCV: retains the factory closed-loop PCV system (no venting to atmosphere)
• Drain: unscrew the base or use the 1/8" NPT drain plug; empty every 3–6 months
• Made in the USA; lifetime guarantee from Burger Motorsports
• Install time: approx. 20 minutes, fully reversible
• Mounting: designed to mount with the BMS B58 intake
• Optional transparent can base lets you see fluid level at a glance; Burger advises against it where temperatures regularly reach 32°F (0°C) or lower.

PARTS INCLUDED

• (1) BMS B58 oil catch can (choice of billet aluminum or transparent base)
• (1) Mounting hardware and hoses required for installation

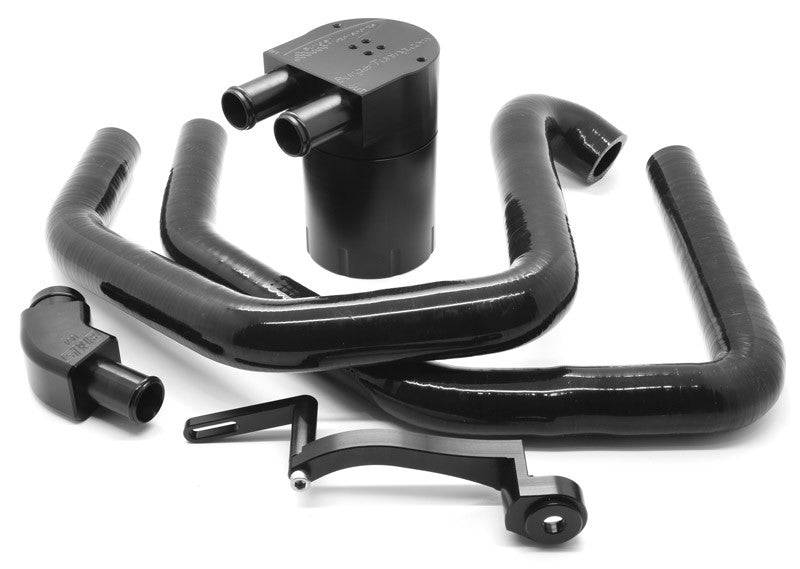

Ships with all brackets, hoses and hardware needed for installation.

TECH RESOURCES

Additional Parts Required

• Required: BMS B58 intake – Burger states the can mounts as pictured with the BMS intake (other aftermarket intakes may work with an alternate mounting location; contact Speed Logic to confirm fitment). Contact Speed Logic to order.
• Optional: BMS Clear View transparent oil catch can base (also selectable as a can base option on this listing).

Installation

• BMS F-Chassis B58 Oil Catch Can Installation Guide (PDF)
• BMS B58 Oil Catch Can – Install / Overview Video

VEHICLE APPLICATIONS

Gen 1 B58 F-chassis only. Mounts as pictured with the BMS B58 intake. The M140i was not sold in the US.
