Burger Motorsports BMS Oil Catch Can – BMW M2 Competition / M3 / M4 (F87 / F80 / F82 / F83, S55)

OVERVIEW

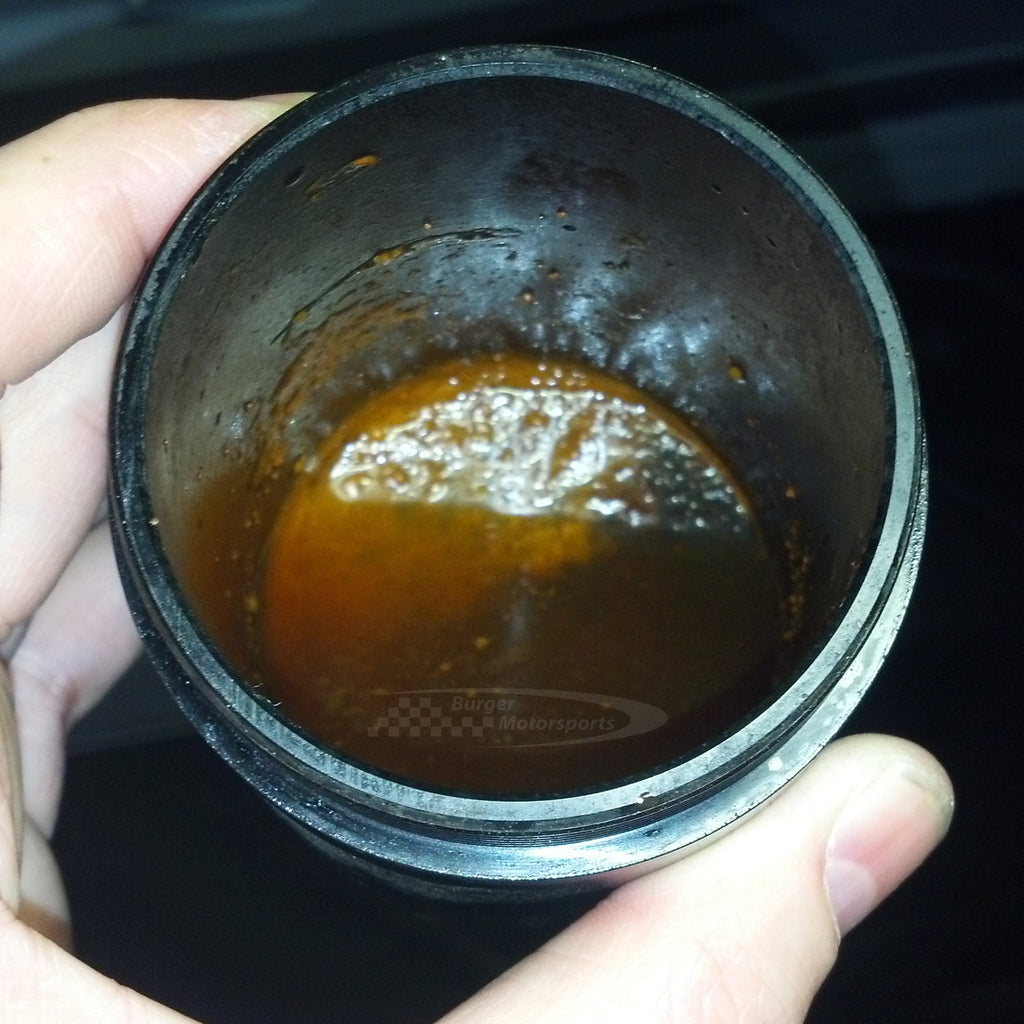

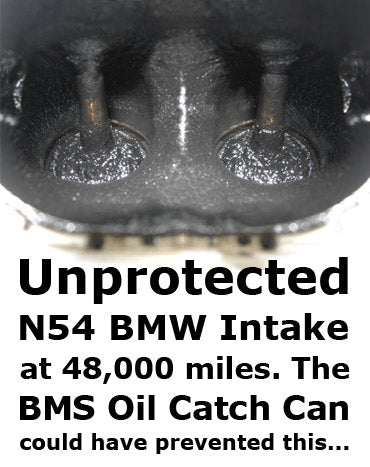

The BMS oil catch can for the S55 twin-turbo engine traps the oil mist, fuel and moisture carried through the crankcase ventilation system before it can reach the turbos and intake tract. Over time that vapor bakes onto intake valves and coats the charge path, so stopping it at the source helps keep the engine clean and makes tuned power more consistent.

The can is machined from a solid aluminum billet with no welded seams and finished in black anodizing. A triple-baffle core separates contaminants, oversized 16 mm+ fittings avoid restricting flow, and the factory closed-loop PCV layout is retained. Install runs roughly 20 minutes, is fully reversible, and servicing is a matter of draining the base every few months.

SPECS

• Can height with lid: 4.4 in (111 mm)
• Can diameter: 2.5 in (63.7 mm)
• Lid length (back to nozzle end): 4 in (101 mm)
• Nozzle OD: 0.75 in (19.2 mm)
• Nozzle ID: 0.669 in (17 mm)
• Fluid capacity: up to 5.5 fl oz (162.6 mL)
• Inlet/outlet size: 16 mm+ (larger than OEM PCV passages)
• Material: CNC-machined billet aluminum, black anodized, no welds

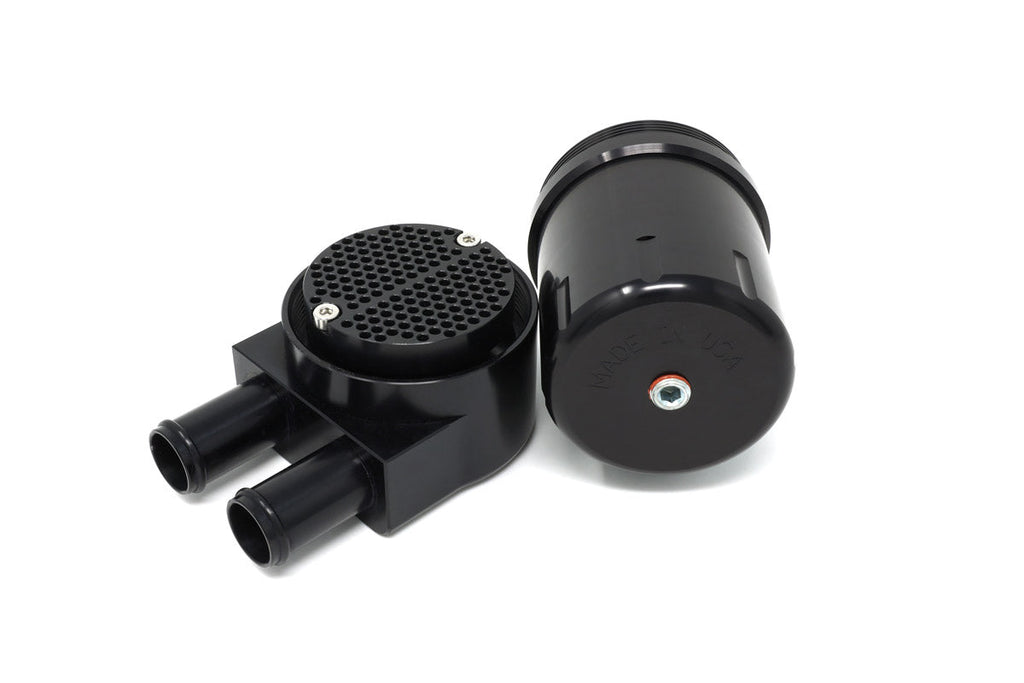

• Separation: triple-baffle internal design
• PCV: retains the factory closed-loop PCV system (no venting to atmosphere)
• Drain: unscrew the base or use the 1/8" NPT drain plug; empty every 3–6 months
• Made in the USA; lifetime guarantee from Burger Motorsports

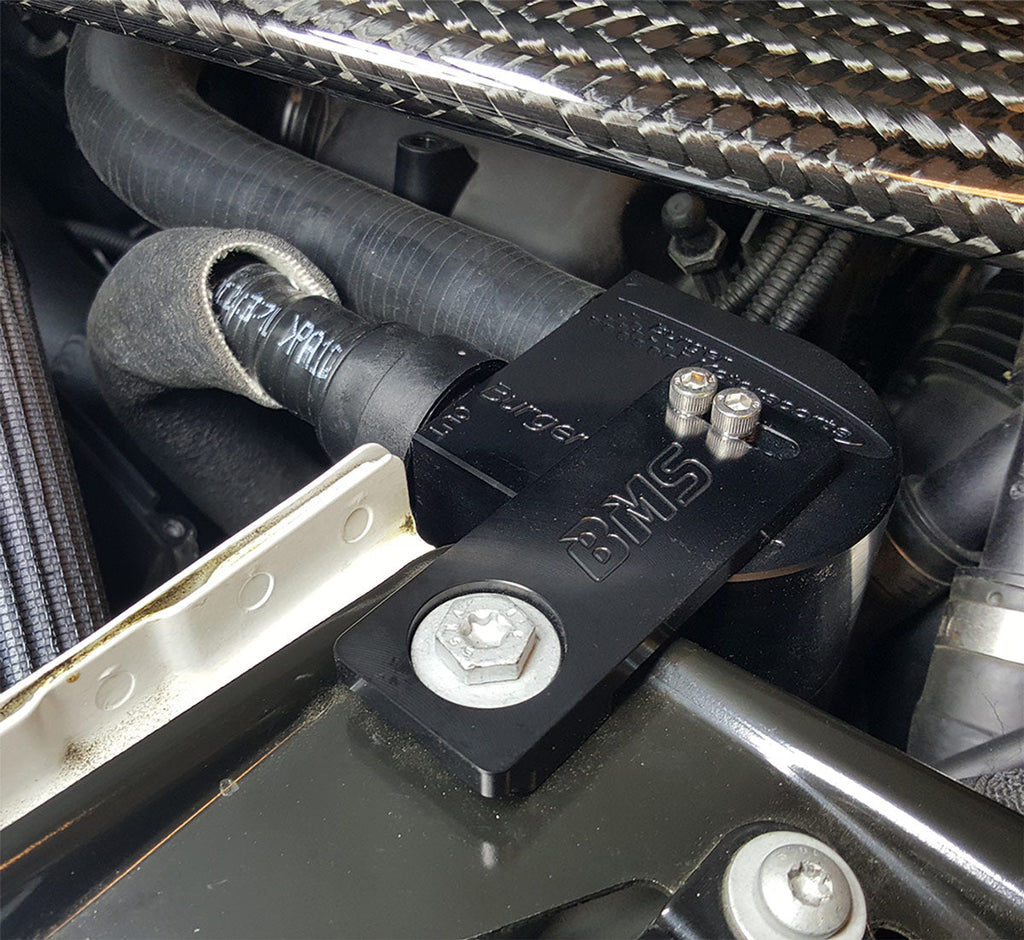

• Install time: approx. 20 minutes, fully reversible
• Optional transparent can base lets you see fluid level at a glance; Burger advises against it where temperatures regularly reach 32°F (0°C) or lower.

PARTS INCLUDED

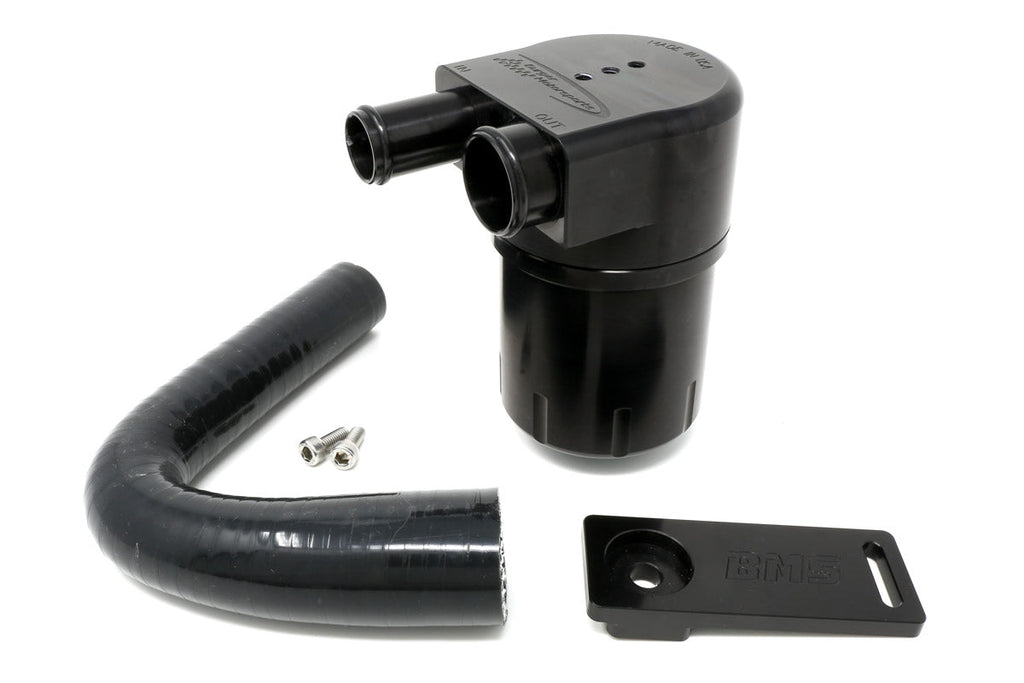

• (1) BMS S55 oil catch can (choice of billet aluminum or transparent base)
• (1) Mounting hardware and hoses required for installation

Ships with all brackets, hoses and hardware needed for installation.

TECH RESOURCES

Additional Parts Required

• Required: none – Burger states all hardware needed for install is included.
• Optional: BMS Clear View transparent oil catch can base (also selectable as a can base option on this listing).

Installation

• BMS S55 Oil Catch Can Installation Guide (PDF)

VEHICLE APPLICATIONS

S55 only; does not fit the N55-powered F87 M2 (non-Competition).
