OVERVIEW
This BMS catch can is made for the Gen 2 B58 in the G05 X5 and G06 X6. It pulls oil, fuel, condensation and sludge out of the crankcase ventilation stream so those contaminants do not end up coating the intake, valves and VANOS components.

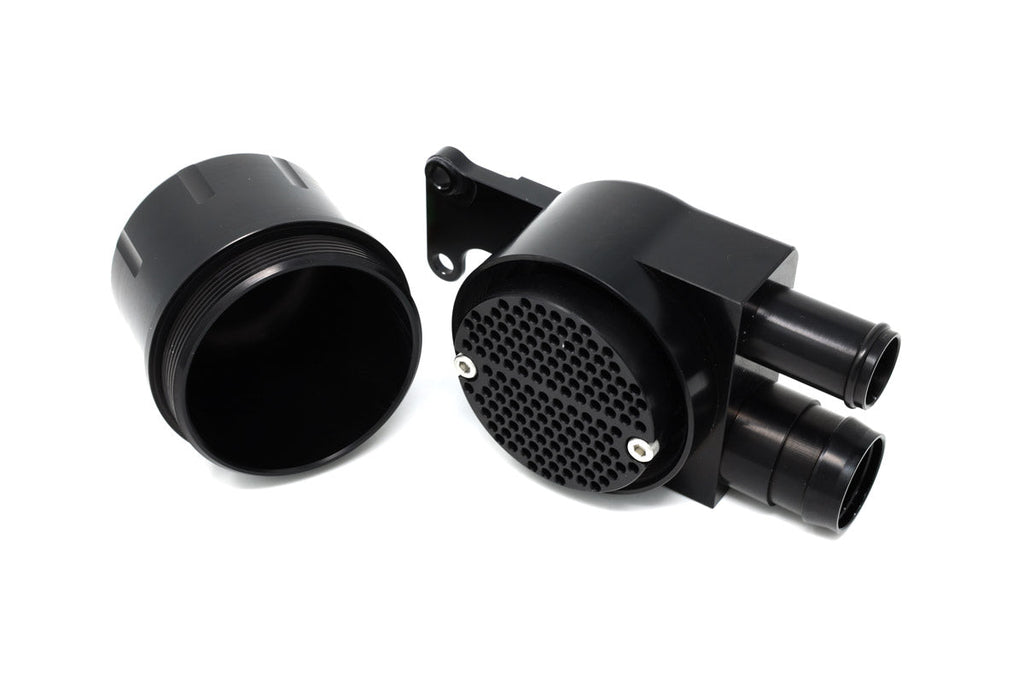

It is CNC-machined from billet aluminum, anodized black and built in the USA, with triple baffles, 16 mm+ connections and full retention of the factory closed-loop PCV system. A two-piece billet bracket and dedicated hose are included, installation takes about 10 minutes and is reversible, and it works with either the factory intake or the BMS billet intake once the BMS silicone intake hose is fitted.
SPECS
- Can height with lid: 4.4 in (111 mm)
- Can diameter: 2.5 in (63.7 mm)
- Lid length (back to nozzle end): 4 in (101 mm)
- Nozzle OD: 0.75 in (19.2 mm)
- Nozzle ID: 0.669 in (17 mm)
- Fluid capacity: up to 5.5 fl oz (162.6 mL)
- Inlet/outlet size: 16 mm+ (larger than OEM PCV passages)
- Material: CNC-machined billet aluminum, black anodized, no welds
- Separation: triple-baffle internal design
- PCV: retains the factory closed-loop PCV system (no venting to atmosphere)
- Drain: unscrew the base or use the 1/8" NPT drain plug; empty every 3–6 months
- Made in the USA; lifetime guarantee from Burger Motorsports
- Install time: approx. 10 minutes, fully reversible
- Mounting: two-piece billet bracket
- Optional transparent can base lets you see fluid level at a glance; Burger advises against it where temperatures regularly reach 32°F (0°C) or lower.

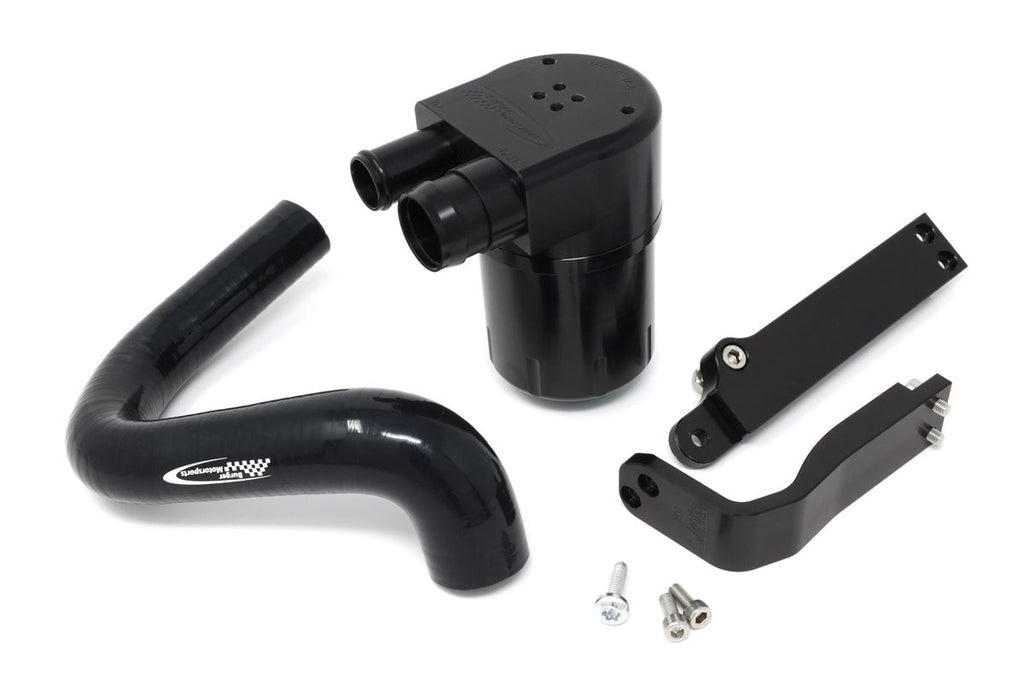

PARTS INCLUDED
- (1) BMS oil catch can (choice of billet aluminum or transparent base)
- (1) Two-piece billet mounting bracket with hardware
- (1) B58-X5-OCC silicone hose
- (2) M5 x 0.8 x 12 mm screws

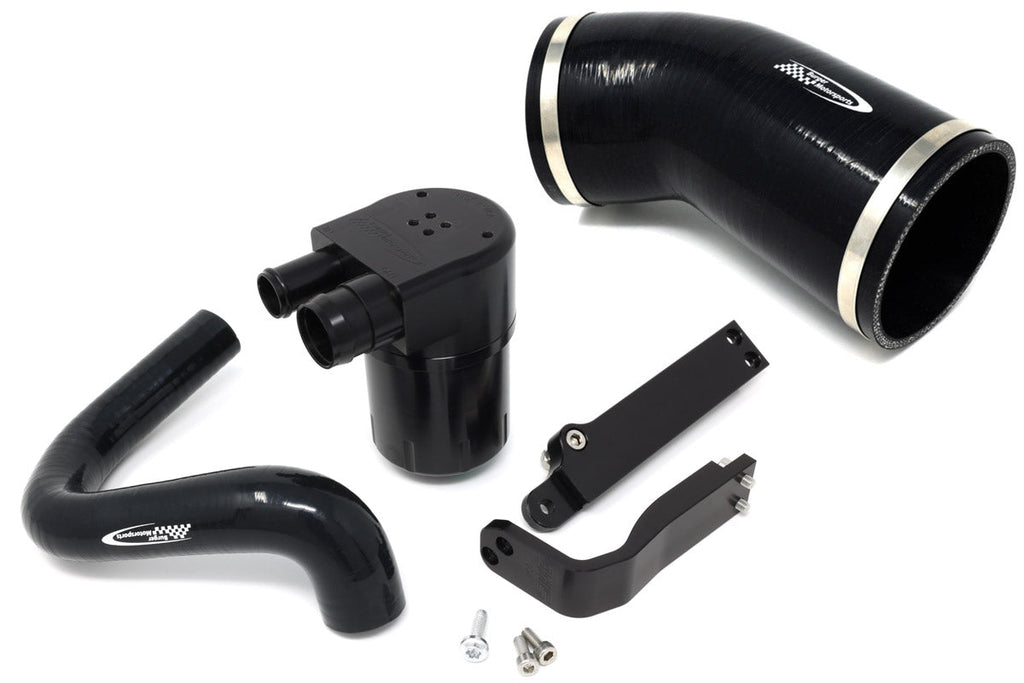

The BMS silicone intake hose is included only when you choose the "Include the required silicone intake hose" option.
TECH RESOURCES
Additional Parts Required
- Required: BMS silicone intake pipe hose upgrade for B58 BMW G3x/G1x/G0x. Select "Include the required silicone intake hose" on this listing, or skip it if your car already has one.

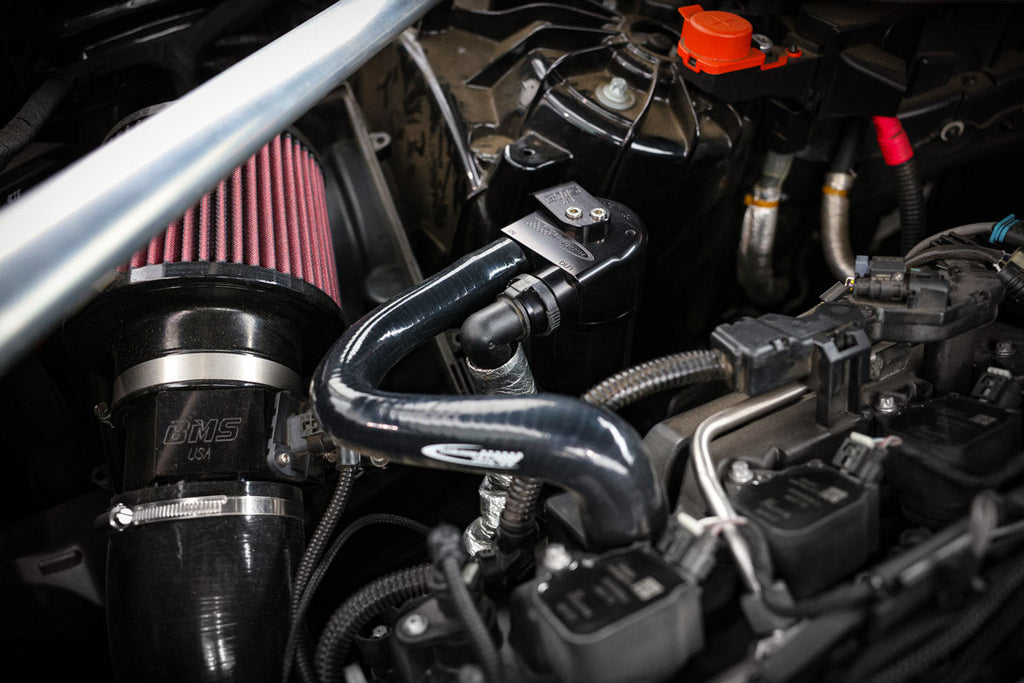

- Compatible intake: works with the OEM intake or the BMS Billet Intake for G05 X5 / G06 X6 (intake itself not required).
- Optional: BMS Clear View transparent oil catch can base (also selectable as a can base option on this listing).
Installation
VEHICLE APPLICATIONS
Gen 2 B58 only.
| Make | Model | Chassis | Engine | Years |
|---|---|---|---|---|
| BMW | X5 sDrive40i | G05 | B58 3.0L Turbo I6 (Gen 2) | 2019–2023 |
| BMW | X5 xDrive40i | G05 | B58 3.0L Turbo I6 (Gen 2) | 2019–2023 |
| BMW | X5 xDrive45e | G05 | B58 3.0L Turbo I6 Plug-in Hybrid (Gen 2) | 2021+ |
| BMW | X6 xDrive40i | G06 | B58 3.0L Turbo I6 (Gen 2) | 2020+ |
