Burger Motorsports BMS Silicone Intake Pipe Hose Upgrade – BMW M140i, M240i, 340i, 440i (F20/F21, F22/F23, F30/F31/F34, F32/F33/F36, B58)

OVERVIEW

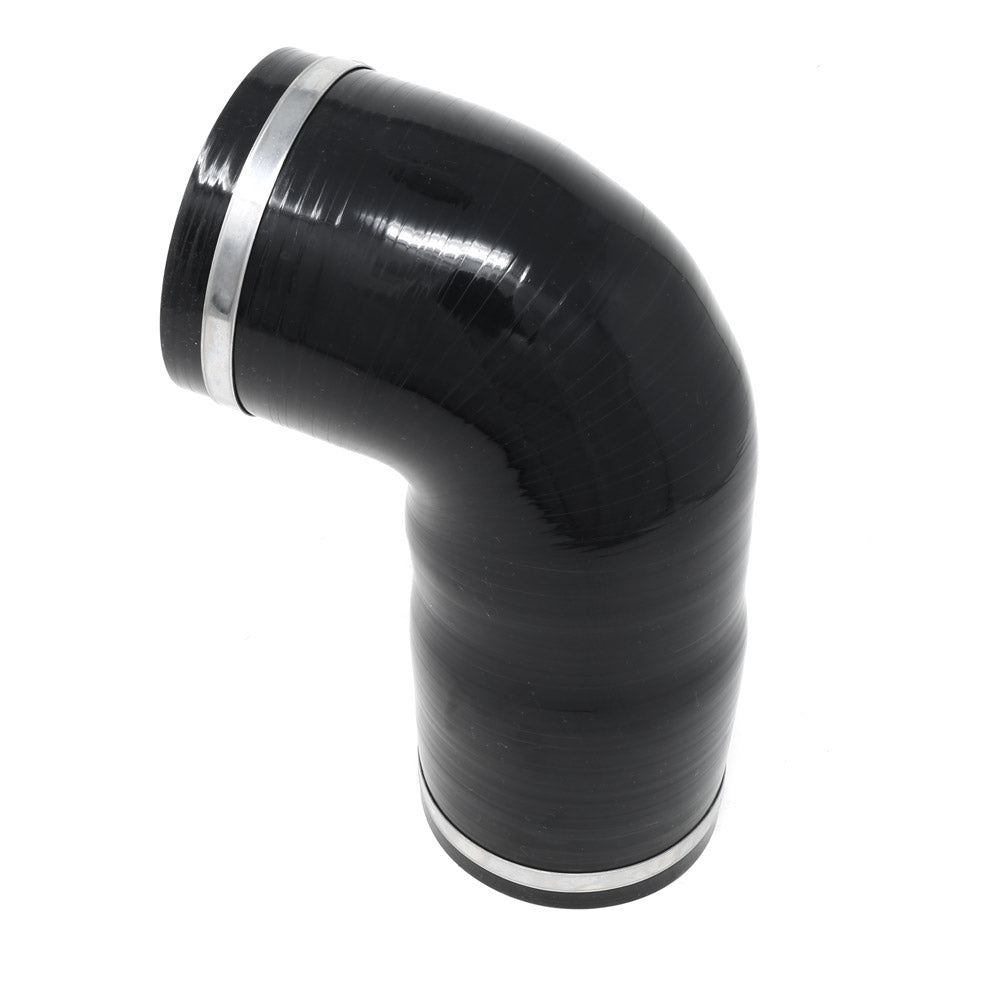

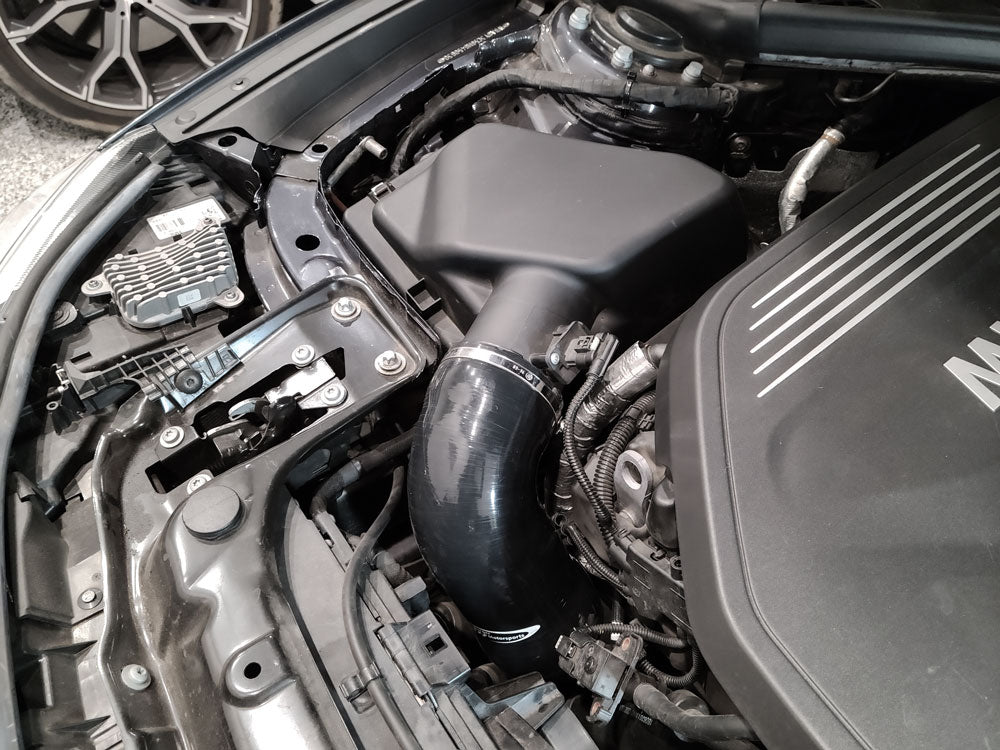

Built for F-chassis BMWs with the B58 engine, this BMS silicone intake pipe takes the place of the stock inlet tube. Both the upper sound resonator and the lower accordion-style tube are eliminated, so air reaches the turbo inlet with less turbulence and restriction.

Beyond the airflow benefit, the hose brings out more intake and turbo sound and cleans up the engine bay. It pairs with the factory B58 intake, the BMS F-chassis B58 billet intake, and most aftermarket intake systems.

SPECS

• Material: silicone
• Replaces the factory intake inlet pipe to the turbo inlet
• Removes the upper factory sound resonator
• Removes the lower factory accordion section
• Clamps: (2) 90–110mm hose clamps
• Compatible with the factory B58 intake, BMS F-chassis B58 Billet Intake and most aftermarket intakes

PARTS INCLUDED

• (1) Silicone intake tube
• (2) 90–110mm hose clamps

TECH RESOURCES

Additional Parts Required

• Optional: BMS B58 Billet Intake for F-chassis BMW M140i / M240i / 340i / 440i

Installation

• Burger Motorsports does not publish an install guide for this part. Contact Speed Logic for install support or in-house installation.

VEHICLE APPLICATIONS

F-chassis B58 BMW only. Not for G-chassis models.
